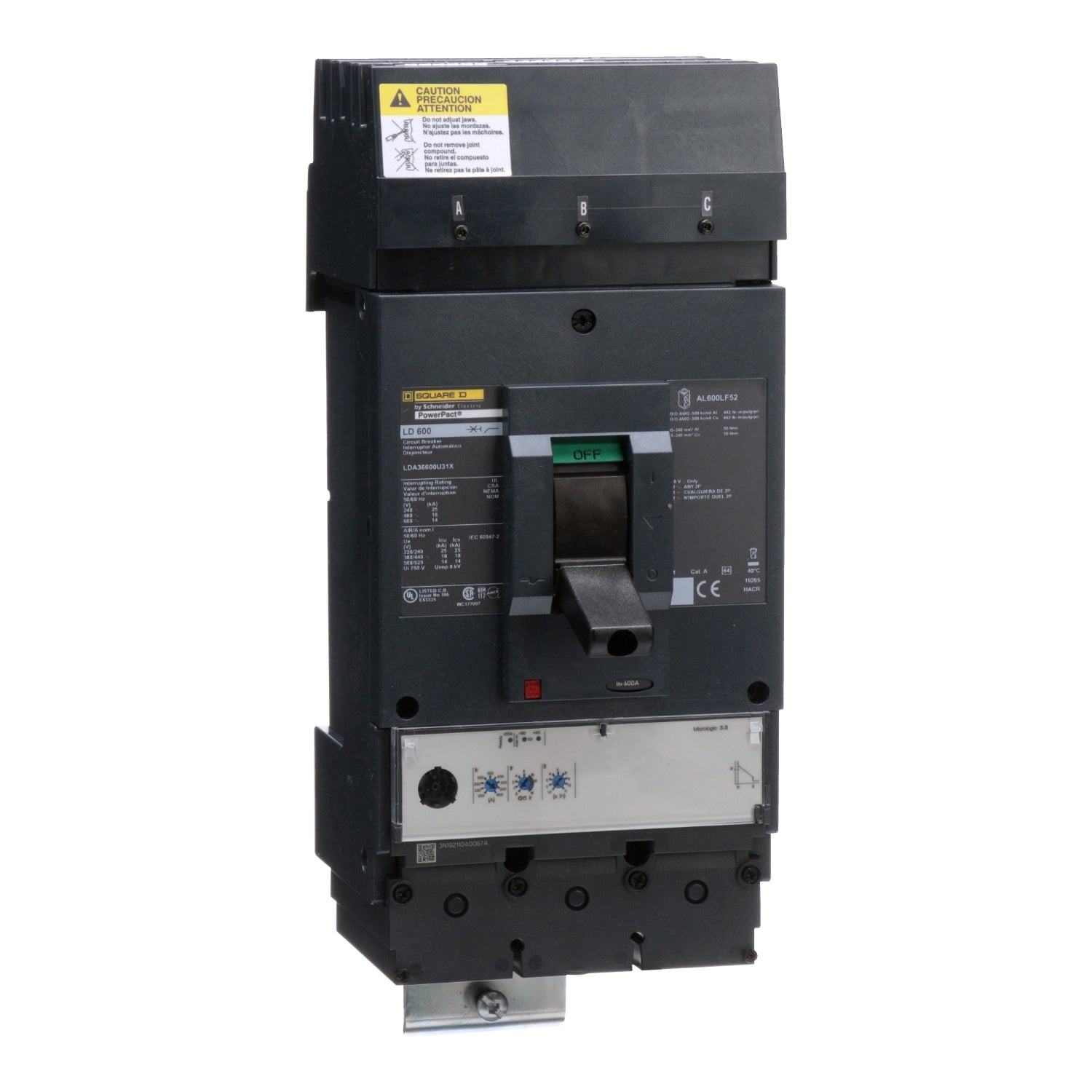

LDA36600U31X | Schneider Electric PowerPacT L Molded Case Circuit Breaker 600A 3-Pole 600VAC I-Line
- Regular price
- $3,835.00
- Sale price
- $3,835.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LDA36600U31X
Description
The Schneider Electric LDA36600U31X is a PowerPacT L-Frame molded case circuit breaker designed for high-capacity three-phase power distribution systems. This Schneider Electric part number LDA36600U31X is rated at 600 amperes, operates at 600 VAC, and features a three-pole configuration with I-Line mounting.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | LDA36600U31X |
| Subcategory | Molded Case Circuit Breaker |
| Series / Family | PowerPacT L |
| Type | LDA |
| Current Rating | 600 A |
| Voltage Rating | 600 VAC |
| Number of Poles | 3 |
| Phase | 3 Phase |
| Protection Type | Solid State |
| Trip Unit | MicroLogic 3.3 |
| Trip Functions | Long-Time and Instantaneous (LI) |
| Continuous Current Rating | 80% |
| Interrupting Capacity | 18 kA at 480 V |
| Connection Type | I-Line Style Plug-In |
| Phase Connection | ABC |
Information About LDA36600U31X
The LDA36600U31X is a molded case circuit breaker from the Schneider Electric PowerPacT L-Frame series, engineered for demanding industrial and commercial power distribution environments. It utilizes a MicroLogic 3.3 electronic trip unit that delivers precise long-time and instantaneous protection through solid-state technology. The breaker is designed with an I-Line style plug-in connection, allowing efficient installation and removal in compatible panelboards and switchgear. It is commonly used in high-current feeder and main distribution applications where electronic trip accuracy and system coordination are required.
Key Features
- PowerPacT L-Frame construction: Designed within Schneider Electric’s PowerPacT platform for high-capacity power distribution systems.
- MicroLogic 3.3 electronic trip unit: Provides solid-state long-time and instantaneous protection with consistent accuracy.
- 600 ampere current rating: Supports large feeder and main distribution circuits.
- Three-pole configuration: Ensures coordinated protection across all phases in three-phase systems.
- I-Line plug-in mounting: Enables fast installation and secure connection in I-Line panelboard applications.
- Solid-state protection technology: Enhances reliability and repeatability of trip performance.
- Dual-break rotating contact design: Reduces peak let-through current during short-circuit events.
The LDA36600U31X delivers the reliability and precision required for protecting high-current three-phase electrical systems in commercial and industrial power distribution installations.
