Part #: LDL36400U31X Manufactured by: Schneider Electric
Regular price
$2,099.00
Sale price
$2,099.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The LDL36400U31X is a robust 3-pole circuit breaker from the PowerPacT L-Frame series, designed to provide comprehensive p...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: LDL36400U31X
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: LDL36400U31X

Description / Specifications

Description

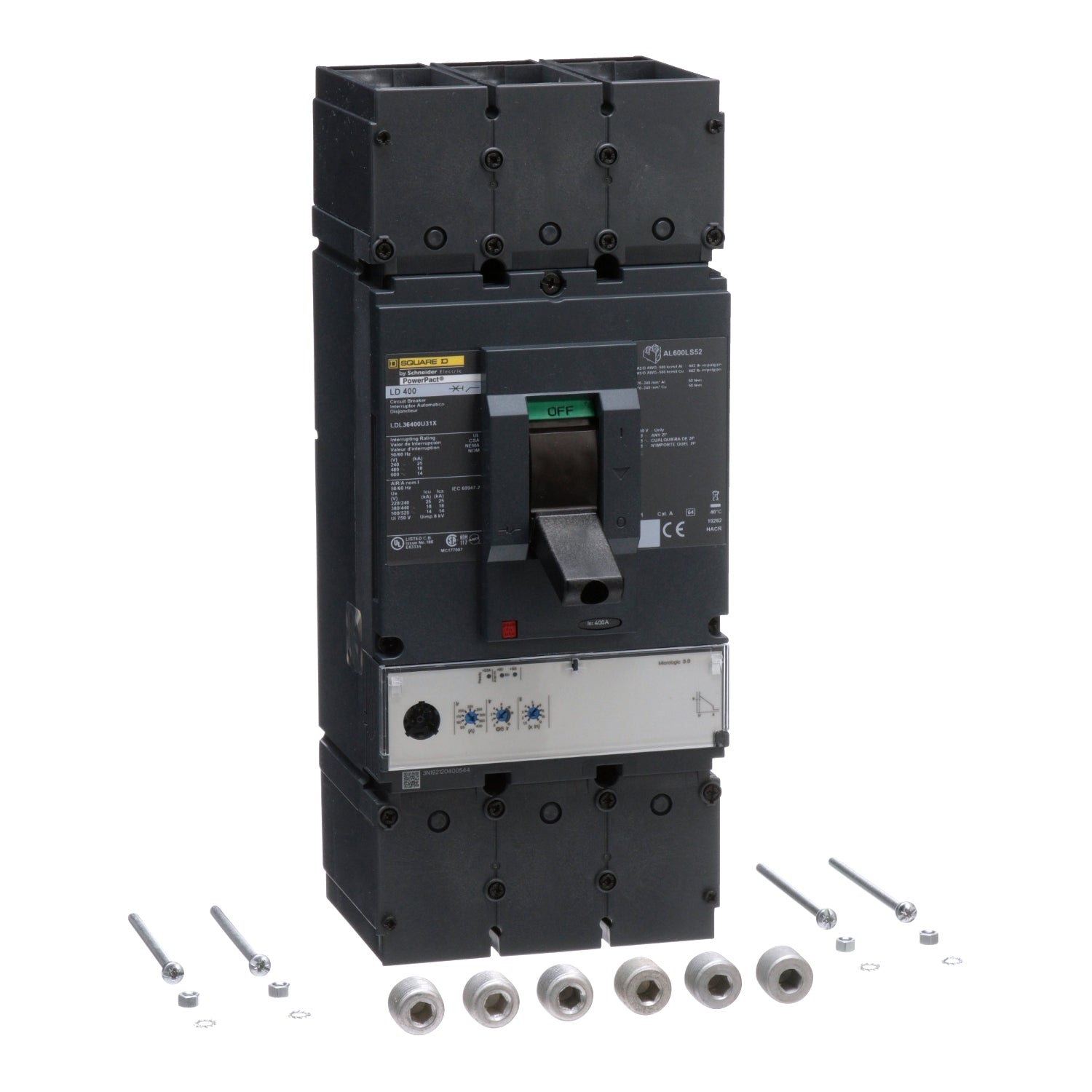

The LDL36400U31X is a 3-pole, 400A circuit breaker from the PowerPacT L-Frame series, designed to safeguard electrical systems against overloads and short circuits. Equipped with an electronic trip unit, it features dual-break rotating contacts to mitigate peak currents during short circuit faults. An integral push-to-trip button allows for manual operation of the circuit breaker. Available in configurations including unit mount, I-Line, and drawout, the PowerPacT L-Frame series supports diverse installation needs.

Technical Specifications

Part #

LDL36400U31X

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Range

PowerPact

Product name

PowerPact L

Device short name

L-Frame

Product or Component Type

Circuit breaker

Device Application

Distribution Line

Rated Current

400 A

Number of Poles

3P

Control Type

Toggle

Breaking capacity code

D

[Ue] rated operational voltage

600 V AC 50/60 Hz

Network Frequency

50/60 Hz

[Uimp] rated impulse withstand voltage

8 kV

Trip unit technology

Electronic, standard, MicroLogic 3.3, LI

Continuous current rating

80 %

[Ui] rated insulation voltage

750 V

Trip unit name

MicroLogic 3.3

Suitability for isolation

Yes

Utilisation category

Category A

AWG gauge

2 x AWG 2/0...500 kcmil aluminium/copper

Mounting mode

Unit mount lug

Mounting Support

Lug

Terminal identifier

AL600LS52K3

Long time pick-up adjustment range

0.25...1 x In

Tightening torque

442.54 lbf.in (50 N.m)

Wire Strip Length

0.11…0.37 in² (70…240 mm²) (AWG 2/0...500 kcmil)

Color

Black

Height

13.39 in (340 mm)

Width

5.51 in (140 mm)

Depth

4.33 in (110 mm)

Net Weight

13.67 lb(US) (6.2 kg)





Information About LDL36400U31X

The LDL36400U31X circuit breaker, part of the PowerPacT L-Frame series, is engineered to safeguard electrical systems against overloads and short circuits. Featuring electronic trip units, these circuit breakers incorporate dual-break rotating contacts that effectively reduce peak current during short circuit events. An integral push-to-trip button on the cover allows for manual operation to trip the breaker as needed.

Available in configurations for 3 and 4-pole unit mount, I-Line, and drawout installations, the PowerPacT L circuit breakers offer versatile deployment options tailored to diverse electrical setups. Specifically, the LDL36400U31X is a 3-pole unit capable of handling up to 400A of current. It boasts an interrupting rating of 14kA at 600VAC, ensuring robust protection under varying load conditions.

Equipped with a MicroLogic Standard trip unit featuring a 3.3 version and LI function, this breaker accommodates lugs on both the line and load sides, facilitating secure electrical connections. With a continuous current rating of 80%, the LDL36400U31X adheres to stringent safety standards including UL, CSA, NOM, and IEC, and bears the CE mark, signifying compliance with European regulations.
