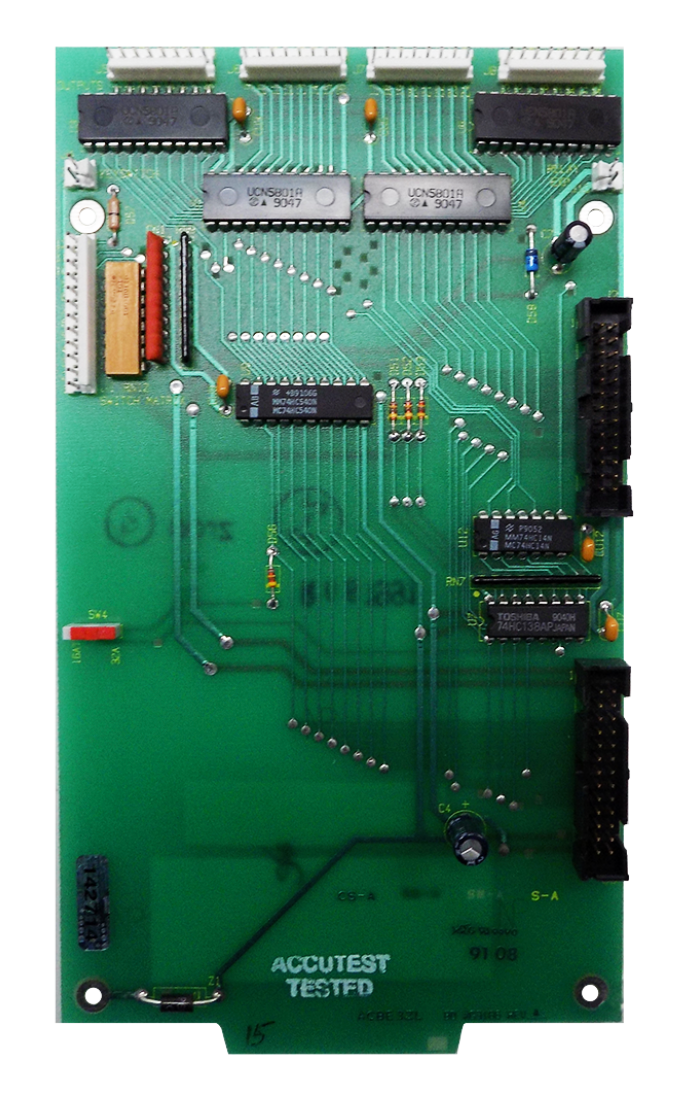

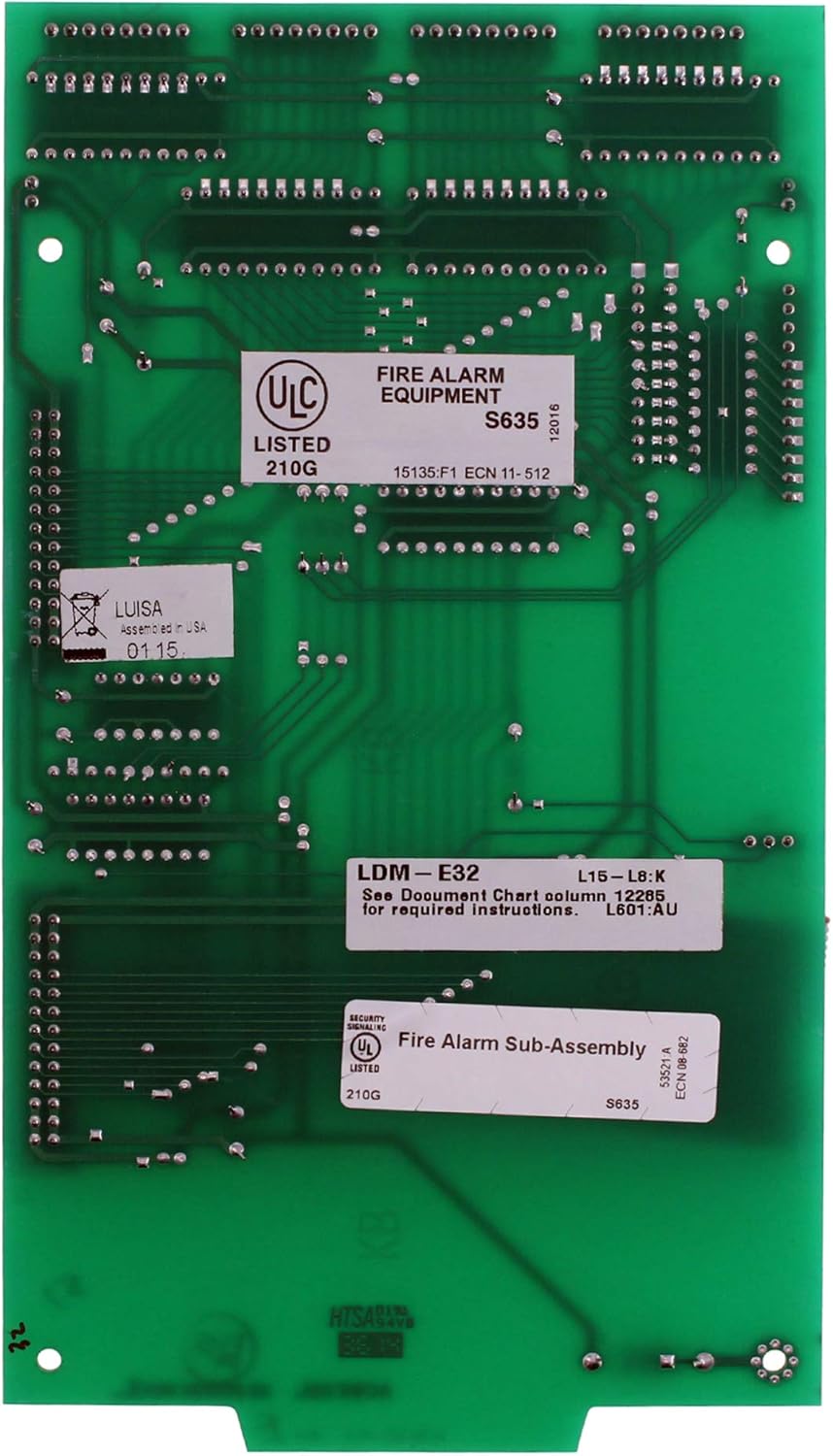

LDM-E32 | Notifier Lamp Driver Module, 32 Alarm/Control Drivers, Compatible with LDM-32
- Regular price
- $568.00
- Sale price
- $568.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LDM-E32
Description
The Notifier LDM-E32 Lamp Driver Module provides expanded alarm and trouble annunciation for fire alarm systems. Designed for flexibility, it supports 32 alarm drivers or a combination of alarm, trouble, and switch inputs. The LDM-E32 enhances system monitoring and control while maintaining compatibility with Notifier LDM-32 configurations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Notifier |
| Category | Fire Alarm Equipment |
| Part Number | LDM-E32 |
| Subcategory | Driver Modules |
| Manufacturer | Honeywell |
| Series | LDM Series |
| Type | Option Card |
| Style | Driver Module |
| Compatibility | NFS-320, NFS2-640 |
| Inputs/Outputs | 32 alarm drivers OR 16 alarm, 16 trouble, 16 switch inputs |
| Operating Voltage | 24 VDC (panel supply or remote power supply) |
| Interface | Serial EIA-485 |
| Controls | Remote control switch per point; silence/acknowledge switch connection |
| Indicators | Power LED, system trouble lamp/LED, per-point alarm/trouble indication |
| Sounder | Local sounder for alarm/circuit-on and trouble conditions |
| Power Conversion | Switch-mode design for reduced power consumption |
| Approvals | UL, ULC, FM, CSFM, FDNY, MEA, BSA, City of Chicago, City of Denver |
| Dimensions | 10.00 × 8.50 × 3.50 in |
| Unit of Measure | Each (EA) |
| Production Status | Discontinued |
| Weight | 1 lb |
Information About LDM-E32
The LDM-E32 is part of Notifier’s LDM Series of lamp driver modules, designed to provide reliable status indication and control. It supports both alarm-only and mixed alarm/trouble/switch configurations depending on system requirements. The module integrates seamlessly with NFS-320 and NFS2-640 fire alarm control panels through a ribbon cable connection to an LDM-32. Featuring supervised microprocessor-controlled electronics, multiple listings and approvals, and flexible power options, the LDM-E32 ensures dependable operation in demanding fire protection environments.
Key Features:
- Configurable Inputs/Outputs: Supports 32 alarm drivers or a combination of 16 alarm, 16 trouble, and 16 switch inputs.
- Compatibility: Designed for use with LDM-32, NFS-320, and NFS2-640 fire alarm systems.
- Flexible Operation: One LDM-E32 per LDM-32 in alarm-only mode, or up to three in alarm/trouble mode.
- Status Indication: Provides per-point alarm, trouble, and circuit-on lamp/LED options with resound capability.
- Control Options: Includes per-point control switch functionality for remote system management.
- Power Options: Operates from 24 VDC panel supply or remote power supply with efficient switch-mode conversion.
- Ease of Installation: Features plug-in terminal blocks and includes a ribbon cable for interconnection.
- Regulatory Approvals: UL, ULC, FM, CSFM, FDNY, MEA, and additional local authority listings.
The LDM-E32 delivers the reliability and precision required for fire alarm system annunciation and control.
