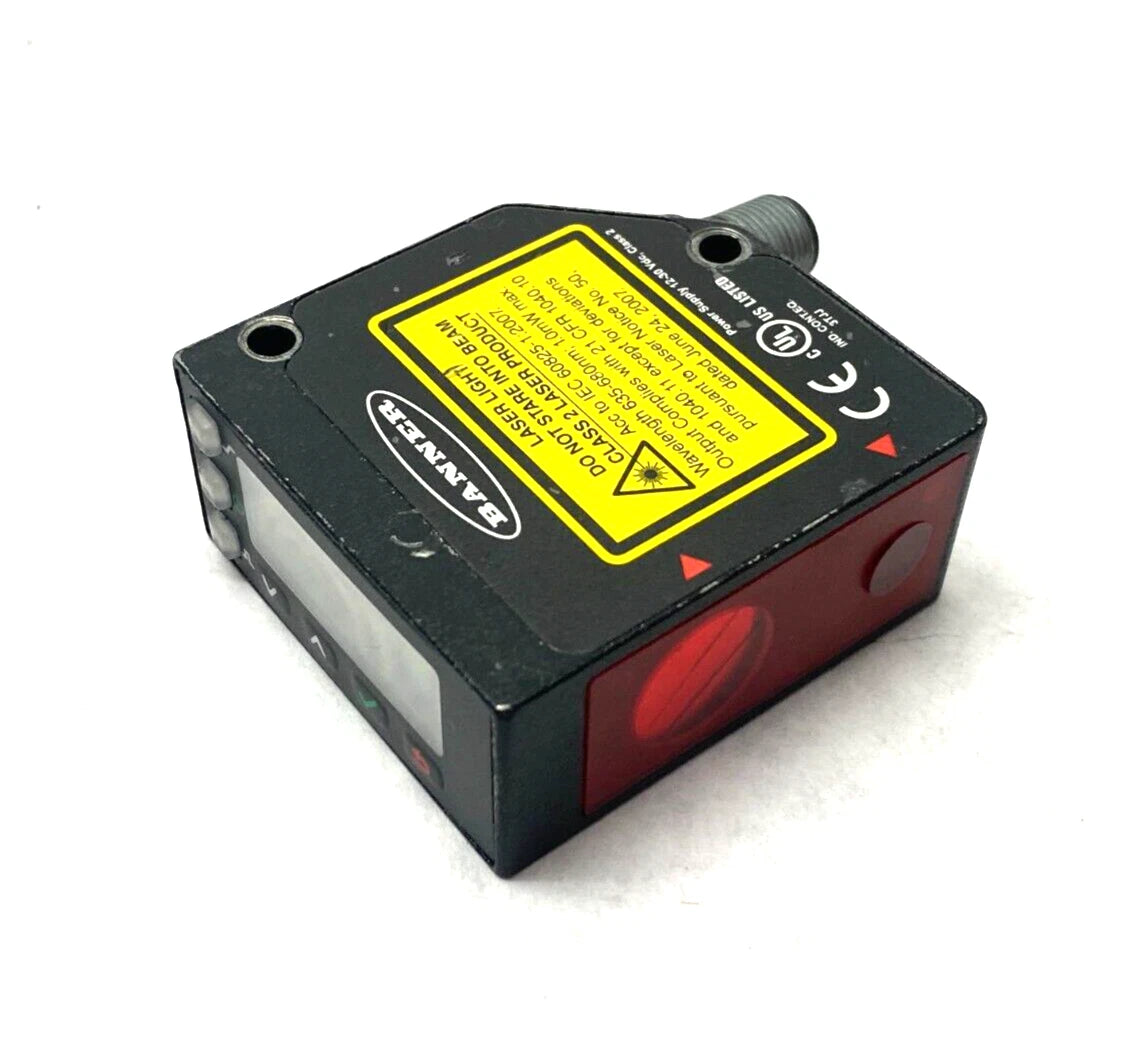

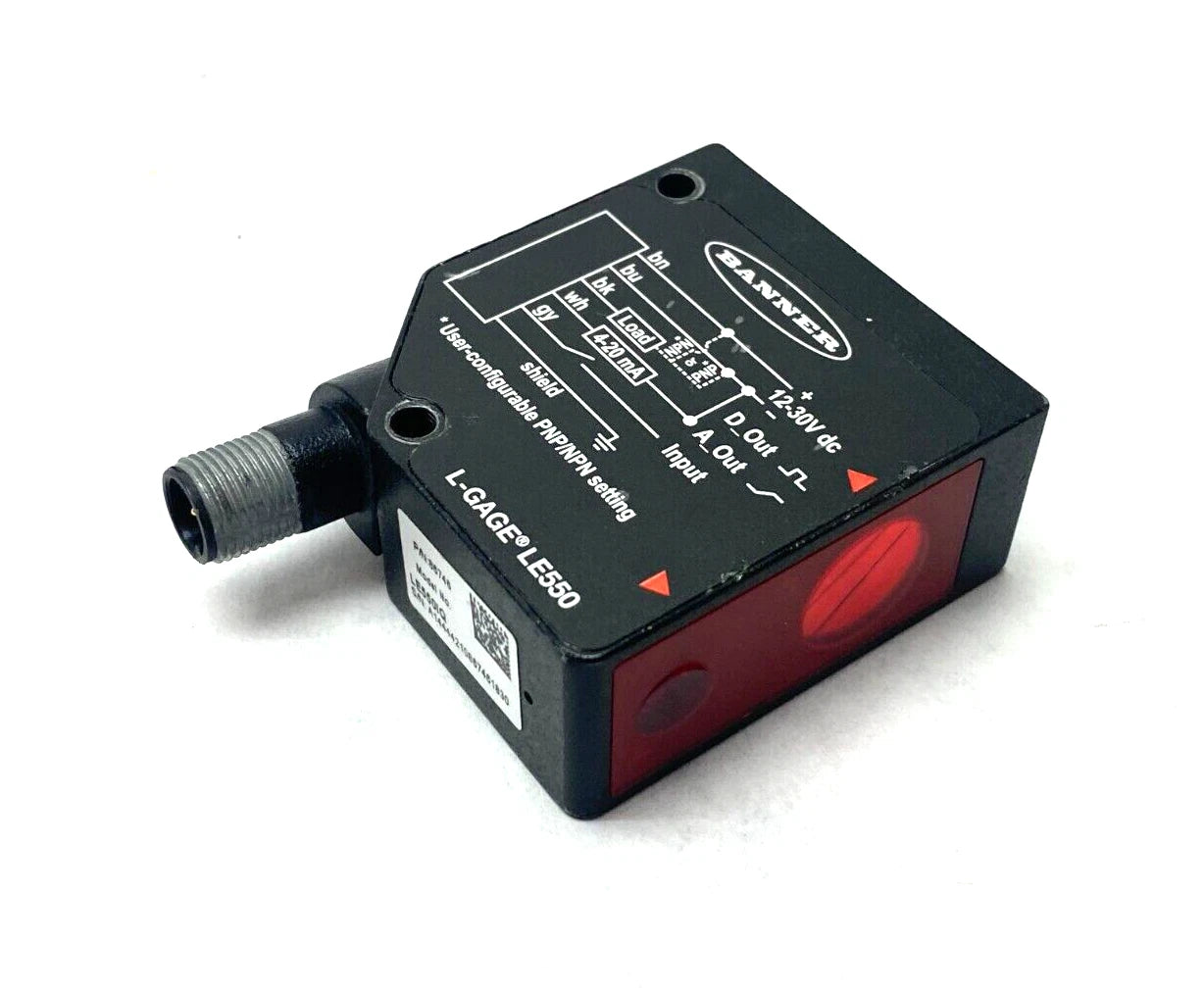

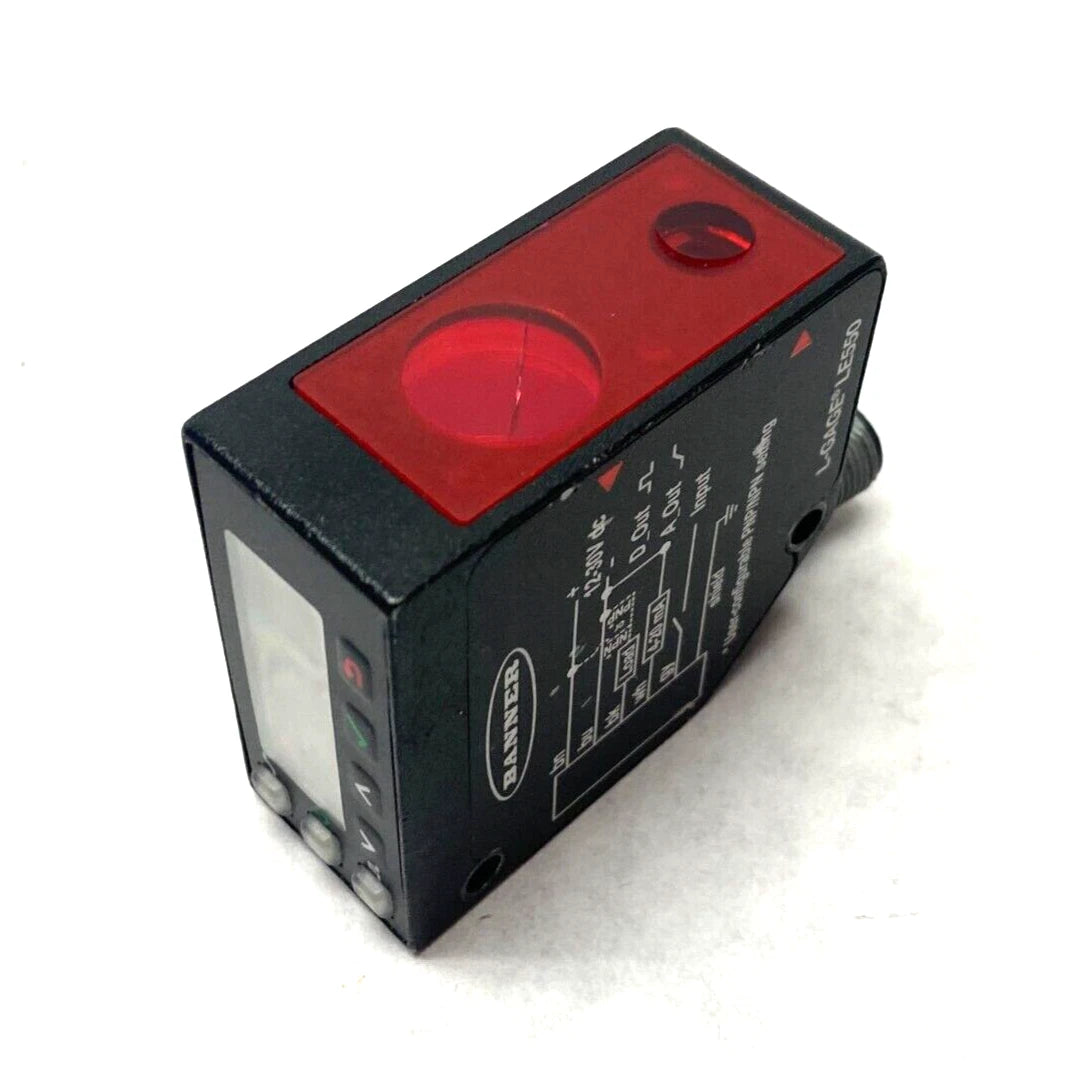

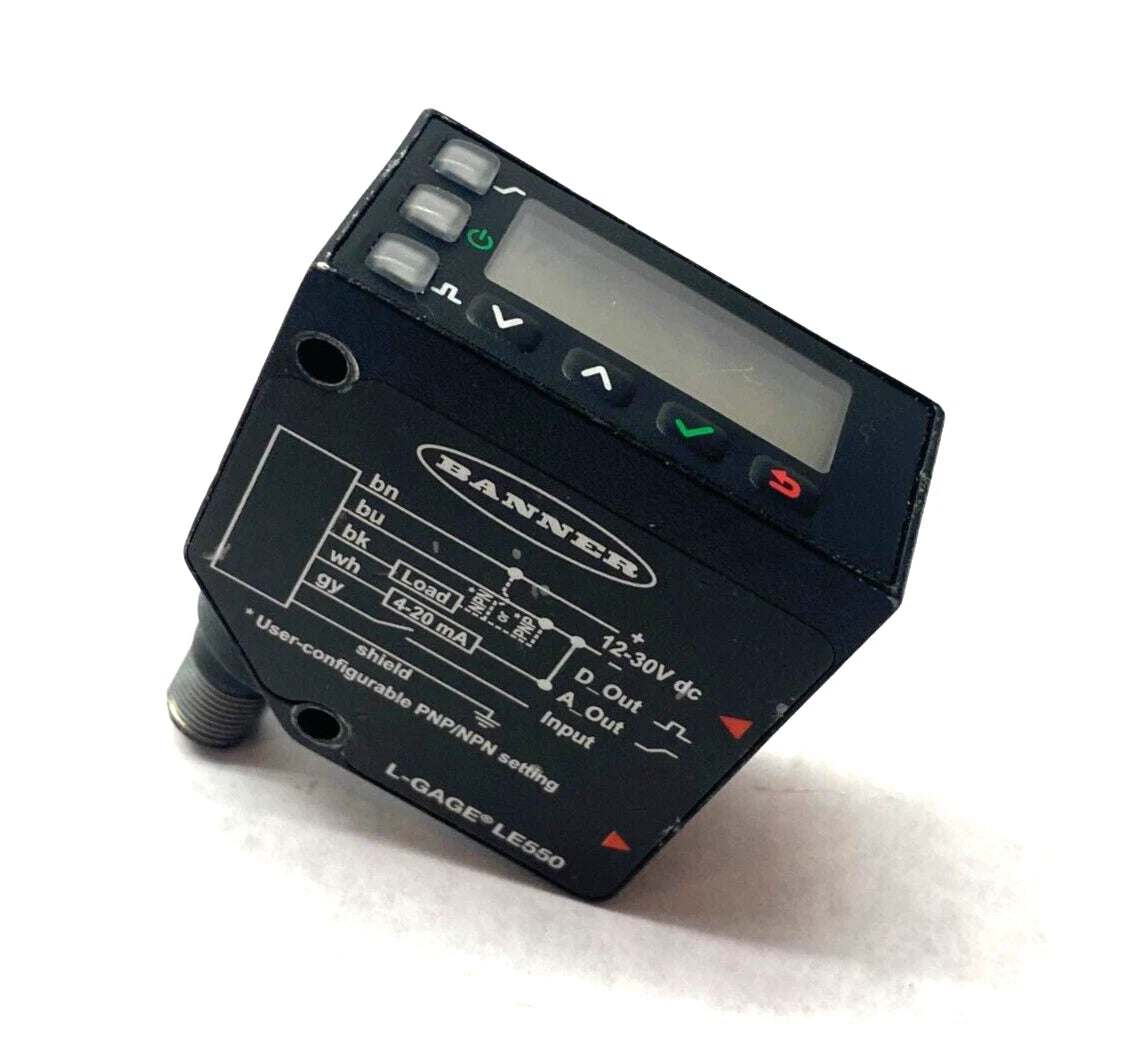

LE550IQ | Banner Engineering Laser Displacement Sensor 100–1000 mm, 4–20 mA Output
- Regular price
- $425.00
- Sale price
- $425.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LE550IQ
Description
The Banner Engineering LE550IQ Laser Displacement Sensor is a compact proximity sensor designed for precise non-contact distance measurement over a 100–1000 mm range. It uses visible red Class 2 laser triangulation technology to provide accurate analog and discrete outputs in industrial automation environments. The LE550IQ is well suited for applications requiring reliable position feedback and fast response times.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors |
| Part Number | LE550IQ |
| Subcategory | Laser Displacement Sensors |
| Device Type | Laser Displacement Sensor |
| Sensing Mode | Proximity (Triangulation) |
| Sensing Range | 100–1000 mm |
| Light Source | Visible Red Laser |
| Laser Class | Class 2 |
| Supply Voltage | 12–30 V DC |
| Analog Output | 4–20 mA |
| Discrete Output | 1 NPN/PNP Configurable |
| Connection Type | Integral Quick Disconnect |
| Connector | M12, 5-Pin |
| Housing Material | Zinc Alloy Die-Cast |
| Protection Rating | IP67, NEMA 4X |
| Operating Temperature | −20°C to +55°C |
| Response Time | 2 ms Minimum |
| Ambient Light Immunity | Up to 10,000 Lux |
| Weight | Approx. 0.6 lb (0.27 kg) |
Information About LE550IQ
The LE550IQ is part of Banner Engineering’s LE Series laser displacement sensors engineered for precision measurement tasks. It features a rugged zinc alloy die-cast housing with IP67 and NEMA 4X ratings for dependable operation in harsh industrial conditions. The sensor supports both analog 4–20 mA output and configurable NPN/PNP discrete output, enabling flexible system integration. Push-button and remote teach adjustments simplify setup while maintaining consistent performance in proximity sensing applications.
Key Features:
- Laser Triangulation Sensing: Provides accurate distance measurement using a visible red Class 2 laser beam.
- Wide Measurement Range: Supports sensing distances from 100 mm to 1000 mm for versatile applications.
- Analog and Discrete Outputs: Offers 4–20 mA analog output with configurable NPN/PNP discrete switching.
- Fast Response Time: Achieves a minimum response time of 2 ms for dynamic processes.
- Rugged Industrial Housing: Zinc alloy die-cast construction with IP67 and NEMA 4X protection.
- Simple Configuration: Push-button and remote teach functionality for quick setup and adjustment.
- Status LED Indicators: Integrated LEDs provide clear visual feedback of power, analog output, and discrete output states.
The LE550IQ delivers the reliability and precision required for laser-based displacement and proximity sensing applications.
