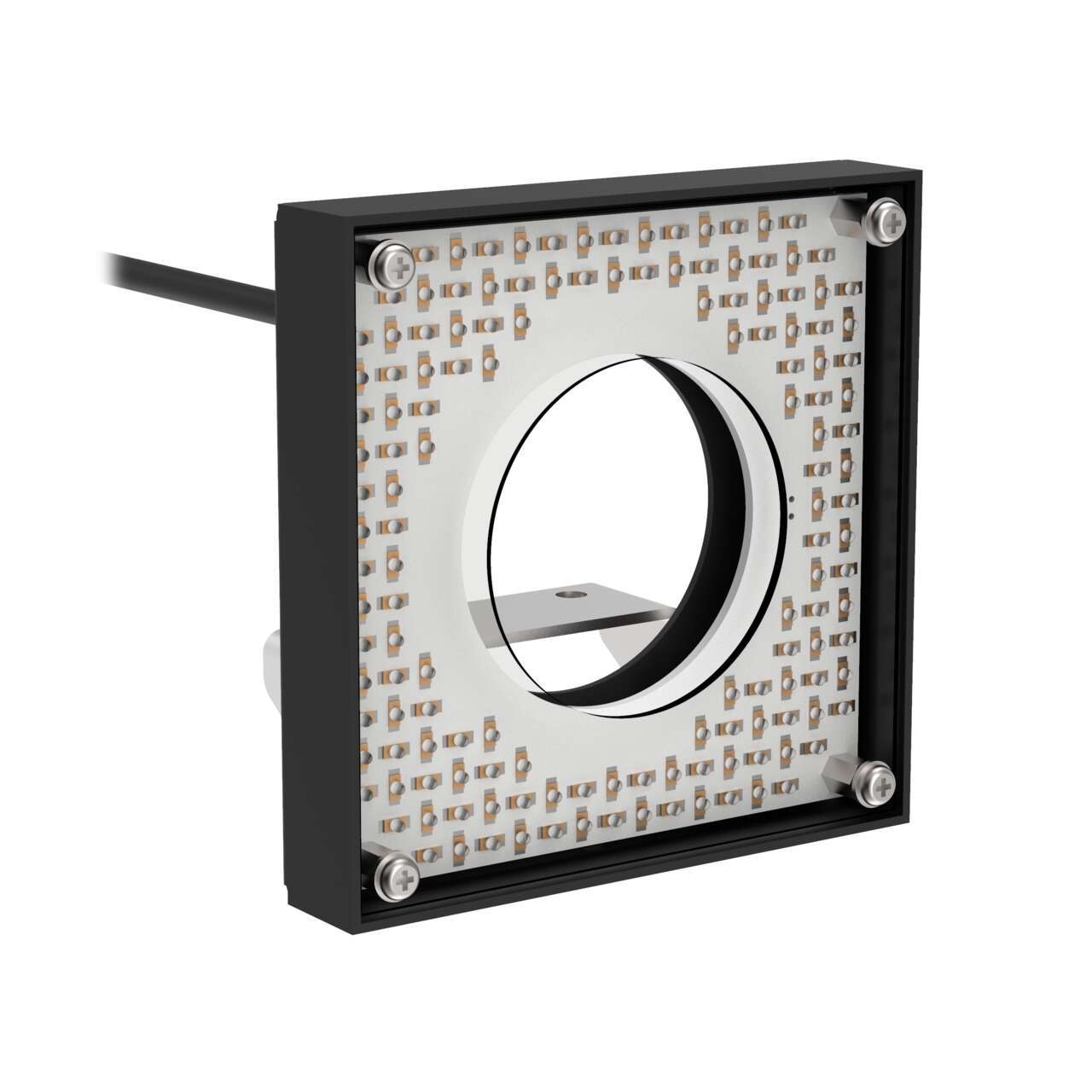

LEDRR80X80W | Banner Engineering 80×80 mm Red LED Ring Light for PresencePLUS Systems
- Regular price
- $2,324.00
- Sale price
- $2,324.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LEDRR80X80W
Description
The Banner Engineering LEDRR80X80W is a square ring light designed for machine vision illumination in PresencePLUS® inspection systems. It uses visible red LEDs powered by 24 VDC to provide uniform lighting for image acquisition. The unit includes a 2 m cable with flying leads for direct connection to compatible sensors or external power supplies.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Camera & Vision |
| Part Number | LEDRR80X80W |
| Subcategory | Light Source |
| Series | LED |
| Device Type | Ring Light |
| Light Color | Red |
| LED Technology | Standard LED |
| Supply Voltage | 24 VDC |
| Maximum Current | 250 mA |
| Housing Material | Low-Carbon Steel |
| Window Material | Acrylic |
| Mounting Method | Direct Mount to PresencePLUS® Sensor |
| Connection Type | 2 m Cable with Flying Leads |
| Number of Conductors | 3 |
| Physical Dimensions | 87.3 × 87.3 × 35.5 mm |
| Inner Diameter | 45.70 mm |
| Operating Temperature (Max) | 50°C |
| Weight | 0.50 lbs |
Information About LEDRR80X80W
The LEDRR80X80W is part of the Banner Engineering LED Series lighting products developed for machine vision and optical inspection applications. It is designed specifically for use with PresencePLUS® vision sensors and mounts directly to the sensor using included hardware. The ring light features a solid-state LED matrix that supports continuous or strobed operation controlled through sensor software. Its low-carbon steel housing and acrylic window provide mechanical stability for fixed industrial installations.
Key Features:
-
Square ring light design: Provides even illumination around the camera field of view.
-
Visible red LED output: Optimized for contrast enhancement in machine vision applications.
-
80 × 80 mm illumination size: Suitable for PresencePLUS® sensor integration.
-
24 VDC operation: Compatible with standard industrial power systems.
-
Solid-state LED matrix: Supports continuous or strobed operation modes.
-
Direct sensor mounting: Attaches directly to PresencePLUS® sensors using supplied hardware.
-
Flying lead cable connection: Allows flexible wiring to sensors or external power sources.
The LEDRR80X80W delivers the reliability and precision required for machine vision lighting in industrial inspection systems.
