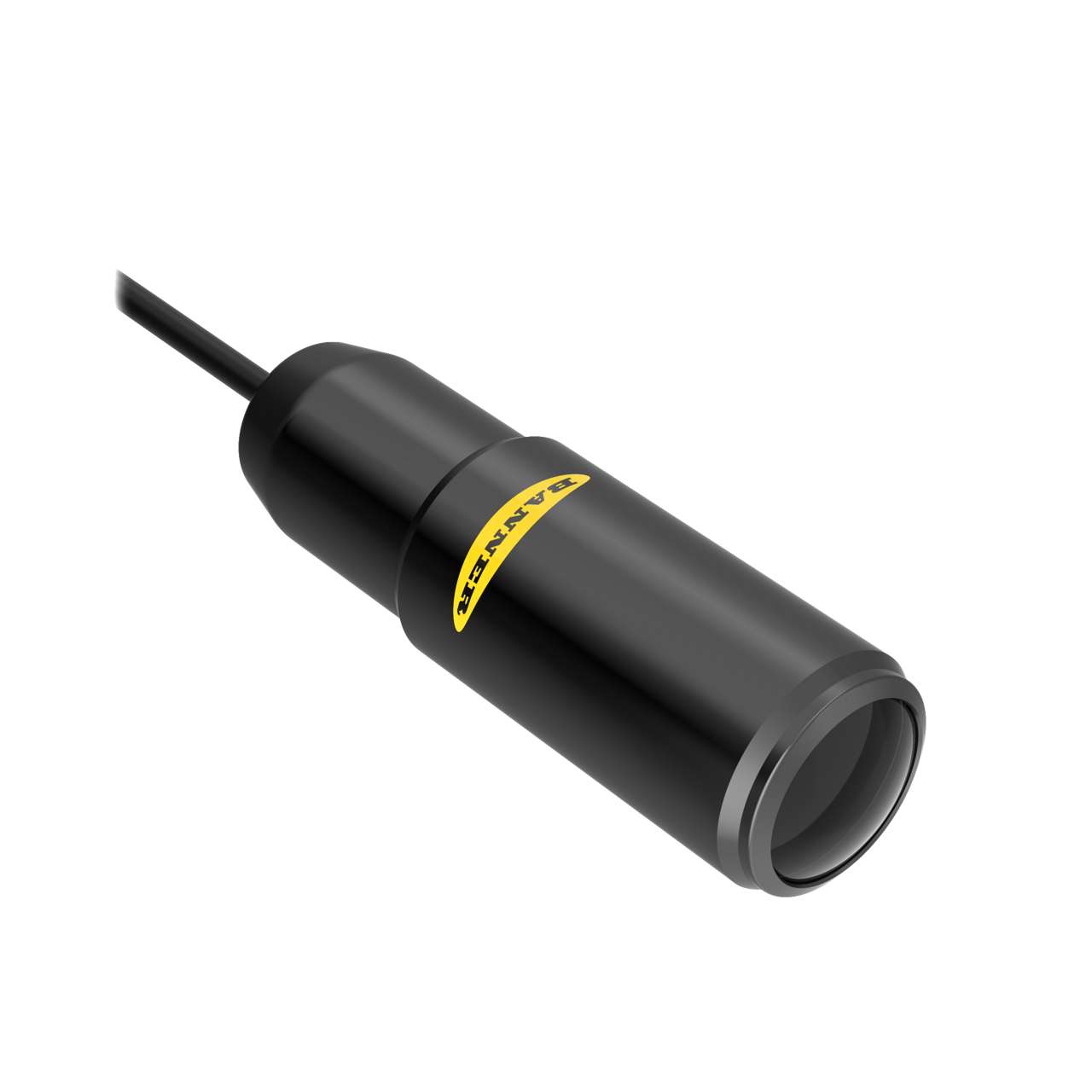

LEDWSM | Banner Engineering PresencePLUS LED Vision System Spot Light
- Regular price
- $525.00
- Sale price
- $525.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LEDWSM
Description
The Banner Engineering LEDWSM DEMO PresencePLUS LED Vision System Spotlight is a compact industrial spot light designed to provide focused white LED illumination for machine vision applications. Engineered for use with PresencePLUS vision systems, it delivers stable and consistent lighting to enhance image clarity and inspection accuracy. Its rugged anodized aluminum housing and IP67 rating ensure reliable operation in demanding industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Lighting |
| Part Number | LEDWSM |
| Subcategory | Vision System Spot Lights |
| Device Type | Spot Light |
| Color Technology | Standard LED |
| Light Color | White |
| Power Supply | DC |
| Maximum Current | 360 mA |
| IP Rating | IP67 |
| Housing Style | Circular Spot |
| Primary Housing Material | Anodized Aluminum |
| Window Material | Glass |
| Connection Type | Pigtail Quick Disconnect |
| Quick Disconnect Type | M8 |
| Cable Length | 2 m |
| Number of Conductors | 3 |
| Operating Temperature Range | -40°C to 50°C |
| Physical Dimensions | 29.5 mm x 95.6 mm |
| Weight | Approx. 0.3 kg |
Information About LEDWSM
The LEDWSM is a circular spot light from Banner Engineering’s PresencePLUS vision system accessory line, developed to optimize lighting conditions for automated inspection and imaging processes. It features a durable anodized aluminum body with a glass window, offering protection against dust and temporary water immersion in industrial settings. Designed with a 2-meter M8 pigtail quick-disconnect connection, it allows straightforward integration with compatible vision controllers and lighting systems. The unit operates on DC power and utilizes standard white LED technology to provide uniform illumination for precision detection and measurement tasks.
Key Features:
- White LED Illumination: Provides consistent, high-intensity white light for accurate vision inspection.
- PresencePLUS Compatibility: Designed for integration with Banner PresencePLUS vision systems.
- IP67 Protection Rating: Sealed against dust and temporary water immersion for industrial reliability.
- Anodized Aluminum Housing: Ensures durability and resistance to corrosion.
- Glass Window Lens: Maintains optical clarity and protects internal LED components.
- M8 Quick Disconnect (2 m Cable): Enables fast and secure electrical connection.
- Wide Operating Temperature Range: Operates from -40°C to 50°C for flexible installation.
- Low Current Consumption: Maximum current draw of 360 mA for efficient power use.
The LEDWSM delivers the reliability and precision required for industrial machine vision and automated inspection lighting applications.
