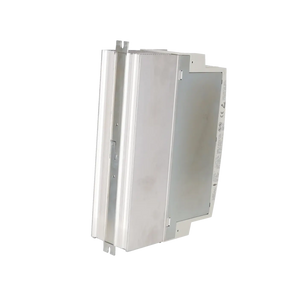

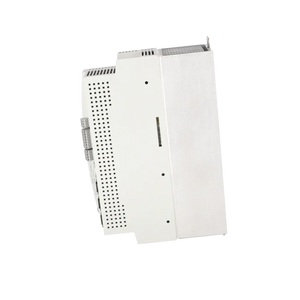

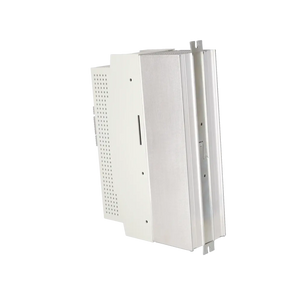

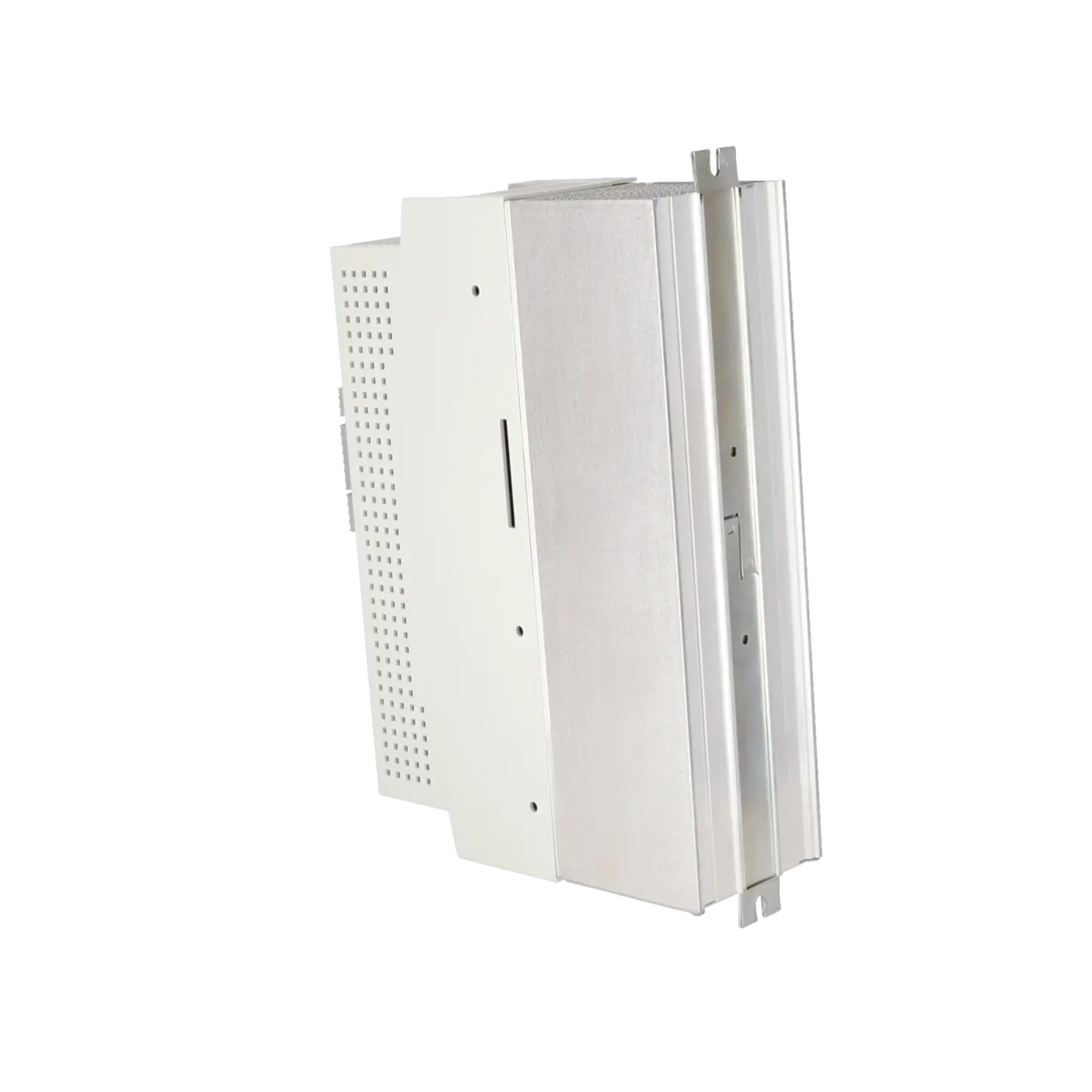

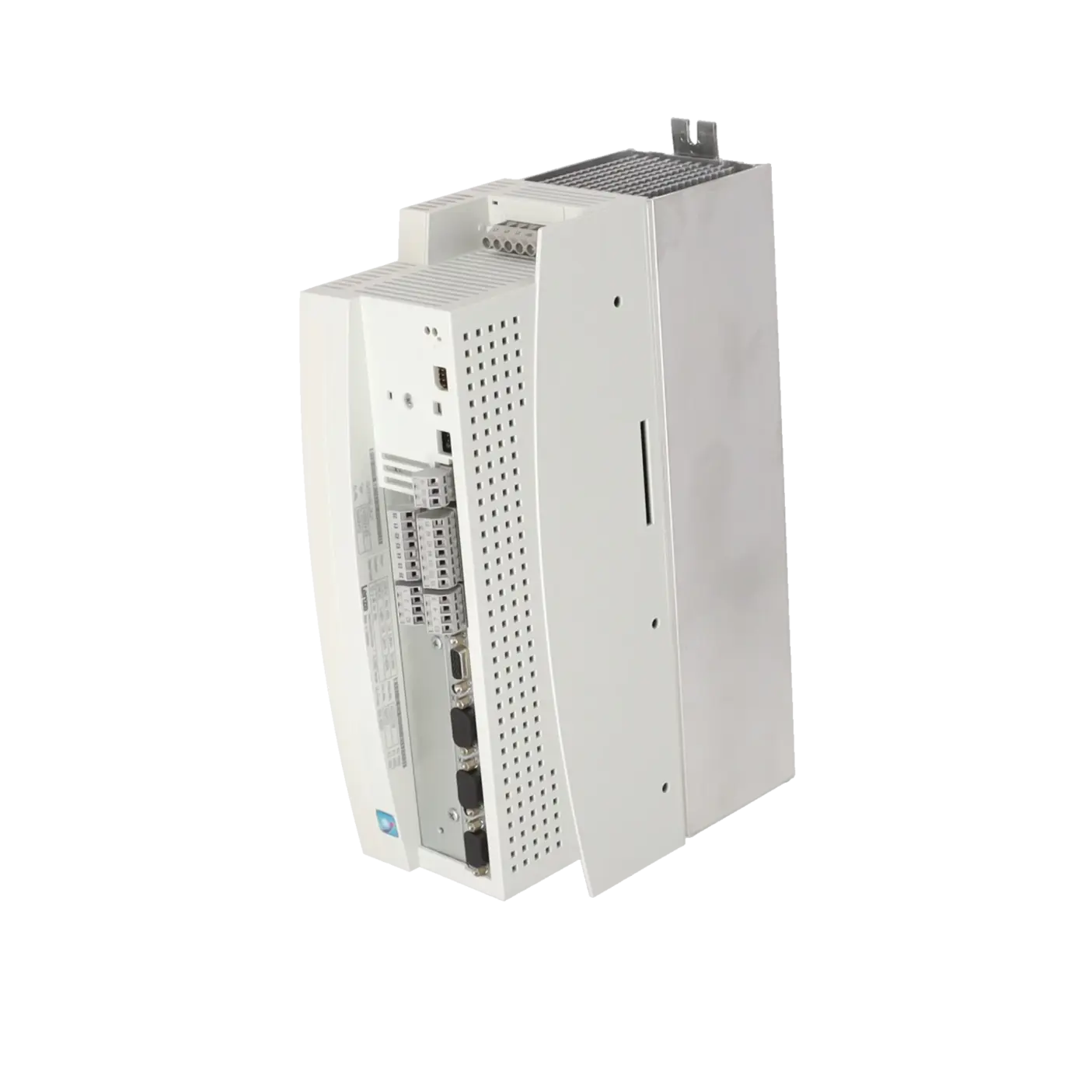

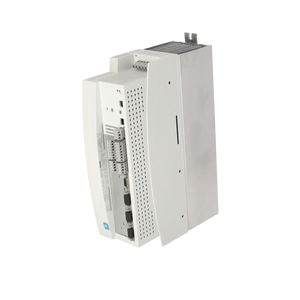

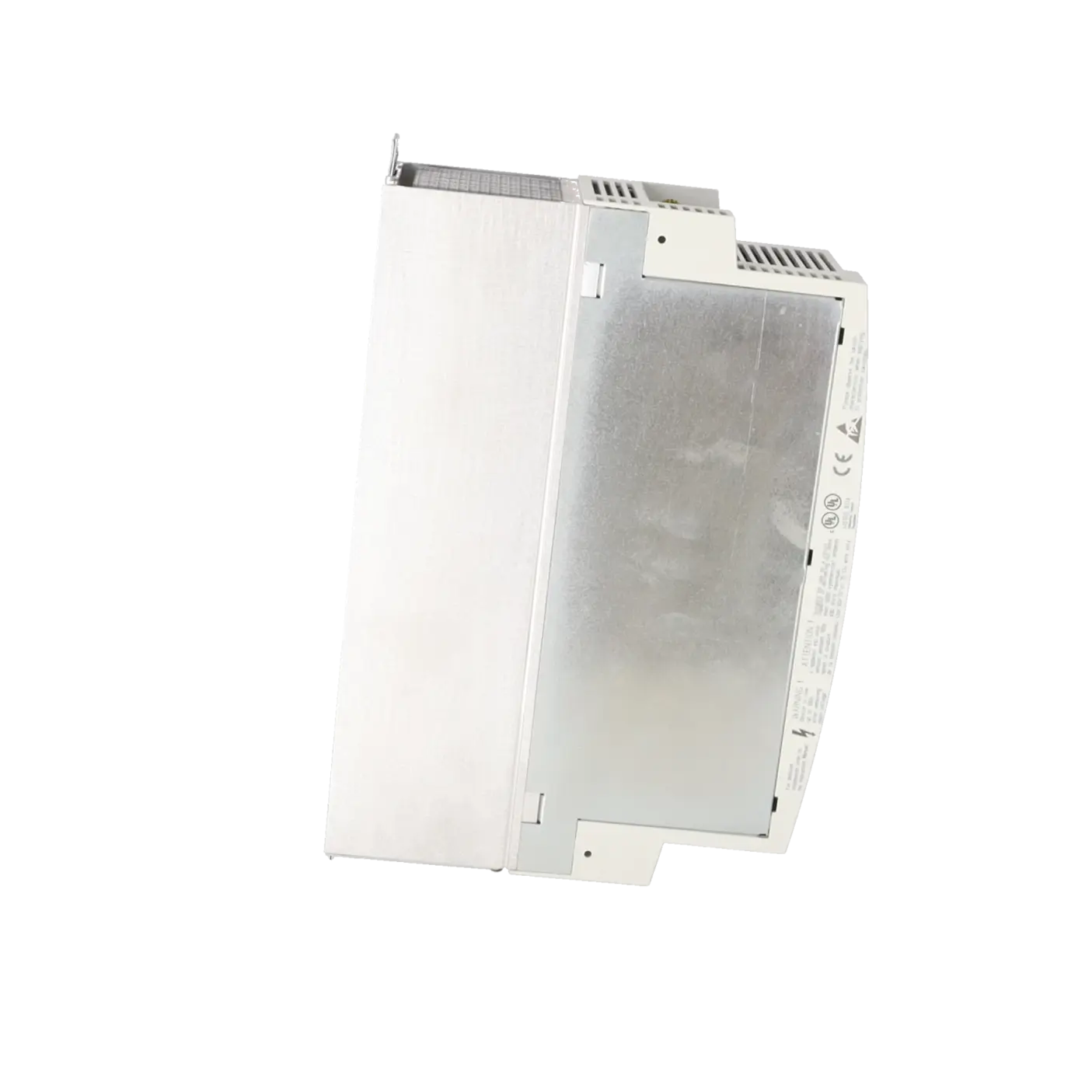

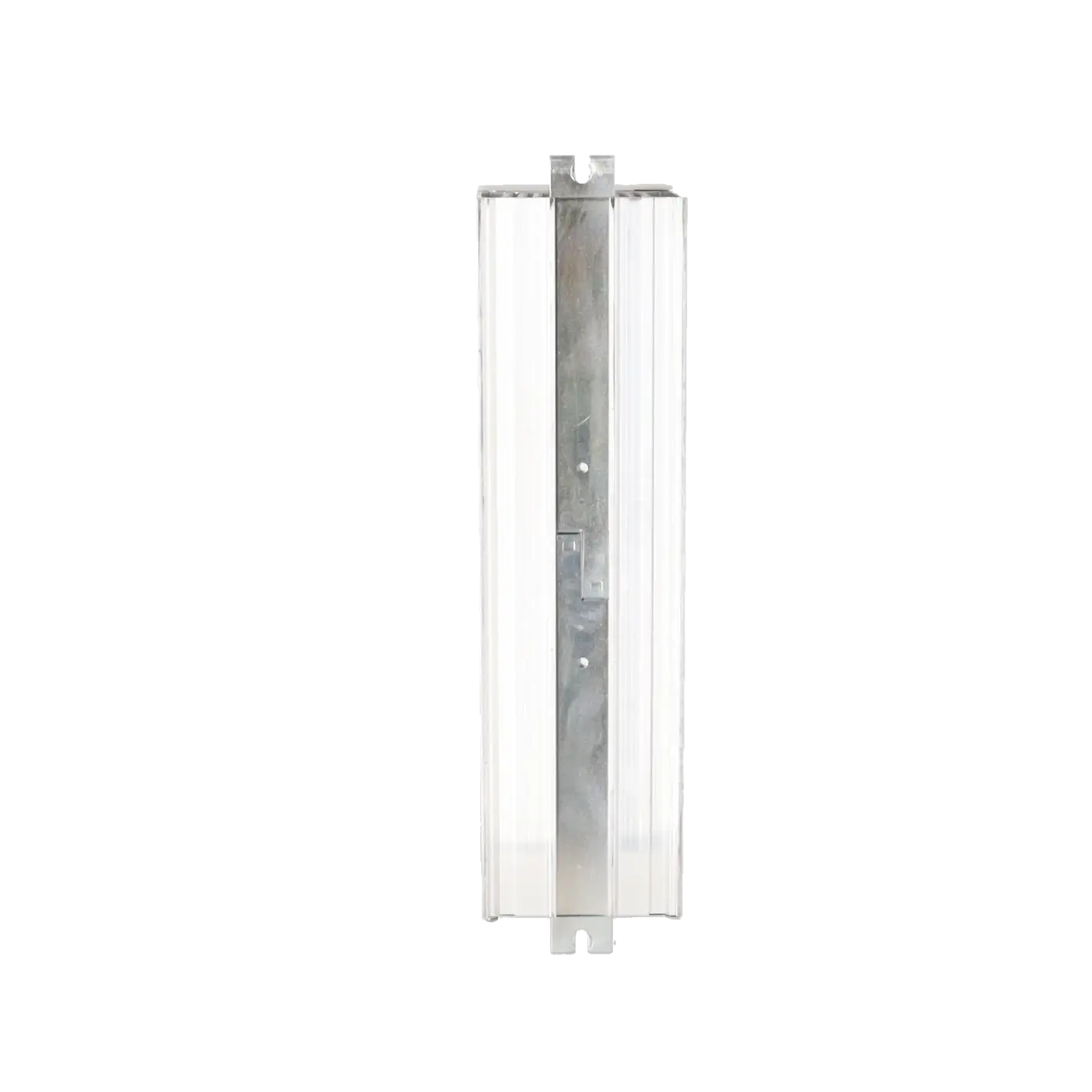

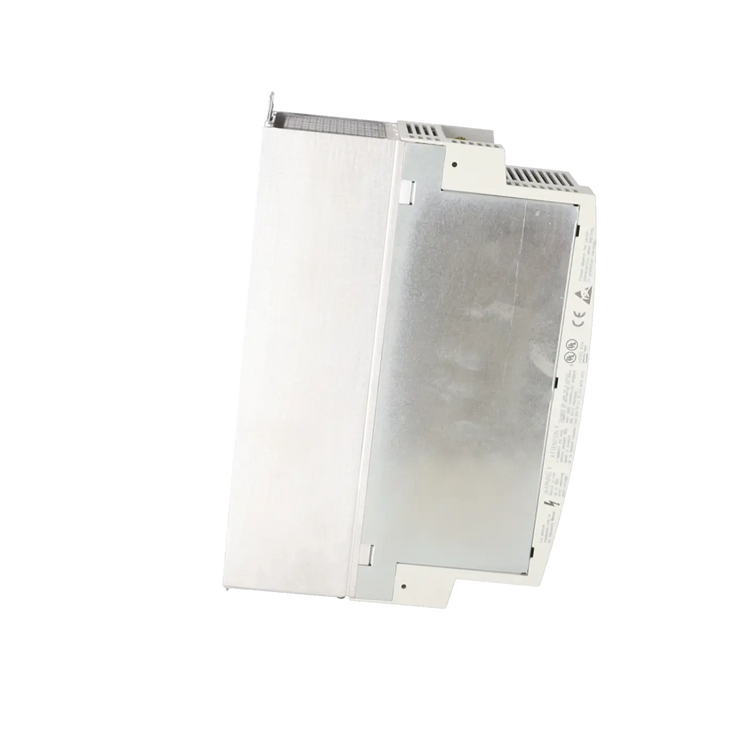

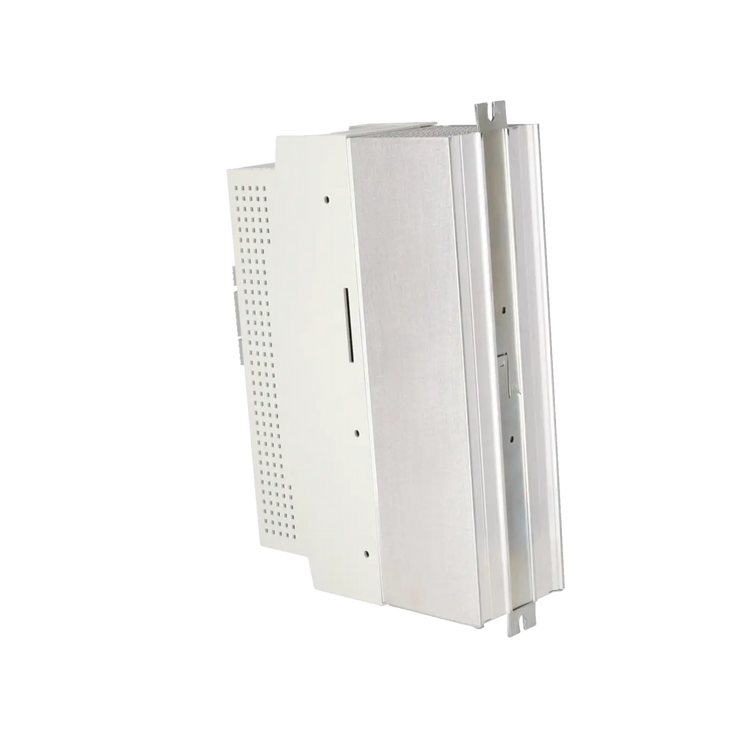

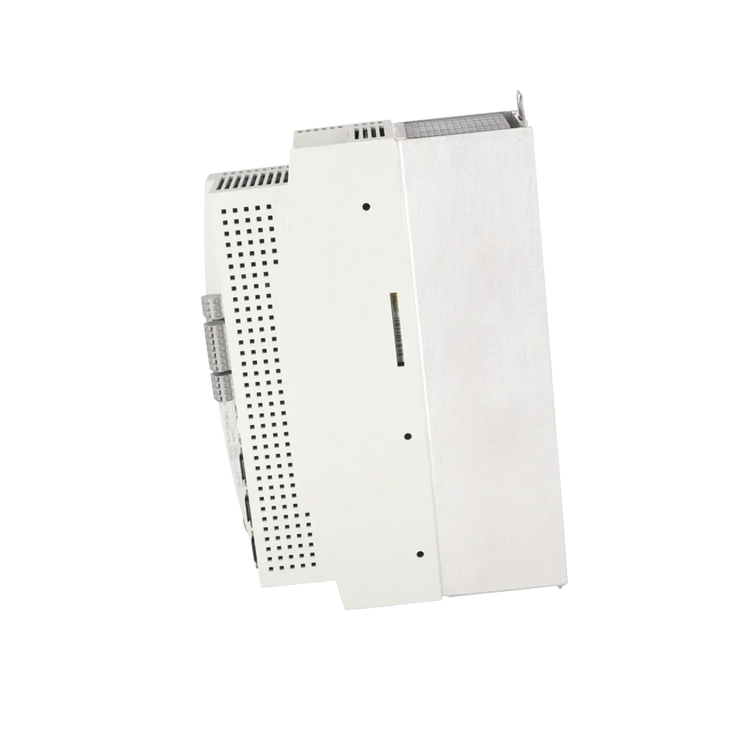

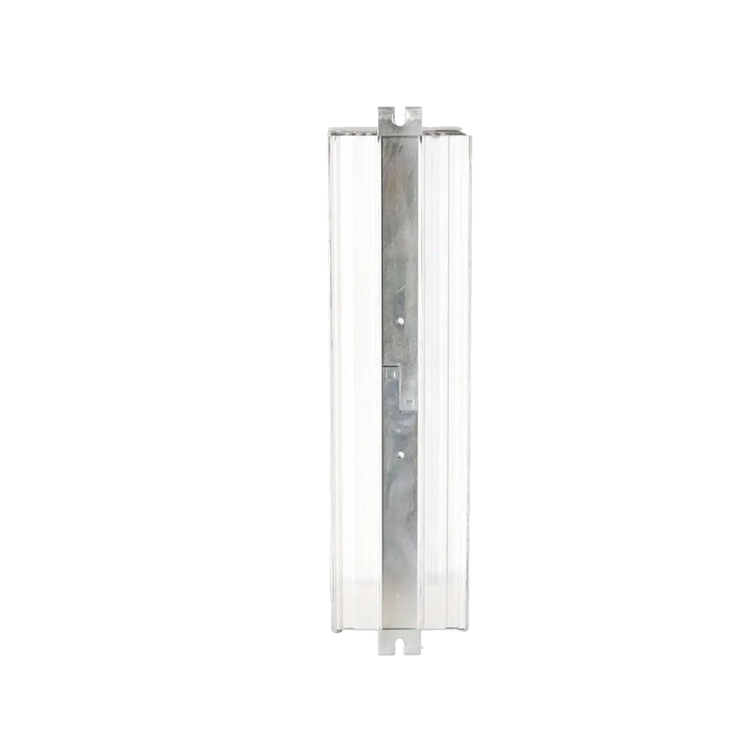

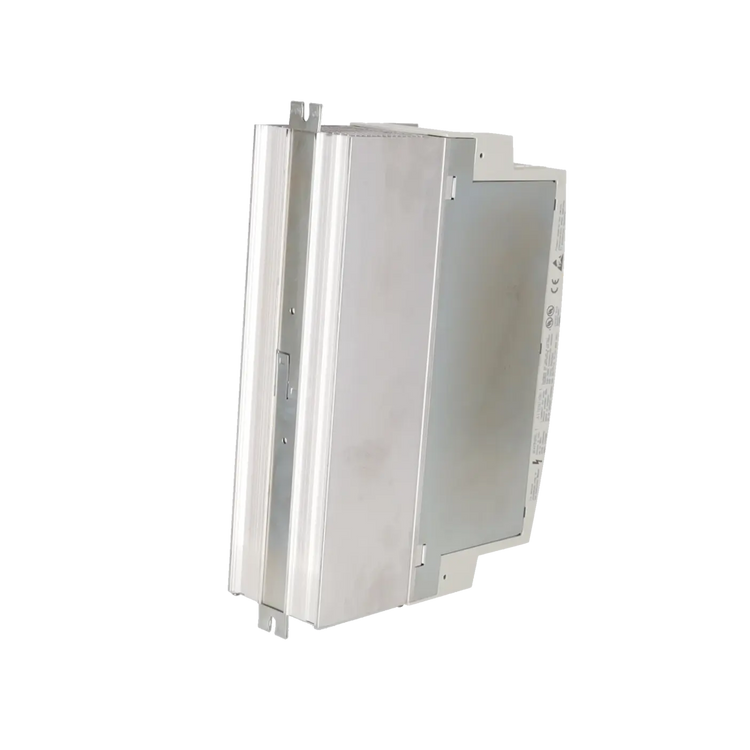

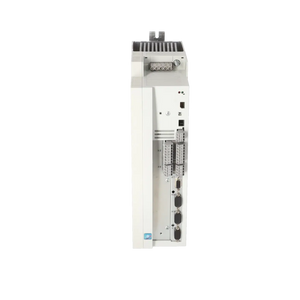

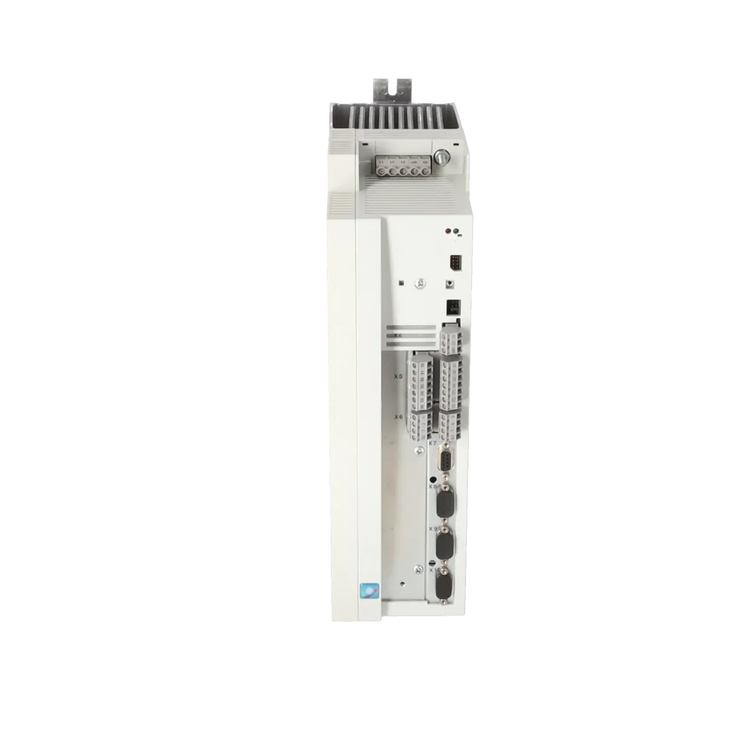

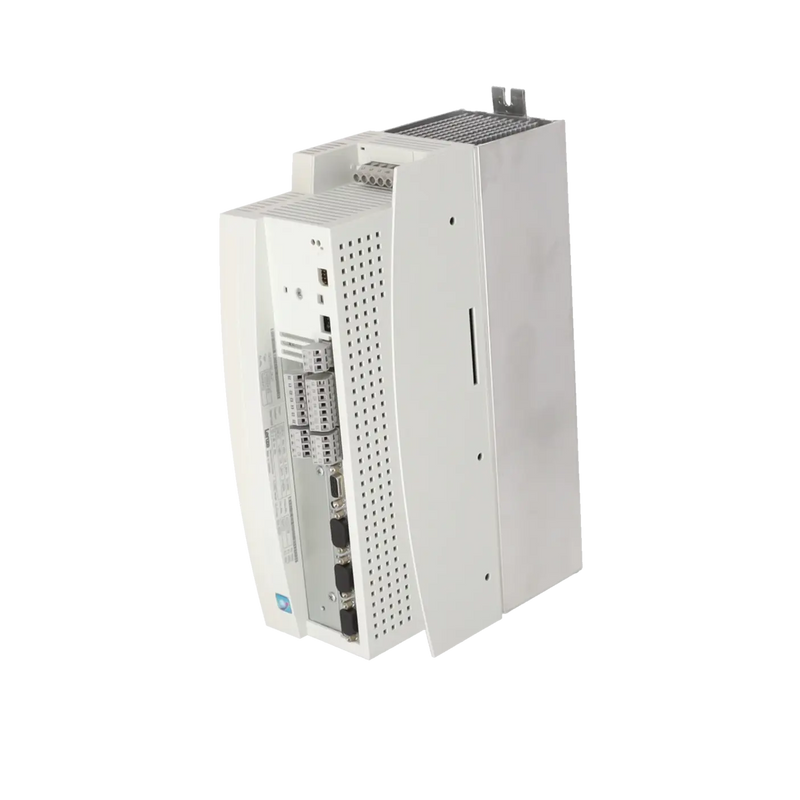

EVS9324-ES | Lenze 9300 Series Servo Inverter 3.0 kW 400/480 VAC
- Regular price
- $3,947.00
- Sale price
- $3,947.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EVS9324-ES
Description
The Lenze EVS9324-ES is a high-performance servo inverter designed for precise motion and speed control in industrial automation systems. Rated for 3.0 kW (4 HP), the EVS9324-ES operates on 400/480 VAC three-phase input and delivers stable, responsive servo motor control in panel-mounted applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze |
| Category | Motion Control |
| Part Number | EVS9324-ES |
| Subcategory | Servo Inverters |
| Series | 9300 Series |
| Product Type | Servo Inverter |
| Input Voltage | 400/480 VAC |
| Input Phase | 3 Phase |
| Input Frequency | 50/60 Hz |
| Mains Current | 7 A |
| Motor Power Rating | 3.0 kW (4 HP) |
| Output Voltage Range | 0–480 VAC |
| Output Frequency Range | 0–480 Hz |
| Rated Output Current (8 kHz) | 7 A |
| Rated Output Current (16 kHz) | 5.2 A |
| Maximum Output Current (8 kHz) | 10.5 A |
| Maximum Output Current (16 kHz) | 7.8 A |
| Maximum Standstill Current (8 kHz) | 10.5 A |
| Apparent Power | 5.8 kVA |
| Mounting Style | Panel Mounted |
| Protection Rating | IP20 |
| Weight | 11.00 lbs (4.99 kg) |
Information About EVS9324-ES
The EVS9324-ES is part of Lenze’s 9300 series servo inverter platform, engineered for demanding motion control tasks in machinery and production systems. It features advanced power electronics that support high current capability and configurable switching frequencies for optimized performance. The inverter is designed for compatibility with three-phase servo and asynchronous motors, providing accurate torque and speed regulation. Its panel-mounted, IP20-rated construction makes it suitable for installation inside industrial control cabinets with controlled environmental conditions.
Key Features:
- 9300 Series Servo Architecture: Designed for precise and dynamic motion control in industrial automation.
- Three-Phase High-Voltage Input: Operates on 400/480 VAC, 50/60 Hz industrial power systems.
- High Motor Power Capacity: Supports servo and ASM motors up to 3.0 kW (4 HP).
- Flexible Switching Frequencies: Supports 8 kHz and 16 kHz operation to balance efficiency and acoustic performance.
- High Current Capability: Provides elevated peak and standstill current for demanding motion profiles.
- Wide Output Frequency Range: Enables precise motor speed control up to 480 Hz.
- Panel-Mounted Design: Intended for vertical installation within control cabinets.
The EVS9324-ES delivers the reliability and precision required for industrial servo motion control applications.
