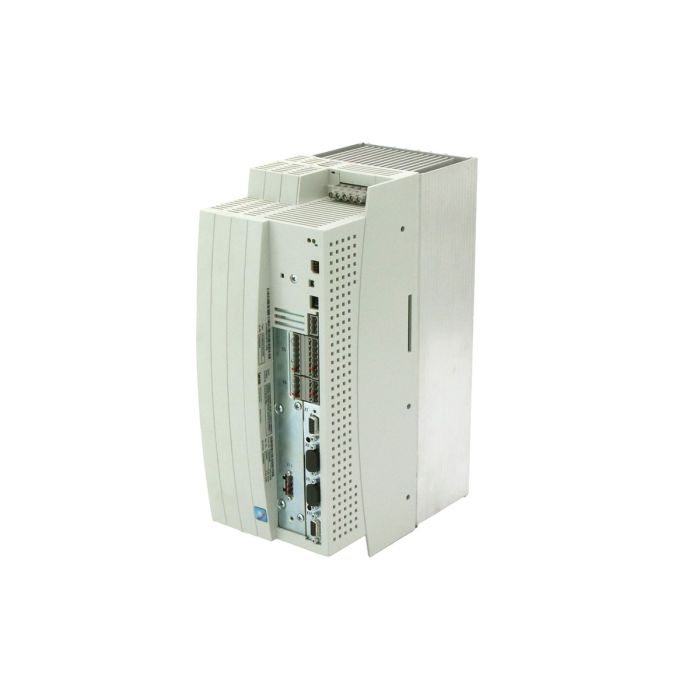

Lenze EVS9326-ESV004 11kW 480V Servo Inverter Drive
- Regular price
- $4,299.00
- Sale price
- $4,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: EVS9326-ESV004
Description
The Lenze EVS9326-ESV004 is a 9300-Series servo inverter designed for controlling high-performance industrial drive systems with motors up to 11 kW. It provides precise motion control, flexible power input options, and reliable operation for automation applications requiring accurate speed, torque, and position management.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lenze |
| Category | Servo Products |
| Part Number | EVS9326-ESV004 |
| Subcategory | Servo Drive / Servo Inverter |
| Series | 9300 Servo Inverter Series |
| Product Type | Servo Inverter Axis Module |
| Motor Power Rating | 11 kW |
| Motor Type | Asynchronous motor, 4-pole |
| Mains Voltage Range | 3/PE AC 320–528 V |
| Frequency Range | 45–65 Hz |
| Alternative DC Supply | DC 460–740 V |
| Rated Mains Current | 20.5 A with mains choke |
| Rated Output Current | 23.5 A at 8 kHz / 15.3 A at 16 kHz |
| Maximum Output Current | 35.3 A at 8 kHz / 23 A at 16 kHz |
| Continuous Braking Power | 11 kW (depending on external brake resistor) |
| Peak Braking Power | 25 kW |
| Minimum Brake Resistance | 27 Ω ±10% |
| Power Loss | 360 W |
| Protection Rating | IP20 |
| Mounting Type | Cabinet installation |
| Weight | Approximately 8.5 kg (18.7 lb) |
Information About EVS9326-ESV004
The EVS9326-ESV004 is part of the Lenze 9300 Servo Inverter family, developed for advanced machine automation and multi-axis motion control applications. It features an IP20-rated enclosure and supports three-phase AC supply operation with integrated power electronics for efficient motor regulation. The drive provides high output current capability, DC bus operation, and integrated brake chopper functionality for dynamic braking applications. It is commonly used in packaging machinery, material handling systems, robotics, and industrial production equipment requiring coordinated servo performance.
Key Features:
- 11 kW Motor Capacity: Supports asynchronous motors with a rated power of up to 11 kW.
- Lenze 9300 Series Design: Provides advanced servo inverter functionality for industrial automation systems.
- Wide Voltage Range: Operates with three-phase AC mains from 320 V to 528 V.
- DC Bus Supply Support: Allows alternative DC supply operation from 460 V to 740 V.
- High Output Current: Provides up to 23.5 A rated output current at 8 kHz switching frequency.
- Integrated Brake Chopper: Supports dynamic braking with external brake resistors.
- IP20 Protection Rating: Designed for installation inside electrical cabinets and control enclosures.
- Precision Motion Control: Enables accurate motor speed, torque, and positioning control.
- Industrial Automation Compatibility: Suitable for machine builders and automated production systems.
- Reliable Drive Performance: Designed for continuous operation in demanding industrial environments.
The EVS9326-ESV004 delivers the reliability and precision required for industrial servo motion control and automated drive applications.
