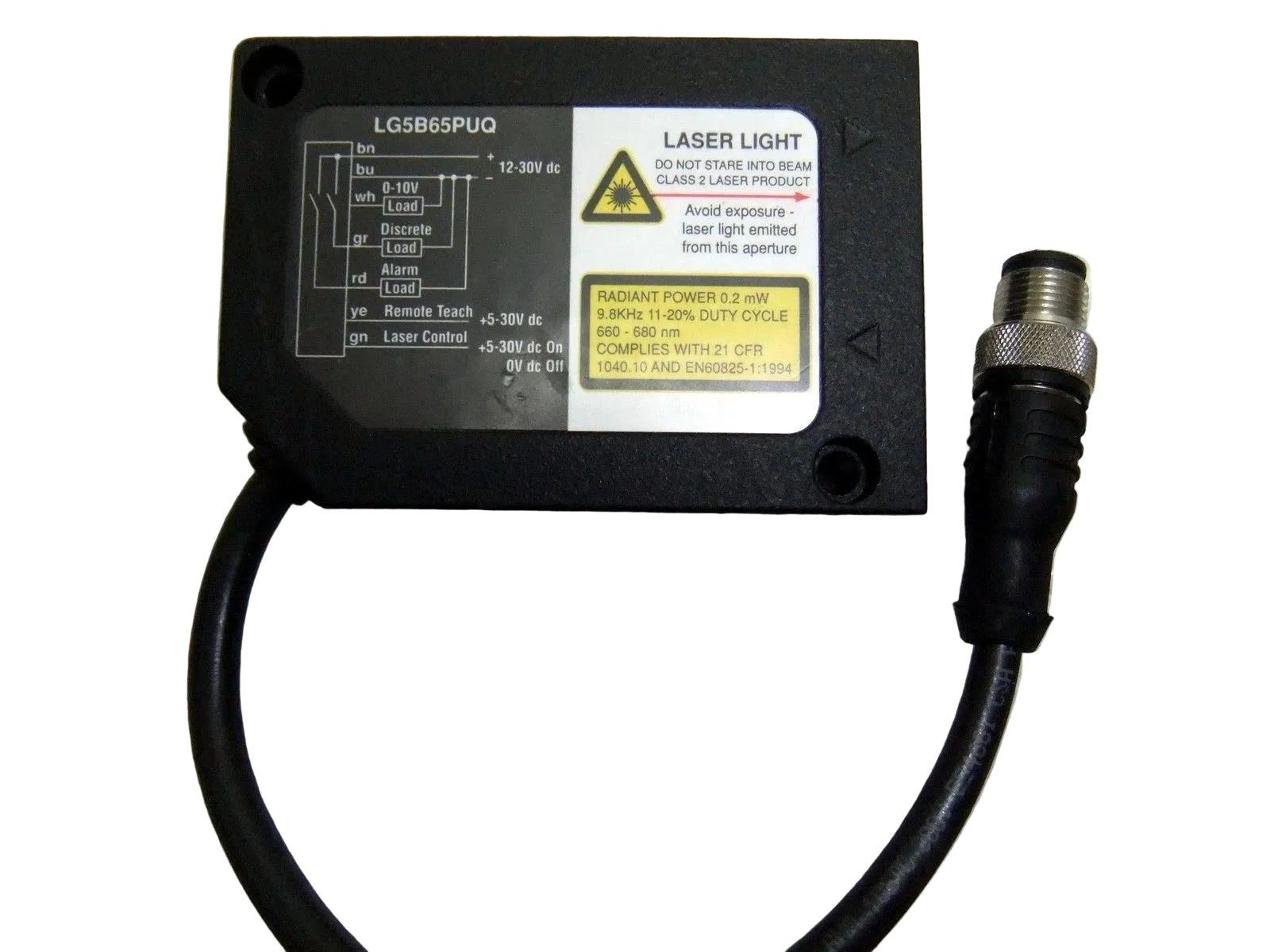

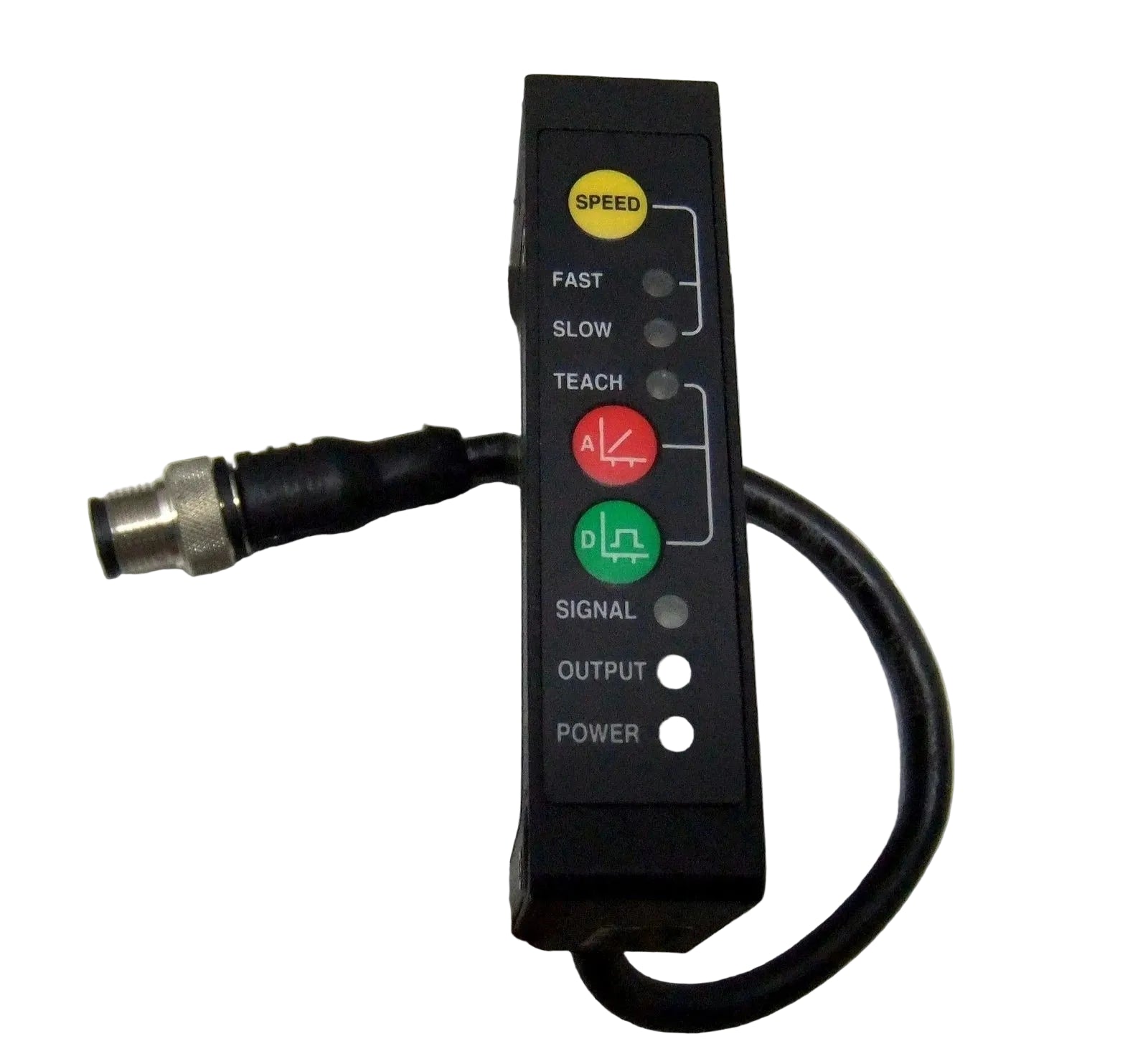

LG5B65PUQ | Banner Engineering LG5 Series Laser Displacement Sensor 45–60 mm Range
- Regular price
- $2,299.00
- Sale price
- $2,299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LG5B65PUQ
Description
The Banner Engineering LG5B65PUQ is a high-precision laser displacement sensor designed for short-range measurement and position monitoring applications. It uses Class 2 visible red laser triangulation technology to deliver accurate analog output signals in industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Industrial Automation |
| Part Number | LG5B65PUQ |
| Subcategory | Laser Displacement Sensors |
| Series | L-GAGE LG5 Series |
| Measurement Range | 45–60 mm |
| Nominal Sensing Distance | 53 mm |
| Sensing Technology | Laser Triangulation |
| Light Source | Visible Red Laser, Class 2 (650 nm) |
| Supply Voltage | 12–30 VDC (24 VDC nominal) |
| Analog Output | 0–10 VDC |
| Digital Output | 1 × PNP Transistor |
| Sensing Mode | Diffuse / Reflective |
| Connection Type | 8-Pin M12 Euro-Style Connector |
| Housing Material | Die-Cast Zinc Alloy |
| Window Material | Acrylic |
| Ingress Protection | IP67 / NEMA 6 |
| Operating Temperature | -10 to +50 °C |
| Indicator LEDs | Green (Power), Yellow (Teach/Output) |
| Protection Functions | Overload, Short-Circuit |
| Weight | 0.5 lb |
Information About LG5B65PUQ
The LG5B65PUQ is part of Banner Engineering’s L-GAGE LG5 series, developed for high-accuracy displacement and distance measurement in compact automation systems. This sensor uses a laser triangulation design to provide precise analog feedback over short sensing ranges where repeatability and resolution are critical. It supports TEACH mode for simplified setup and calibration, allowing quick adaptation to varying application requirements. The rugged zinc alloy housing and IP67-rated construction ensure reliable performance in demanding industrial environments.
Key Features:
- High-Precision Laser Measurement: Uses Class 2 visible red laser triangulation technology to deliver accurate displacement measurements in short-range applications.
- 45–60 mm Sensing Range: Optimized for close-range positioning and gauging tasks requiring fine resolution.
- Analog And Digital Outputs: Provides a 0–10 VDC analog output along with a PNP digital output for flexible system integration.
- TEACH Mode Configuration: Simplifies setup and calibration directly at the sensor for faster commissioning.
- Industrial-Grade Housing: Die-cast zinc alloy construction with acrylic window supports long-term durability.
- Environmental Protection: IP67 and NEMA 6 ratings ensure resistance to dust, moisture, and washdown conditions.
- Compact Rectangular Design: Enables easy installation in space-constrained automation equipment.
The LG5B65PUQ delivers the reliability and precision required for high-accuracy displacement sensing and position monitoring in industrial automation systems.
