LGA36400U31X | Schneider Electric Circuit breaker, PowerPacT L, 400A, 3 pole, 600VAC, 18kA, I-Line, Micrologic 3.3, 80%, ABC
- Regular price
- $2,799.00
- Sale price
- $2,799.00
- Regular price
-
Do you need more quantity?
Product Description P/N: LGA36400U31X
Description

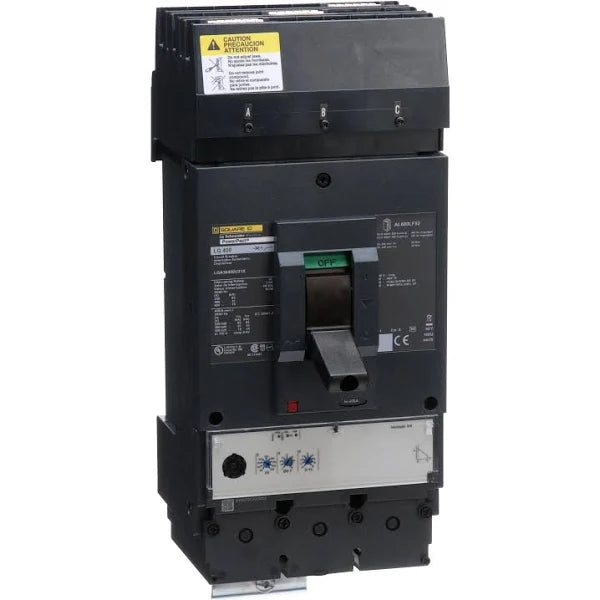

The Square D LGA36400U31X is a 3 Pole solid state molded case circuit breaker with a current rating of 400 Amps and a voltage rating of 600VAC. It has an interrupting rating of 65kA at 240VAC, 35kA at 480VAC, 18kA at 600VAC. The LGA36400U31X has a I-Line mounting type and includes long time and instantaneous trip functions.
Technical Specifications
Brand | SQUARE D |
Manufacturer | Schneider Electric |
Part Number | LGA36400U31X |
Category | Circuit Breaker |
Subcategory | Molded Case Circuit Breaker |
Type | LGA |
Voltage | 600 |
Amperage | 400 |
Connection | I-Line Style Plug-In |
Frame Type | L Frame |
Protection | Solid State |
Functions | LI - Long-Time and Instantaneous |
Poles | 3 |
AIC Rating | 35kA@480V |
Phase | 3 |
Terminal Connection | Lugs load |
Wire Gauge | AWG 3/0 - 500 kcmil Aluminium/Copper)2 |
For Use With | 2P Applications |
Temperature Rating | -13 Deg F and 158 Deg F (-25 Deg C and +70 Deg C) |
Circuit Breaker Type | MCCB |
Information About LGA36400U31X
PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions. This PowerPacT L, 400A, 3 pole, circuit breaker has an interrupting rating of 18kA at 600VAC. This circuit breaker provides MicroLogic Standard with a 3.3 trip unit and an LI function. This unit has I-Line terminations on the line side and mechanical lugs on the load side. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked. PowerPacT L circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
