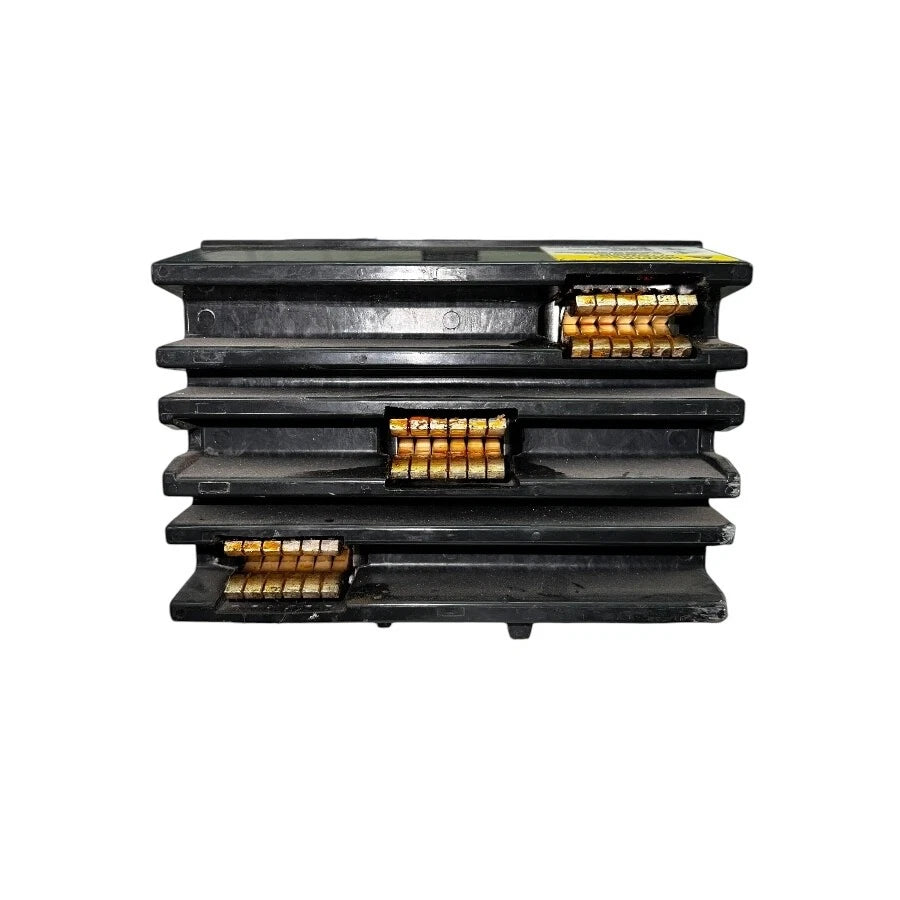

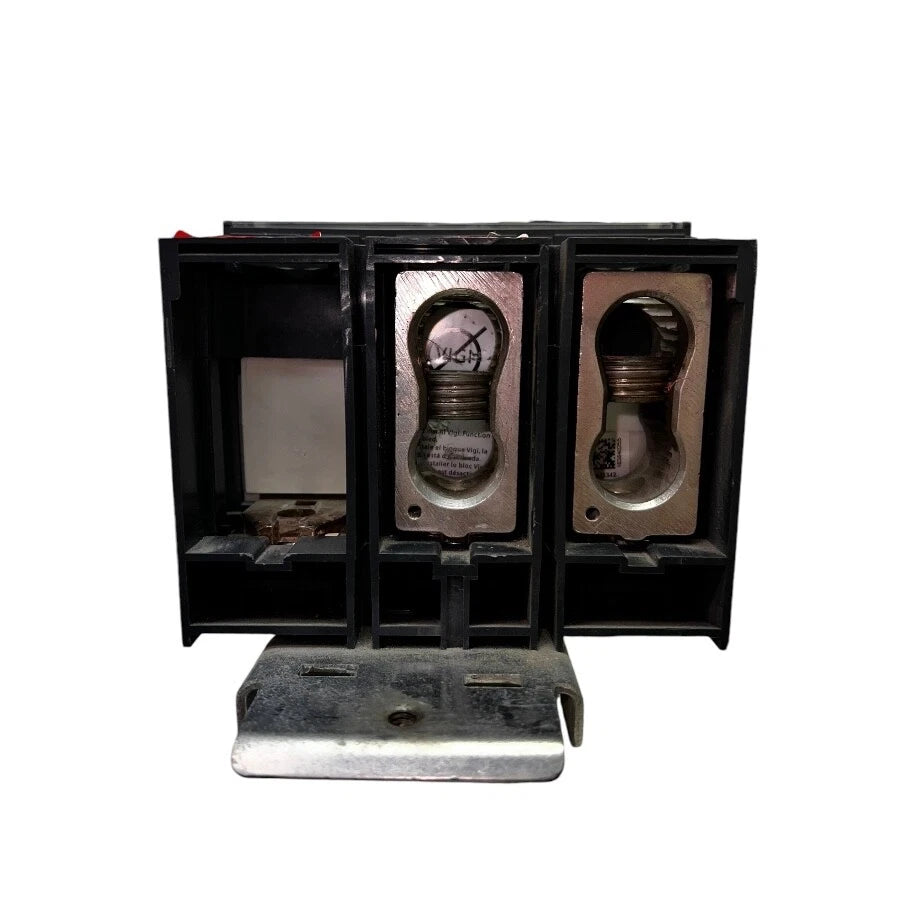

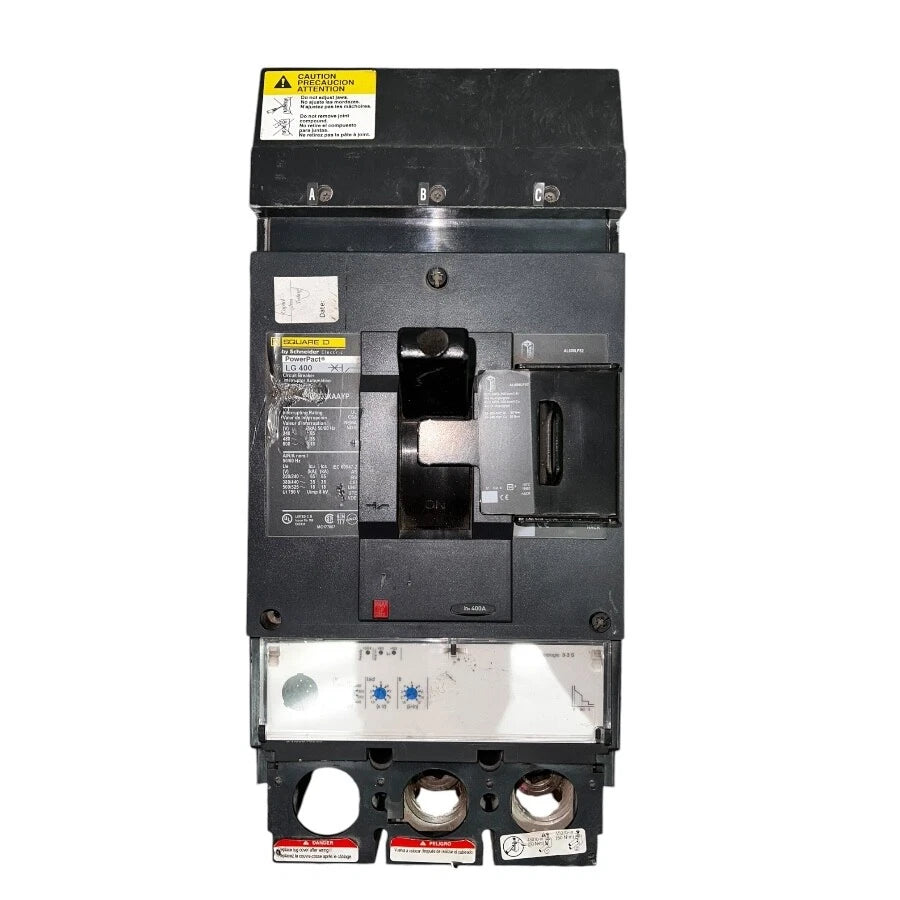

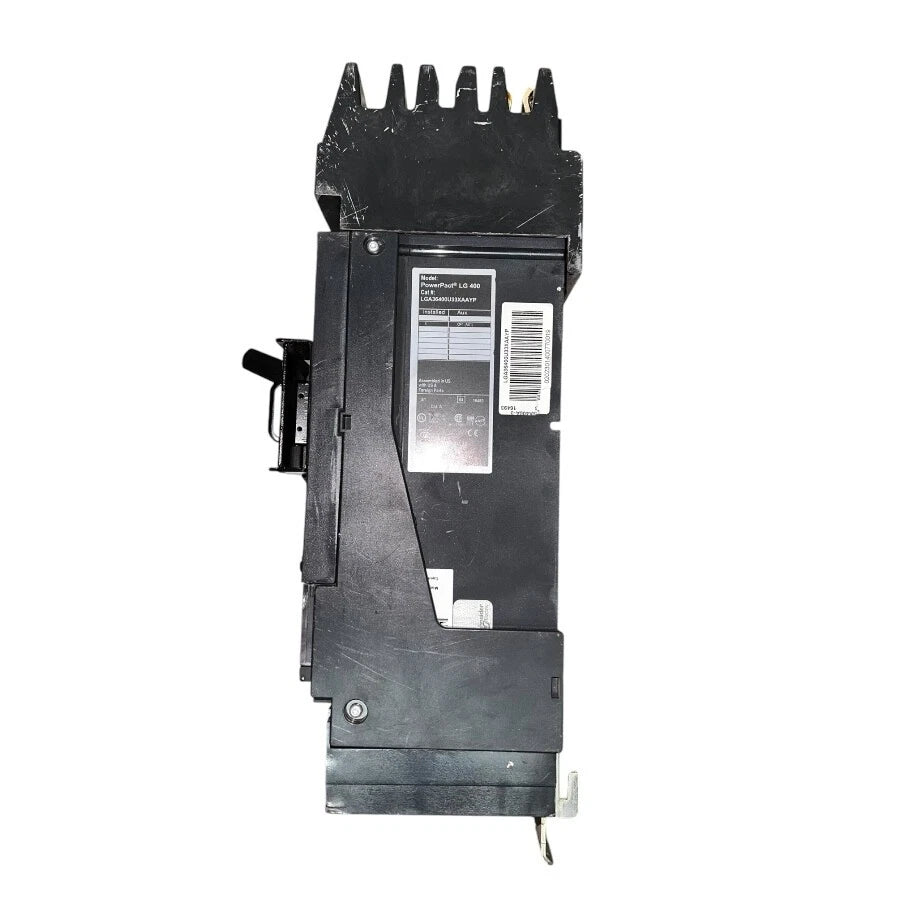

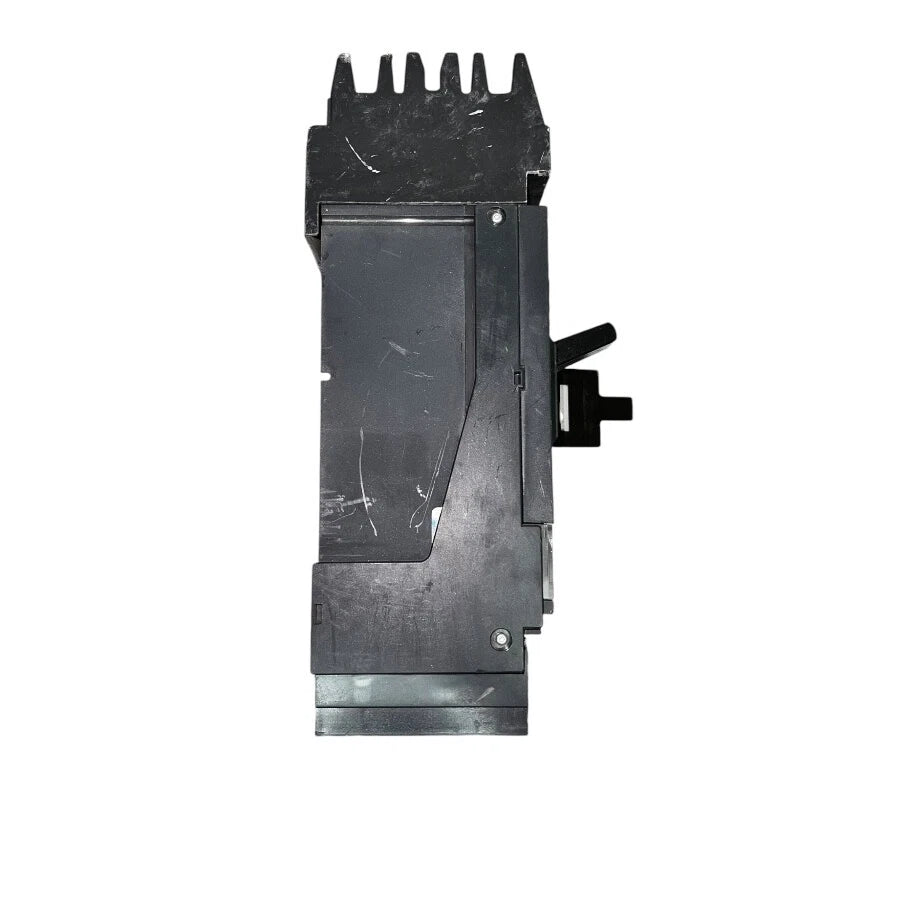

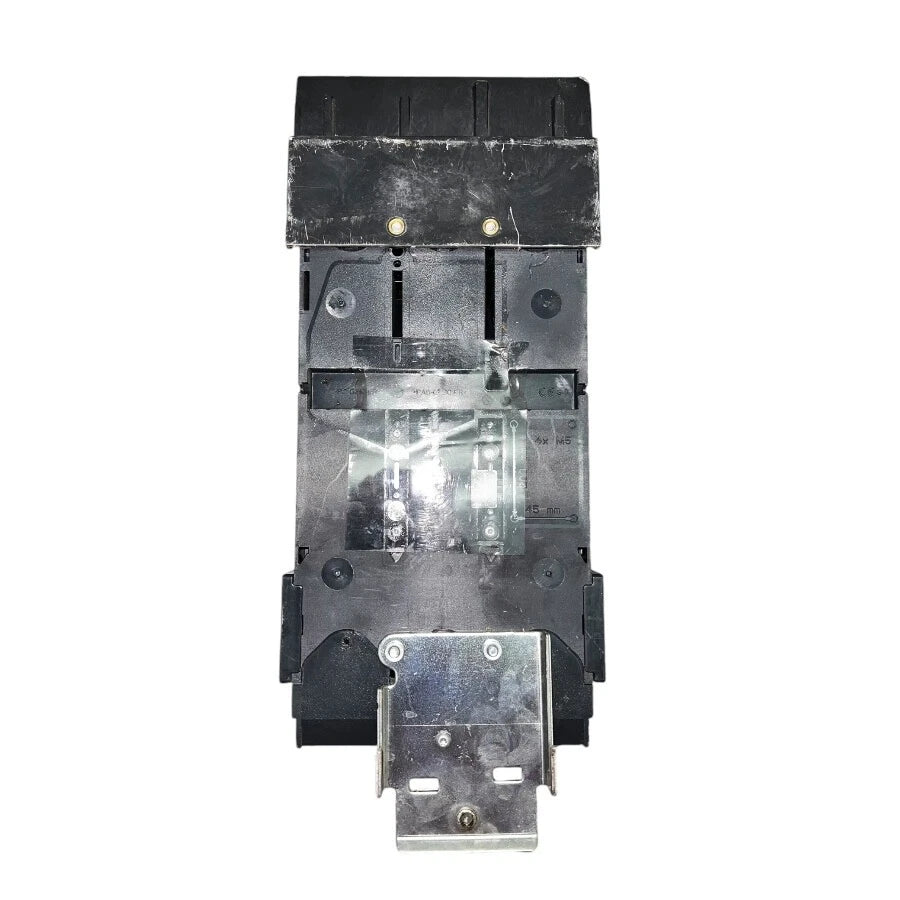

LGA36400U33X | Schneider Electric 400A 600VAC I-Line Molded Case Circuit Breaker
- Regular price
- $4,499.00
- Sale price
- $4,499.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LGA36400U33X
Description
The Schneider Electric LGA36400U33X is a molded case circuit breaker engineered for dependable overcurrent and short-circuit protection in industrial and commercial power distribution systems. Rated at 400 amps and up to 600 VAC, it supports three-pole applications requiring stable performance and controlled interruption. Its I-Line unit mount design enables efficient installation in switchboards and panelboards.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | LGA36400U33X |
| Subcategory | Molded Case Circuit Breaker |
| Series / Brand Line | Square D |
| Breaker Type | Molded Case Circuit Breaker |
| Current Rating | 400 A |
| Maximum Voltage | 600 VAC |
| Number of Poles | 3 |
| Frequency | 50/60 Hz |
| Interrupting Rating | 18 kA at 600 VAC |
| Mounting | I-Line unit mount |
| Conductor Range | AWG 3/0 to 500 kcmil |
| Front Cover Protection | IP40 |
| Tightening Torque | 50 N·m |
| Dimensions | Height 6 in; Width 140 mm; Depth 110 mm |
| Standards | UL, CSA, NEMA, IEC 60947-2, NOM-003 |
| Weight | 6.2 kg |
Information About LGA36400U33X
The LGA36400U33X is part of Schneider Electric’s Square D molded case circuit breaker lineup, designed to deliver consistent protection for feeder and branch circuits. It features a robust molded case housing and is compatible with I-Line mounting systems for streamlined integration into electrical distribution equipment. The breaker supports a wide conductor range and operates reliably across standard 50/60 Hz systems. Built to meet recognized international standards, it is suited for demanding industrial environments requiring precise fault protection.
Key Features:
- 400 Amp Current Rating: Supports medium-to-high capacity power distribution applications.
- 600 VAC Voltage Rating: Designed for high-voltage AC electrical systems.
- Three-Pole Configuration: Provides protection for three-phase circuits.
- I-Line Unit Mount: Enables fast, secure installation in compatible switchgear.
- 18 kA Interrupt Rating: Safely interrupts high fault currents at rated voltage.
- Wide Conductor Compatibility: Accepts conductors from AWG 3/0 to 500 kcmil.
- IP40 Front Cover: Offers protection against solid object intrusion at the front face.
The LGA36400U33X delivers the reliability and precision required for industrial and commercial circuit protection.
