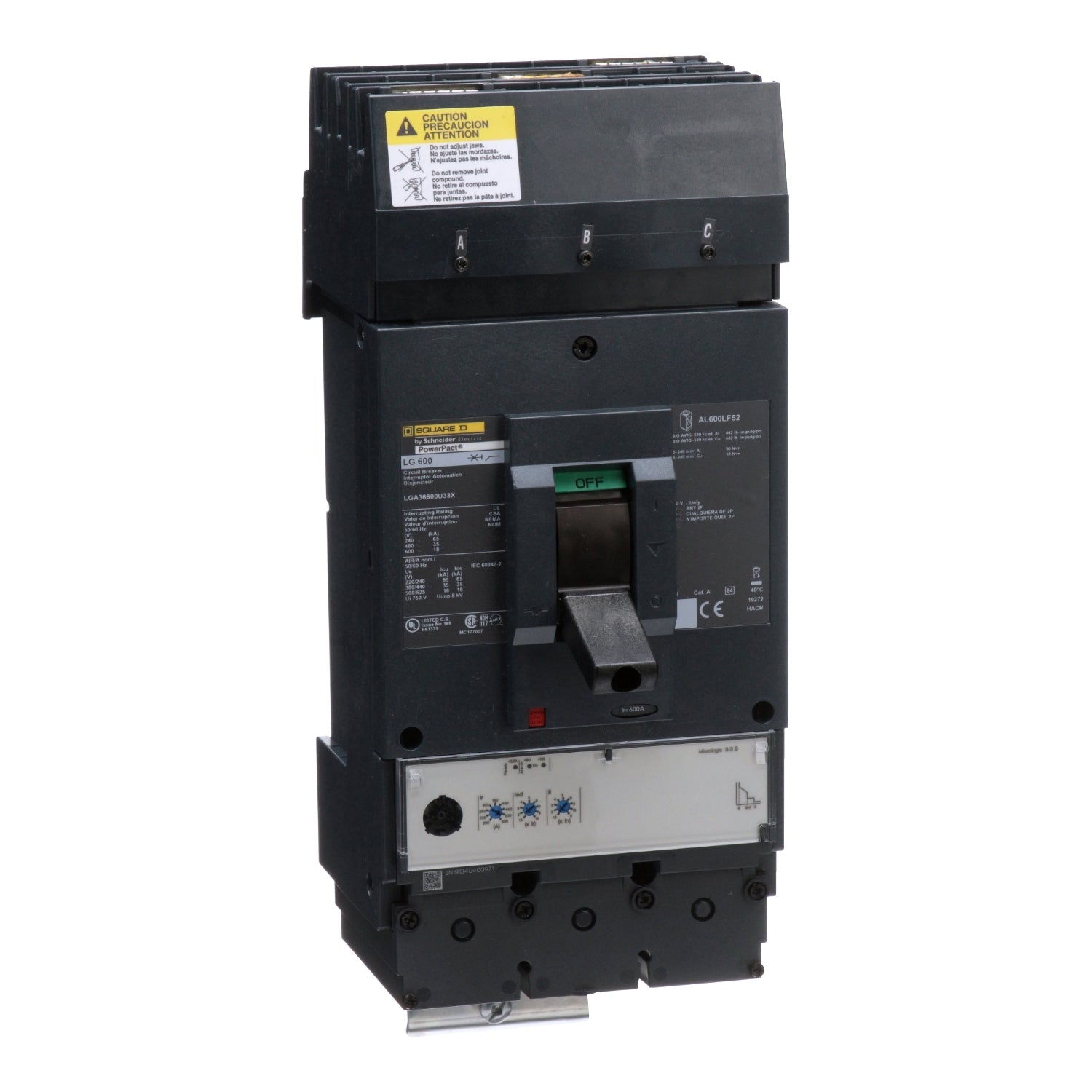

LGA36600U33X | Schneider Electric PowerPact 3-Pole 600A Solid State Molded Case Circuit Breaker I-Line
- Regular price
- $4,554.00
- Sale price
- $4,554.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LGA36600U33X
DescriptionΒ
The Schneider Electric LGA36600U33X is a three-pole molded case circuit breaker designed for high-capacity protection of three-phase electrical systems. It is rated for 600 amps at 600 volts and uses solid-state electronic protection with LSI trip functions for precise fault control.
Β
Technical SpecificationsΒ
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | LGA36600U33X |
| Subcategory | Molded Case Circuit Breaker |
| Family | PowerPact |
| Type | LGA |
| Frame Type | L Frame |
| Protection Type | Solid State Electronic |
| Trip Functions | Long-Time, Short-Time, Instantaneous (LSI) |
| Rated Current | 600 A |
| Rated Voltage | 600 VAC |
| Interrupt Rating | 35 kA at 480 V |
| Number of Poles | 3 |
| Phase | Three-phase |
| Connection Type | I-Line Style Plug-In |
| Trip Unit | Micrologic Standard 3.3S |
| Standards Compliance | UL Listed |
Β
Β
Information About LGA36600U33X
The LGA36600U33X is part of the Schneider Electric PowerPact circuit breaker family, engineered for advanced protection in industrial and commercial power distribution systems. It features a robust molded case design with an L-frame construction that supports high current ratings and mechanical durability. The solid-state Micrologic 3.3S trip unit provides accurate electronic sensing and configurable protection characteristics. This circuit breaker integrates directly with I-Line panelboards and may be applied in both three-pole and two-pole system configurations where permitted.
Key Features
- Three-pole, three-phase circuit breaker: Provides full protection and isolation across all phases in high-capacity power systems.
- 600 amp continuous current rating: Designed for feeder and main distribution applications with substantial electrical loads.
- Solid-state electronic protection: Uses advanced sensing technology for consistent and repeatable trip performance.
- LSI trip functionality: Delivers long-time overload protection, short-time fault coordination, and instantaneous short-circuit interruption.
- Micrologic 3.3S trip unit: Provides standard electronic protection with fixed and adjustable settings for system coordination.
- Standard interrupting capacity: Rated at 35 kA at 480 V to safely interrupt fault currents in typical industrial environments.
- I-Line style plug-in connection: Enables fast, secure installation into compatible Schneider Electric distribution equipment.
- L-frame molded case design: Supports durability and reliability in demanding industrial and commercial installations.
The LGA36600U33X delivers the reliability and precision required for protecting high-capacity three-phase electrical distribution systems in industrial and commercial power applications.
