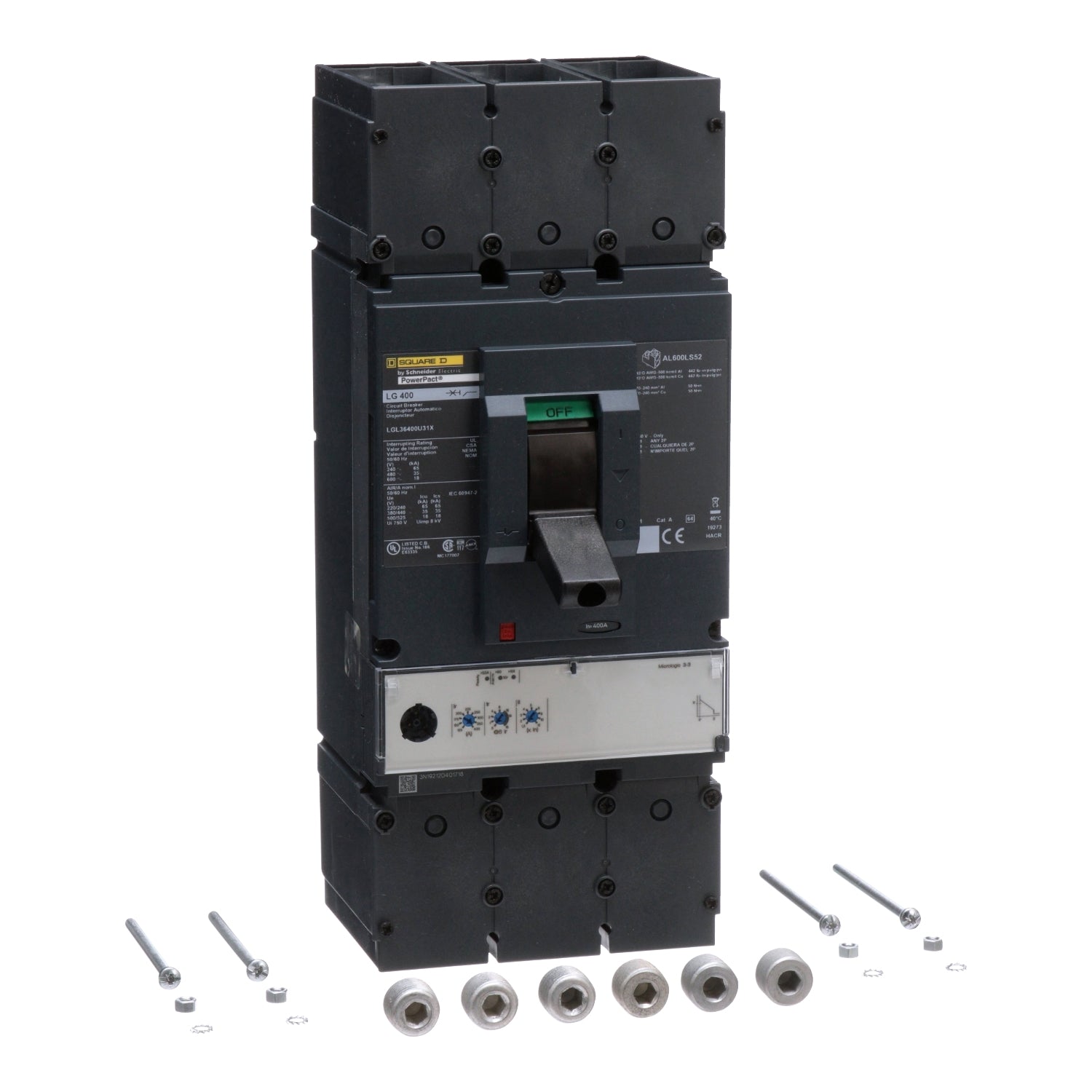

LGL36400U31X | Schneider Electric Circuit Breaker
- Regular price
- $1,957.00
- Sale price
- $1,957.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LGL36400U31X
Description
LGL36400U31X, Square D,Schneider Electric, Powerpact, type LGL, 3P, 3PH, 400A, 600V, 35kA@480V, UL listed, high interrupting capacity, Feed-Thru, can used for 2P applications, complete with non-interchangeable micrologic standard 3.3 trip, LI - Long-Time and Instantaneous trip functions and line & load side lug terminals, Solid State electronic, molded case circuit breakers.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | LGL36400U31X |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | Powerpact |
| Type | LGL |
| Voltage | 600 |
| Amperage | 400 |
| Frame Type | L Frame |
| AIC Rating | 35kA@480V |
| Protection | Solid State |
| Phase | 3 |
| Connection | Feed-Thru |
| Functions | LI - Long-Time and Instantaneous |
| Poles | 3 |
Information About LGL36400U31X
The LGL36400U31X by Schneider Electric is a high-capacity circuit breaker from the Powerpact family, engineered for reliable electrical protection in demanding industrial and commercial environments. This LGL-type circuit breaker operates at a voltage of 600V and has an amperage rating of 400A, making it suitable for high-capacity circuits.
Featuring a 3-pole configuration, the LGL36400U31X supports three-phase electrical systems, ensuring balanced power distribution and effective protection for complex electrical loads. Its feed-thru connection design allows for straightforward and secure installation, facilitating efficient integration into various distribution panels and systems.
Equipped with solid state protection, the LGL36400U31X offers advanced circuit safeguarding with precise and reliable performance. The solid state trip unit enhances the breaker’s ability to handle complex protection schemes and provides superior response times to electrical faults, preventing potential damage to wiring and connected devices.
The circuit breaker incorporates Long-Time and Instantaneous (LI) functions, providing advanced protection features. The Long-Time function addresses sustained overcurrent conditions to prevent overloads, while the Instantaneous function responds quickly to short-circuit events, ensuring immediate circuit interruption to mitigate damage.
With an Ampere Interrupting Capacity (AIC) of 35kA at 480V, the LGL36400U31X is capable of handling significant fault currents, providing robust protection for critical electrical systems.
The L Frame type construction of the LGL36400U31X ensures durability and high performance, making it suitable for rigorous industrial applications.
Overall, the Schneider Electric LGL36400U31X circuit breaker delivers reliable performance, secure installation, and advanced protection features, making it an essential component for maintaining the safety and reliability of electrical systems in industrial and commercial settings.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
