LGL36600U31X | Schneider Electric Circuit Breaker
- Regular price
- $2,525.00
- Sale price
- $2,525.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LGL36600U31X
Description

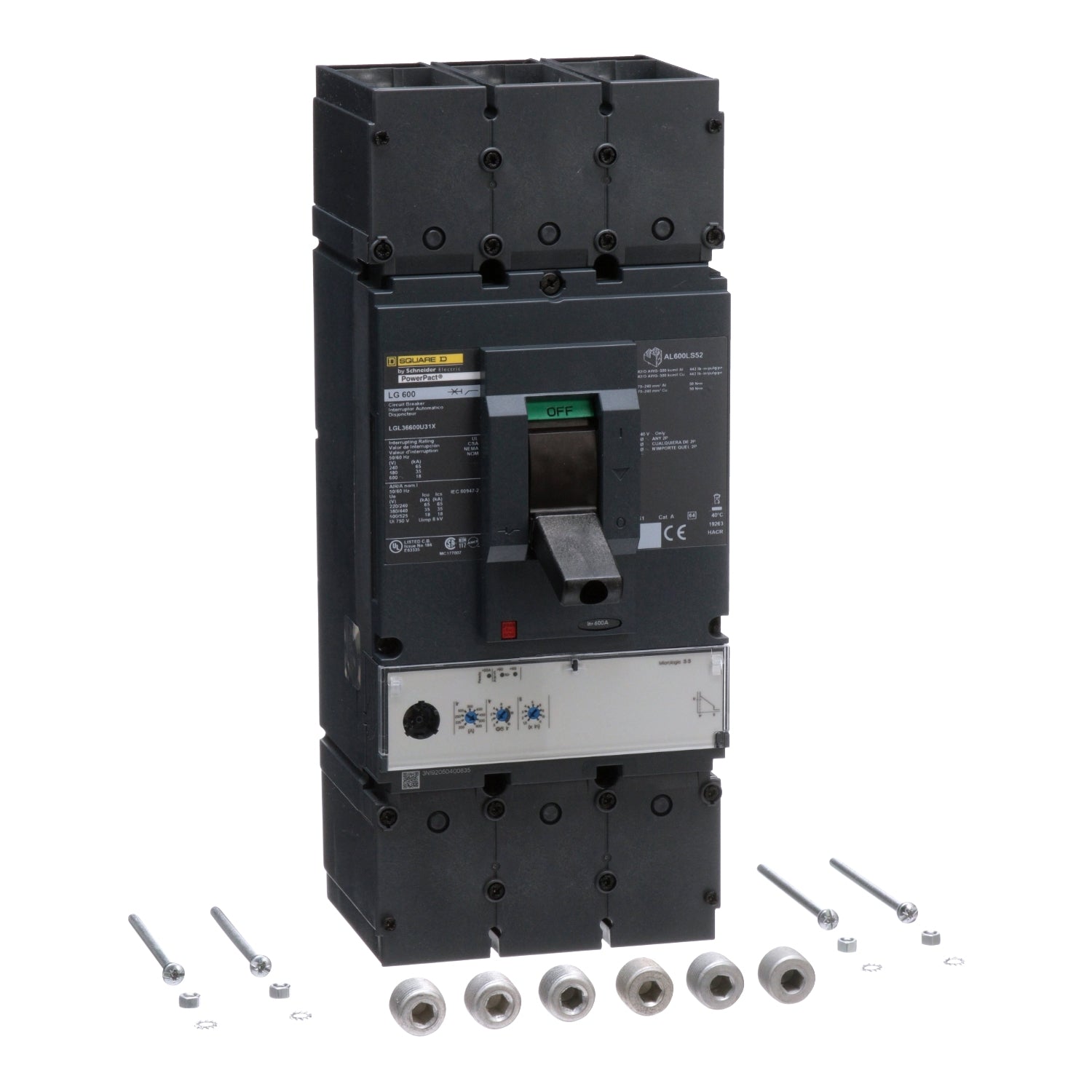

The LGL36600U31X is a PowerPacT L-Frame circuit breaker designed to provide protection for electrical systems against overloads and short circuits. It features a 600A current rating and operates at 600VAC with a 3-pole configuration. The breaker has an interrupting rating of 18kA. Equipped with MicroLogic 3.3 electronic trip units, the LGL36600U31X includes dual-break rotating contacts to minimize peak current during short circuit faults.
Technical Specifications
|
Part # |
LGL36600U31X |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Range |
PowerPact |
|
Product Name |
PowerPact L |
|
Device Short Name |
L-Frame |
|
Product or Component Type |
Circuit breaker |
|
Device Application |
Distribution |
|
Line Rated Current |
600 A |
|
Number of Poles |
3P |
|
Control Type |
Toggle |
|
Breaking Capacity Code |
G |
|
[Ue] Rated Operational Voltage |
600 V AC 50/60 Hz IEC 60947-3 |
|
Network Frequency |
50/60 Hz |
|
[Uimp] Rated Impulse Withstand Voltage |
8 kV IEC 60947-2 |
|
Trip Unit Technology |
Electronic, standard, MicroLogic 3.3, LI |
|
Continuous Current Rating |
80 % |
|
[Ui] Rated Insulation Voltage |
750 V IEC 60947-2 |
|
Trip Unit Name |
MicroLogic 3.3 |
|
Protection Technology |
Current limiter |
|
Suitability for Isolation |
Yes IEC 60947-2 |
|
Utilization Category |
Category A |
|
AWG Gauge |
2 x AWG 2/0...500 kcmil aluminium/copper |
|
Mounting Mode |
Unit mount lug |
|
Mounting Support |
Lug |
|
Electrical Connection |
Lugs, line |
|
Terminal Identifier |
AL600LS52K3 |
|
Long Time Pick-Up Adjustment Range |
0.25...1 x In |
|
Tightening Torque |
442.54 lbf.in (50 N.m) 0.11…0.37 in² (70…240 mm²) (AWG 2/0...500 kcmil) |
|
Color |
Black |
|
Height |
13.39 in (340 mm) |
|
Width |
5.51 in (140 mm) |
|
Depth |
4.33 in (110 mm) |
|
Net Weight |
13.67 lb(US) (6.2 kg) |
|
IP Degree of Protection |
Front cover IP40 |
|
Pollution Degree |
3 IEC 60947-1 |
|
Ambient Air Temperature for Operation |
-13…158 °F (-25…70 °C) |
|
Ambient Air Temperature for Storage |
-58…185 °F (-50…85 °C) |
|
Operating Altitude |
< 6561.68 ft (2000 m) without derating, 5000 m with derating |
Information About LGL36600U31X
The LGL36600U31X is a PowerPacT L-Frame circuit breaker designed by Schneider Electric to protect electrical systems from damage caused by overloads and short circuits. This circuit breaker operates with a rated current of 600A and is designed with three poles. It has a rated operational voltage of 600VAC at 50/60 Hz, in accordance with IEC 60947-3 standards, and an interrupting rating of 18kA.
The LGL36600U31X features electronic trip unit technology with the MicroLogic 3.3 standard and an LI (long-time and instantaneous) function. This ensures precise and reliable tripping performance. The trip unit is equipped with current-limiting capabilities to minimize the impact of short circuits on the electrical system.
The circuit breaker is designed with dual-break rotating contacts, which help to reduce the peak current during a short circuit fault, enhancing the overall safety and performance of the device. Additionally, it includes an integral push-to-trip button on the cover, allowing for manual tripping of the circuit breaker when necessary.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
