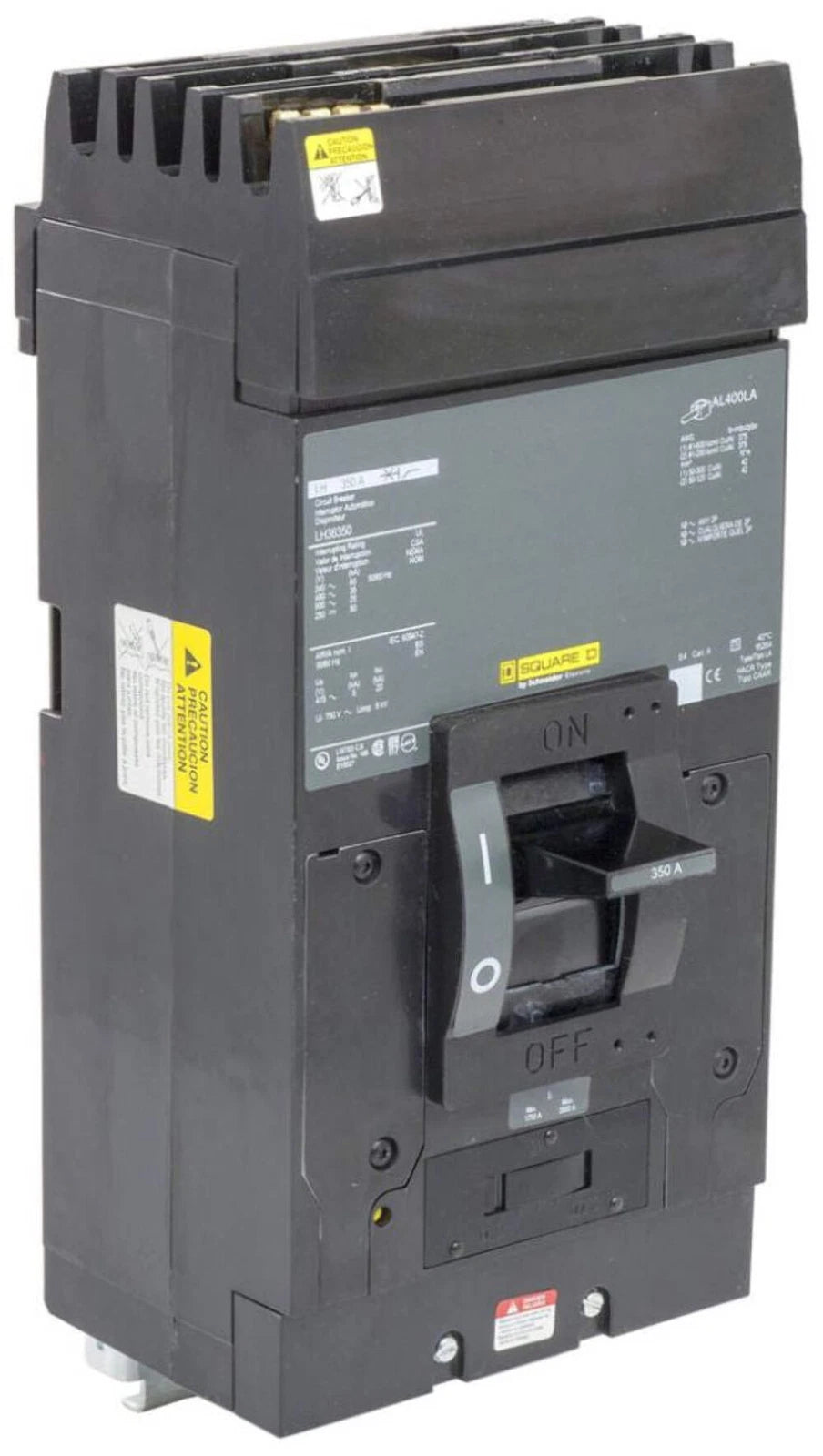

LH36225 | Schneider Electric 225A 3-Pole I-Line Molded Case Circuit Breaker 600V
- Regular price
- $5,899.00
- Sale price
- $5,899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LH36225
DescriptionΒ
The Schneider Electric LH36225 is a molded case circuit breaker designed to protect three-phase electrical systems from overloads and short-circuit faults. Rated at 225 amps and up to 600 volts AC, it delivers dependable interruption performance in demanding industrial and commercial power distribution applications. Its I-Line mounting design allows efficient installation in switchboards and distribution equipment.
Β
Β
Technical SpecificationsΒ
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | LH36225 |
| Subcategory | Molded Case Circuit Breaker |
| Frame Series | LH (H-frame) |
| Breaker Type | Thermal-magnetic |
| Current Rating | 225 A |
| Number of Poles | 3 |
| Maximum Voltage (AC) | 600 VAC |
| Maximum Voltage (DC) | 250 VDC |
| Mounting Type | I-Line |
| Interrupt Rating | 25β65 kA (voltage dependent) |
| Magnetic Hold Current | 1125 A |
| Magnetic Trip Current | 2250 A |
| Terminal Type | AL400LA |
| Conductor Compatibility | AWG 1β600 kcmil Al/Cu (line), AWG 1β250 kcmil Al/Cu (load) |
| Dimensions (HΓWΓD) | 12.5 Γ 6 Γ 4 in |
| Certifications | UL Listed, CSA |
| Country of Origin | Mexico |
| Weight | 18 Ibs |
Β
Information About LH36225
The LH36225 is part of Schneider Electricβs LH H-frame molded case circuit breaker series, engineered for robust performance and long-term reliability. It incorporates a thermal-magnetic trip unit that provides inverse-time overload protection and instantaneous magnetic short-circuit response. The breaker is designed for compatibility with I-Line distribution systems, enabling quick installation and secure bus connections. Its construction and certifications support use in regulated electrical environments requiring proven protection technologies.
Key Features:
- Thermal-Magnetic Trip Unit: Combines overload and instantaneous short-circuit protection.
- 225 A Current Rating: Suitable for high-capacity feeder and branch circuits.
- 600 VAC / 250 VDC Rating: Supports both AC and DC low-voltage applications.
- Three-Pole Configuration: Designed for three-phase electrical distribution systems.
- I-Line Mounting Design: Enables fast, secure installation in compatible switchboards.
- High Interrupting Capacity: Rated up to 65 kA depending on system voltage.
- Wide Conductor Compatibility: Accepts aluminum or copperΒ conductors across a broad size range.
The LH36225 delivers the reliability and precision required for safe, high-capacity circuit protection in industrial and commercial power distribution systems.
