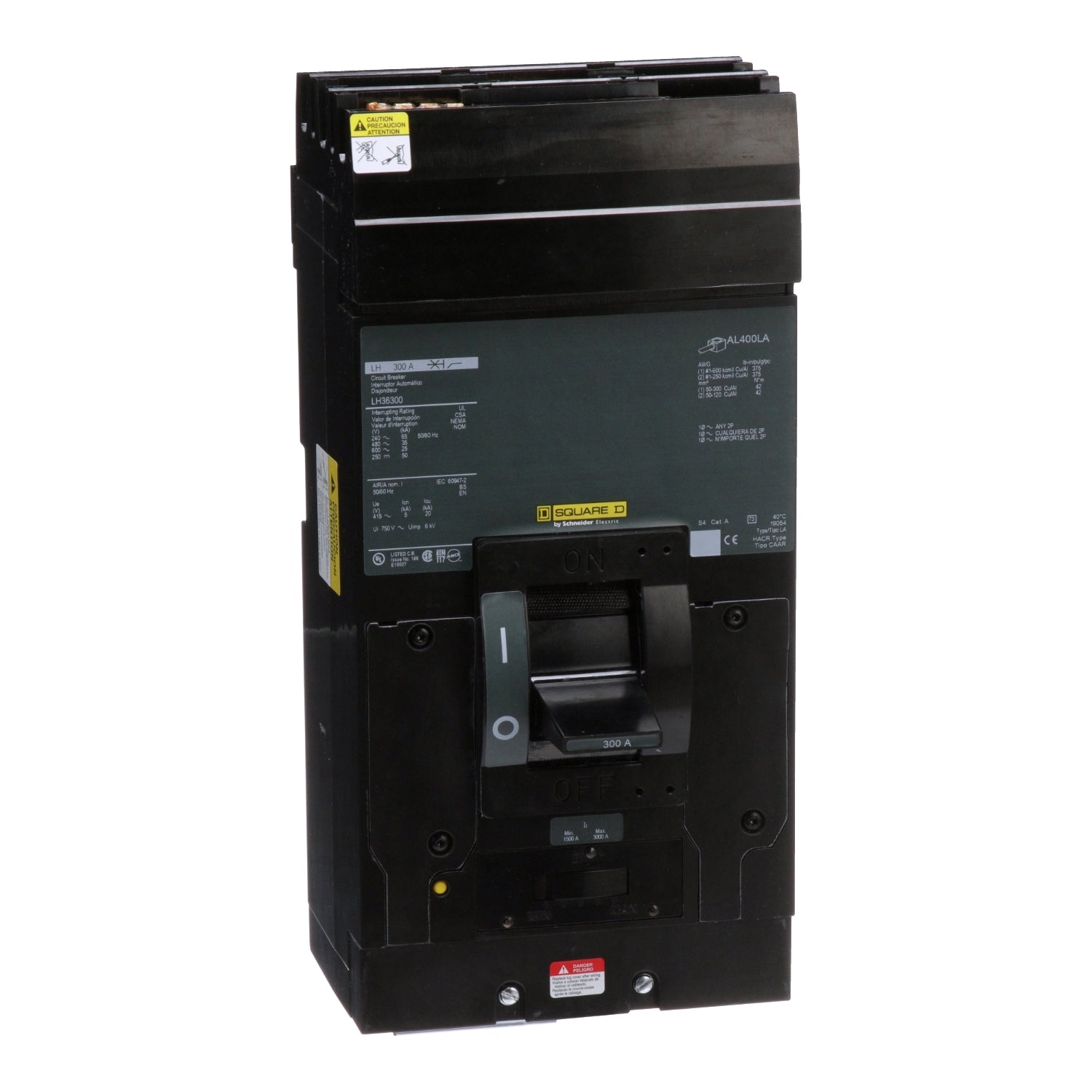

LH36300 | Schneider Electric Circuit Breaker
- Regular price
- $2,159.00
- Sale price
- $2,159.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LH36300
Description
LH36300, Square D, I-Line, type LH, 3P, ABC phase circuit configuration, 3PH, 300A, 600V, 35kA@480V, high interrupting capacity, I-Line Style Plug-In, complete with LI - Long-Time and Instantaneous trip functions, Thermal Magnetic molded case circuit breakers.
Technical Specifications
| Brand | Schneider Electric |
| Part Number | LH36300 |
| Category | Circuit Breaker |
| Subcategory | Molded Case Circuit Breaker |
| Family | I-Line |
| Type | LH |
| Voltage | 600 |
| Amperage | 300 |
| Connection | I-Line Style Plug-In |
| Frame Type | L Frame |
| Poles | 3 |
| Phase | 3 |
| Functions | LI - Long-Time and Instantaneous |
| Protection | Thermal Magnetic |
| AIC Rating | 35kA@480V |
Information About LH36300
The LH36300 Schneider Electric Circuit Breaker is a high-capacity, reliable protection device designed for demanding industrial and commercial applications. Part of the I-Line family, this breaker offers robust performance and safety features to manage substantial electrical loads effectively.
Operating at a voltage of 600V and an amperage of 300A, the LH36300 is ideal for three-phase systems, ensuring efficient power distribution and circuit protection. Its three-pole configuration provides balanced and reliable electrical management across all phases.
The LH36300 features a Thermal Magnetic protection mechanism, combining thermal protection for long-time overload conditions and magnetic protection for instantaneous short-circuit response. This dual protection ensures comprehensive safeguarding of electrical circuits, preventing damage from both prolonged overcurrent and sudden faults. With an interrupting capacity (AIC) of 35kA at 480V, the LH36300 can handle significant fault currents, providing robust protection against electrical faults.
Designed for ease of installation and maintenance, the LH36300 utilizes an I-Line Style Plug-In connection, facilitating quick and secure integration into I-Line panelboards and busway systems. The L Frame type enhances its durability and reliability, making it suitable for harsh and demanding environments.
The primary functions of the LH36300 include Long-Time and Instantaneous protection, ensuring continuous operation under normal conditions and rapid disconnection during fault conditions to prevent damage and enhance safety.
Overall, the LH36300 Schneider Electric Circuit Breaker is a dependable and efficient solution for protecting electrical circuits from overloads and short circuits. Its high interrupting capacity, robust protection features, and straightforward installation make it an ideal choice for a wide range of industrial and commercial applications.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
