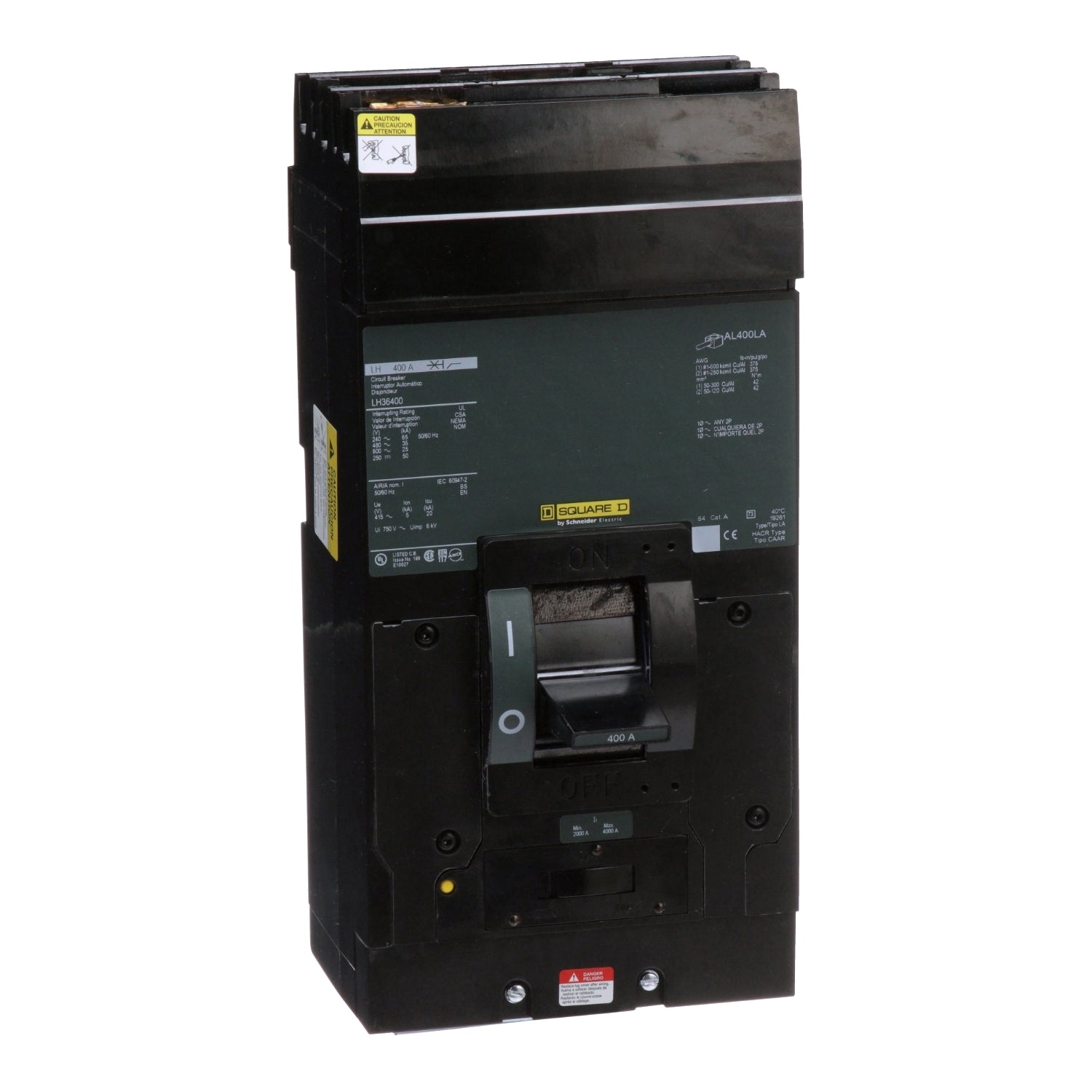

Product Description P/N: LH36400
Description
The LH36400 is a Square D I-Line circuit breaker. It is of type LH and designed for I-Line mounting. This circuit breaker has a current rating of 400A and a voltage rating of 600VAC. It features a 3-pole, ABC phase circuit configuration and is suitable for 3-phase systems. The interrupting capacity is rated at 25kA. The breaker includes long-time and instantaneous trip functions with a thermal magnetic trip unit. The mounting style is I-Line plug-in.
Technical Specifications
|
Part # |
LH36400 |
|
Category |
Circuit Breaker |
|
Subcategory |
Molded Case Circuit Breaker |
|
Line Rated Current |
400 A |
|
Number of Poles |
3P |
|
Breaking Capacity Code |
H |
|
Mounting Mode |
I-Line |
|
Magnetic Hold Current |
2000 A |
|
Magnetic Tripping Current |
4000 A |
|
Terminal Identifier |
AL400LA |
|
Height |
12.5 in (317.50 mm) |
|
Width |
6 in (152.40 mm) |
|
Depth |
4 in (101.60 mm) |
|
Circuit Breaker Application |
HACR rated |
Information About LH36400
The LH36400 is a molded case circuit breaker manufactured by Square D. It belongs to the I-Line series and is characterized by its type LH designation. The device features a three-pole (3P) configuration, suitable for ABC phase circuits. It is designed to operate in three-phase (3PH) systems and is rated for a continuous current of 400 amperes (A). The voltage rating of the circuit breaker is 600 volts alternating current (VAC), and it has a high interrupting capacity of 35 kiloamperes (kA) at 480 volts. The device is equipped with I-Line style plug-in mounting, allowing for ease of installation and integration into electrical systems.
The LH36400 circuit breaker incorporates thermal magnetic trip technology, which provides protection against overloads and short circuits. The thermal trip element responds to prolonged overcurrent conditions by utilizing a bimetallic strip, while the magnetic trip element reacts instantaneously to high-current short circuits. This combination ensures comprehensive protection for electrical systems.
The breaker is designed with Long-Time and Instantaneous (LI) trip functions. The Long-Time trip function provides a delay to accommodate inrush currents during startup, preventing nuisance tripping. The Instantaneous trip function offers immediate protection against severe short circuits by rapidly disconnecting the circuit.
