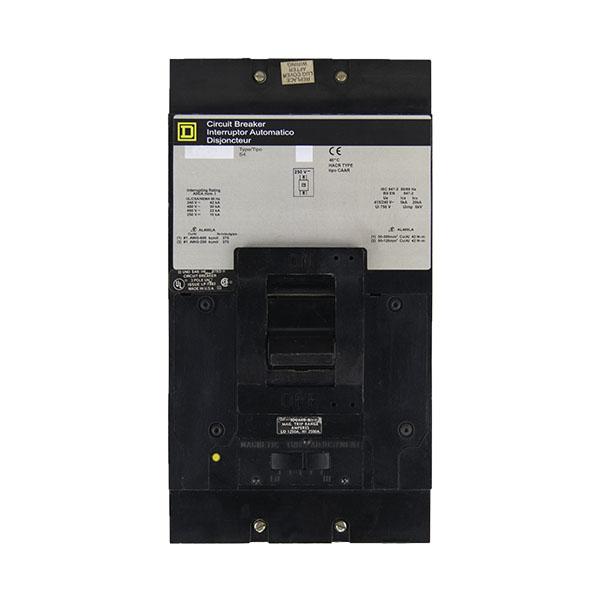

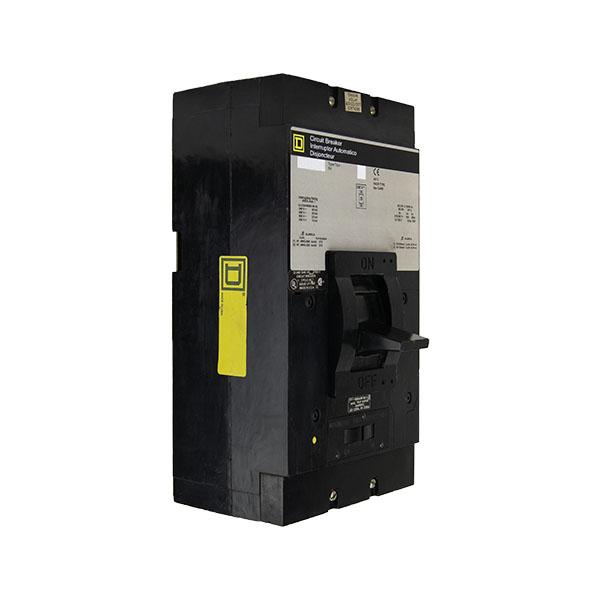

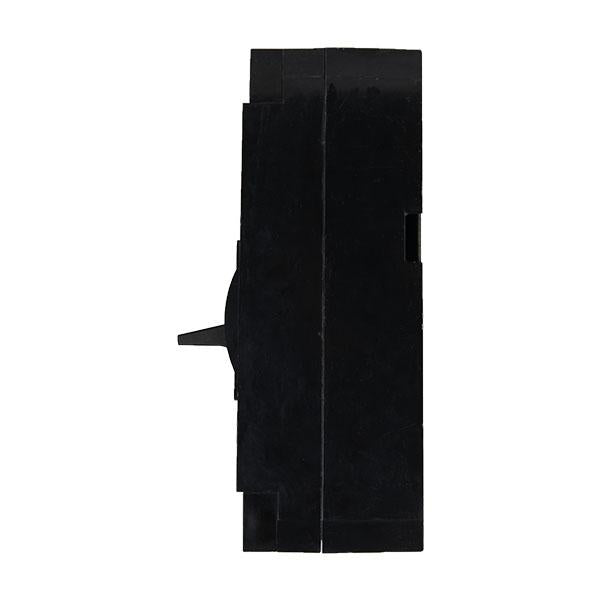

LHP26400 | Square D PowerPact 400A 2-Pole 600V Molded Case Circuit Breaker
- Regular price
- $4,475.00
- Sale price
- $4,475.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LHP26400
Description
The Square D LHP26400 PowerPact Circuit Breaker is a 2-pole molded case circuit breaker rated for 400 amps and 600 volts AC. Designed for demanding industrial and commercial systems, it provides reliable thermal-magnetic protection against overloads and short circuits. The LHP26400 offers a compact design with lug terminals and a 35 kA interrupting capacity at 480 VAC for efficient and durable circuit protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Square D |
| Category | Circuit Protection |
| Part Number | LHP26400 |
| Subcategory | Molded Case Circuit Breaker |
| Series | PowerPact L |
| Frame Type | L-Frame |
| Number of Poles | 2 |
| Rated Current | 400 A |
| Rated Voltage | 600 VAC |
| Interrupting Rating | 42 kA @ 240 VAC, 35 kA @ 480 VAC, 25 kA @ 600 VAC, 50 kA @ 250 VDC |
| Trip Unit Type | Thermal-Magnetic |
| Connection Type | Lug (Off-End) |
| Mounting Type | Unit Mount |
| Continuous Current Rating | 80 % |
| Wire Size Range | (1) 1 AWG – 600 kcmil / (2) 1 AWG – 250 kcmil (Al/Cu) |
| Compliance Standards | UL, CSA, NOM, RoHS |
| Operating Temperature | –13 °F to 158 °F (–25 °C to +70 °C) |
| Dimensions (H × W × D) | 11 × 6 × 5.84 in |
| Maximum AC Voltage | 600 V |
| Terminal Type | Lug |
| Weight | 12.0 lb (approx.) |
Information About LHP26400
The LHP26400 is part of Square D’s PowerPact L-Frame series, known for its high-performance molded case design and thermal-magnetic trip technology. It is compatible with Meter-Pak and PowerPact systems, offering versatile installation options with off-end lug terminals. This breaker supports both single and multi-phase systems up to 600 VAC, with interrupting ratings of 42 kA at 240 VAC and 35 kA at 480 VAC. Designed to meet UL, CSA, NOM, and RoHS standards, the LHP26400 ensures dependable performance and safety across a wide range of power distribution environments.
Key Features:
- High Current Capacity: Rated at 400 A for robust protection in heavy-duty power systems.
- Thermal-Magnetic Trip Unit: Provides precise long-time and instantaneous protection functions.
- Wide Voltage Range: Operates effectively up to 600 VAC and 250 VDC.
- Rugged L-Frame Construction: Ensures mechanical strength and long service life.
- Flexible Wire Compatibility: Supports 1 AWG to 600 kcmil (Al/Cu) and dual-wire options for versatility.
- UL and CSA Certified: Meets stringent safety and performance standards.
- RoHS Compliant: Environmentally safe and free from hazardous substances.
- Compact Form Factor: Designed for easy installation in control panels and switchboards.
The LHP26400 delivers the reliability and precision required for safe, efficient operation in high-capacity industrial power distribution systems.
