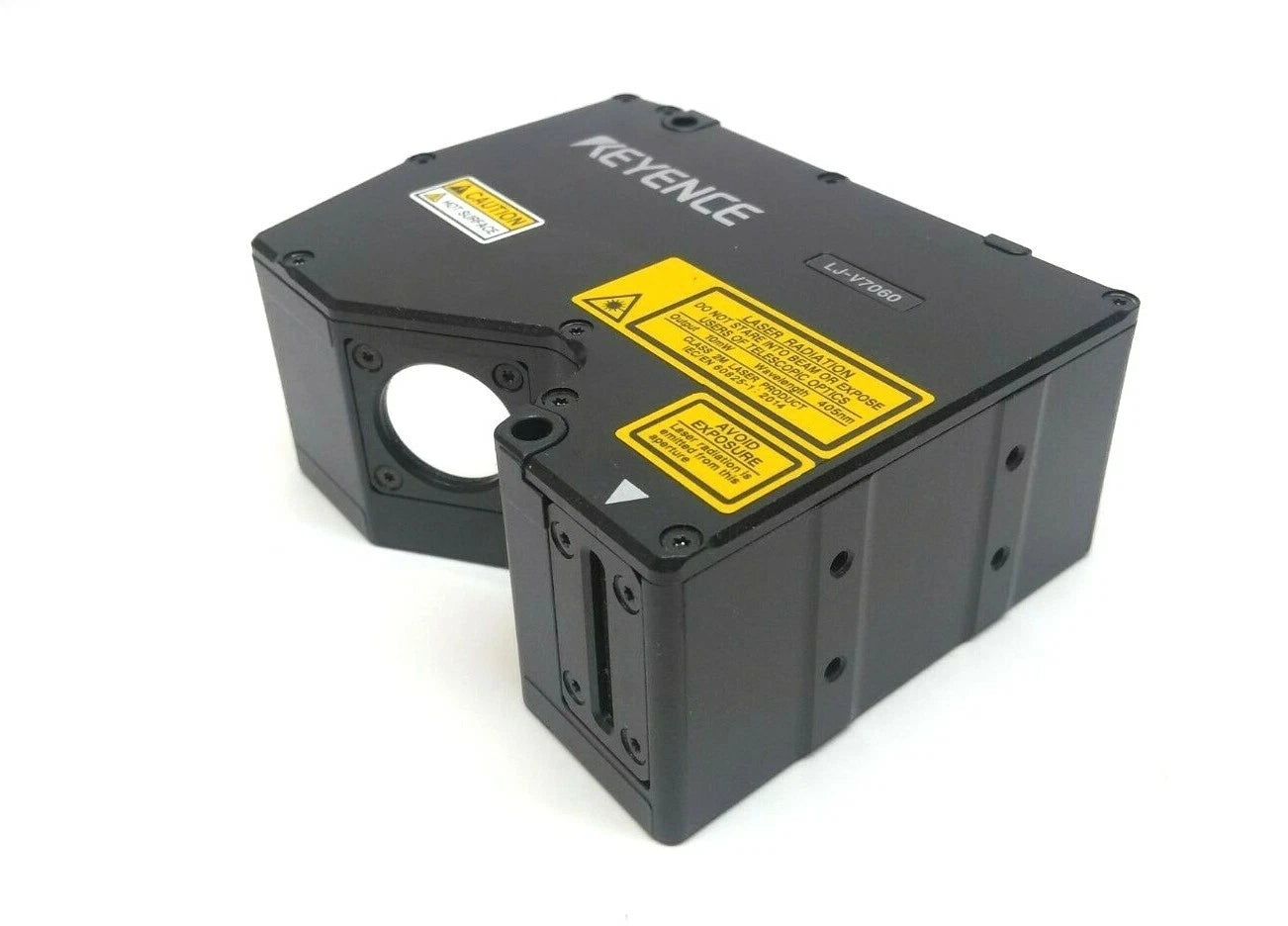

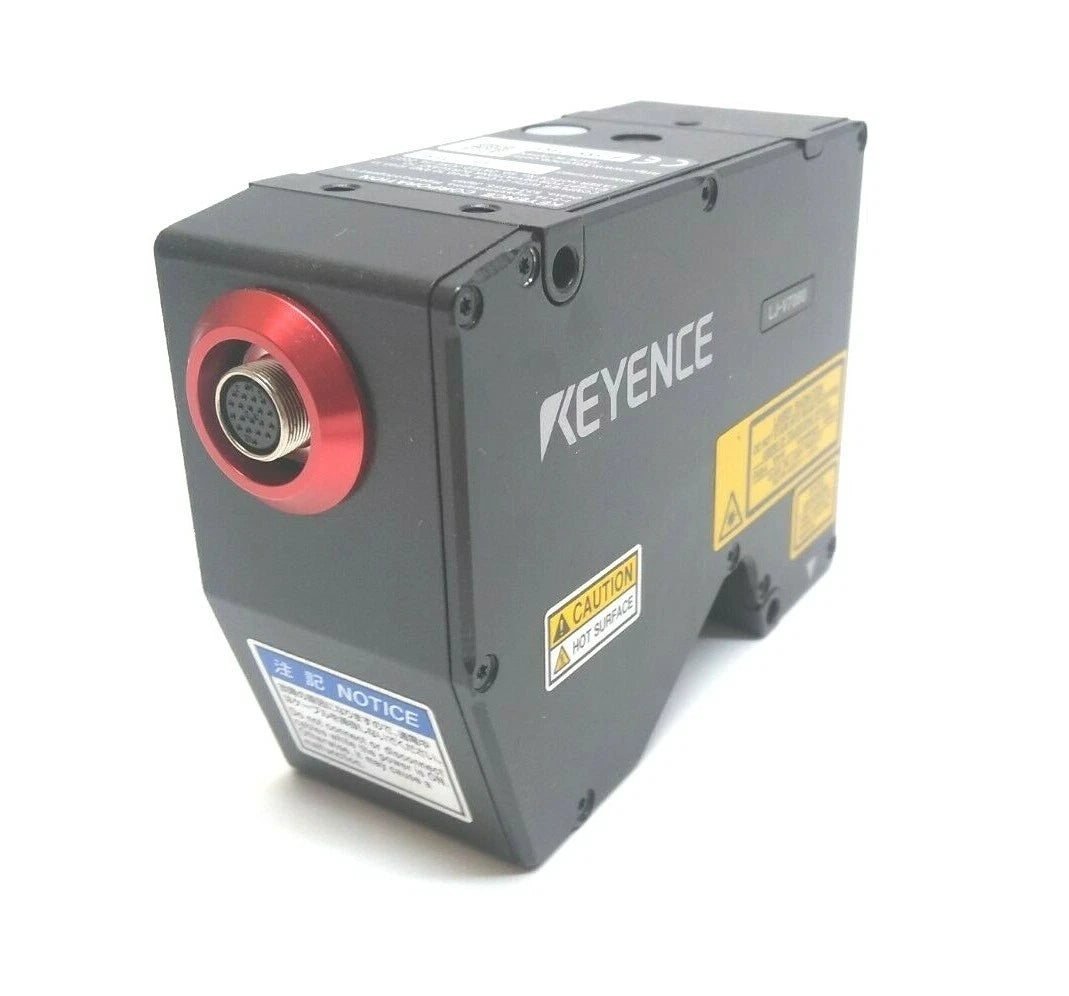

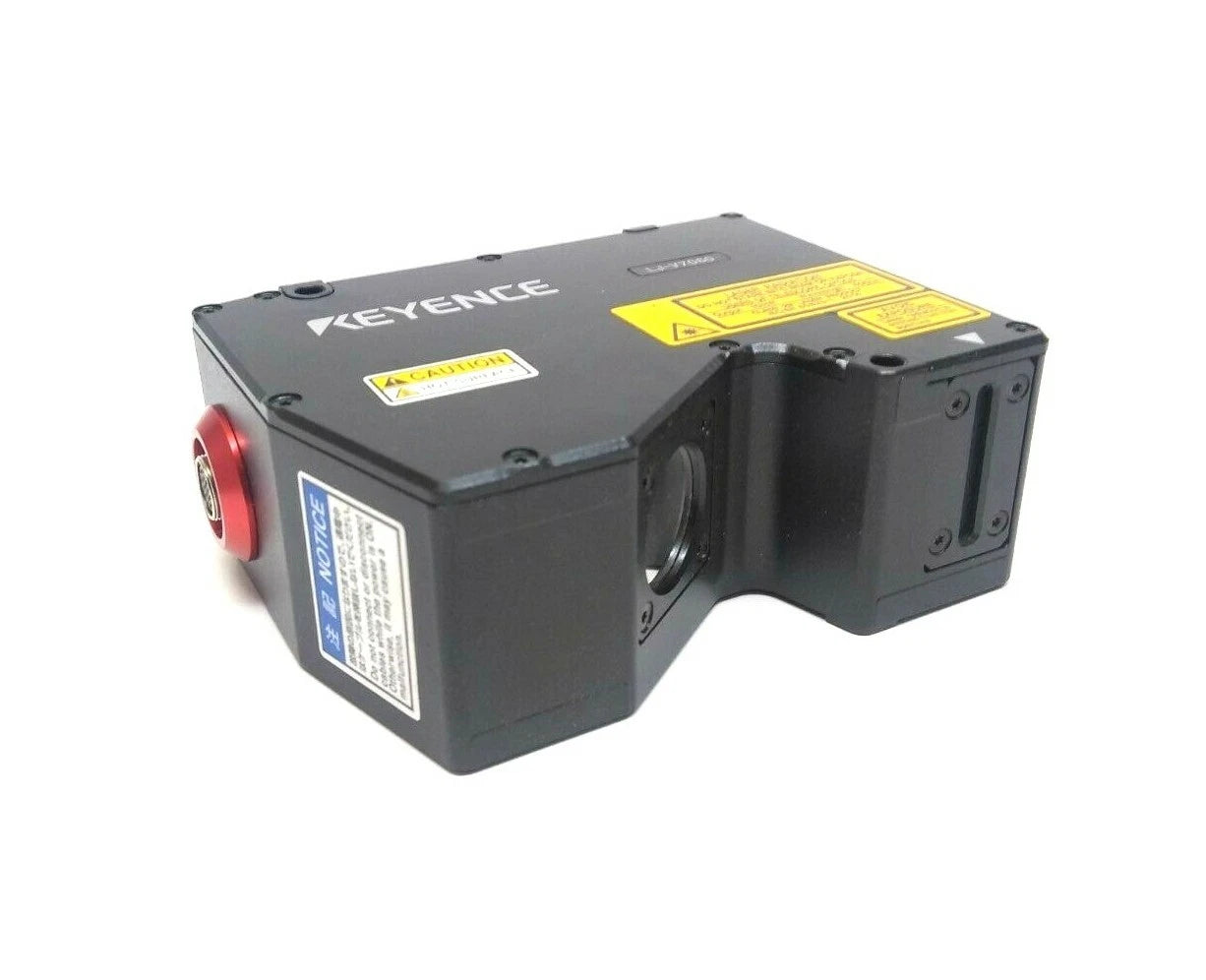

LJ-V7060 | Keyence LJ-V7000 Series 2D/3D Blue Laser Profiler Sensor Head, ±8 mm Range, IP67
- Regular price
- $1,065.00
- Sale price
- $1,065.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: LJ-V7060
Description
The Keyence LJ-V7060 is a high-speed, high-precision 2D/3D laser profiler sensor head designed for advanced surface and dimensional inspection. Part of the LJ-V7000 Series, it uses a 405 nm blue semiconductor laser to achieve ultra-fine measurement stability on various materials, even reflective or dark surfaces.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors & Switches |
| Part Number | LJ-V7060 |
| Subcategory | Sensor Accessory |
| Series | LJ-V7000 Series |
| Mounting Condition | Diffuse reflection |
| Reference Distance | 60 mm (2.36 in) |
| Measurement Range (Z-axis) | ±8 mm (F.S. = 16 mm) |
| Measurement Range (X-axis) | 13.5 mm (near side), 15 mm (reference), 16 mm (far side) |
| Light Source Type | Blue semiconductor laser |
| Wavelength | 405 nm (visible beam) |
| Laser Class | Class 2M (IEC60825-1, FDA CDRH Part 1040.10) |
| Laser Output | 10 mW |
| Spot Size (Reference Distance) | 21 µm × 45 µm (0.83 mil × 1.77 mil) |
| Repeatability (Z-axis) | 0.4 µm (0.000016 in) |
| Repeatability (X-axis) | 5 µm (0.000197 in) |
| Linearity (Z-axis) | ±0.1% of F.S. |
| Profile Data Interval (X-axis) | 20 µm (0.0008 in) |
| Sampling Cycle | 16 µs (high-speed mode) / 32 µs (advanced mode) |
| Temperature Characteristics | 0.01% of F.S./°C |
| Enclosure Rating | IP67 (IEC60529) |
| Ambient Light Resistance | 10,000 lux max |
| Operating Temperature | 0 to +45°C (32 to 113°F) |
| Relative Humidity | 85% RH or less (no condensation) |
| Vibration Resistance | 10–57 Hz, double amplitude 1.5 mm, 3 h in each axis |
| Shock Resistance | 15 G / 6 ms |
| Material | Aluminum |
| Weight | Approx. 450 g (0.99 lb) |
Information About LJ-V7060
The LJ-V7060 operates using diffuse reflection and captures detailed profiles across a 13.5 mm x-axis width and ±8 mm z-axis height range. It features a compact aluminum body with IP67 protection, ensuring reliable operation in demanding industrial environments. The blue laser minimizes target reflection issues, improving accuracy across diverse surfaces. Combined with a 0.4 µm repeatability, 0.1% linearity, and ultra-fast 16 µs sampling, this sensor head is ideal for 3D measurement, inspection, and process optimization in precision manufacturing and automation systems.
Key Features:
-
High-Speed 3D Profiling: Up to 64,000 profiles per second for real-time inline inspection.
-
Blue Semiconductor Laser: 405 nm wavelength for stable detection on challenging surfaces.
-
Ultra-Fine Accuracy: 0.4 µm z-axis repeatability and ±0.1% linearity.
-
Compact Measurement Range: ±8 mm z-axis (height) and 13.5 mm x-axis (width).
-
Micro Spot Size: Approx. 21 µm × 45 µm for ultra-detailed scanning.
-
High Environmental Resistance: IP67-rated aluminum housing ensures durability.
-
Fast Response: Sampling cycle of 16 µs (high-speed mode) or 32 µs (advanced mode).
-
Temperature Stability: 0.01% of F.S./°C for consistent precision.
-
Shock & Vibration Resistant: 15 G shock resistance and 10–57 Hz vibration tolerance.
-
Compact & Lightweight: 450 g sensor head for easy system integration.
