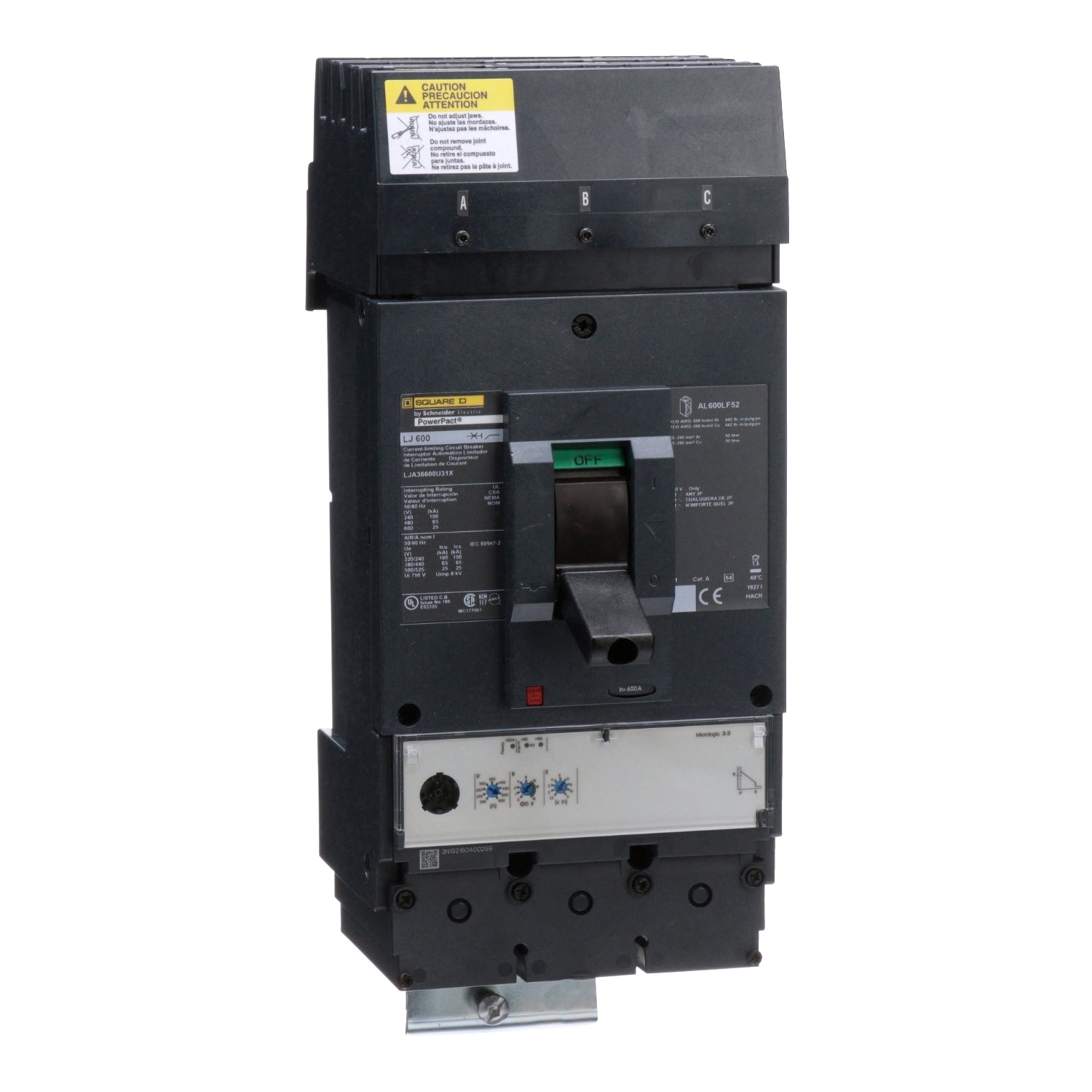

LJA36600U31X | Schneider Electric PowerPacT L-Frame Molded Case Circuit Breaker 600A 3-Pole 600V I-Line
- Regular price
- $5,075.00
- Sale price
- $5,075.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LJA36600U31X
Description
The Schneider Electric LJA36600U31X is a PowerPacT L-Frame molded case circuit breaker designed to protect electrical systems from overload and short-circuit conditions. This three-pole breaker is rated at 600 A and operates at 600 VAC using an electronic MicroLogic 3.3 trip unit with LI protection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Molded Case Circuit Breaker |
| Part Number | LJA36600U31X |
| Subcategory | Molded Case / 3-Pole |
| Series / Family | PowerPacT |
| Breaker Type | LJA |
| Frame Type | L-Frame |
| Number of Poles | 3 |
| Amperage Rating | 600 A |
| Voltage Rating | 600 VAC |
| Phase | 3 |
| Trip Unit Technology | Electronic |
| Trip Unit Name | MicroLogic Standard 3.3 |
| Protection Functions | LI – Long-Time and Instantaneous |
| Continuous Current Rating | 80% |
| Interrupt Rating | 25 kA at 600 V / 65 kA at 480 V |
| Connection Type | I-Line (Line Side), Mechanical Lugs (Load Side) |
| Phase Connection | ABC |
| Manual Trip Feature | Push-to-Trip Button |
Information About LJA36600U31X
The LJA36600U31X is part of Schneider Electric’s PowerPacT L-Frame circuit breaker family, engineered for advanced protection in commercial and industrial power distribution systems. It incorporates dual-break rotating contact technology to reduce peak fault currents during short-circuit events, enhancing system safety and equipment longevity. The electronic MicroLogic 3.3 trip unit provides accurate sensing and dependable LI protection for coordinated system performance. Its I-Line mounting design allows efficient installation and removal while maintaining secure electrical connections.
Key Features:
- PowerPacT L-Frame Construction: Designed for high-current applications requiring robust molded case durability and consistent performance.
- MicroLogic 3.3 Electronic Trip Unit: Provides precise long-time and instantaneous protection with reliable electronic sensing.
- 600 Amp Current Rating: Supports large feeders and main distribution circuits in three-phase systems.
- Three-Pole Configuration: Ensures coordinated protection and isolation of all phases.
- Dual-Break Rotating Contacts: Reduce peak fault current stress during short-circuit conditions.
- I-Line Line-Side Terminations: Enable fast installation and simplified maintenance in I-Line panel systems.
- Mechanical Load-Side Lugs: Provide secure conductor termination for dependable electrical connections.
The LJA36600U31X delivers the reliability and precision required for advanced overcurrent protection in Schneider Electric PowerPacT L-Frame industrial and commercial electrical distribution systems.
