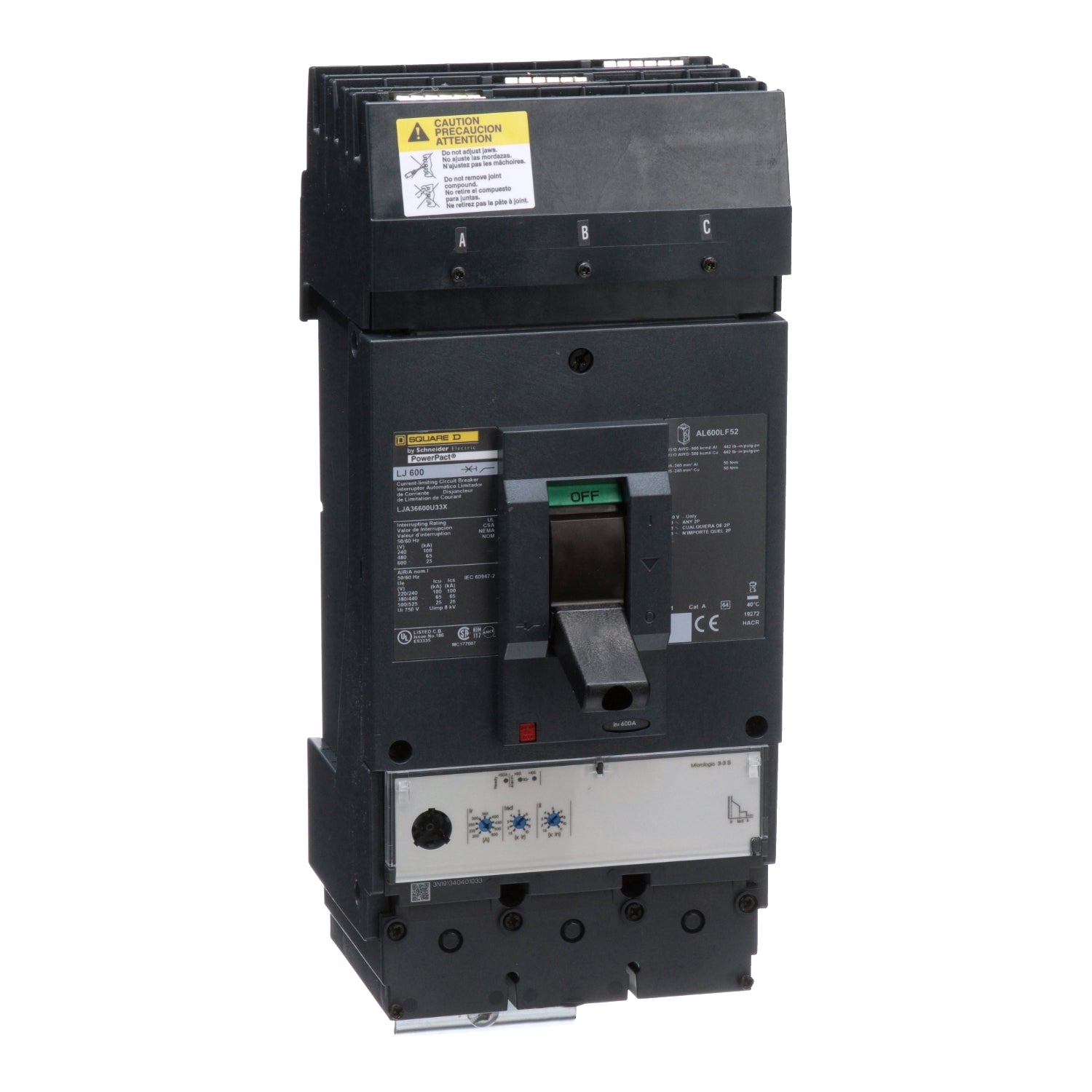

LJA36600U33X | Schneider Electric Circuit Breaker
- Regular price
- $7,194.00
- Sale price
- $7,194.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LJA36600U33X
Description
The Schneider Electric LJA36600U33X is a 600A, 600V molded case circuit breaker engineered for high-capacity three-phase electrical distribution. This Powerpact LJA breaker includes a fixed Micrologic 3.3S solid-state trip unit with LSI protection functions for precise overload and fault response. Its I-Line plug-in connection design enables fast, secure installation in commercial and industrial panelboards.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | LJA36600U33X |
| Subcategory | Molded Case Circuit Breaker |
| Family | Powerpact |
| Type | LJA |
| Voltage Rating | 600 V |
| Amperage Rating | 600 A |
| Connection | I-Line Style Plug-In |
| Phase | 3-Phase |
| Poles | 3 |
| AIC Rating | 65 kA @ 480 V |
| Trip Functions | LSI – Long-Time, Short-Time, Instantaneous |
| Protection Type | Solid-State Electronic |
| Trip Unit | Micrologic 3.3S (non-interchangeable) |
| Frame Type | L Frame |
Information About LJA36600U33X
The LJA36600U33X is part of Schneider Electric’s Powerpact L-Frame series, built to provide advanced circuit protection for large-scale distribution systems. Its solid-state Micrologic 3.3S trip unit supports Long-Time, Short-Time, and Instantaneous (LSI) functions, offering accurate, adjustable protection for demanding applications. The breaker’s rugged L-Frame construction and three-pole configuration make it well-suited for high-power three-phase installations, while maintaining compatibility with I-Line plug-in busway systems. With a 65 kA interrupting rating at 480V, this unit is designed to safely clear high fault currents, ensuring system integrity in industrial, commercial, and utility-grade environments.
Key Features:
- Micrologic 3.3S solid-state trip: Provides accurate Long-Time, Short-Time, and Instantaneous protection.
- High interrupting rating: 65 kA at 480V for safe operation in high-fault-current applications.
- 600A, 600V rating: Supports large industrial and commercial electrical loads.
- L-Frame construction: Heavy-duty molded case engineered for high-capacity systems.
- I-Line plug-in connection: Enables quick, tool-minimized installation and removal.
- 3-pole configuration: Designed for three-phase power distribution; suitable for 2-pole use when required.
- Non-interchangeable trip unit: Ensures consistent performance and calibrated protection settings.
- Electronic LSI protection: Enhances accuracy and response compared to thermal-magnetic mechanisms.
The LJA36600U33X delivers the reliability and precision required for high-capacity industrial and commercial electrical protection.
