Part #: LJL36400U31X Manufactured by: Schneider Electric
Regular price
$2,957.00
Sale price
$2,957.00
Regular price
4 in Stock
Condition: New-Surplus Original Box
Shipping calculated at checkout.
Product Overview
The LJL36400U31X circuit breaker, part of the PowerPacT L series, is a robust solution designed to safeguard electrical sy...  Read more
We accept:
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
warranty
IQElectro 2-Year Warranty
Warranty for Product #: LJL36400U31X
IQElectro offers a free 2-year warranty on all products. You can trust that every purchase is a reliable investment in the future of your company. Warranty Terms
2-3 Day Free Shipping
Packed Ready to Ship
24/7 Expert Support
Return within 30-Days
IQElectro LLC BBB Business Review
IQElectro is Not an authorized distributor for Schneider Electric
Original Manufacturer's Warranty Not Covered, This Product is SURPLUS.

Product Description P/N: LJL36400U31X

Description / Specifications

Description

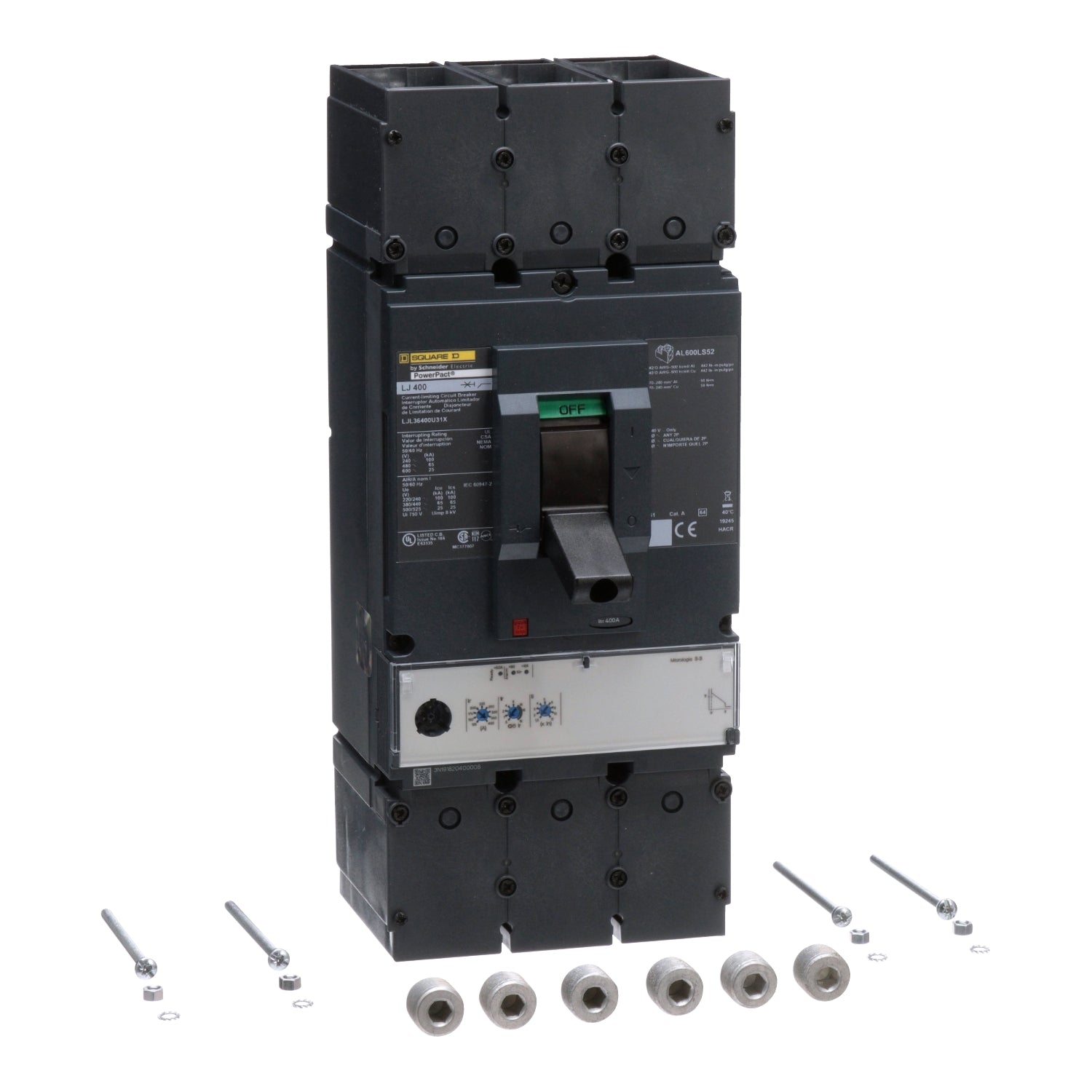

The LJL36400U31X is a robust circuit breaker from the PowerPacT L-Frame series, engineered to safeguard electrical systems against overloads and short circuits. It features a 400A current rating and operates across 3 poles at 600VAC, offering substantial protection with an interrupting capacity of 25kA. Equipped with a MicroLogic Standard 3.3 trip unit including an LI function, this breaker ensures precise response to electrical faults.


Technical Specifications



Part #

LJL36400U31X

Category

Circuit Breaker

Subcategory

Molded Case Circuit Breaker

Range

PowerPact

Product name

PowerPact L

Device short name

L-Frame

Product or Component Type

Circuit breaker

Device Application

Distribution

Line Rated Current

400 A

Number of Poles

3P

Control Type

Toggle

Breaking capacity code

J

[Ue] rated operational voltage

600 V AC 50/60 Hz

Network Frequency

50/60 Hz

[Uimp] rated impulse withstand voltage

8 kV

Trip unit technology

Electronic, standard, MicroLogic 3.3, LI

Continuous current rating

80 %

[Ui] rated insulation voltage

750 V

Trip unit name

MicroLogic 3.3

Protection technology

Current limiter

Suitability for isolation

Yes

Utilisation category

Category A

AWG gauge

2 x AWG 2/0...500 kcmil aluminium/copper

Mounting mode

Unit mount lug)

Mounting Support

Lug

Electrical connection

Lugs, line; Lugs, load

Terminal identifier

AL600LS52K3

Long time pick-up adjustment range

0.25...1 x In



 Information About LJL36400U31X

PowerPacT L-Frame circuit breakers, exemplified by LJL36400U31X, are engineered to safeguard electrical systems against the detrimental effects of overloads and short circuits. These circuit breakers feature electronic trip units for precise protection. Equipped with dual-break rotating contacts, they effectively mitigate peak currents during short circuit faults. Each breaker includes an integral push-to-trip button on the cover, facilitating manual tripping when necessary. Available configurations include 3 and 4-pole unit mounts, I-Line installations, and drawout constructions, ensuring versatility in various applications.

The LJL36400U31X model, a 400A, 3-pole circuit breaker, boasts a robust interrupting rating of 25kA at 600VAC, making it suitable for high-demand environments. It utilizes the MicroLogic 3.3 trip unit, offering standard functionality with an LI (Long-Time) function, enhancing its protective capabilities. This unit is designed with lugs on both the line and load sides, ensuring secure electrical connections.

With a continuous current rating of 80%, the PowerPacT L circuit breakers conform to rigorous safety standards, including UL, CSA, NOM, and IEC, and bear the CE mark, ensuring compliance with international regulations. This comprehensive adherence to standards underscores their reliability and suitability for demanding industrial and commercial settings where robust electrical protection is paramount.
