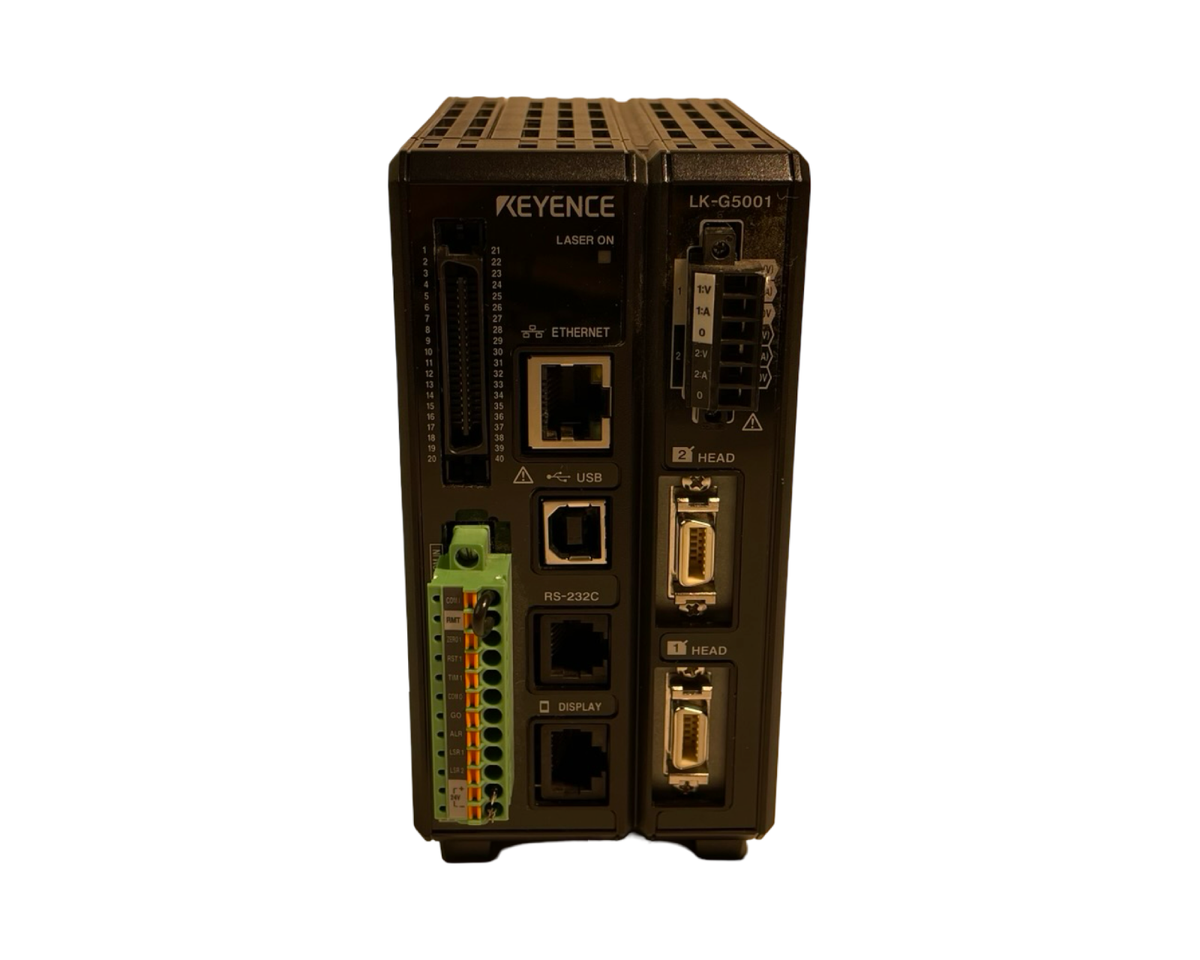

LK-G5001 | Keyence LK-G Series Laser Displacement Controller, Dual Sensor Support, ±10 V / 4–20 mA Output
- Regular price
- $1,249.00
- Sale price
- $1,249.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: LK-G5001
Description
The Keyence LK-G5001 is a high-speed, high-precision laser displacement controller designed for the LK-G Series of laser sensors. It supports up to two directly connected sensor heads and can expand to twelve using head expansion units. This controller delivers submicron measurement precision with advanced analog and digital output capabilities, ideal for industrial applications requiring fine displacement, thickness, or position measurement.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors & Switches |
| Part Number | LK-G5001 |
| Subcategory | Laser Gauging System |
| Series | LK-G Series |
| Type | Separate Type Main Controller |
| Compatible Sensor Heads | All LK-G Series heads |
| No. of Connectable Sensor Heads | 2 (expandable to 12 with head expansion units) |
| Minimum Display Unit | 0.001 µm |
| Display Range | ±999.999 µm to ±9999.99 mm (7 selectable settings) |
| Display Cycle | Approx. 10 times/sec |
| Display Interface | Compatible with LK-HD500 or LK-HD1001 display units |
| Indicator | LASER ON LED |
| Analog Voltage Output | ±10 V, Output impedance: 100 Ω |
| Analog Current Output | 4–20 mA, Max load resistance: 350 Ω |
| Number of Analog Outputs | 2 channels |
| Input Terminals | Non-voltage inputs (Timing, Reset, Auto-zero, Laser Remote) |
| Alarm Output | NPN open-collector output, 50 mA max |
| Comparator Output | NPN open-collector output |
| Communication Interfaces | RS-232C (9600–115200 bps), USB 2.0 Hi-Speed, Ethernet (100BASE-TX/10BASE-T) |
| EtherNet/IP™ Interface | Cyclic & message communication (UCM/Class 3, 32 connections max) |
| PLC-Link | Compatible with Mitsubishi MELSEC iQ-R, Q, L, FX series |
| Head Expansion Connector | Up to 10 expansion heads per main controller |
| Expansion Unit Connector | CC-Link (LK-CC100) or DeviceNet® (LK-DN100) compatible |
| Power Supply Voltage | 24 VDC ±10% |
| Max Current Consumption | 0.6 A (1 head) / 3.5 A (12 heads) |
| Operating Temperature | 0 to +50 °C (1 head) / 0 to +40 °C (12 heads) |
| Operating Humidity | 35 to 85% RH (no condensation) |
| Enclosure Rating | IP40 |
| Weight | Approx. 600 g (1.32 lbs) |
| Material | Industrial-grade metal chassis |
| Mounting | DIN rail or panel mount |
Information About LK-G5001
The LK-G5001 controller provides fast, accurate measurement processing and flexible connectivity for complex setups. It features analog and current outputs, RS-232C and Ethernet communication interfaces, and EtherNet/IP™ and PLC-Link compatibility for easy integration into factory automation systems.
Capable of processing up to 10 measurements per second, it includes advanced functions such as auto-zeroing, alarm outputs, programmable comparator outputs, and multi-sensor linking via expansion connectors. Designed for reliability, it supports a wide operating temperature range and offers a robust structure suitable for industrial environments.
Key Features:
- Dual Sensor Head Support: Connects up to 2 heads directly; expandable to 12 with optional units.
- High-Speed Measurement: Approx. 10 measurements per second.
- High Resolution: Minimum display unit of 0.001 µm.
- Wide Display Range: ±999.999 µm to ±9999.99 mm (7 selectable ranges).
- Analog & Current Outputs: ±10 V and 4–20 mA outputs with independent dual-channel support.
- Advanced Communication: Built-in RS-232C, USB 2.0, and 100BASE-TX Ethernet.
- EtherNet/IP™ Support: Cyclic and explicit messaging communication (UCM/Class 3).
- PLC-Link Compatibility: Supports Mitsubishi MELSEC (Q, FX, L, and iQ-R Series).
- Flexible I/O: Up to 8 configurable I/O types including timing, reset, alarm, and auto-zero.
- Expansion Capability: Up to 10 head expansion units per main controller.
- Environmental Durability: Operates from 0–50 °C with up to 85% relative humidity (non-condensing).
- Compact, Industrial Design: Lightweight 600 g unit for easy DIN or panel mounting.
