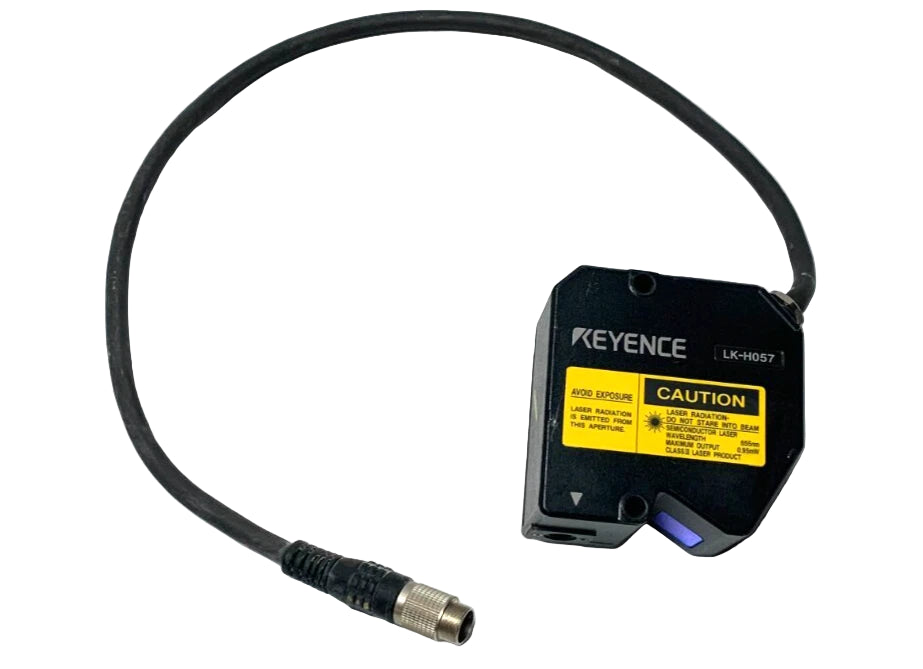

LK-H057 | Keyence Laser Displacement Sensor Head, ±10 mm Range, Red Laser, IP67
- Regular price
- $1,804.00
- Sale price
- $1,804.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: LK-H057
Description
The Keyence LK-H057 is a high-precision laser displacement sensor head designed for accurate, non-contact distance and thickness measurements. Operating with a red semiconductor laser (655 nm) and a ±10 mm measuring range, this diffuse reflective sensor provides exceptional linearity and repeatability for precision automation and quality inspection.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors & Switches |
| Part Number | LK-H057 |
| Subcategory | Laser Gauging System |
| Mounting Mode | Diffuse reflective |
| Reference Distance | 50 mm (1.97") |
| Measuring Range | ±10 mm (±0.39") |
| Light Source Type | Red semiconductor laser |
| Wavelength | 655 nm |
| Laser Class | IEC 60825-1: Class 2 / FDA CDRH: Class II |
| Laser Output | 0.95 mW |
| Spot Diameter | 50 µm × 2,000 µm at 50 mm |
| Linearity | ±0.02% of full scale (20 mm) |
| Repeatability | 0.025 µm |
| Sampling Cycle | 2.55 / 5 / 10 / 20 / 50 / 100 / 200 / 500 / 1000 µs selectable |
| Temperature Characteristics | 0.01% of F.S./°C (F.S. = 20 mm) |
| Enclosure Rating | IP67 |
| Ambient Light Resistance | Incandescent/fluorescent lamp: 10,000 lux max |
| Ambient Temperature | 0 to +50 °C (32 to 122 °F) |
| Relative Humidity | 35 to 85 % RH (No condensation) |
| Vibration Resistance | 10–55 Hz, double amplitude 1.5 mm (0.06") |
| Material | Aluminum die-cast |
| Weight | Approx. 0.90 lbs (260 g) |
Information About LK-H057
The LK-H057 belongs to Keyence’s advanced LK-H series of laser displacement sensors, known for their superior accuracy and stable measurement performance. Featuring a Class 2 red laser and diffuse reflective sensing, the LK-H057 achieves fine measurement results even on challenging surfaces. With a selectable sampling cycle from 2.55 µs to 1000 µs, it delivers both high-speed and high-resolution performance. Its rugged IP67 aluminum die-cast housing ensures reliability in harsh industrial environments, making it ideal for integration into process control, inspection, and precision assembly systems.
Key Features:
- Wide Measurement Range: ±10 mm detection range with a 50 mm reference distance for flexible applications.
- High Precision: Exceptional 0.025 µm repeatability ensures micro-level measurement accuracy.
- Red Semiconductor Laser: 655 nm wavelength for stable, reliable reflection from diverse materials.
- Selectable Sampling Cycle: Adjustable from 2.55 µs to 1000 µs to optimize speed and precision.
- Excellent Linearity: Maintains ±0.02% of full scale (20 mm) for consistent output accuracy.
- Industrial Durability: IP67-rated aluminum die-cast housing withstands moisture, dust, and vibration.
- Temperature Stability: Drift as low as 0.01% of F.S./°C, ensuring consistent results in varying conditions.
- Resistant to Ambient Light: Operates under illumination up to 10,000 lux, minimizing external interference.
- Compact Design: Lightweight (260 g) body simplifies integration into robotic or measurement setups.
- Class 2 Laser Safety: Conforms to IEC 60825-1 and FDA CDRH Class II standards for safe operation.
The LK-H057 delivers the precision, responsiveness, and environmental resilience essential for high-performance displacement and thickness measurement applications in manufacturing and automation.
