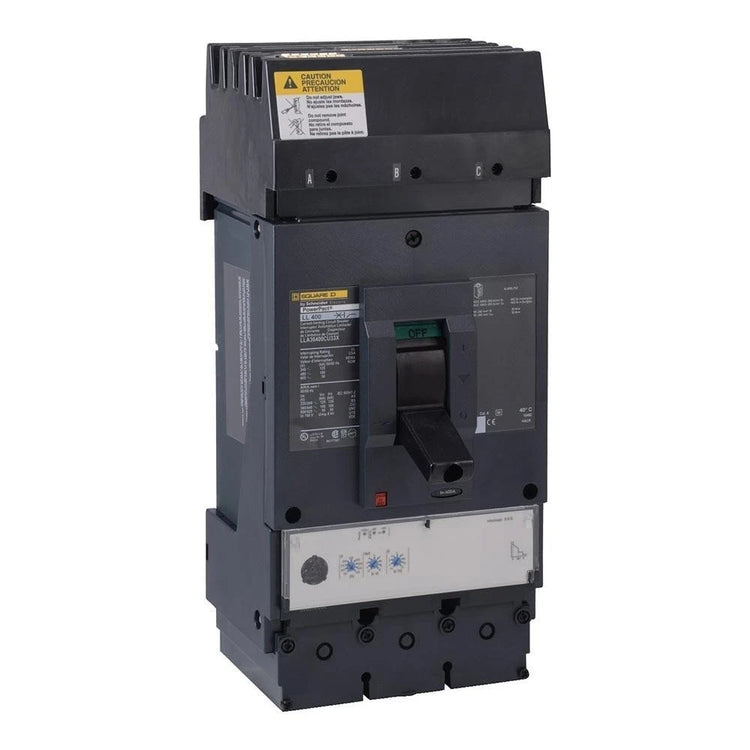

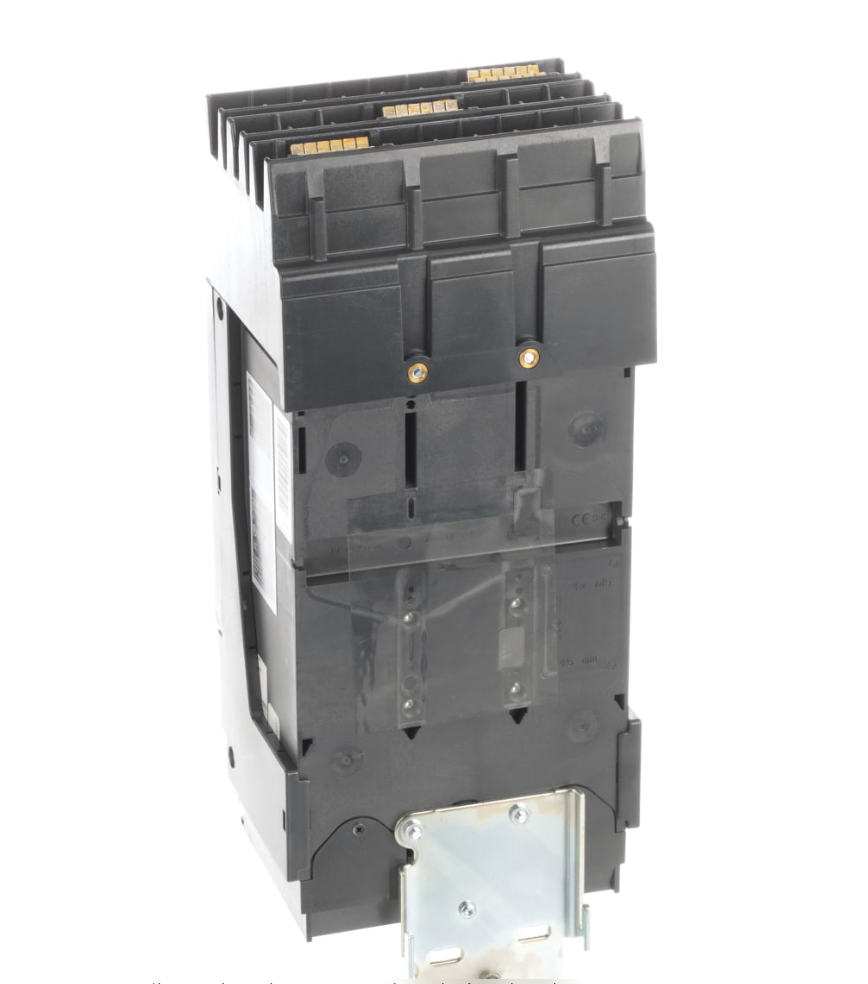

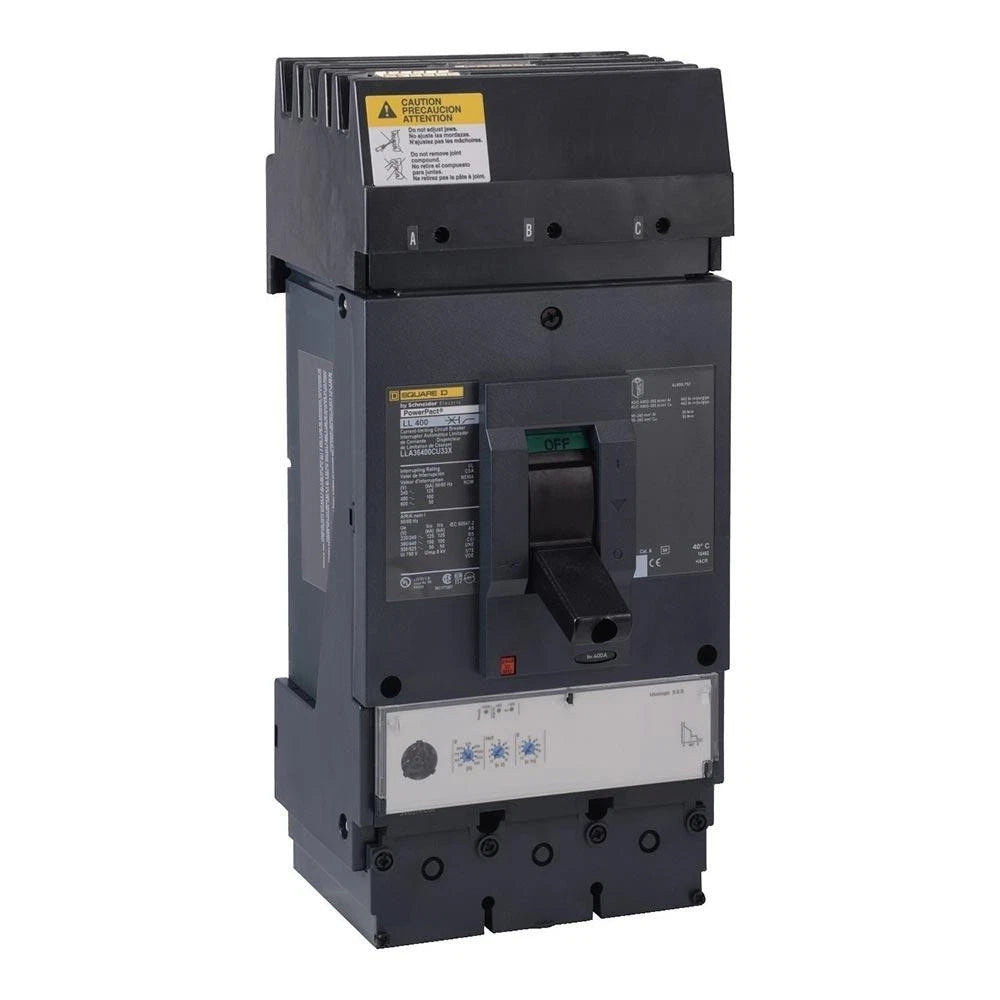

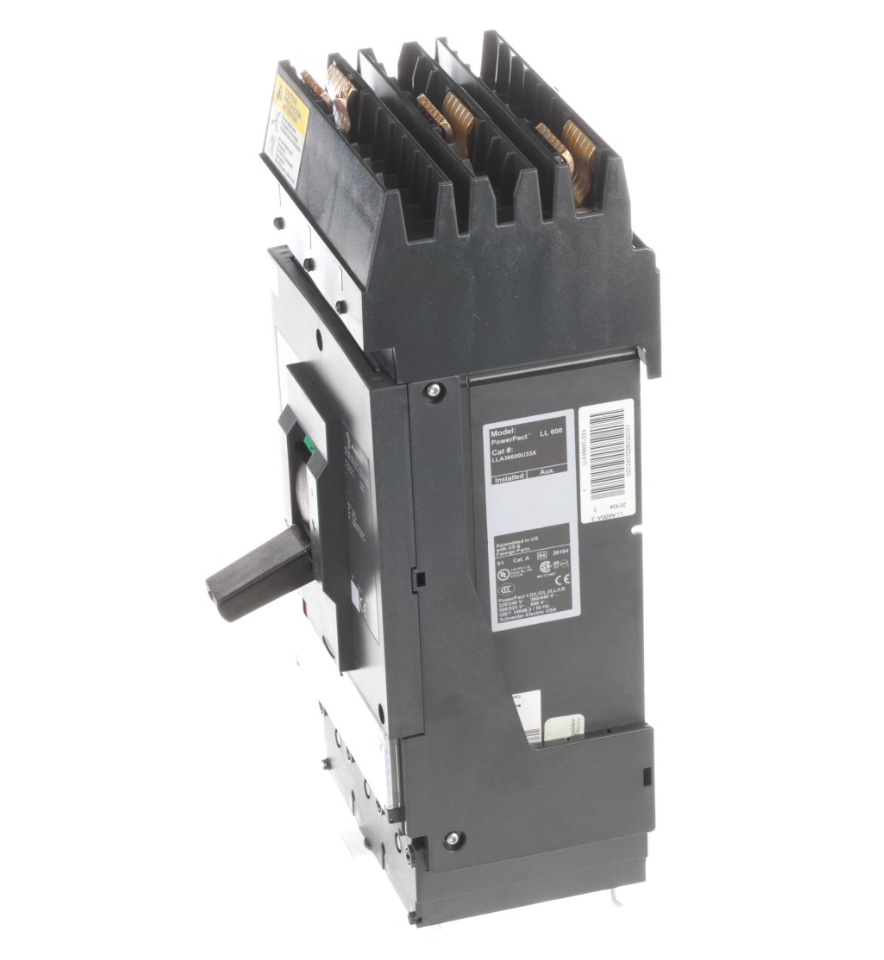

LLA36600U33X | Schneider Electric PowerPact L 600A 3-Pole Molded Case Circuit Breaker
- Regular price
- $9,599.00
- Sale price
- $9,599.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LLA36600U33X
Description
The Schneider Electric LLA36600U33X is a high-performance molded case circuit breaker designed for reliable overcurrent protection in industrial and commercial power distribution systems. This Square D PowerPact L-Frame breaker features a 600 A rating with advanced MicroLogic trip technology for precise protection and system coordination. It is engineered for demanding applications requiring high interrupting capacity and dependable operation at up to 600 VAC.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Schneider Electric |
| Category | Circuit Breaker |
| Part Number | LLA36600U33X |
| Subcategory | Molded Case Circuit Breaker |
| Series / Frame | PowerPact L, L-Frame |
| Breaker Type | Molded Case Circuit Breaker |
| Poles | 3 |
| Continuous Current Rating | 600 A (80% rated) |
| Maximum Voltage | 600 VAC |
| Interrupting Rating | 50 kA at 600 VAC |
| Trip Unit | MicroLogic 3.3S (LSI) |
| Mounting Type | I-Line |
| Line / Load Terminations | I-Line line side, mechanical lugs load side |
| Conductor Range | 2 × AWG 2/0 to 500 kcmil Al/Cu |
| Tightening Torque | 50 N·m |
| Frequency | 50/60 Hz |
| Front Cover Protection | IP40 |
| Standards Compliance | UL 489, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2 |
| Dimensions (H×W×D) | 340 × 140 × 110 mm |
| Wire Strip Length | 31 mm |
| Country of Origin | United States |
| Weight | 6.2 kg |
Information About LLA36600U33X
The LLA36600U33X is part of Schneider Electric’s Square D PowerPact L-Frame circuit breaker series, built to meet rigorous industrial electrical standards. It incorporates a MicroLogic 3.3S electronic trip unit that provides long-time, short-time, and instantaneous protection for enhanced fault discrimination. The breaker uses an I-Line mounting system for quick installation and secure line-side connections in distribution equipment. Its robust construction, high interrupting rating, and compliance with global standards make it suitable for mission-critical power applications.
Key Features:
- PowerPact L-Frame Design: Heavy-duty molded case breaker for industrial power systems.
- 600 Amp Continuous Rating: Supports high current loads with 80% rated operation.
- MicroLogic 3.3S Trip Unit: Provides LSI protection for accurate fault detection and coordination.
- High Interrupting Capacity: Rated 50 kA at 600 VAC for superior fault protection.
- I-Line Mounting System: Enables fast, secure installation and reliable line connections.
- Three-Pole Configuration: Designed for three-phase electrical distribution.
- Wide Conductor Compatibility: Accepts aluminum or copper conductors up to 500 kcmil.
The LLA36600U33X delivers the reliability and precision required for industrial and commercial power distribution protection.
