LNL-X2220 | Utc Fire & Security Company | Computer Accessory
- Regular price
- $1,102.00
- Sale price
- $1,102.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LNL-X2220
Description
Technical Specifications
|
Part # |
LNL-X2220 |
|
Manufacturer |
UTC FIRE & SECURITY COMPANY |
|
Brand |
LENEL |
|
Category |
PLCs/Machine Control |
|
Subcategory |
Industrial Computer Board |
|
Power |
12 to 24 VDC ± 10%, 500 mA max. (reader current not included) |
|
Reader Ports |
600 mA max. (add 600 mA to primary power current) |
|
Primary Host Communication |
Ethernet: 10-BaseT/100Base-TX |
|
Secondary Host Communication |
USB port (2.0) with optional adapter: pluggable model USB2-OTGE100 |
|
Serial I/O Device |
2-wire RS-485, 2,400 to 115,200 bps, asynchronous, half-duplex, 1 start bit, 8 data bits, and 1 stop bit |
|
Inputs |
Eight unsupervised/supervised, standard EOL: 1k/1k ohm, 1% 1/4 watt; two unsupervised inputs dedicated for cabinet tamper and UPS fault monitoring |
|
Outputs |
Four relays: NO: 5 A @ 30 VDC resistive; NC: 3 A @ 30 VDC resistive |
|
Reader Interface Power |
12 VDC ± 10% regulated, 300 mA max. each reader (input voltage [VIN] must be greater than 20 VDC) or 12 to 24 VDC ± 10% (input voltage passed through), 300 mA max. each reader |
|
Data Inputs |
TTL compatible, F/2F or 2-wire RS-485 |
|
RS-485 Mode |
9,600 to 115,200 bps, asynchronous, half-duplex, 1 start bit, 8 data bits, and 1 stop bit. Max cable length: 2,000 ft. (609.6m) |
|
LED Output |
TTL levels, high > 3 V, low < 0.5 V, 5 mA source/sink max. |
|
Buzzer Output |
Open collector, 12 VDC open circuit max., 40 mA sink max. |
|
Cable Requirements: Power and Relays |
One twisted pair, 18 to 16 AWG |
|
Cable Requirements: Ethernet |
CAT-5, minimum |
|
Cable Requirements: TTL Reader |
22 to 16 AWG, depending on length and requirements |
|
Cable Requirements: Alarm Input |
One twisted pair, 30 ohms max., typically 22 AWG @ 1,000 ft. (304.8m) |
|
Cable Requirements: RS-485 I/O Device Port |
One twisted pair with drain wire and shield, 120 ohm impedance, 24 AWG, 4,000 ft. (1,219m) max. |
|
Cable Requirements: RS-485 Reader Port |
One twisted pair with drain wire and shield, 120 ohm impedance, 24 AWG, 2,000 ft. (610m) max. |
Information About LNL-X2220

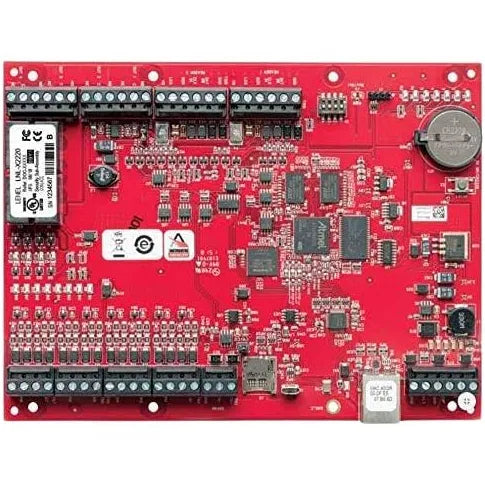

The LNL-X2220, manufactured by UTC Fire & Security Company, is an industrial computer accessory designed to serve as the Lenel LNL-X2220 Intelligent Dual Reader Controller (IDRC). It functions as a single-board solution tailored for interfacing one or two doors to an OnGuard system.
Key specifications of the LNL-X2220 include primary power compatibility ranging from 12 to 24 VDC with a tolerance of ± 10%, supporting a maximum current draw of 500 mA (excluding reader current). Reader ports allow a maximum current draw of 600 mA, which should be added to the primary power current.
For communication, the LNL-X2220 features Ethernet connectivity with support for 10-BaseT/100Base-TX as the primary host communication channel. Additionally, it includes a USB port (2.0) with the option to use an adapter, specifically the pluggable model USB2-OTGE100, for secondary host communication.
The serial I/O device on the LNL-X2220 is equipped with 2-wire RS-485 connectivity, supporting data rates ranging from 2,400 to 115,200 bps. It operates in an asynchronous, half-duplex mode with 1 start bit, 8 data bits, and 1 stop bit.
Input options consist of eight unsupervised/supervised inputs with standard EOL resistance of 1k/1k ohm, 1% 1/4 watt. Additionally, two unsupervised inputs are dedicated to cabinet tamper and UPS fault monitoring. Outputs on the LNL-X2220 include four relays, with normally open contacts supporting 5 A @ 30 VDC resistive load and normally closed contacts supporting 3 A @ 30 VDC resistive load.
The reader interface of the LNL-X2220 operates with regulated 12 VDC power, supporting a maximum current draw of 300 mA per reader. Data inputs are TTL compatible and support F/2F or 2-wire RS-485 configurations. The RS-485 mode operates at data rates ranging from 9,600 to 115,200 bps.
LED outputs provide TTL levels with high > 3 V and low < 0.5 V, with a maximum source/sink current of 5 mA. Buzzer outputs feature an open collector configuration with a maximum 12 VDC open circuit and 40 mA sink.
Manufacturer information
UTC Climate, Controls & Security was a global provider of building technologies offering fire safety, security, building automation, heating, ventilating, air-conditioning, and refrigeration systems and services.
