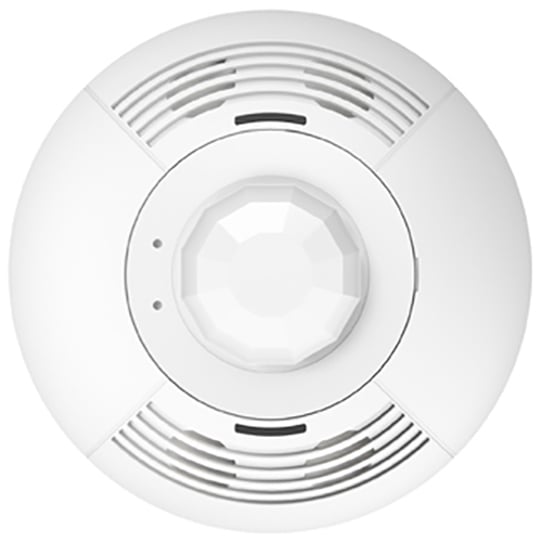

LOS-CDT-2000R-WH | Lutron 360° Dual-Tech Ceiling Occupancy Sensor 2000 sq ft
- Regular price
- $299.00
- Sale price
- $299.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LOS-CDT-2000R-WH
Description
The Lutron LOS-CDT-2000R-WH is a ceiling-mounted dual-technology occupancy sensor designed for indoor lighting control applications. It operates on 20–24 VDC and provides 360° coverage up to 2000 square feet using combined passive infrared and ultrasonic detection. The integrated relay output allows direct control or system integration for automatic lighting management.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Lighting |
| Part Number | LOS-CDT-2000R-WH |
| Subcategory | Lighting Controller |
| Series | LOS-CDT |
| Sensor Type | Passive Infrared (PIR) and Ultrasonic |
| Coverage Area | Up to 2000 sq ft |
| Field of View | 360° |
| Voltage Rating | 20–24 VDC |
| Current Draw | 33 mA nominal |
| Control Output | Dry Contact Closure Relay |
| Time Delay | 8–30 minutes adjustable; 8-second test mode |
| Light Level Adjustment | 0–1000 lux sensitivity |
| Connection Type | 6 in wire leads |
| Mounting Type | Ceiling mount |
| Material | Plastic housing |
| Dimensions | 4.5 in Dia x 1.4 in D |
| Operating Temperature | 32 to 104 °F |
| Color | White |
| Weight | Approximately 1 lb |
Information About LOS-CDT-2000R-WH
The LOS-CDT-2000R-WH is part of the Lutron LOS-CDT Series and incorporates both infrared (PIR) and ultrasonic sensing technologies to enhance detection accuracy. The self-adaptive sensor continuously adjusts sensitivity based on environmental conditions to maintain stable operation. It includes a dry contact closure relay output and supports additional control via power packs for switching loads. Designed for ceiling installation, the unit is suitable for commercial offices, classrooms, conference rooms, and similar indoor spaces.
Key Features:
-
Dual Technology Detection: Combines passive infrared and ultrasonic sensing for reliable occupancy detection.
-
2000 sq ft Coverage: Provides major and minor motion detection across large open areas.
-
360° Field of View: Full circular detection pattern for ceiling-mounted applications.
-
Relay Output (-R Model): Integrated dry contact closure output for control system integration.
-
20–24 VDC Operation: Class 2 low-voltage power requirement.
-
Adjustable Time Delay: Manual setting from 8 to 30 minutes with 8-second test mode.
-
LED Motion Indicators: Red LED for infrared detection and green LED for ultrasonic detection.
-
Self-Adaptive Sensitivity: Automatically adjusts detection parameters to minimize false triggers.
-
Photocell Capability: Adjustable light-level threshold up to 1000 lux for daylight-responsive operation.
The LOS-CDT-2000R-WH delivers the reliability and precision required for automated occupancy-based lighting control in commercial environments.
