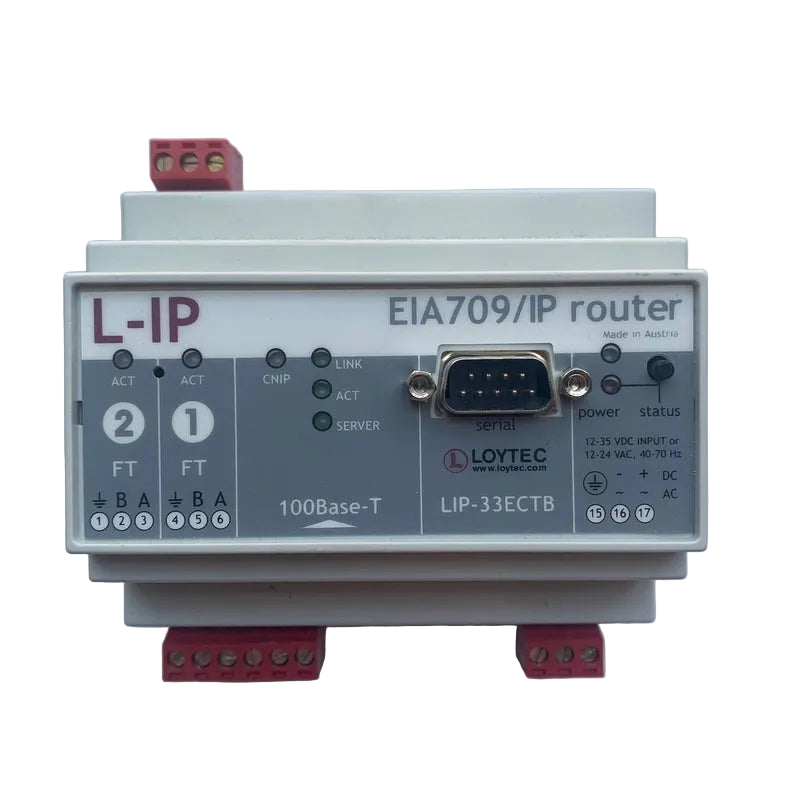

LOYTEC LIP-33ECTB CEA-709 IP-852 Dual TP/FT-10 Ethernet Networking Router
- Regular price
- $1,629.00
- Sale price
- $1,629.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LiP-33ECTB
Description
The LOYTEC LIP-33ECTB is a CEA-709/IP-852 network router designed to connect two TP/FT-10 channels with an Ethernet-based IP-852 backbone in LonMark building automation systems. It routes CEA-709 packets across local Ethernet networks, intranets, or Internet Protocol infrastructure while providing configuration and diagnostic functions for distributed automation networks.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | LOYTEC |
| Category | Computer |
| Part Number | LIP-33ECTB |
| Subcategory | Networking Router |
| Series | L-IP |
| Product Type | CEA-709/IP-852 Network Router |
| Network Technology | CEA-709 / LonMark IP-852 |
| TP/FT-10 Interfaces | 2 × TP/FT-10 |
| Ethernet Interface | 1 × 100Base-T Ethernet Port |
| Router Modes | Configured Router, Smart Switch, Repeater |
| Power Supply | 12–35 volts direct current / 12–24 volts alternating current ±10% |
| Alternating Current Frequency | 40–70 hertz |
| Typical Power Consumption | 3 watts |
| Configuration | Web Browser or Serial Console |
| Mounting | DIN Rail Mounting |
| Operating Temperature | 0°C to +50°C |
| Dimensions | 107 × 100 × 60 mm |
| Weight | 0.45 lbs |
Information About LiP-33ECTB
The LIP-33ECTB is a LOYTEC L-IP series router developed for linking multiple CEA-709 twisted-pair segments through an IP-852 Ethernet network. The DIN rail-mounted unit incorporates two TP/FT-10 interfaces and one 100Base-T Ethernet port, with a power input supporting 12–35 volts direct current or 12–24 volts alternating current. It supports Configured Router, Smart Switch, and Repeater operating modes and includes a CEA-852 configuration server for managing devices connected to the Internet Protocol channel. Built-in web configuration, network diagnostic indicators, remote LOYTEC Protocol Analyzer access, and support for operation behind network address translation routers and firewalls provide tools for commissioning and maintaining LonMark automation networks.
Key Features:
- Dual TP/FT-10 Channels: Provides two TP/FT-10 interfaces for connecting separate CEA-709 field-level network segments.
- IP-852 Routing: Transfers CEA-709 packets between twisted-pair channels and Ethernet-based IP-852 networks.
- 100Base-T Ethernet: Includes one Ethernet port for connection to local area networks, intranets, and Internet Protocol infrastructure.
- Multiple Operating Modes: Supports Configured Router, Smart Switch, and Repeater modes for different network architectures.
- Integrated Configuration Server: Includes a CEA-852 configuration server for managing devices on the IP-852 channel.
- Web-Based Configuration: Provides an integrated web server for device configuration and IP-852 network setup.
- Flexible Power Supply: Operates from 12–35 volts direct current or 12–24 volts alternating current with typical consumption of approximately 3 watts.
- Network Diagnostics: Provides diagnostic indicators, communication testing, and remote LOYTEC Protocol Analyzer access over Ethernet.
The LIP-33ECTB delivers the reliability and precision required for CEA-709 network routing, LonMark system integration, and Ethernet-based building automation communication.
