LOYTEC LIP-3ECTB L-IP CEA-709 IP-852 TP/FT-10 Ethernet Networking Router
- Regular price
- $702.00
- Sale price
- $702.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LIP-3ECTB
Description

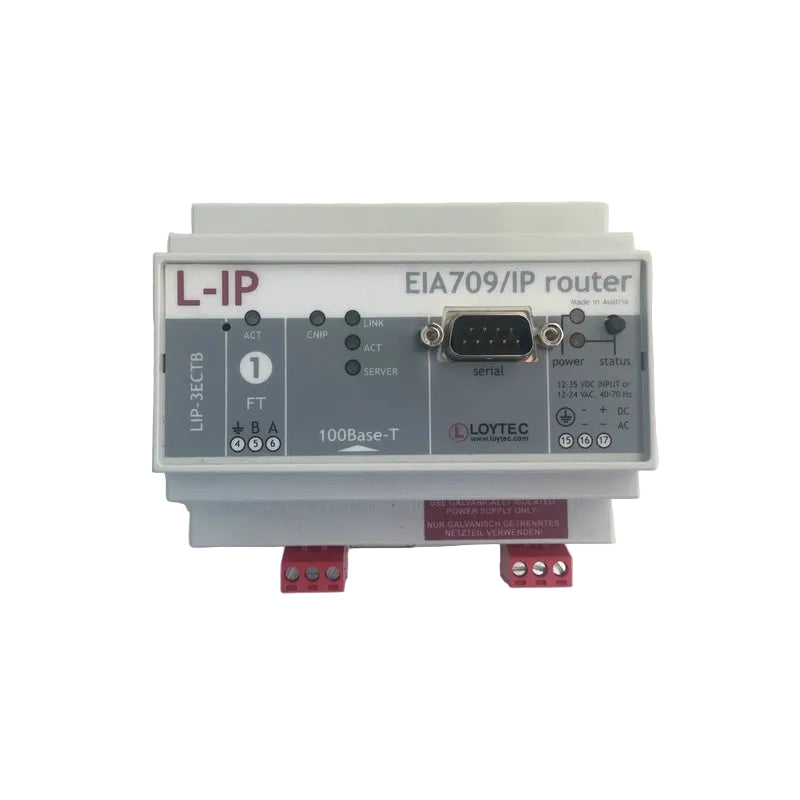

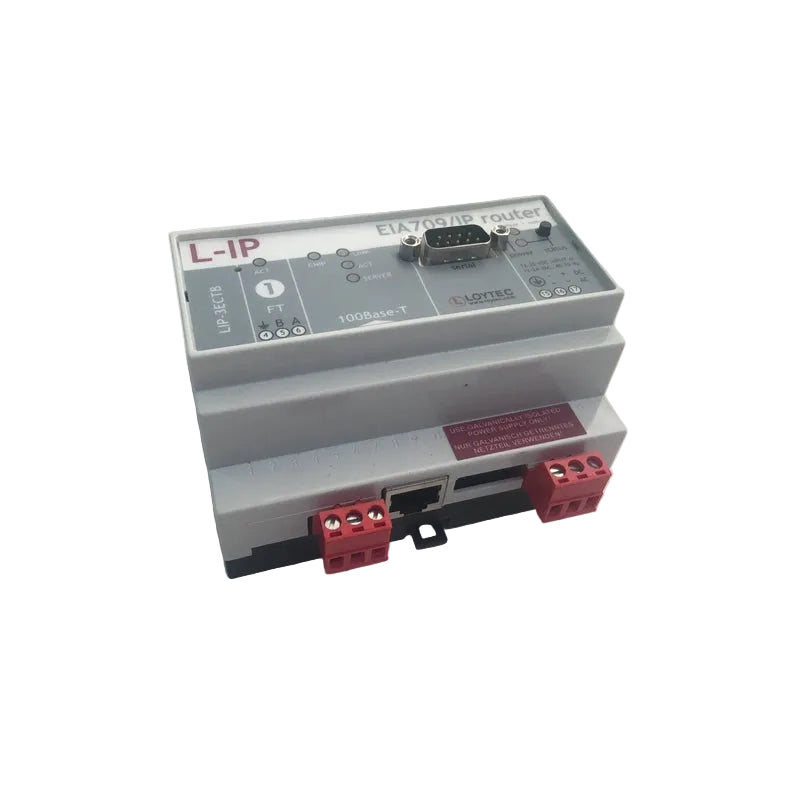

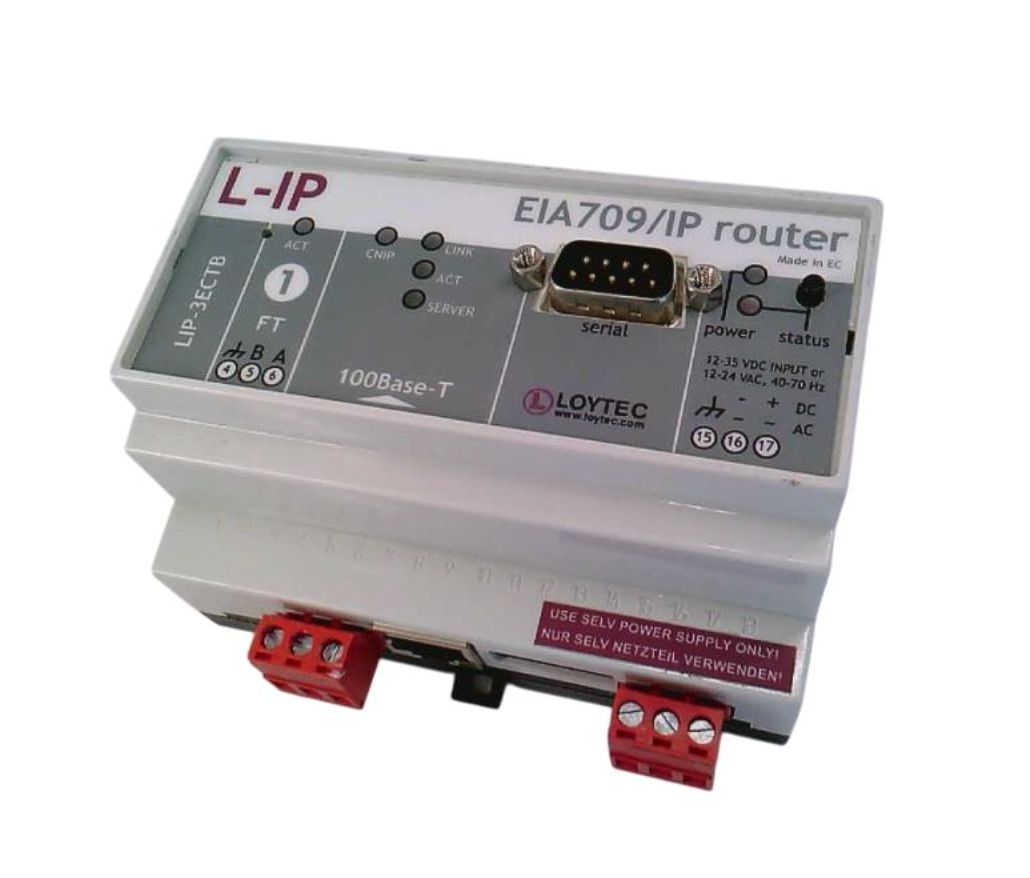

The LOYTEC LIP-3ECTB is an L-IP CEA-709/IP-852 router designed to connect TP/FT-10 LonWorks networks with Ethernet-based IP-852 building automation networks. It provides one TP/FT-10 interface and one 100Base-T Ethernet port, allowing CEA-709 network traffic to be routed across Internet Protocol infrastructure for distributed building control applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | LOYTEC |
| Category | Computer |
| Part Number | LIP-3ECTB |
| Subcategory | Networking Router |
| Series | L-IP |
| Product Type | CEA-709/IP-852 Router |
| Manufacturer Status | Discontinued |
| Network Technology | CEA-709 / LonMark IP-852 |
| TP/FT Interface | 1 × TP/FT-10 |
| Ethernet Interface | 1 × 100Base-T Ethernet Port |
| Network Services | LonMark IP-852, Hypertext Transfer Protocol, File Transfer Protocol |
| Power Supply | 12–35 volts direct current / 12–24 volts alternating current ±10% |
| Typical Power Consumption | 3 watts |
| Configuration | Web Browser or Serial Console |
| Configuration Server | CEA-852 Configuration Server for up to 100 Members |
| Operating Temperature | 0°C to 50°C |
| Protection Rating | IP40 Enclosure / IP20 Terminals |
| Dimensions | 107 × 100 × 60 mm |
| Weight | 0.64 lbs |
Information About LIP-3ECTB
The LIP-3ECTB is a LOYTEC L-IP series network router developed for interconnecting CEA-709 TP/FT-10 channels through an IP-852 Ethernet network. The compact DIN rail-mounted unit incorporates one TP/FT-10 interface, one 100Base-T Ethernet port, and an embedded CEA-852 configuration server supporting up to 100 members on an IP-852 channel. It supports LonMark IP-852 communication along with Hypertext Transfer Protocol and File Transfer Protocol services, while configuration can be performed through a web browser or the serial console interface. The router is intended for building automation installations where geographically separated LonWorks network segments must communicate over standard Ethernet infrastructure.
Key Features:
- CEA-709/IP-852 Routing: Routes CEA-709 network communication between a TP/FT-10 channel and an Ethernet-based IP-852 network.
- TP/FT-10 Interface: Provides one dedicated TP/FT-10 connection for integration with LonWorks field-level automation devices.
- Ethernet Connectivity: Includes one 100Base-T Ethernet port for IP-852 communication and network-based management.
- Integrated Configuration Server: Provides an embedded CEA-852 configuration server supporting up to 100 members on the IP-852 channel.
- Web-Based Configuration: Allows device setup and management through a standard web browser without requiring a dedicated local configuration interface.
- Flexible Power Input: Operates from 12–35 volts direct current or 12–24 volts alternating current with typical power consumption of 3 watts.
- DIN Rail Installation: Designed for mounting on a standard top-hat DIN rail within building automation and control cabinets.
- Industrial Environmental Design: Supports operation from 0°C to 50°C with IP40 enclosure protection and IP20 terminal protection.
The LIP-3ECTB delivers the reliability and precision required for CEA-709 network routing, LonWorks system integration, and Ethernet-based building automation communication.
