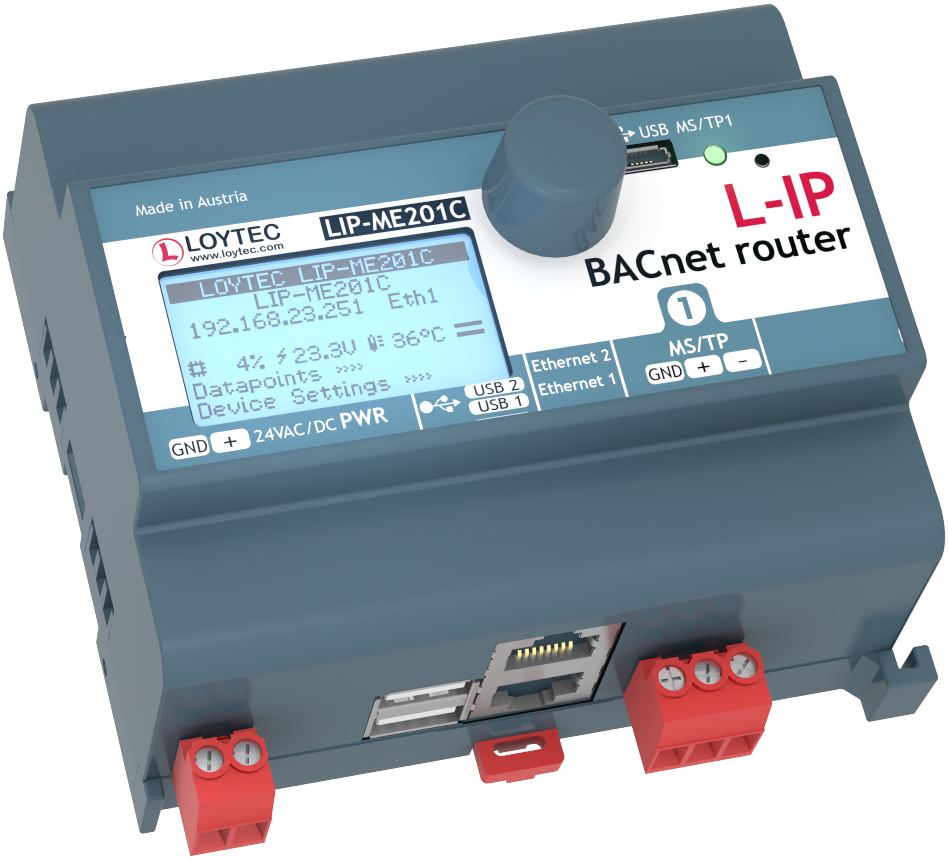

LOYTEC LIP-ME201C BACnet Master-Slave/Token-Passing to BACnet Internet Protocol Network Router
- Regular price
- $987.00
- Sale price
- $987.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LIP-ME201C
Description
The LOYTEC LIP-ME201C is a BACnet network router designed to connect a BACnet Master-Slave/Token-Passing channel with BACnet Internet Protocol and BACnet Secure Connect networks in building automation systems. It provides one RS-485 BACnet Master-Slave/Token-Passing channel and two 100Base-T Ethernet ports, supporting reliable routing, network segmentation, diagnostics, and secure communication between field-level and Internet Protocol-based BACnet devices.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | LOYTEC |
| Category | Computer |
| Part Number | LIP-ME201C |
| Subcategory | Networking Router |
| Series | L-IP |
| Product Type | BACnet Network Router |
| BACnet Routing | BACnet Master-Slave/Token-Passing, BACnet Internet Protocol, BACnet Secure Connect |
| Serial Interface | 1 × RS-485 BACnet Master-Slave/Token-Passing |
| Ethernet Interfaces | 2 × 100Base-T Ethernet Ports |
| Display | 128 × 64 Backlit Graphical Display |
| Power Supply | 24 volts direct current / alternating current ±10% |
| Typical Power Consumption | 2.5 watts |
| Configuration | Built-In Web Server, Local Display and Jog Dial |
| Mounting | DIN Rail Mount |
| Operating Temperature | 0°C to +50°C |
| Protection Rating | IP40 Enclosure / IP20 Terminals |
| Dimensions | 107 × 100 × 75 mm |
| Weight | 1.00 lbs |
Information About LIP-ME201C
The LIP-ME201C is a LOYTEC L-IP series BACnet router and the successor to the earlier LIP-ME201, developed for connecting serial BACnet field networks with Ethernet-based building automation infrastructure. The DIN rail-mounted unit incorporates one RS-485 BACnet Master-Slave/Token-Passing interface, two switched or separated Ethernet ports, a 128 × 64 backlit graphical display, diagnostic indicators, and a jog dial for local operation. It supports BACnet Internet Protocol, BACnet Secure Connect, BACnet Broadcast Management Device operation, Foreign Device functionality, Time Master operation, and Slave Proxy functionality for up to 32 Master-Slave/Token-Passing slave devices. Built-in web configuration, network statistics, remote packet capture, firewall functions, Virtual Private Network support, and OPC servers provide tools for commissioning, diagnostics, and integration in building management networks.
Key Features:
- BACnet Network Routing: Routes communication between BACnet Master-Slave/Token-Passing, BACnet Internet Protocol, and BACnet Secure Connect networks.
- Single Serial Channel: Provides one RS-485 BACnet Master-Slave/Token-Passing interface for connection to field-level controllers and devices.
- Dual Ethernet Ports: Includes two 100Base-T Ethernet interfaces that can operate as switched or separated network connections.
- Broadcast Management: Can operate as a BACnet Broadcast Management Device and provides Foreign Device support for routed BACnet networks.
- Slave Proxy Function: Supports proxy operation for up to 32 BACnet Master-Slave/Token-Passing slave devices.
- Integrated Diagnostics: Provides diagnostic indicators, web-based statistics, and remote packet capture for analysis with Wireshark.
- Local Operator Display: Incorporates a 128 × 64 backlit graphical display and jog dial for viewing device information and performing local configuration.
- Secure Network Functions: Supports secure Hypertext Transfer Protocol, firewall functionality, Virtual Private Network access, and BACnet Secure Connect communication.
The LIP-ME201C delivers the reliability and precision required for BACnet network routing, building automation communication, and integration of serial field devices with Ethernet-based control networks.
