LOYTEC LVIS-3ME7-G2 7-Inch BACnet CEA-709 Modbus Capacitive Touch Panel Operator Interface
- Regular price
- $899.00
- Sale price
- $899.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LVIS-3ME7-G2
Description

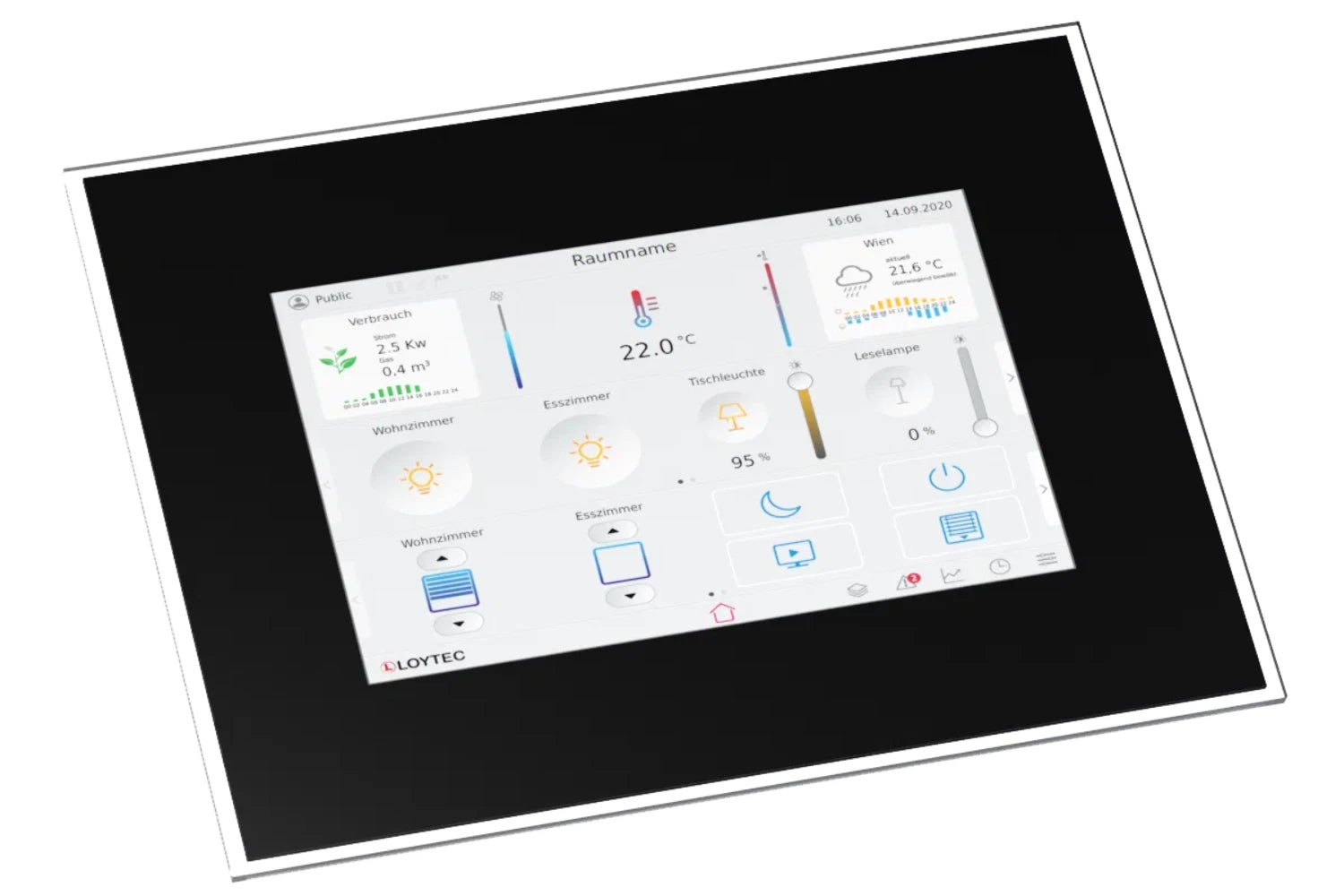

The LOYTEC LVIS-3ME7-G2 is a 7-inch touch panel designed for visualization, monitoring, and local operation of building automation systems. It combines an 800 × 480 color display with capacitive touch technology and supports BACnet, CEA-709, and Modbus networks for communication with controllers and field equipment. Its black frameless glass front provides a compact panel interface for control rooms, equipment panels, and building management applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | LOYTEC |
| Category | HMI / MMI / OIT |
| Part Number | LVIS-3ME7-G2 |
| Subcategory | Operator Interface |
| Series | L-VIS |
| Product Type | Multiprotocol Touch Panel |
| Display Size | 7 inches |
| Display Resolution | 800 × 480 pixels |
| Display Colors | 262,144 colors |
| Touch Technology | Capacitive Touch |
| Front Design | Black Frameless Glass |
| Communication Protocols | BACnet, CEA-709, Modbus |
| Network Interfaces | 2 × 100Base-T Ethernet, 1 × TP/FT-10, 1 × RS-485 |
| Additional Interfaces | 2 × Digital Inputs, 2 × Universal Serial Bus Type-A, 1 × Universal Serial Bus Device Port |
| Power Supply | 24 volts direct current ±10% |
| Power Consumption | 2.5 watts; 5 watts with backlight active |
| Operating Temperature | +10°C to +40°C |
| Protection Rating | IP54 Front / IP10 Rear |
| Weight | 3.05 lb |
Information About LVIS-3ME7-G2
The LVIS-3ME7-G2 is a LOYTEC L-VIS series operator interface developed as a multiprotocol touch panel for integrated building control networks. The unit uses a 7-inch capacitive display with a black frameless glass front and provides two Ethernet ports, one TP/FT-10 interface, one RS-485 interface, two digital inputs, two Universal Serial Bus Type-A connections, and one Universal Serial Bus device connection. It supports BACnet, CEA-709, Modbus, OPC Unified Architecture, and network services that allow the panel to exchange operating data with multiple automation platforms. The panel operates from a 24-volt direct current supply and provides configurable visualization, alarming, scheduling, trending, and web-based functions for building management applications.
Key Features:
- 7-Inch Touch Display: Provides an 800 × 480 graphical interface with 262,144 colors for equipment visualization and control.
- Capacitive Touch Technology: Uses a responsive touch surface integrated into a black frameless glass front.
- Multiprotocol Integration: Supports BACnet, CEA-709, and Modbus communication for connection to different building automation networks.
- Dual Ethernet Connectivity: Includes two 100Base-T Ethernet ports operating through an integrated Ethernet switch.
- Fieldbus Interfaces: Provides one TP/FT-10 port and one RS-485 interface for BACnet Master-Slave/Token-Passing or Modbus Remote Terminal Unit communication.
- Additional Device Interfaces: Includes two digital inputs, two Universal Serial Bus Type-A ports, and a Universal Serial Bus connection for configuration and peripheral integration.
- 24-Volt Direct Current Operation: Operates from 24 volts direct current ±10%, with approximately 2.5 watts consumption and 5 watts with the backlight active.
- Integrated Building Functions: Supports alarming, scheduling, trending, web server functions, and configurable graphical visualization.
The LVIS-3ME7-G2 delivers the reliability and precision required for building automation visualization, equipment monitoring, and multiprotocol control system integration.
