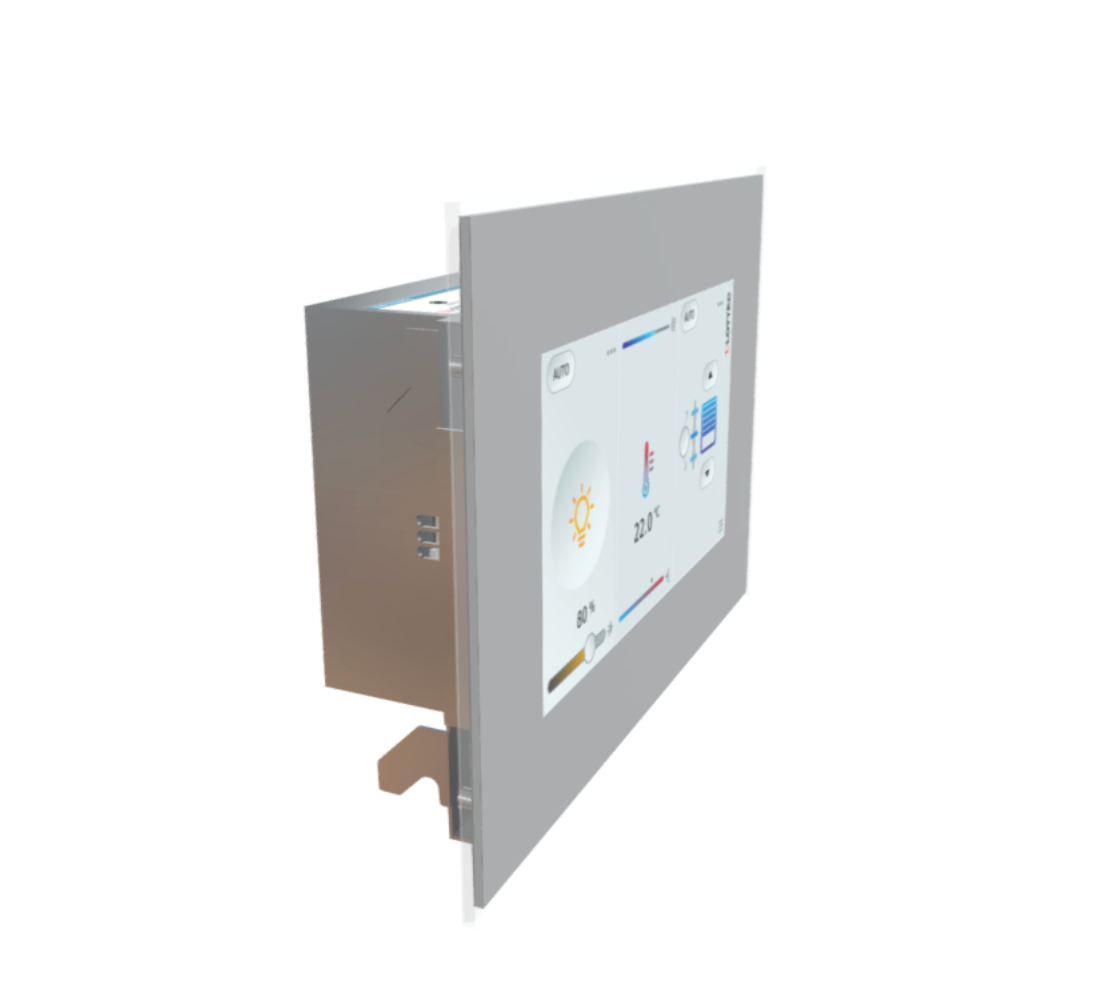

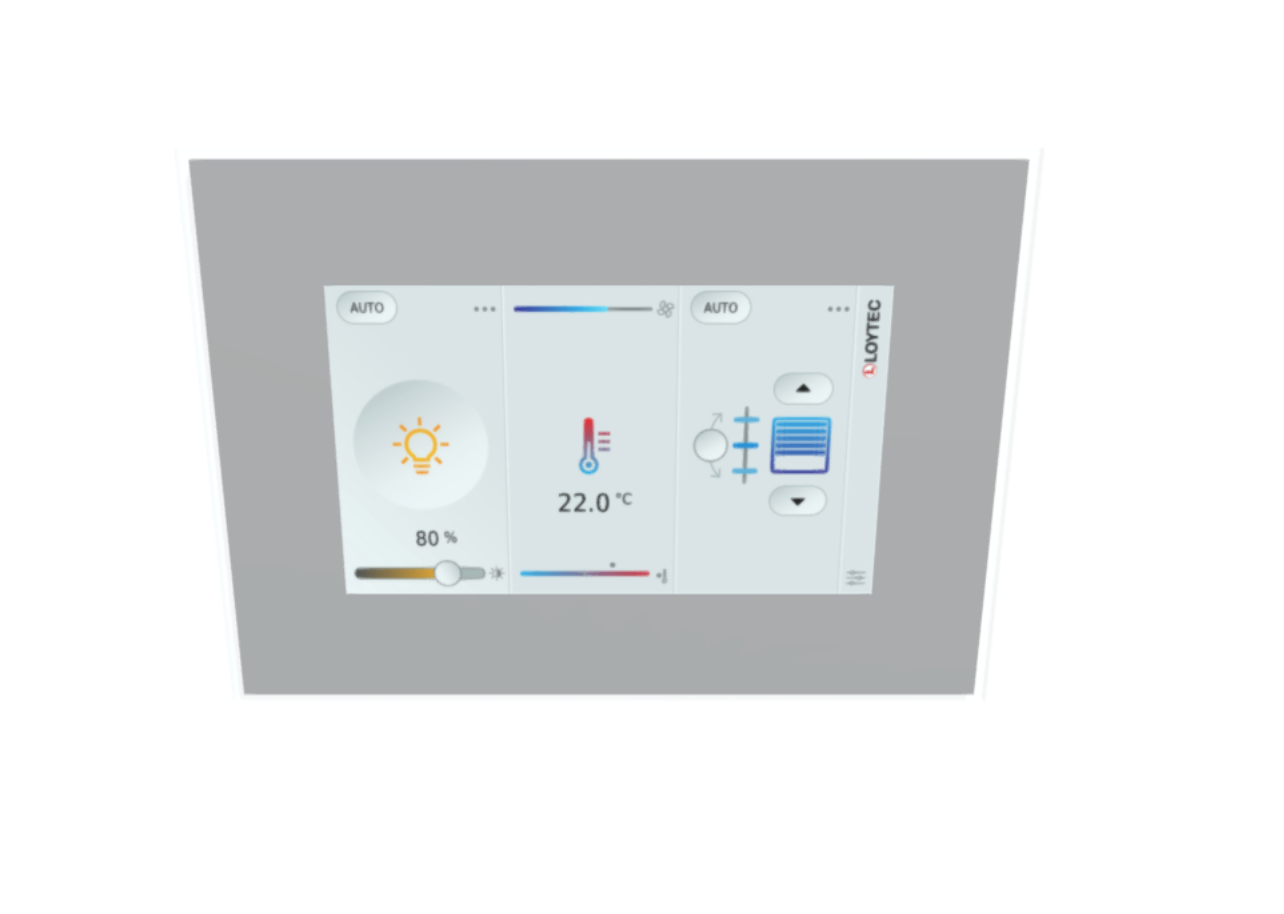

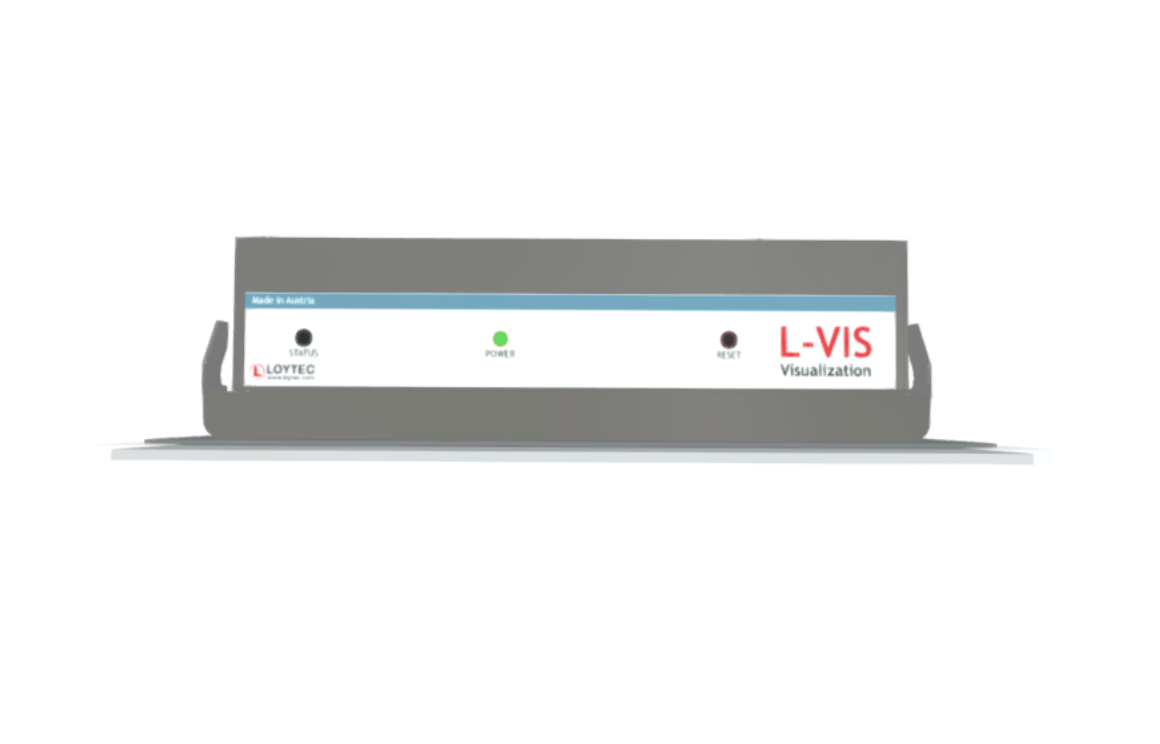

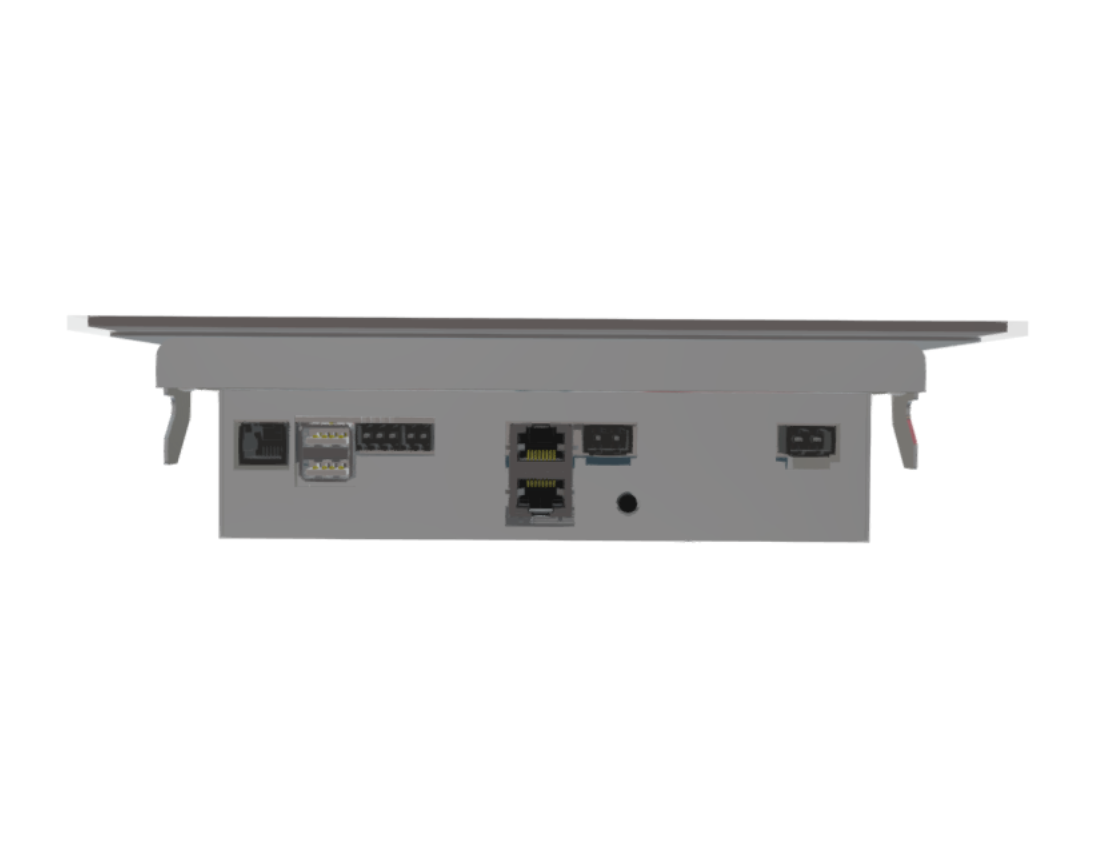

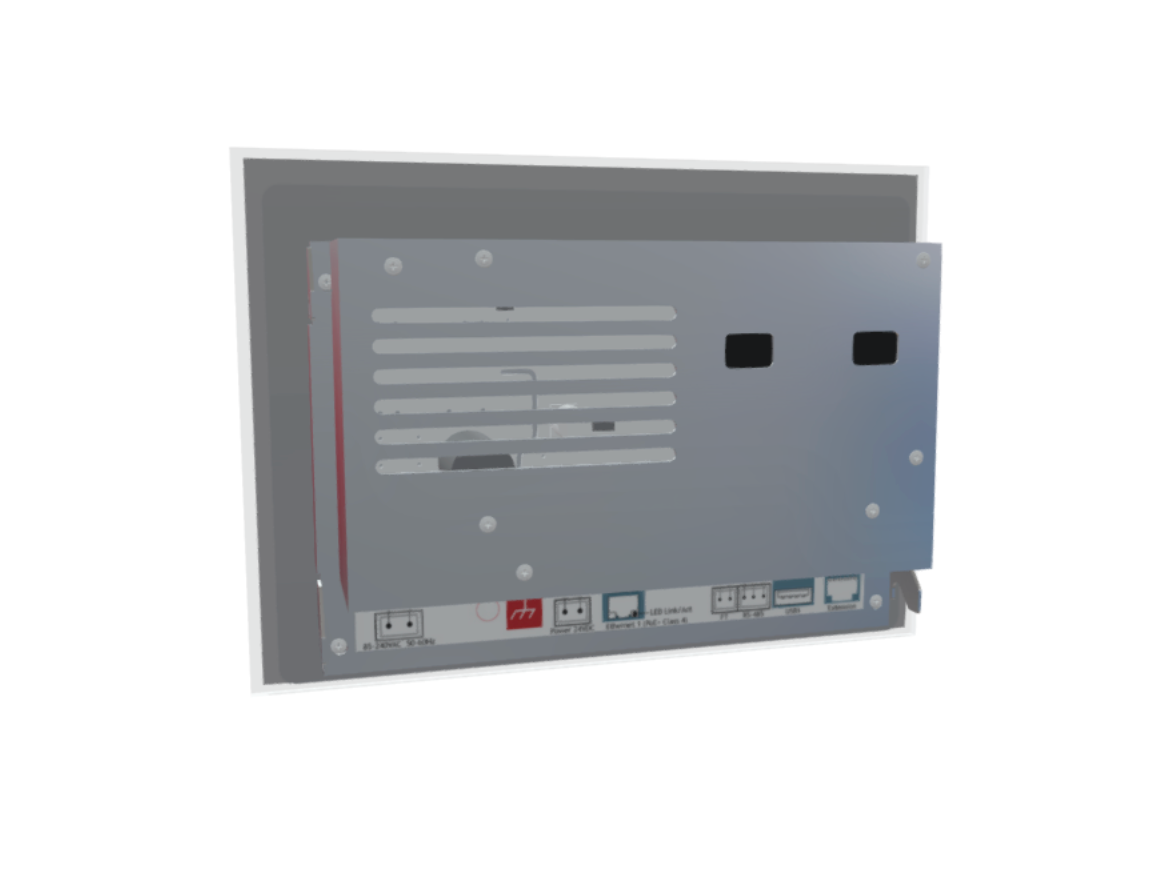

LOYTEC LVIS7-32G1 7-Inch BACnet CEA-709 Modbus Capacitive Touch Panel Operator Interface
- Regular price
- $1,995.00
- Sale price
- $1,995.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LVIS7-32G1
Description
The LOYTEC LVIS7-32G1 is a 7-inch capacitive touch panel designed for visualization and operation of building automation systems using BACnet, CEA-709, and Modbus networks. It combines a 1024 × 600 color display, frameless glass front, and multiple communication interfaces for monitoring equipment, changing operating parameters, viewing alarms, and managing building control functions.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | LOYTEC |
| Category | HMI / MMI / OIT |
| Part Number | LVIS7-32G1 |
| Subcategory | Operator Interface |
| Series | L-VIS |
| Product Type | Multiprotocol Touch Panel |
| Display Size | 7 inches |
| Display Type | In-Plane Switching Capacitive Touch Display |
| Display Resolution | 1024 × 600 pixels |
| Display Colors | 16.7 million colors |
| Display Brightness | 500 cd/m² |
| Front Design | Frameless Glass, Silver |
| Communication Protocols | BACnet, CEA-709, Modbus |
| Network Interfaces | 2 × 100Base-T Ethernet, 1 × TP/FT-10, 1 × RS-485 |
| Power Supply | Power over Ethernet Class 4, 24 volts direct current ±10%, or 85–240 volts alternating current |
| Operating Temperature | +10°C to +40°C |
| Protection Rating | Front IP54 / Rear IP10 |
| Dimensions | 223.5 × 162 × 66 mm |
| Weight | Approximate weight 2.2 lbs |
Information About LVIS7-32G1
The LVIS7-32G1 is a LOYTEC L-VIS series touch panel developed as a multiprotocol operator interface for building management and automation applications. The unit features a silver frameless glass front, capacitive touch technology, a 7-inch in-plane switching display, and an embedded architecture designed for permanent installation in control environments. It supports BACnet Internet Protocol, BACnet Secure Connect, BACnet Master-Slave/Token-Passing, CEA-709, Modbus Transmission Control Protocol, and Modbus Remote Terminal Unit communication, allowing one interface to interact with equipment across different automation networks. Ethernet, TP/FT-10, RS-485, Universal Serial Bus, digital inputs, web-based functions, and configurable graphical pages support applications ranging from room operation to centralized building equipment monitoring.
Key Features:
- 7-Inch Capacitive Touch Screen: Provides direct graphical operation through a frameless glass display designed for building automation applications.
- High-Resolution Display: Uses a 1024 × 600 in-plane switching display with 16.7 million colors and 500 cd/m² brightness.
- Multiprotocol Communication: Supports BACnet, CEA-709, and Modbus technologies for integration with diverse building control equipment.
- Dual Ethernet Interfaces: Includes two 100Base-T Ethernet connections that can operate as switched or separated networks.
- Serial Network Connectivity: Provides TP/FT-10 and RS-485 interfaces for CEA-709, BACnet Master-Slave/Token-Passing, and Modbus communication.
- Flexible Power Options: Supports Power over Ethernet Class 4, 24 volts direct current, or 85–240 volts alternating current.
- Configurable Visualization: Stores customized graphical pages for displaying operating values, equipment status, alarms, schedules, trends, and controls.
- Protected Front Surface: Provides an IP54 protection rating at the front of the installed panel, with IP10 protection at the rear.
The LVIS7-32G1 delivers the reliability and precision required for building automation visualization, local equipment operation, and multiprotocol control network integration.
