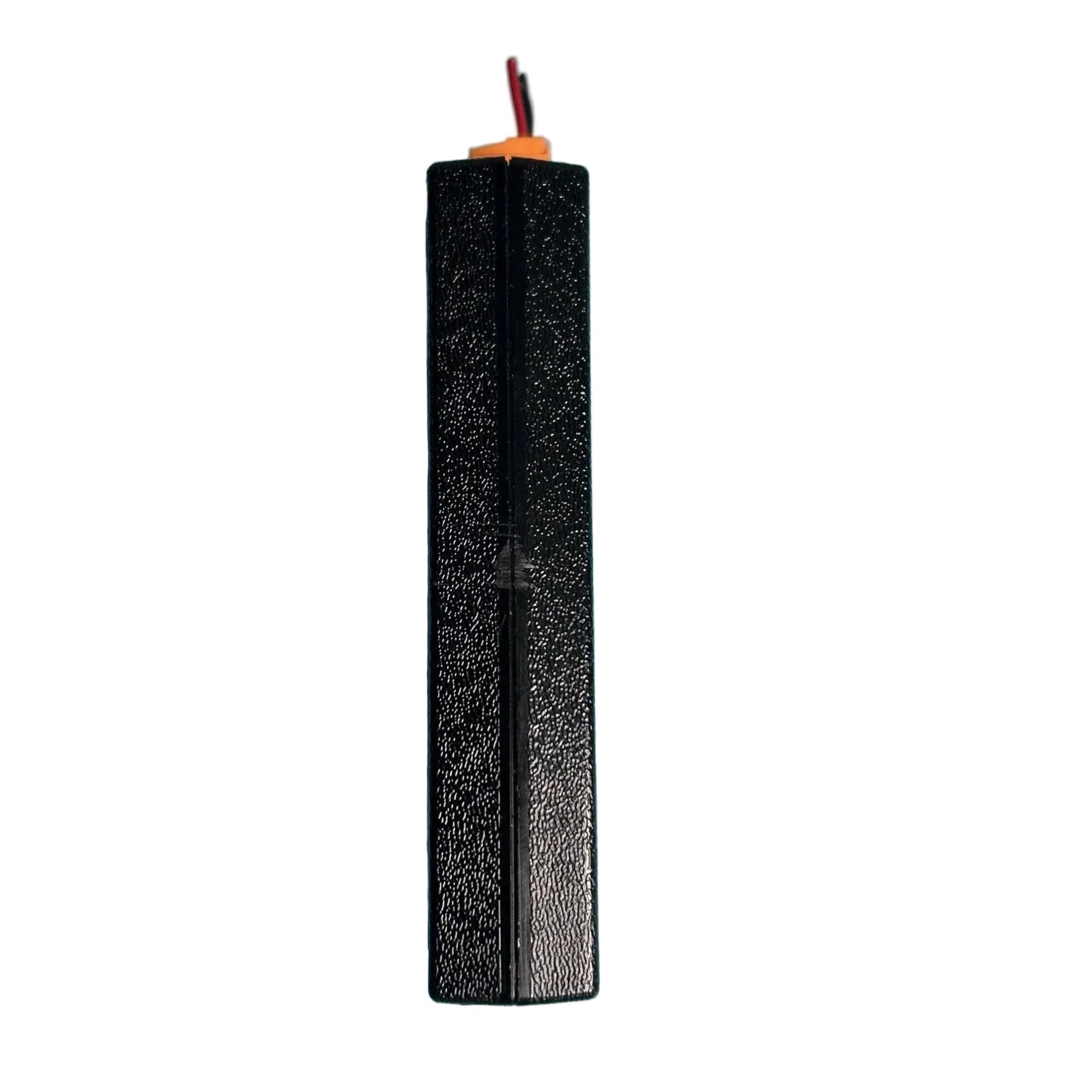

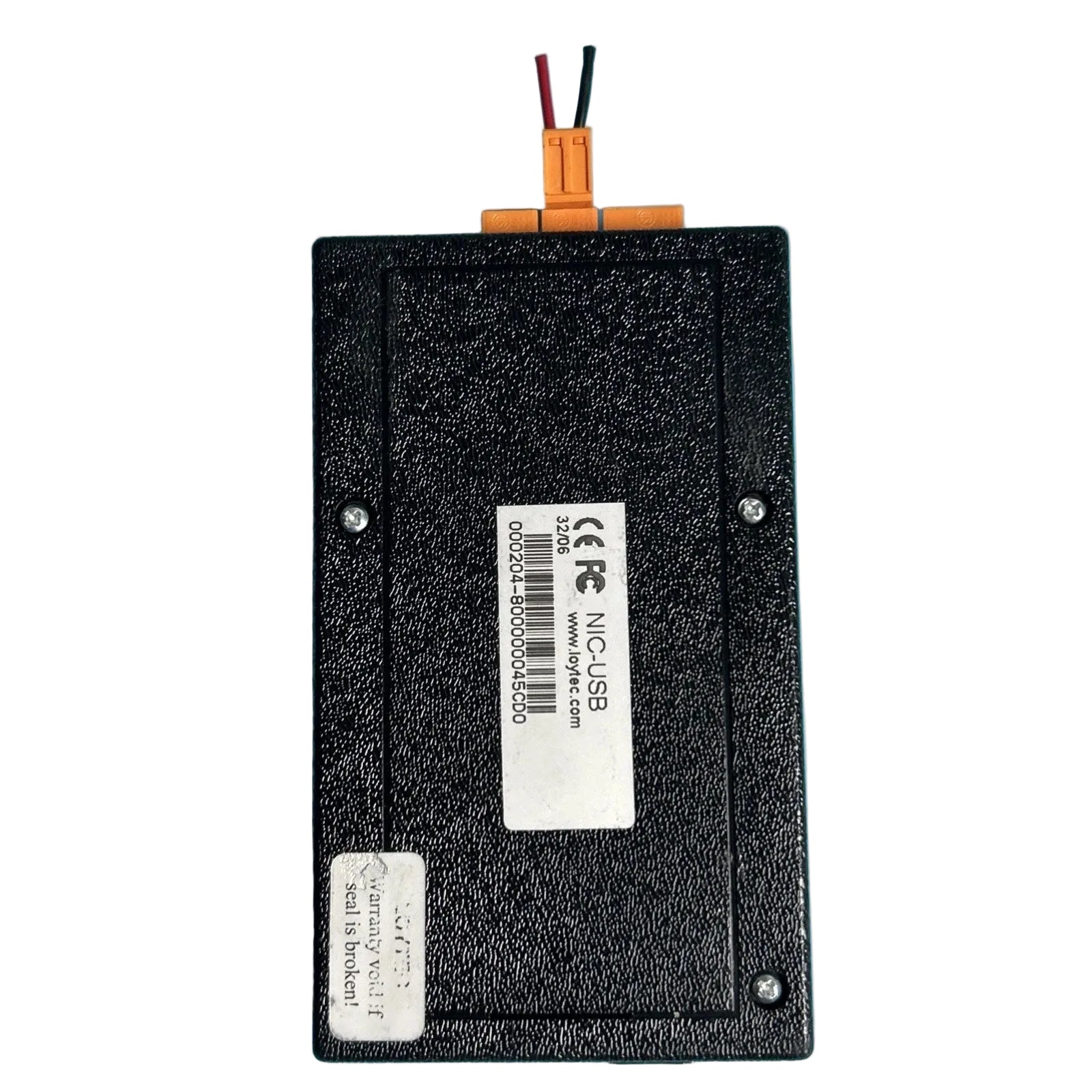

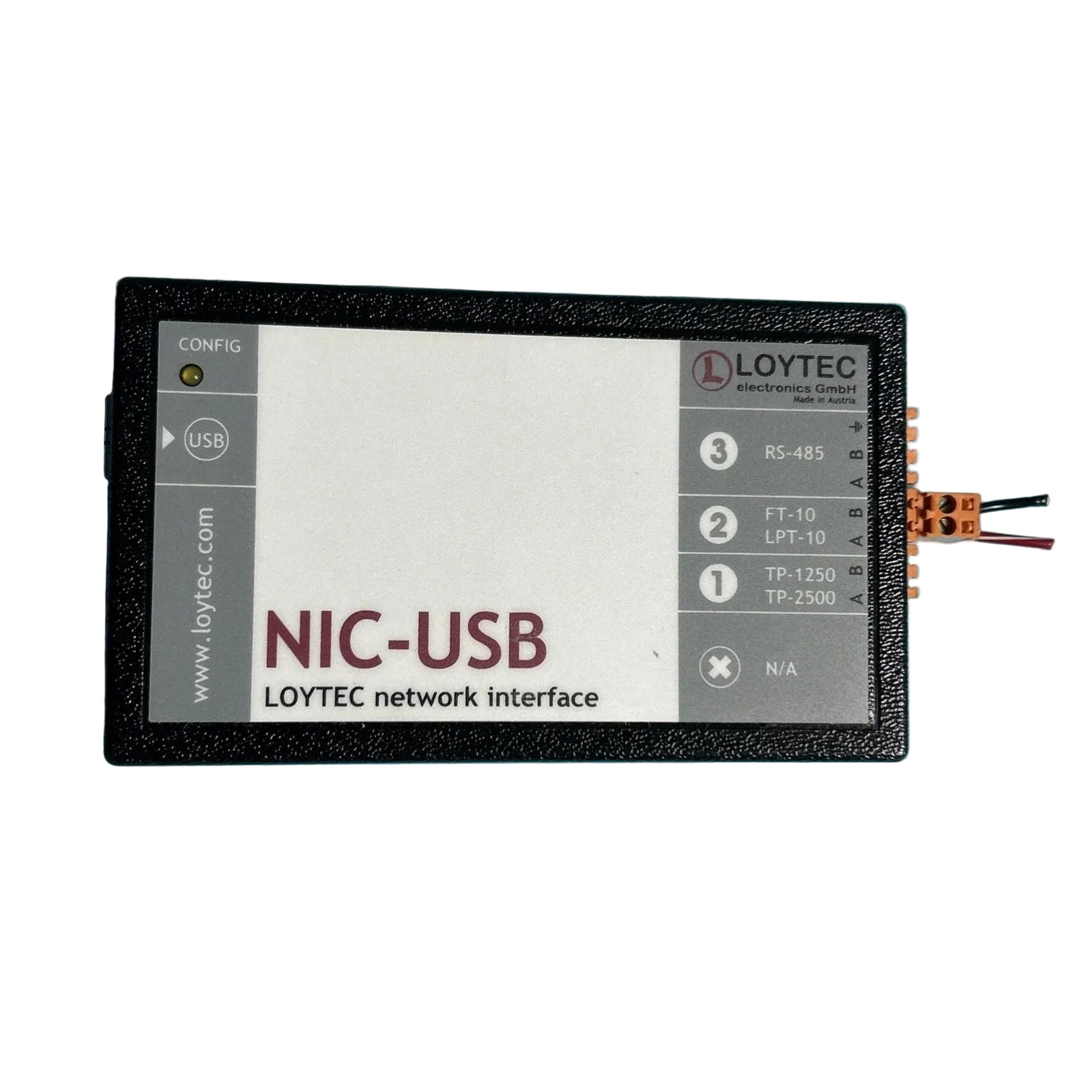

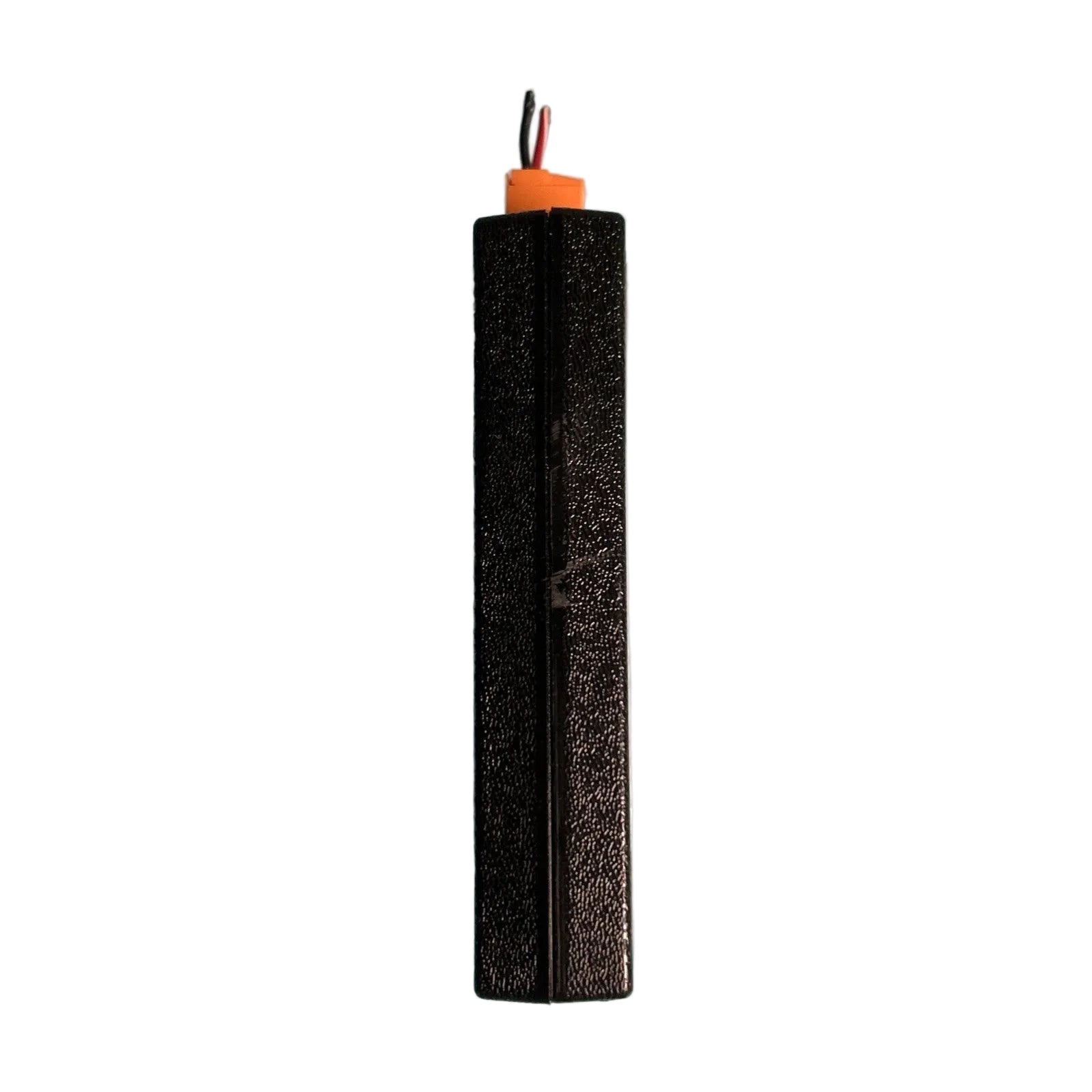

LOYTEC NIC709-USB100 CEA-709 Universal Serial Bus Network Interface
- Regular price
- $777.00
- Sale price
- $777.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: NIC709-USB100
Description
The LOYTEC NIC709-USB100 is a Universal Serial Bus network interface designed to connect a computer to CEA-709 LonMark networks for configuration, commissioning, diagnostics, and protocol analysis. It supports TP/FT-10, TP/XF-1250, and TP/RS-485 channels while providing high packet processing rates and short response times for building automation and network engineering applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | LOYTEC |
| Category | Computer |
| Part Number | NIC709-USB100 |
| Subcategory | Network Interface |
| Series | NIC |
| Product Type | Universal Serial Bus CEA-709 Network Interface |
| Supported Networks | CEA-709 / LonMark |

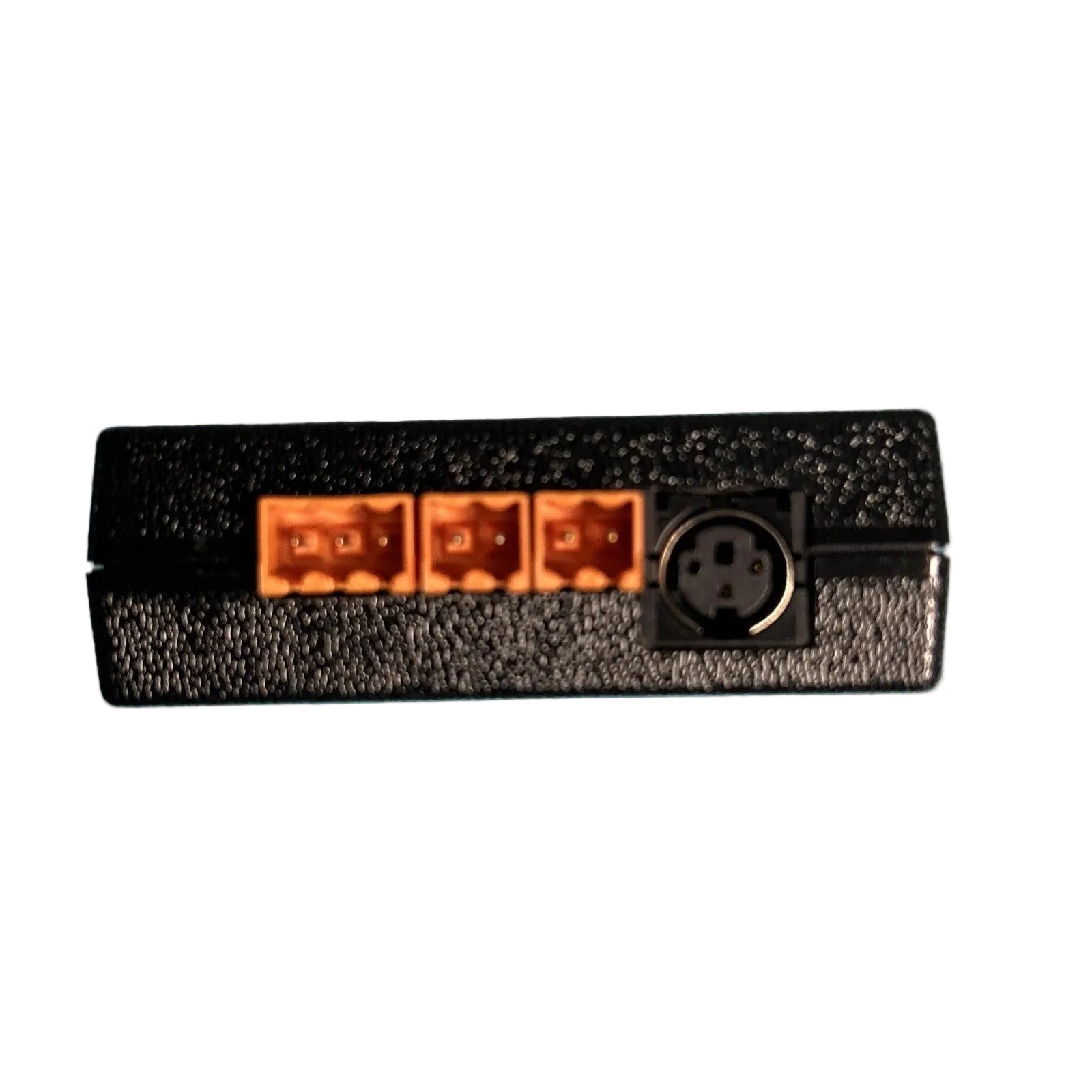

| Network Interfaces | 1 × TP/FT-10, 1 × TP/XF-1250, 1 × TP/RS-485 |

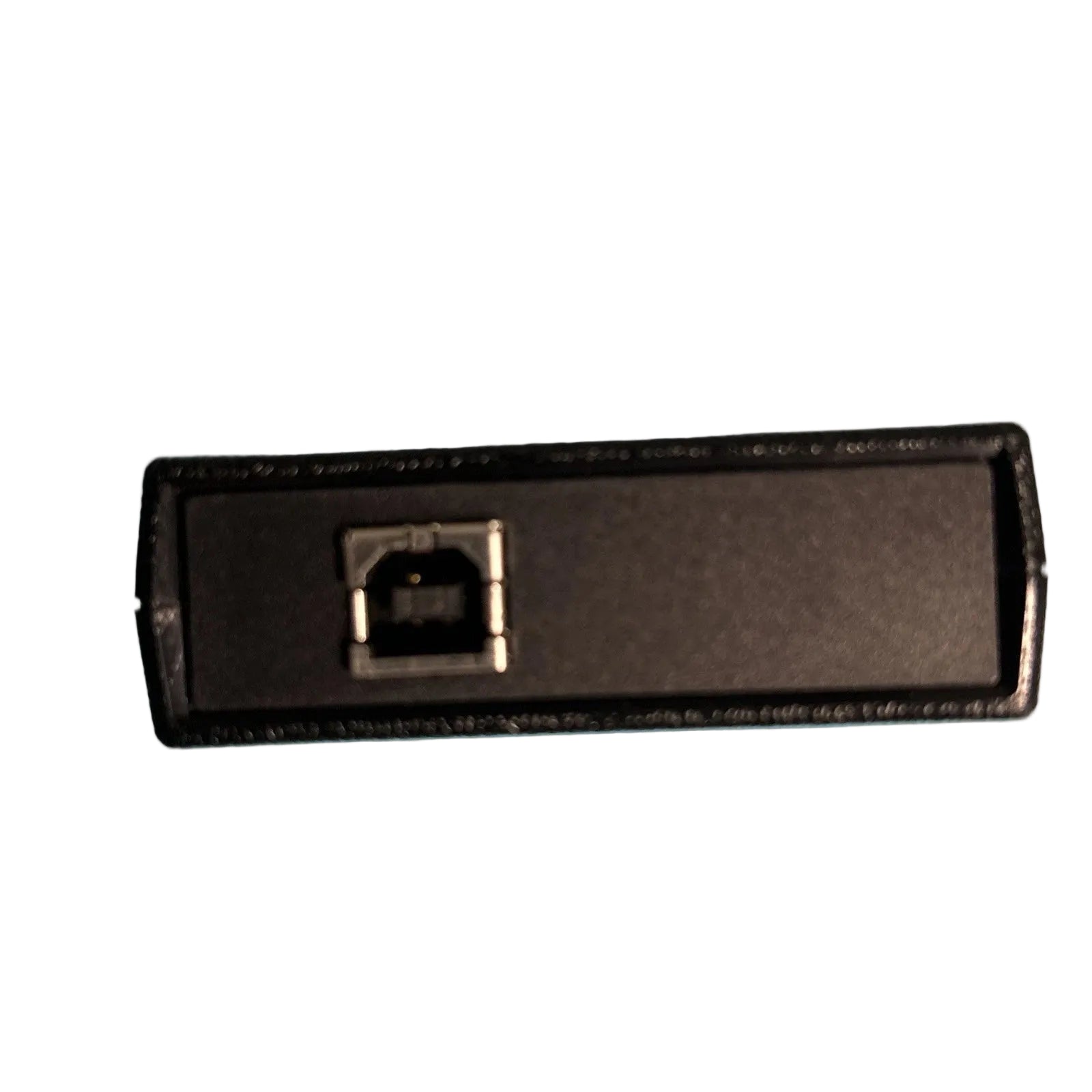

| Computer Interface | Universal Serial Bus |
| Power Supply | Supplied through Universal Serial Bus, maximum 130 milliamperes |
| Multiplexed Network Interfaces | Up to 8 |
| Software Tool | LOYTEC Network Interface NIC Software |
| Supported Operating Systems | Windows 10, Windows 11, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Operating Temperature | 0°C to +50°C |
| Relative Humidity | 10–90%, noncondensing |
| Protection Rating | IP40 Enclosure / IP20 Terminals |
| Dimensions | 104.4 × 66.5 × 25.5 mm |
| Weight | 0.39 lbs |
Information About NIC709-USB100
The NIC709-USB100 is a LOYTEC NIC series network interface developed for direct computer access to CEA-709 field networks through a Universal Serial Bus connection. The compact interface incorporates dedicated TP/FT-10, TP/XF-1250, and TP/RS-485 connections and receives its operating power directly from the connected computer, eliminating the need for a separate power supply. It is compatible with LNS applications such as NL220, ALEX, and LonMaker, as well as NodeUtil32, NLUtil, OPC servers, LOYTEC Protocol Analyzer software, and high-performance ORION applications. Multiplexed Network Interface functionality allows up to eight network nodes and enables multiple LNS or MIP applications to operate in parallel with a protocol analyzer through a single physical interface.
Key Features:
- Universal Serial Bus Connectivity: Connects directly to a computer Universal Serial Bus port for CEA-709 network access and receives operating power through the same connection.
- Multiple Network Interfaces: Provides TP/FT-10, TP/XF-1250, and TP/RS-485 connections for use with different CEA-709 physical channels.
- Multiplexed Network Interface Support: Creates up to eight network nodes through one physical network interface for simultaneous software access.
- LNS Application Compatibility: Supports applications including NL220, ALEX, LonMaker, and other LNS-based engineering tools.
- MIP Application Support: Works with applications using the LDV interface, including NodeUtil32, NLUtil, and compatible building automation software.
- Protocol Analysis Compatibility: Can operate with LOYTEC Protocol Analyzer and related diagnostic tools for CEA-709 network troubleshooting.
- Current Windows Support: Compatible with Windows 10, Windows 11, Windows Server 2016, Windows Server 2019, and Windows Server 2022.
- USB-Powered Operation: Requires a maximum supply current of 130 milliamperes from the connected Universal Serial Bus port.
The NIC709-USB100 delivers the reliability and precision required for CEA-709 network commissioning, diagnostics, protocol analysis, and building automation system integration.
