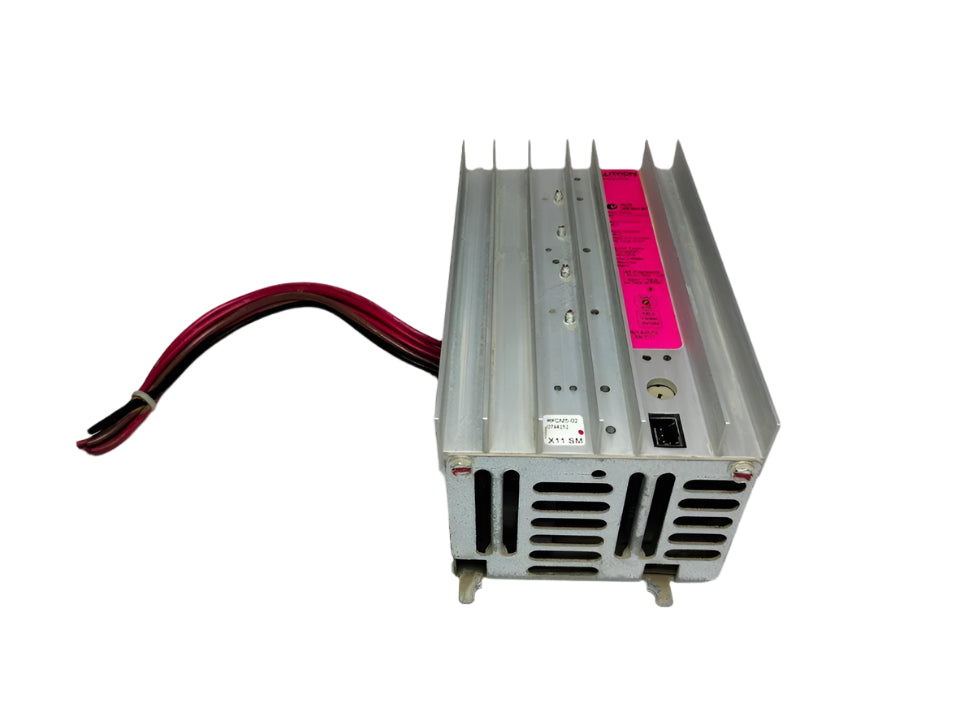

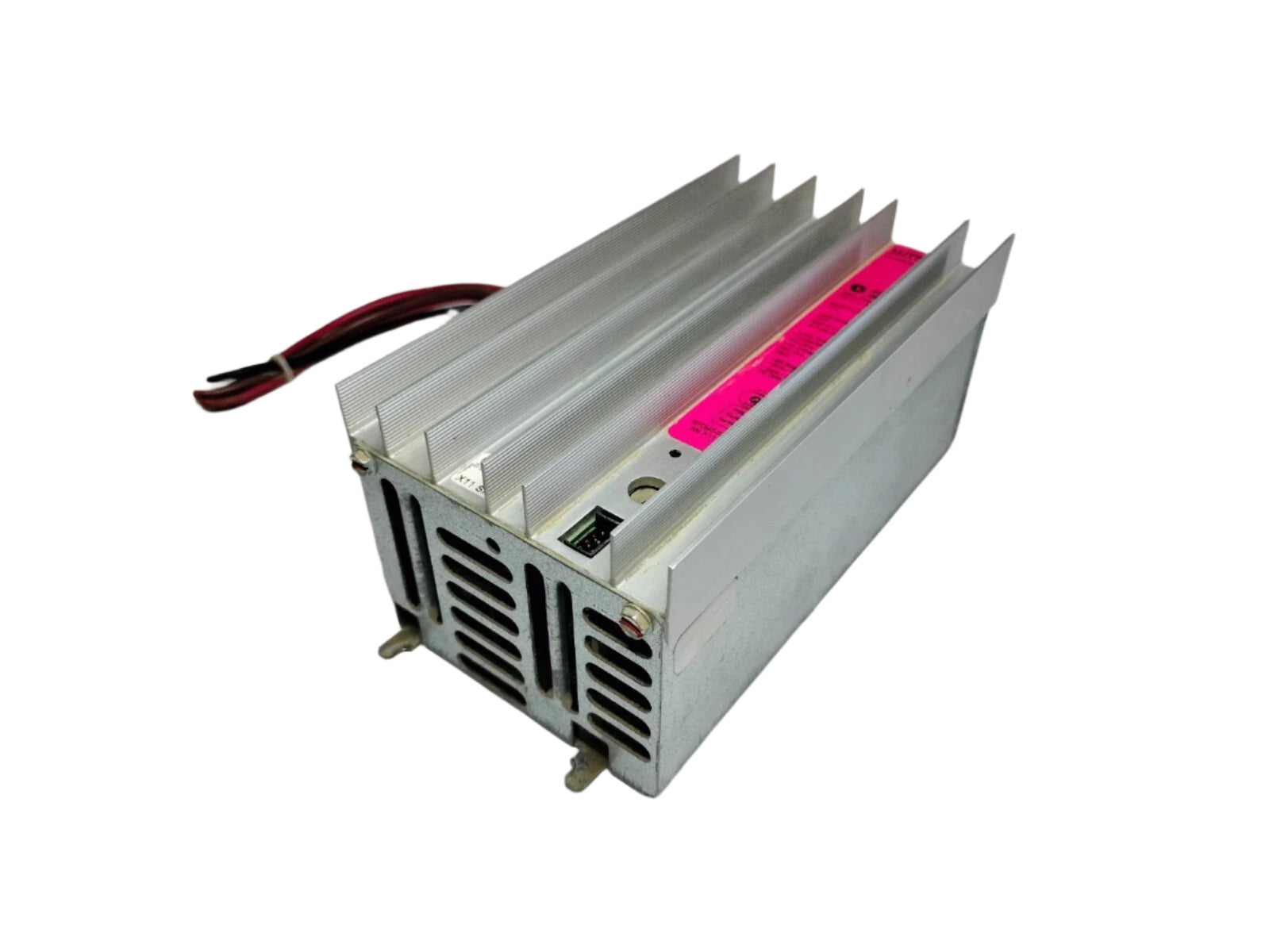

LP-RPM-4U-240 | Lutron 4-Zone DIN-Rail Relay Module for 240V Lighting Control Systems
- Regular price
- $1,699.00
- Sale price
- $1,699.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LP-RPM-4U-240
Description
The Lutron LP-RPM-4U-240 is a DIN-rail mounted universal power module designed to control multiple lighting loads in HomeWorks and Quantum systems. It supports up to four independently controlled zones for switched or non-dimmed loads, with a total output capacity of 16 A. This module is ideal for centralized lighting applications in residential and commercial installations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Lighting Control |
| Part Number | LP-RPM-4U-240 |
| Subcategory | Relay Modules |
| Voltage | 220–240 V~ |
| Current Capacity | 16 A total (4 A max per output) |
| Outputs | 4 switched circuits (non-dimmed) |
| Mounting Type | DIN-rail |
| System Compatibility | Lutron HomeWorks, Lutron Quantum |
| Relay Type | Mechanical relay (normally open contacts) |
| Load Types Supported | Fluorescent ballasts, LED drivers, motors, resistive loads |
| Feedback Indicators | LED indicators per zone |
| Operating Frequency | 50/60 Hz |
| Enclosure Type | For use in centralized panels |
| Cooling | Passive air-cooled |
| Dimensions | Approx. 6.5" H x 4.5" W x 2.25" D (varies by panel config) |
| Certifications | CE, UL recognized |
| Weight | ~1.2 lb |
Information About LP-RPM-4U-240
The LP-RPM-4U-240 is a 240 V universal module from Lutron’s LP-RPM series, engineered for use within centralized lighting control panels. Built for integration with Lutron HomeWorks and Quantum systems, it controls up to four zones of non-dimmed lighting. The device features individually controlled relays and is DIN-rail mountable for seamless panel integration. It’s designed to switch line-voltage loads including fluorescent ballasts, LED drivers, and motor loads.
Key Features:
- Multi-Zone Control: Supports four independent switched lighting circuits.
- High Voltage Compatibility: Operates on 220–240 V line voltage systems.
- DIN-Rail Mountable: Designed for centralized cabinet mounting.
- Relay-Based Switching: Suitable for non-dimmed loads such as fluorescent or LED drivers.
- HomeWorks & Quantum Integration: Seamless compatibility with Lutron’s advanced lighting ecosystems.
- High Load Capacity: Rated for up to 16 A total across four circuits.
- Low Standby Power: Energy-efficient operation with minimal idle consumption.
- Status Feedback: Provides local status LEDs for each output.
The LP-RPM-4U-240 delivers the reliability and control required for centralized lighting installations across residential and commercial environments.
