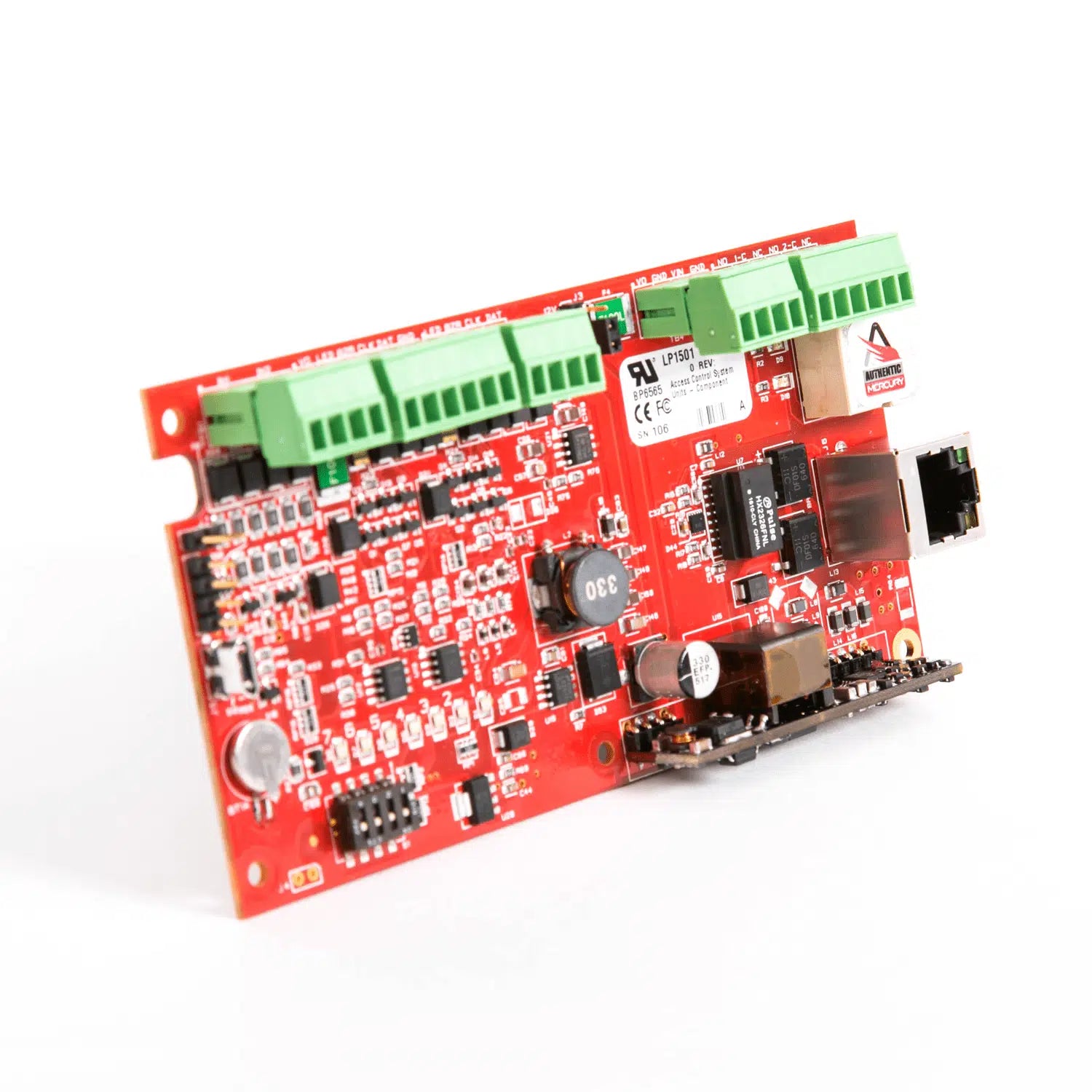

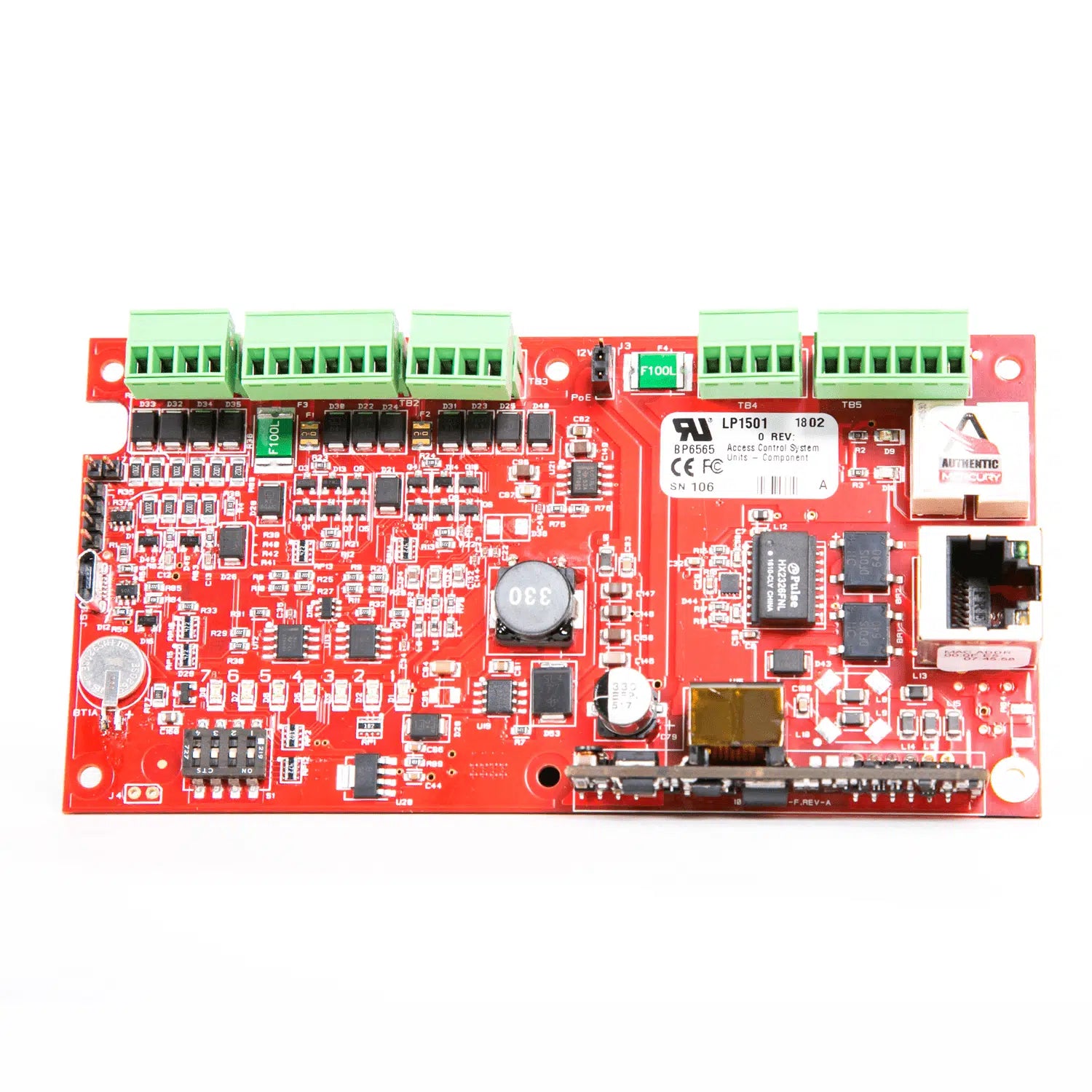

LP1501 | Mercury Security Intelligent PoE Access Control Controller for Multi-Reader Door Management
- Regular price
- $1,584.00
- Sale price
- $1,584.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LP1501
Description
The Mercury LP1501 Intelligent PoE Controller is a network-based access control panel designed to manage secure door access and credential authentication in enterprise security systems. It provides advanced processing capability, supporting large cardholder databases and high transaction volumes for reliable access event management. The controller integrates seamlessly with modern security infrastructures using Ethernet connectivity and PoE power for efficient installation and operation.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Mercury Security |
| Category | Access Control |
| Part Number | LP1501 |
| Subcategory | Access Control Controllers |
| Cardholder Capacity | Up to 240,000 cardholders |
| Transaction Buffer | 50,000 events |
| Access Levels | Up to 255 per cardholder |
| User ID Format | 19-digit (64-bit) user ID with up to 15-digit PIN |
| Reader Support | Native support for 2 readers and 1 opening |
| Expanded Reader Support | Up to 17 readers and openings when not using onboard OSDP |
| Communication Interface | Ethernet 10Base-T / 100Base-TX |
| Power Input | PoE (12.95 W), PoE+ (25 W), or 12 VDC ±10 %, 1.8 A max |
| Power Output | 12 VDC @ 625 mA (PoE) or 12 VDC @ 1.25 A (PoE+ / external supply) |
| Input Interfaces | Two programmable supervised/unsupervised inputs plus cabinet tamper input |
| Relay Outputs | Two Form-C relays rated 2 A @ 30 VDC |
| RS-485 Support | Supports one RS-485 IO protocol |
| Operating Temperature | 0° to 70° C |
| Storage Temperature | -55° to 85° C |
| Humidity | 5 to 95% RH non-condensing |
| Dimensions | 5.5 in W × 2.75 in L × 0.96 in H (without bracket) |
| Compliance | UL 294 Recognized, FCC Part 15 Class A, CE, RoHS, NIST Certified Encryption |
| Weight | 4.43 oz |
Information About LP1501
The LP1501 is an intelligent PoE-powered access control controller developed by Mercury Security for scalable physical security deployments. It is designed to operate within distributed access control architectures, enabling centralized management while processing credential decisions locally for improved reliability. The controller supports large cardholder databases and configurable access rules, making it suitable for corporate facilities, campuses, and commercial buildings. Built with secure communication protocols and flexible reader interfaces, the device integrates with modern security platforms while maintaining high operational performance.
Key Features:
- Large Credential Capacity: Supports up to 240,000 cardholders, enabling large-scale access control deployments.
- High Transaction Storage: Provides a 50,000 event transaction buffer for reliable logging during network interruptions.
- PoE or Local Power Support: Operates using IEEE 802.3af PoE, PoE+ (802.3at), or a 12 VDC local power supply for flexible installation.
- Reader Expansion Capability: Natively supports two readers for a single opening and can expand to support up to 17 readers and doors when not using onboard OSDP.
- Advanced Access Logic: Supports If/Then macro programming, access level configuration, and activation or deactivation rules for credential control.
- Anti-Passback Functionality: Includes nested, area, hard, soft, and timed forgiveness anti-passback enforcement options.
- Flexible Input and Output Management: Supports up to 130 inputs and 130 outputs across the system for expanded security monitoring.
- Ethernet Host Communication: Uses 10/100Base-T Ethernet for secure communication with host access control management software.
The LP1501 delivers the reliability and precision required for enterprise-grade electronic access control systems.
