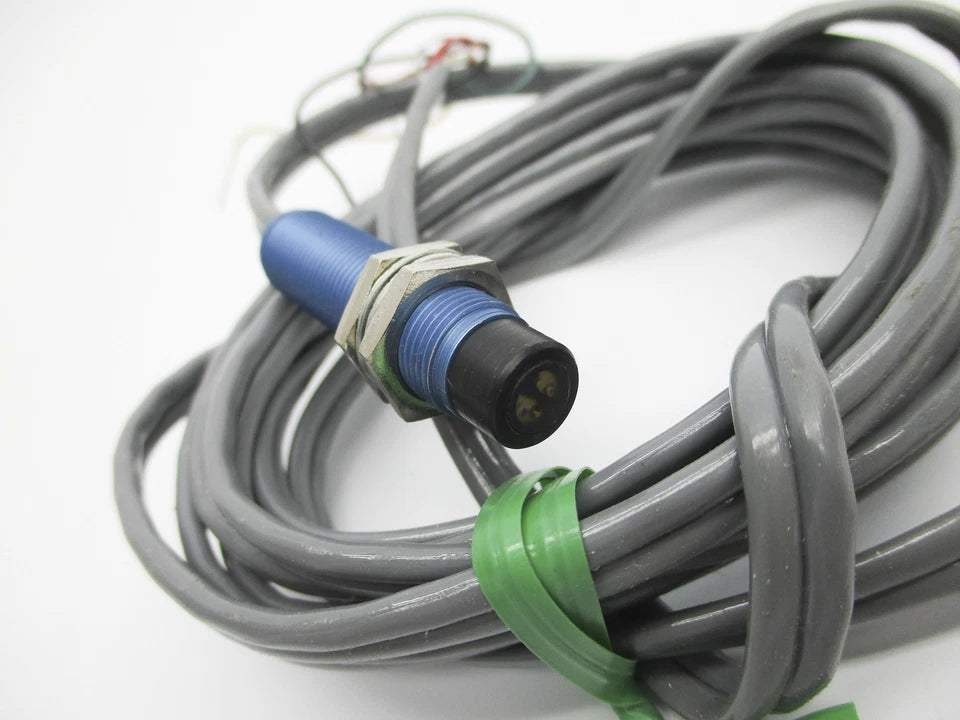

LP400WB | Banner Engineering Wide-Beam Divergent Remote Photoelectric Sensor
- Regular price
- $265.00
- Sale price
- $265.00
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LP400WB
Description
The Banner Engineering LP400WB is a wide-beam divergent mode remote photoelectric sensor designed for detecting small, irregular, or transparent objects. It operates in diffuse proximity mode and is intended for use with compatible Banner amplifier modules. The sensor features infrared emission and a compact threaded barrel design for installation in space-limited applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Banner Engineering |
| Category | Sensors & Switches |
| Part Number | LP400WB |
| Subcategory | Photoelectric |
| Series | LP Series |
| Sensing Mode | Diffuse (Wide-Beam Divergent) |
| Light Source | Infrared LED, 940 nm |
| Maximum Sensing Range | Up to 3 in (referenced to 90% white test card) |
| Power Supply Requirement | 12–18 VDC (via amplifier) |
| Output Configuration | Open-Collector NPN (via amplifier) |
| Response Time | 1 ms (via compatible amplifier) |
| Operating Temperature | 0°C to +50°C |
| Housing Material | Blue Anodized Aluminum |
| Environmental Ratings | NEMA 1, 3, 4, 12, 13 |
| Cable Length | 6 ft PVC-covered cable |
| Maximum Sensor Lead Length | 100 ft (with proper wiring) |
Information About LP400WB
The LP400WB is a remote wide-beam divergent sensor that must be used with Banner MICRO-AMP®, MAXI-AMP™, or MB Series amplifiers. It uses a 940 nm infrared LED emitter and is capable of detecting small objects, including fine threads or wires, within close proximity of the sensing face. The sensing range extends up to 3 inches when referenced to a 90% reflective white test card. The housing is fully encapsulated and constructed from blue anodized aluminum, meeting multiple NEMA enclosure ratings.
Key Features:
-
Wide-beam divergent sensing: Designed for detection of small or irregularly shaped objects.
-
Infrared LED emitter: Operates at 940 nm wavelength.
-
Remote sensor configuration: Requires compatible Banner amplifier module.
-
Detection of fine materials: Capable of sensing objects as small as 0.005 inches at close range.
-
Compact threaded barrel design: Suitable for confined mounting locations.
-
Encapsulated aluminum housing: Blue anodized construction with environmental protection.
-
Fast response capability: 1 ms ON/OFF switching when used with compatible amplifiers.
The LP400WB delivers the reliability and precision required for remote diffuse photoelectric sensing applications.
