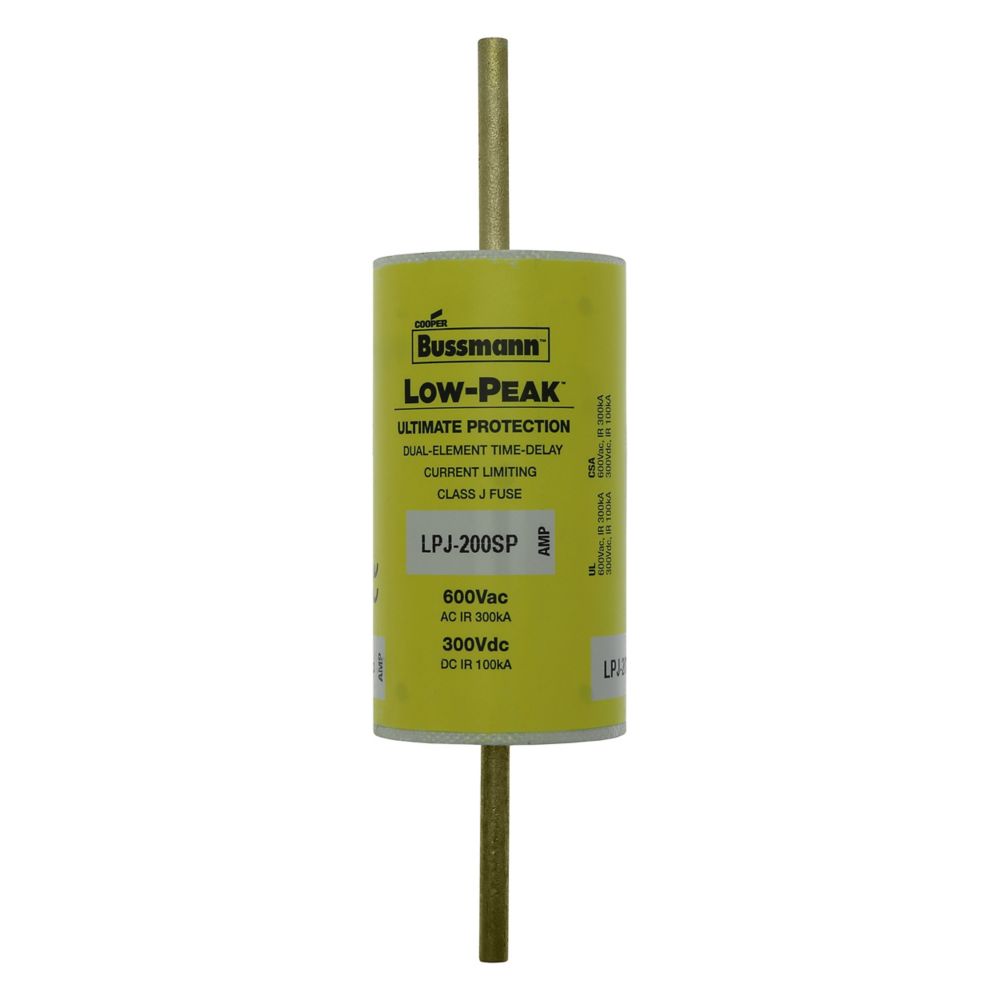

LPJ-200SP | Eaton 200A 600V Low-Peak LPJ Class J Time-Delay Current-Limiting Fuse
- Regular price
- $125.00
- Sale price
- $125.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LPJ-200SP
Description
The Eaton LPJ-200SP is a 200-amp, 600-volt Low-Peak Class J fuse designed to provide reliable, current-limiting overcurrent protection in industrial and commercial electrical systems. This dual-element, time-delay fuse supports both inductive and high inrush loads while maintaining selective coordination. With a 300 kA interrupt rating at 600 V, the LPJ-200SP delivers robust fault-clearing performance in demanding low-voltage applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Eaton |
| Category | Panel Accessories |
| Part Number | LPJ-200SP |
| Subcategory | Fuse |
| Family | Low-Peak |
| Type | LPJ |
| Class Rating | Class J |
| Amperage Rating | 200 A |
| Voltage Rating | 600 VAC / 300 VDC |
| Interrupt Rating | 300 kA @ 600 V AC; 100 kA @ 300 V DC |
| Fuse Element Type | Dual Element, Time-Delay |
| Current Limiting | Yes |
| Barrels | 1 |
| Diameter | 1.63 in |
| Indication Type | Non-indicating |
| Certifications | UL Listed, CSA Certified |
| Application | Industrial and commercial low-voltage overcurrent protection |
Information About LPJ-200SP
The LPJ-200SP belongs to Eaton’s Low-Peak LPJ Series, a line of high-performance Class J fuses built for compact size and superior current-limiting capability. Its single-barrel design and 1.63-inch diameter allow installation in standard Class J fuse holders used throughout industrial distribution systems. The dual-element construction provides precise time-delay characteristics, enabling the fuse to withstand temporary overloads while protecting against sustained faults. With UL listing, CSA certification, and high AC/DC interrupt ratings, the LPJ-200SP is suited for critical circuit protection across a wide range of low-voltage equipment.
Key Features:
- Class J Low-Peak design: Offers high performance with compact dimensions.
- 200A rating: Supports medium-capacity circuit protection needs.
- 600 VAC / 300 VDC operation: Suitable for AC and DC low-voltage systems.
- Dual-element time-delay: Allows temporary overload tolerance for inductive loads.
- Current-limiting fuse: Reduces let-through energy during fault conditions.
- 300 kA interrupt rating @ 600V: Handles extremely high fault currents safely.
- Non-indicating type: Simplifies design where indication is not required.
- UL listed and CSA certified: Meets major safety and performance standards.
The LPJ-200SP delivers the reliability and precision required for high-performance Class J overcurrent protection.
