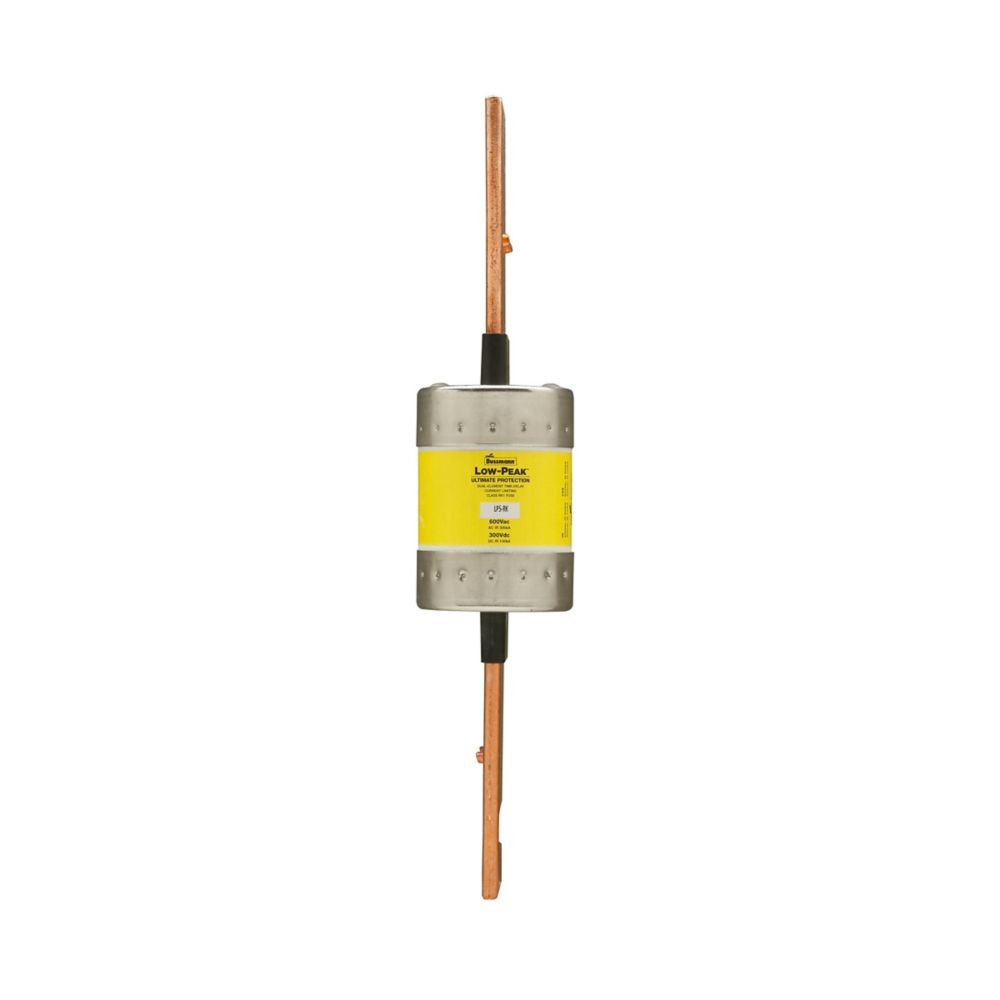

LPS-RK-400SP | Eaton Bussmann Series LPS-RK Fuse
- Regular price
- $195.00
- Sale price
- $195.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LPS-RK-400SP
Description
The LPS-RK-400SP is a fuse from the Eaton Bussmann series. It features a 400A rating, dual configuration, and belongs to Class RK1. The fuse is non-indicating and has blade end to blade end connections. It offers time delay and current-limiting functionalities, with a short circuit rating of 100 kAIC at 300 Vdc and 300 kAIC at 600 V. The fuse is designed for standard applications, operating at 600 VAC and 300 Vdc.
Technical Specifications
|
Product Name |
Eaton Bussmann series LPS-RK fuse |
|
Catalog Number |
LPS-RK-400SP |
|
UPC |
051712548557 |
|
Product Length/Depth |
11.63 in |
|
Product Height |
2.36 in |
|
Product Width |
2.36 in |
|
Product Weight |
4.6 lb |
|
Amperage Rating |
400 A |
|
Interrupt Rating |
100 kAIC at 300 Vdc |
|
|
300 kAIC at 600 Vac |
|
Voltage Rating |
600 Vac, 300 Vdc |
Information About LPS-RK-400SP
The LPS-RK-400SP is a fuse belonging to the Eaton Bussmann Series LPS-RK. It is rated at 400 A and falls under the category of dual fuses. Classified as Class RK1, it operates without indication and features blade end to blade end connections. The fuse offers time delay and current-limiting properties.
With a short circuit rating of 100 kAIC at 300 Vdc and 300 kAIC at 600 V, the LPS-RK-400SP provides robust protection against electrical faults. It adheres to standard specifications and is designed for use in electrical systems operating at 600 VAC and 300 Vdc.
Manufacturer information
Eaton Corporation is a multinational power management company offering a diverse range of electrical, hydraulic, and aerospace solutions. Known for innovation, Eaton serves customers in various industries worldwide.
