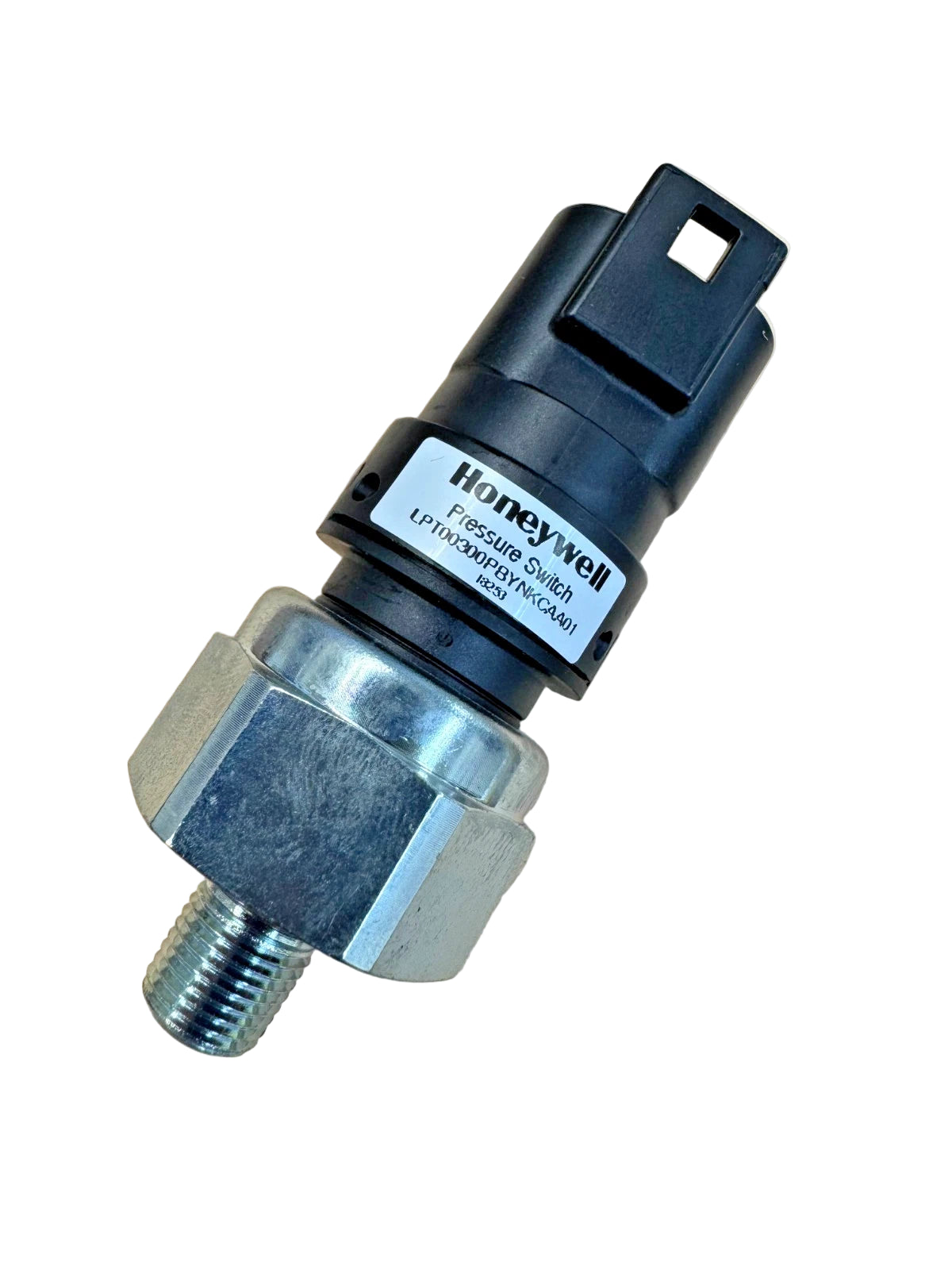

LPT00300PBYNKCAA01 | Honeywell 30 psi Sealed-Gage Pressure Switch, 1/8-27 NPT, SPDT
- Regular price
- $377.00
- Sale price
- $377.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: LPT00300PBYNKCAA01
Description
The Honeywell LPT00300PBYNKCAA01 is a sealed-gage pressure switch rated for up to 30 psi, designed for industrial automation and process control applications. With a 1/8-27 NPT pressure port and SPDT contact configuration, it provides precise monitoring and switching of gas or liquid media. Built for durability and rugged environments, this pressure switch is intended for reliable control operations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Sensors & Switches |
| Part Number | LPT00300PBYNKCAA01 |
| Subcategory | Pressure Switch |
| Pressure Type | Sealed Gage |
| Operating Pressure Range | 0 psi to 30 psi |
| Maximum Overload Pressure | 500 psi |
| Accuracy | ±2 % |
| Port Size | 1/8-27 NPT |
| Electrical Termination | 3-pin Deutsch connector |
| Contact Configuration | SPDT (Single Pole Double Throw) |
| Media | Gas or Liquid |
| IP Rating | IP67 |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +120 °C |
| Mounting Style | Stud / Panel / Chassis |
| Weight | 1.00 lbs |
Information About LPT00300PBYNKCAA01
The LPT00300PBYNKCAA01 belongs to Honeywell’s line of LP (low-pressure) series pressure switches, designed for sealed-gage applications in gases and liquids. Rated for an operating pressure range up to 30 psi, this model supports harsh temperature conditions from -40 °C up to +120 °C and features an IP67 rating for protection against dust and water ingress. It uses a 1/8-27 NPT process connection and a 3-pin Deutsch electrical connector for secure mounting and wiring. The device is now listed as obsolete, but remains available as a surplus option for legacy systems requiring accurate pressure monitoring and switching functionality.
Key Features:
- Sealed-Gage Pressure Measurement: Provides accurate pressure monitoring without reference to ambient atmospheric pressure.
- 30 psi Rated Set Point: Designed to operate up to 30 psi maximum switching pressure.
- 1/8-27 NPT Process Port: Standard connection size for industrial fluid systems.
- SPDT Contact Configuration: Single-pole double-throw switch for flexible control logic (energize/de-energize operations).
- Deutsch 3-Pin Connector: Rugged, field-secure electrical termination for industrial environments.
- Wide Temperature Range: Operates reliably from -40 °C to +120 °C, covering cold-climate and high-heat applications.
- IP67 Rating: Ensures ingress-protection for dust and water immersion up to 1 m depth.
- Gas or Liquid Compatibility: Suitable for monitoring gas or liquid media in sealed systems.
- Obsolete / Surplus Availability: While no longer in active production, still offered for legacy equipment replacement.
The LPT00300PBYNKCAA01 delivers the reliability and precision required for industrial pressure detection and control in demanding environments.
