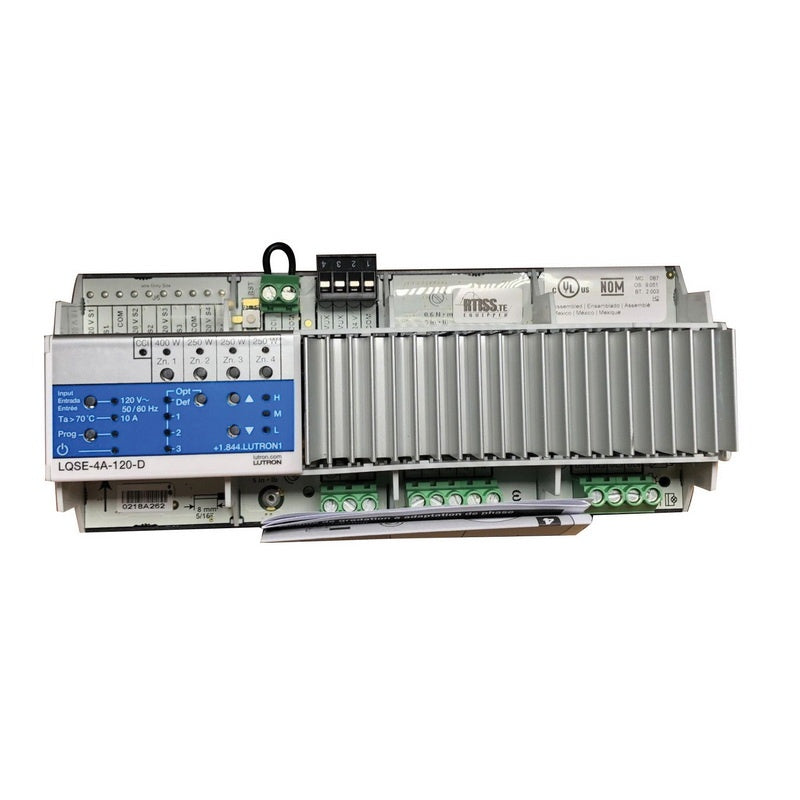

LQSE-4A-120-D | Lutron 4-Zone Phase Adaptive Power Module, 120V, HomeWorks QS
- Regular price
- $884.00
- Sale price
- $884.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LQSE-4A-120-D
Description
The Lutron LQSE-4A-120-D is a DIN-rail mounted phase adaptive power module that controls up to four lighting zones. Designed for HomeWorks QS systems, it supports various load types with automatic leading or trailing edge dimming. The unit ensures stable performance and offers advanced protection features for safe operation.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Lutron |
| Category |
Lighting Control Systems
|
| Part Number | LQSE-4A-120-D |
| Subcategory | DIN Power Modules / Dimming Interfaces |
| Zones Controlled | 4 |
| Input Voltage | 120 V~ 50/60 Hz |
| Max Input Current | 10 A |
| Load Compatibility | LED, CFL, ELV, MLV, Incandescent, Neon, Halogen |
| Dimming Type | Phase Adaptive (Auto-leading/trailing edge) |
| System Integration | HomeWorks QS, QS Link |
| Mounting | DIN Rail, 12-module width |
| Surge Protection | 6000 V / 3000 A (ANSI/IEEE 62.31-1980) |
| Operating Temperature | 0 °C to 40 °C (Room) / Max 70 °C Calibration |
| Humidity | <90%, non-condensing |
| Manual Override | Via CCI contact input |
| Diagnostics | Status LEDs per zone |
| Control Interfaces | Local buttons, QS Link, CCI |
| Power Failure Memory | Yes |
| Weight | 1.7 kg |
Information About LQSE-4A-120-D
The LQSE-4A-120-D is a 4-zone phase adaptive dimming module by Lutron, built for seamless integration within HomeWorks QS systems. It supports multiple light source types, including LED, CFL, ELV, and MLV, and adapts automatically to ensure optimal dimming control. Featuring RTISS-TE technology, the unit compensates for power fluctuations in real-time. The module includes air-gap relays, diagnostic LEDs, and override controls for safe and flexible installation.
Key Features:
- DIN-Rail Design: 12-module width form factor for panel-mount applications
- 4-Zone Dimming Control: Independently controls four separate lighting loads
- Phase Adaptive Output: Supports leading-edge and trailing-edge dimming automatically
- QS Link Integration: Communicates seamlessly with HomeWorks QS devices
- RTISS-TE Compensation: Provides real-time correction of power anomalies
- LED & CFL Compatible: Supports dimmable solid-state lighting with SSL7 compliance
- Manual Override & CCI: Ensures load control during power interruptions or faults
- Surge Protection: Handles up to 6000 V and 3000 A surges per ANSI/IEEE standards
- Thermal Derating Options: Supports operation in high-temperature environments
The LQSE-4A-120-D delivers the reliability and precision required for complex, high-performance lighting control applications.
