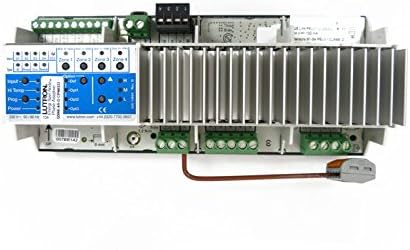

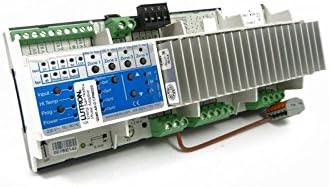

LQSE-4A-D | Lutron Adaptive Power Module, 4-Zone DIN, 230V 10A for HomeWorks QS
- Regular price
- $1,299.00
- Sale price
- $1,299.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LQSE-4A-D
Description
The Lutron LQSE-4A-D is a 4-zone Adaptive Power Module engineered for DIN rail installation in HomeWorks QS systems. It supports 230 V 50/60 Hz operation and provides up to 10 A total output switching capacity. Designed for robust lighting control, this module is ideal for centralized, panel-based integration.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Lutron |
| Category | Lighting Control |
| Part Number | LQSE-4A-D |
| Subcategory | Relay Modules |
| System Compatibility | HomeWorks QS |
| Zones Controlled | 4 independent relay outputs |
| Input Voltage | 230 V AC, 50/60 Hz |
| Total Load Capacity | 10 A |
| Mounting Type | DIN rail, 12 modules (216 mm wide) |
| Enclosure Requirement | IP20 or higher, panel-mounted |
| Control Type | Relay-based switching (non-dimming) |
| User Interface | Buttons and LED indicators (service access only) |
| Audible Relay Feedback | Yes |
| Dimensions | 9 x 4 x 3 inches (approx.) |
| Color | White |
| Certifications | CE, UL (model dependent), RoHS |
| Installation Notes | Access only by certified electrician |
| Batteries Required | No |
| Weight | ~1.5 lb |
Information About LQSE-4A-D
The LQSE-4A-D is part of Lutron’s DIN rail-mounted Adaptive Power Module lineup used in advanced lighting control panels. With four internal relays, it provides flexible switching for non-dimmable loads such as LED drivers and ballasts. This unit is 12 DIN modules (216 mm) wide and requires IP20-rated enclosures for proper installation. Onboard buttons and LEDs support programming and diagnostics; access must be performed by certified electricians per local electrical codes.
Key Features:
- 4-Zone Output: Controls four switched lighting circuits independently.
- High Voltage Support: Operates at 230 V AC, 50/60 Hz.
- DIN Rail Mounting: Standardized size (12 DIN modules) for easy integration.
- Load Capacity: Rated for 10 A total switching capacity across all zones.
- Diagnostic Interface: Onboard LEDs and buttons for programming and troubleshooting.
- Internal Relay Switching: Mechanical relay-based switching with audible feedback.
- Safe Installation: Designed for IP20+ panels, with safety restrictions on access.
- System Compatibility: Integrates with Lutron HomeWorks QS for distributed lighting control.
The LQSE-4A-D provides reliable zone-based switching for high-voltage centralized lighting control systems.
