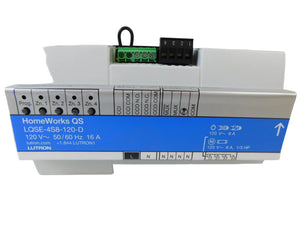

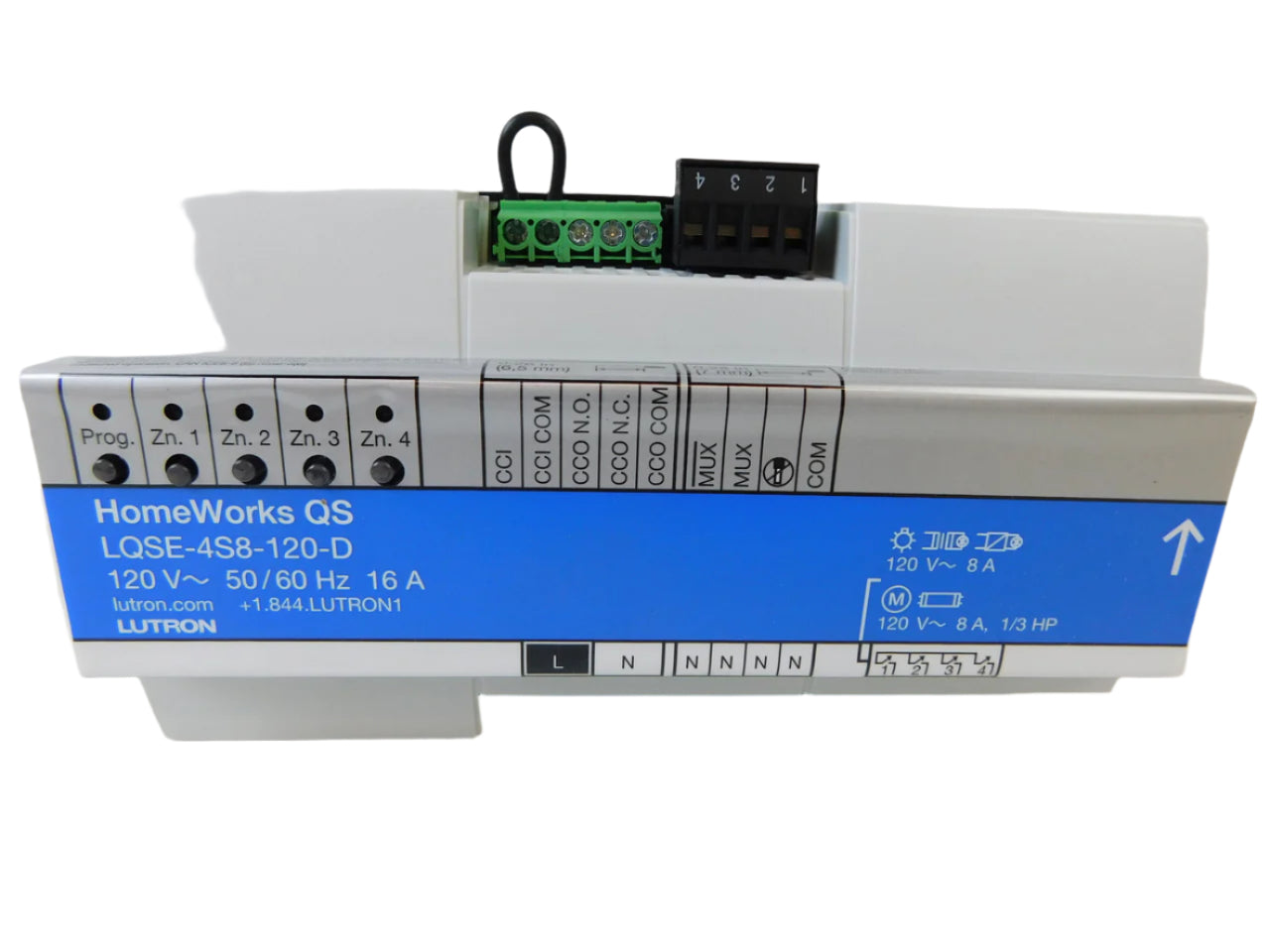

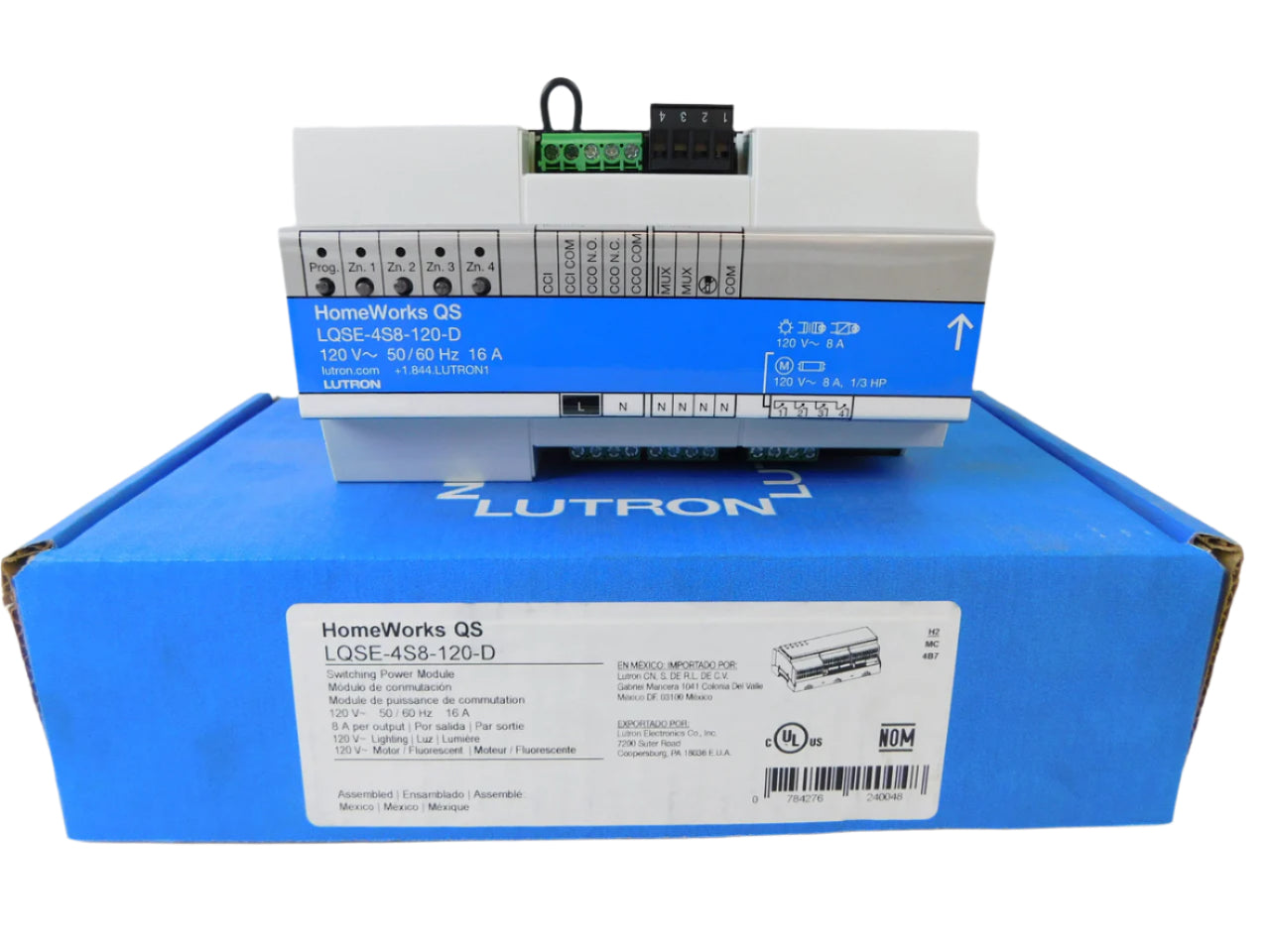

LQSE-4S8-120-D | Lutron Switching Power Module for HomeWorks QS lighting systems (4-zone, 16 A, 120 V)
- Regular price
- $629.00
- Sale price
- $629.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LQSE-4S8-120-D
Description
A DIN-rail mounted 4-zone switching module designed for controlling lighting loads in HomeWorks QS environments.
It supports a single 120 VAC feed up to 16 A and switches loads via adaptive zero-cross relays for maximum life.
The unit includes manual override buttons, diagnostic LEDs, and programmable contact closure interfaces.
Technical Specifications
| Condition | New/Never Used Surplus |
|---|---|
| Brand | Lutron |
| Category |
Lighting Control Systems
|
| Part Number | LQSE-4S8-120-D |
| Subcategory | Switching Power Modules |
| Input Voltage | 120 V~, 50/60 Hz |
| Max Input Current | 16 A |
| Number of Zones | 4 |
| Rated Load per Zone | 8 A switching (resistive/inductive/capacitive) |
| Motor Load Rating | 1/3 HP per zone |
| Contact Closure Input | Manual Override (N.C., factory-jumpered) |
| Contact Closure Output | Dry contact, N.O./N.C., up to 24 V |
| Surge Protection | 6 kV, 3 kA (ANSI/IEEE C62.41) |
| Operating Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Humidity | <90%, non-condensing |
| Dimensions (W×H×D) | 161.7 × 89.7 × 60.6 mm (9 DIN modules) |
| Mounting | DIN-rail, NEMA Type 1 panel |
| Weight | 0.95 kg (approx.) |
Information About LQSE-4S8-120-D
The LQSE-4S8-120-D is part of Lutron’s DIN Power Module family engineered for scalable lighting control. Built with four individually switched outputs, it handles resistive, inductive, and capacitive loads up to 8 A per zone. It connects via the QS link to HomeWorks QS processors, wallstations and other compatible devices. Typical applications include centralized lighting panels in premium residential and commercial spaces where reliability is critical.
Key Features:
- 4 Independent Zones: Allows control of four separate lighting circuits up to 8 A each.
- Adaptive Zero-Cross Switching: Extends relay lifespan by switching at optimum voltage points.
- QS Link Connectivity: Enables seamless integration with HomeWorks QS processors and controls.
- Manual Override Functions: Local buttons and CCI/CCO allow fail-safe or emergency control.
- Wide Load Compatibility: Rated for tungsten, ballast, resistive, inductive and motor loads (1/3 HP).
- Surge Protection: Meets ANSI/IEEE C62.41 standards for lightning and surge resilience.
- DIN-Rail Form Factor: Occupies 9 DIN-modules (161.7 mm) for compact panel installation.
- Power-Failure Memory: Restores zones to previous state after outages by default.
The LQSE-4S8-120-D delivers the reliability and precision required for high-end lighting control applications.
