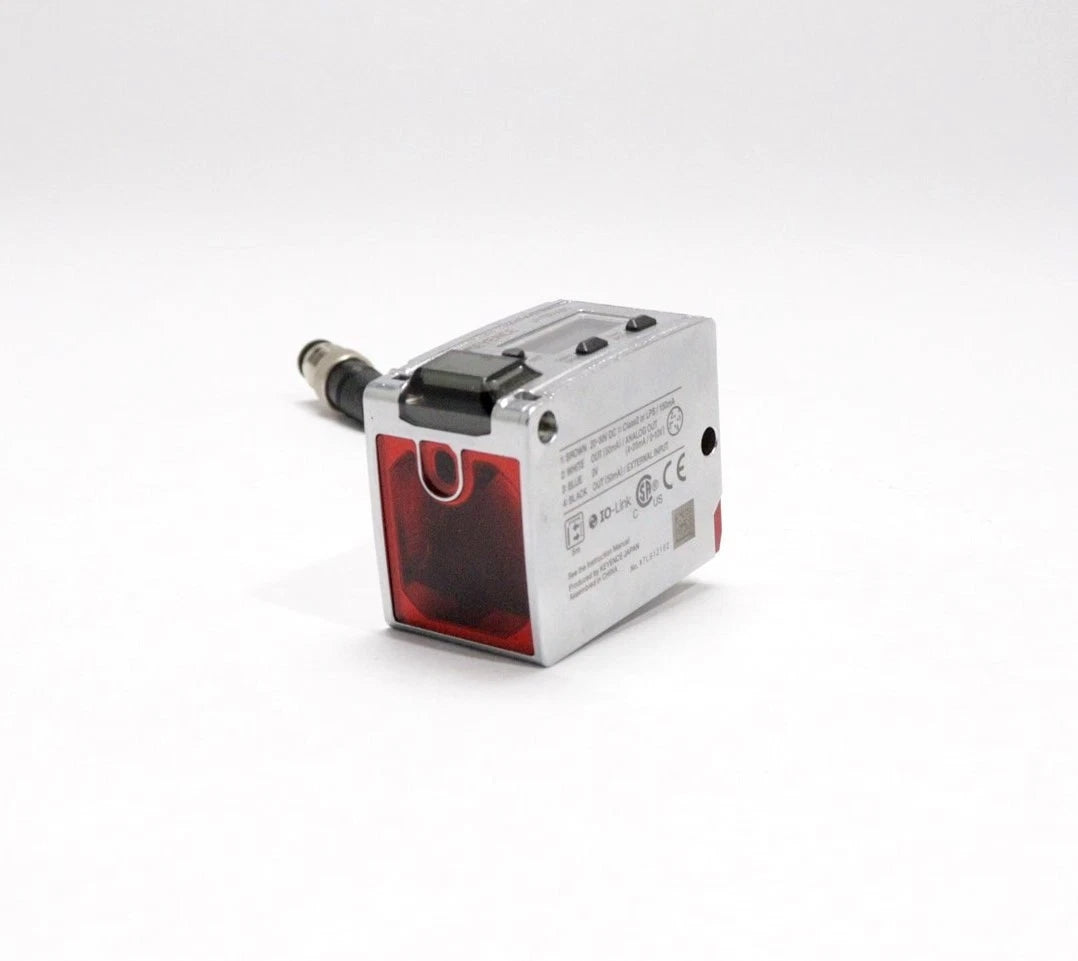

LR-TB5000 | Keyence Laser Sensor, 5 m Range, 24 VDC, Class 2 Red Laser, IP67
- Regular price
- $1,292.00
- Sale price
- $1,292.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: LR-TB5000
Description
The Keyence LR-TB5000 Laser Sensor (part number LR-TB5000) is a high-performance reflective laser distance sensor with a 5-meter detection range. It features a red laser light source (660 nm), Class 2 laser classification, and supports both analog (4–20 mA / 0–10 V) and digital outputs for versatile signal control. Designed for industrial automation, this sensor provides accurate measurement and detection for position, thickness, and presence applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors & Switches |
| Part Number | LR-TB5000 |
| Subcategory | Laser Gauging System |
| Type | Cable Type, Reflective Laser Sensor |
| Detectable Distance | 60 to 5000 mm (2.36" to 196.85") |
| Spot Diameter | Variable (≤ 40 mm) |
| Light Source | Red Laser (660 nm) |
| Laser Class | Class 2 (IEC60825-1, FDA CDRH Part1040.10) |
| Response Time | 1 ms / 10 ms / 25 ms / 1000 ms (selectable) |
| Timer Functions | OFF/ON delay, One-shot |
| Control Output | NPN or PNP open collector selectable, 30 VDC max, 50 mA max |
| Analog Output | 4–20 mA or 0–10 V selectable |
| Power Supply | 20 to 30 VDC (±10%) |
| Current Consumption | 50 mA or less (no load) |
| Protection Circuit | Reverse polarity, surge, overcurrent, and output protection |
| Enclosure Rating | IP65/IP67 (IEC60529) |
| Ambient Light Resistance | Sunlight up to 10,000 lux |
| Operating Temperature | -20°C to +55°C (-4°F to +131°F) |
| Operating Humidity | 35% to 85% RH (no condensation) |
| Vibration Resistance | 10–55 Hz, double amplitude 1.5 mm, 2 hrs each X/Y/Z axis |
| Shock Resistance | 1000 m/s², 6 times in each X/Y/Z direction |
| Material (Case) | Zinc die-cast with nickel chrome plating |
| Material (Lens Cover) | PMMA (scratch-resistant) |
| Cable Type | 2 m cable, PVC |
| Weight | Approx. 200 g (0.44 lb) including cable |
Information About LR-TB5000
The LR-TB5000 belongs to the Keyence LR-T Series of laser sensors designed for long-range detection and reliable operation across diverse materials. It operates on 20–30 VDC and uses a high-intensity red laser with adjustable response times for optimal performance. The sensor offers both PNP/NPN and analog output selection, ensuring compatibility with a wide variety of PLC and control systems. Its IP65/IP67-rated enclosure and rugged zinc die-cast body make it suitable for harsh environments in packaging, assembly, and metal processing lines.
Key Features:
- Extended Detection Range: Measures distances from 60 mm up to 5000 mm for flexible applications.
- Dual Output Function: Selectable analog (4–20 mA / 0–10 V) and digital (PNP/NPN) outputs for system integration.
- High Visibility Laser: 660 nm red laser provides stable and precise target detection.
- Fast Response: Adjustable response time from 1 ms to 1000 ms for high-speed or stable operation.
- Durable Housing: Zinc die-cast body with nickel chrome plating ensures long-term durability.
- Environmental Protection: IP65/IP67 enclosure rating for resistance to dust and water.
- Vibration & Shock Resistant: Tested to withstand 10–55 Hz vibration and 1,000 m/s² shock impact.
- Wide Temperature Range: Operates from -20°C to +55°C without freezing or condensation.
- Easy Integration: Equipped with a 2-meter cable and M12 connector for straightforward wiring.
- Mutual Interference Prevention: Supports up to four sensors operating simultaneously without cross-talk.
The LR-TB5000 delivers the accuracy, stability, and durability required for demanding industrial sensing and distance measurement tasks.
