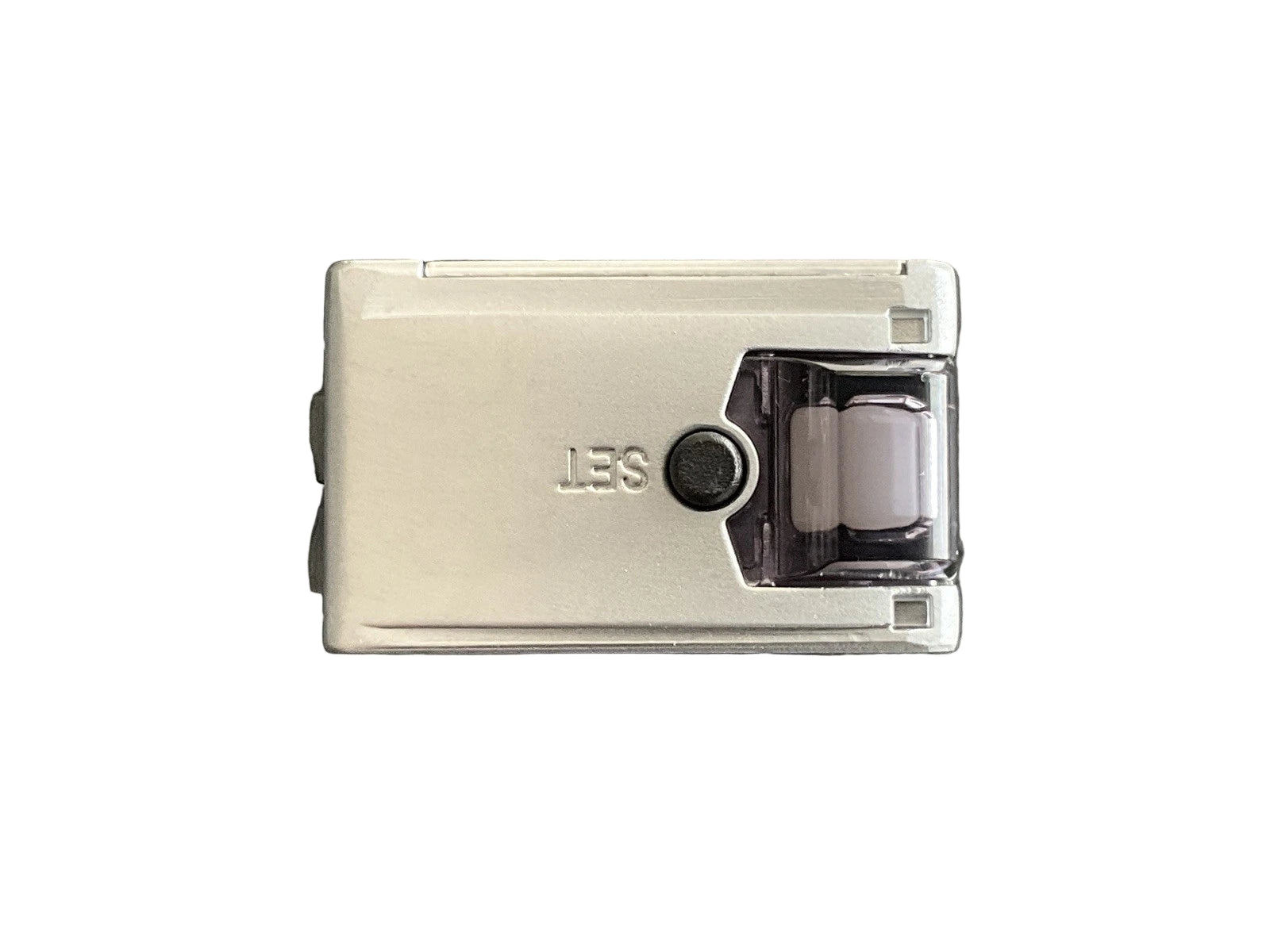

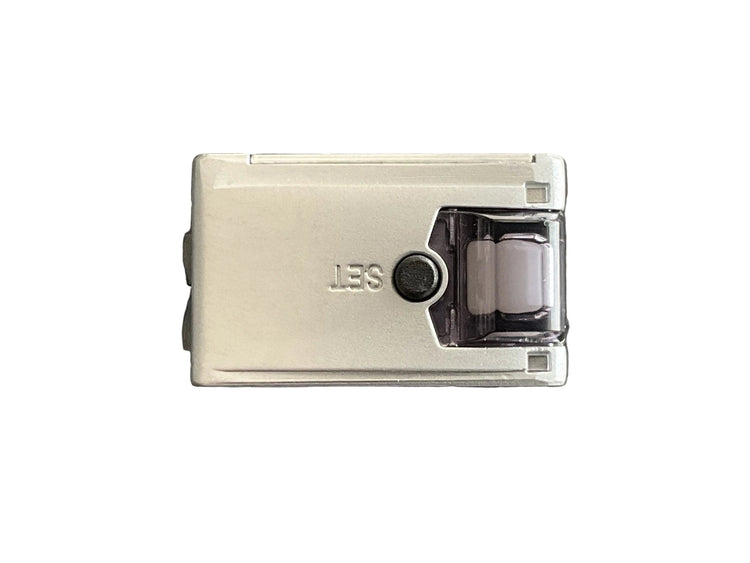

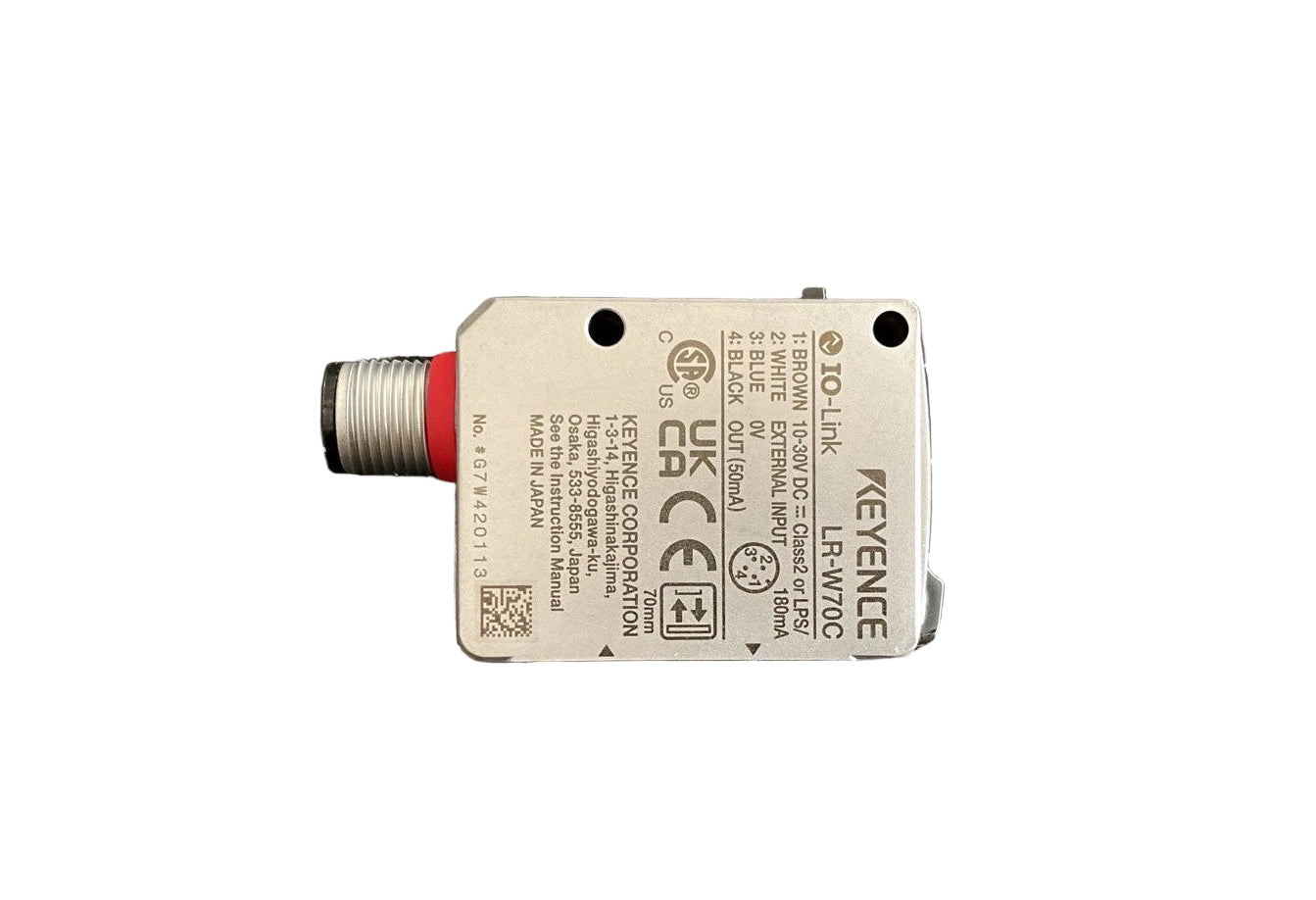

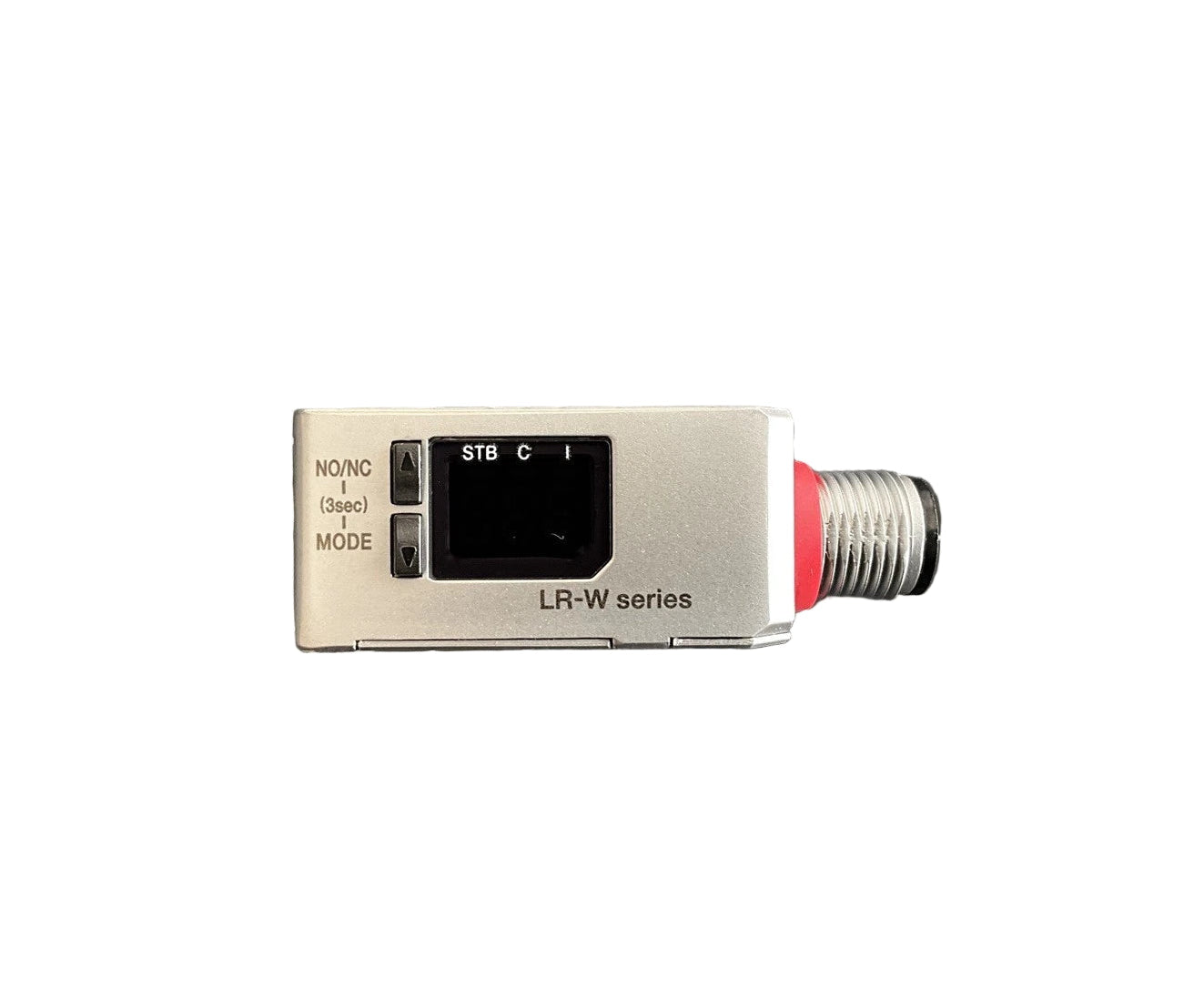

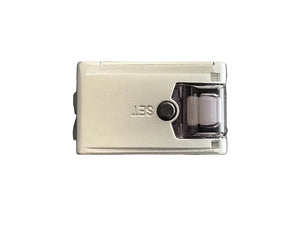

LR-W70C | Keyence LR-W Series Full-Spectrum Dual-Spot Sensor, 30–70 mm Range, IP67
- Regular price
- $435.00
- Sale price
- $435.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: LR-W70C
Description
The Keyence LR-W70C is a compact, self-contained full-spectrum sensor designed for precise color, contrast, and presence detection. Featuring a dual-spot optical system and white LED light source, it provides exceptional detection stability across diverse target materials and surface finishes. With a durable zinc die-cast housing and IP65/IP67 protection rating, the LR-W70C performs reliably even in harsh industrial environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors & Switches |
| Part Number | LR-W70C |
| Subcategory | Sensor Accessory |
| Series | LR-W Series |
| Type | Small/Dual Spot Type |
| Connector | M12, 4-pin type |
| Detecting Distance | 30–70 mm (1.18″ to 2.76″) |
| Minimum Spot Diameter | 1.6 × 2.9 mm at 50 mm (0.06″ × 0.11″) |
| Light Source | White LED |
| Power Supply | 10–30 VDC (±10%), Class 2 or LPS |
| Current Consumption | 60 mA (24 VDC, no load); 110 mA (12 VDC, no load) |
| Output Type | NPN/PNP open collector selectable, 30 VDC max, 50 mA max |
| Output Configuration | NO/NC selectable |
| External Input | Tuning / Transmission ON/OFF selectable |
| Timer Functions | OFF/ON delay, OFF delay, One-shot |
| Response Time | 200 μs to 999 ms (selectable) |
| Enclosure Rating | IP65/IP67 (IEC60529) |
| Ambient Light Resistance | Incandescent: 10,000 lux; Sunlight: 20,000 lux |
| Operating Temperature | -20 °C to +50 °C (-4 °F to +122 °F) |
| Relative Humidity | 35–85 % RH (non-condensing) |
| Vibration Resistance | 10–55 Hz, 1.5 mm amplitude, 2 hours in each axis |
| Shock Resistance | 1000 m/s², 6 times each in X, Y, and Z |
| Material | Zinc die-cast case (nickel chrome plating); PPSU/PES buttons; PMMA lens cover |
| Weight | Approx. 75 g (0.13 lbs) |
Information About LR-W70C
As part of the LR-W Series, the LR-W70C combines advanced full-spectrum technology with user-friendly operation, enabling accurate detection of subtle differences in color and surface texture. Its dual-spot system enhances stability and minimizes interference from surface irregularities or environmental lighting changes. The unit supports both NPN and PNP open-collector outputs with selectable NO/NC configurations, making it compatible with a wide range of automation systems. Its rugged, corrosion-resistant design ensures long-term performance in environments exposed to dust, moisture, and vibration.
Key Features:
- Full-Spectrum White LED: Detects color, contrast, and intensity variations with superior precision.
- Dual-Spot Optical System: Enhances detection accuracy and minimizes influence from surface variations.
- Flexible Output: Selectable NPN/PNP, NO/NC configuration for easy integration.
- Fast Response Time: Adjustable from 200 μs to 999 ms to match application requirements.
- Simple Configuration: One-touch tuning with selectable delay and one-shot timer functions.
- Compact and Durable: Zinc die-cast housing with nickel-chrome plating for corrosion resistance.
- Wide Power Range: Operates on 10–30 VDC with low current consumption.
- Environmental Protection: IP65/IP67-rated for water and dust resistance.
- High Ambient Light Immunity: Operates reliably under sunlight up to 20,000 lux.
- Vibration and Shock Resistant: Built to withstand 1000 m/s² impact and continuous industrial vibration.
The LR-W70C is ideal for applications such as packaging inspection, part differentiation, label verification, and assembly automation.
