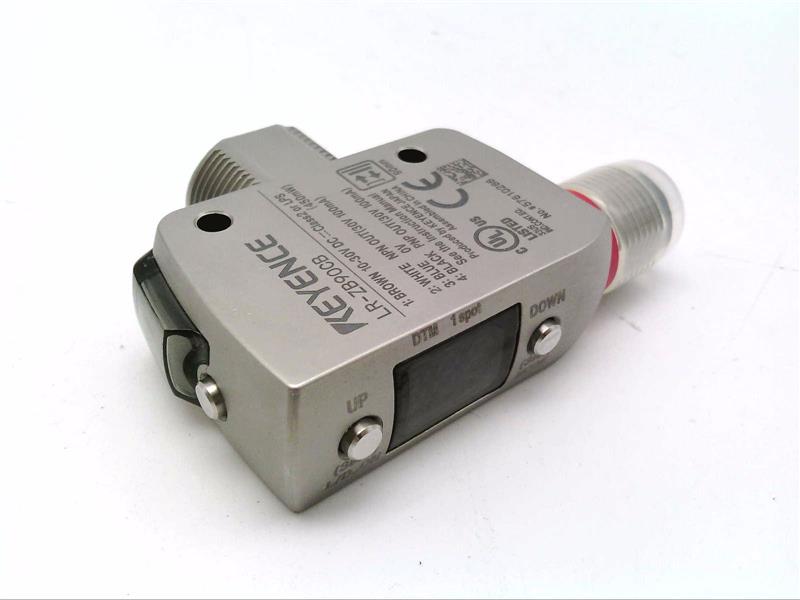

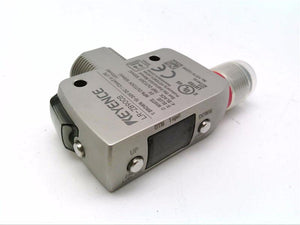

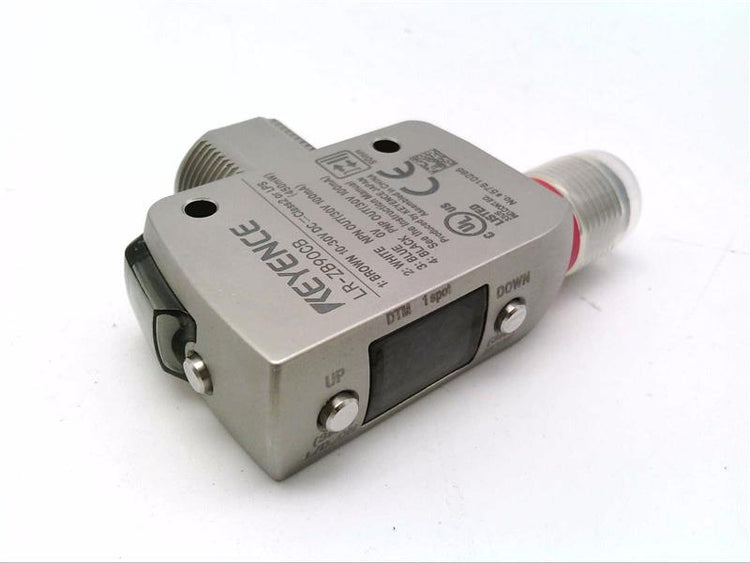

LR-ZB90CB | Keyence LR-Z Series M18 Laser Photoelectric Sensor 90 mm NPN/PNP IP68
- Regular price
- $532.00
- Sale price
- $532.00
- Regular price
-
$0.00
Couldn't load pickup availability
Do you need help?
Product Description P/N: LR-ZB90CB
Description
The Keyence LR-ZB90CB is a laser photoelectric sensor with a compact M18 threaded body and M12 connector, designed for precise object detection up to 90 mm. It combines high stability, long sensing range, and flexible NPN/PNP output selection, making it ideal for industrial automation and quality inspection applications.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Keyence |
| Category | Sensors & Switches |
| Part Number | LR-ZB90CB |
| Subcategory | Photoelectric |
| Series | LR-Z Series |
| Type | Laser photoelectric sensor |
| Sensing Range | 90 mm (fixed focus) |
| Light Source | Red laser diode |
| Output Type | NPN/PNP selectable |
| Operation Mode | Light-ON / Dark-ON selectable |
| Power Supply | 10–30 VDC |
| Power Consumption | 450 mW |
| Connection | M12 4-pin connector |
| Mounting | M18 threaded mount |
| Enclosure Rating | IP68 |
| Material | Stainless steel housing |
| Operating Temperature | –10 °C to +50 °C (14 °F to 122 °F) |
| Response Time | 1 ms typical |
| Indicator | Status and output LED indicators |
| Vibration Resistance | 10–55 Hz, double amplitude 1.5 mm in X, Y, Z |
| Shock Resistance | 500 m/s², 6 times in each axis |
| Weight | Approx. 0.20 lbs (90 g) |
Information About LR-ZB90CB
The LR-ZB90CB belongs to the Keyence LR-Z Series of photoelectric laser sensors, known for their rugged stainless-steel housings and exceptional environmental resistance. Using a red laser light source, it detects a wide range of targets—from metals to transparent materials—at consistent distances, regardless of color or surface finish. Its IP68-rated construction ensures durability in washdown and harsh manufacturing environments. With selectable Light-ON/Dark-ON modes and a simple M12 4-pin connection, the LR-ZB90CB offers flexibility for integration into existing control systems and reliable performance across a broad temperature range.
Key Features:
- Laser Sensing Precision: Red laser beam provides accurate detection up to 90 mm for varied materials.
- Dual Output Compatibility: NPN/PNP switching enables flexible integration with control systems.
- Robust Construction: IP68 stainless-steel housing resists water, oil, and dust exposure.
- Selectable Modes: Light-ON/Dark-ON operation adaptable to different detection tasks.
- Compact M18 Design: Threaded mount simplifies alignment and installation in tight spaces.
- Stable Detection: Maintains consistent performance across shiny, dark, or transparent targets.
- Temperature Resistant: Operates reliably between -10 °C and +50 °C (14 °F to 122 °F).
- Low Power Consumption: Operates efficiently on 10–30 VDC supply at 450 mW power usage.
- Quick Connection: Standard M12 4-pin connector ensures secure and easy wiring.
- Vibration-Resistant Body: Designed for stable operation in industrial motion or shock conditions.
The LR-ZB90CB delivers the accuracy and ruggedness essential for demanding detection tasks in automation and process monitoring.
