LR107402 | Ideal Automation Switch
- Regular price
- $67.00
- Sale price
- $67.00
- Regular price
-
Couldn't load pickup availability
Do you need help?
Product Description P/N: LR107402
Description

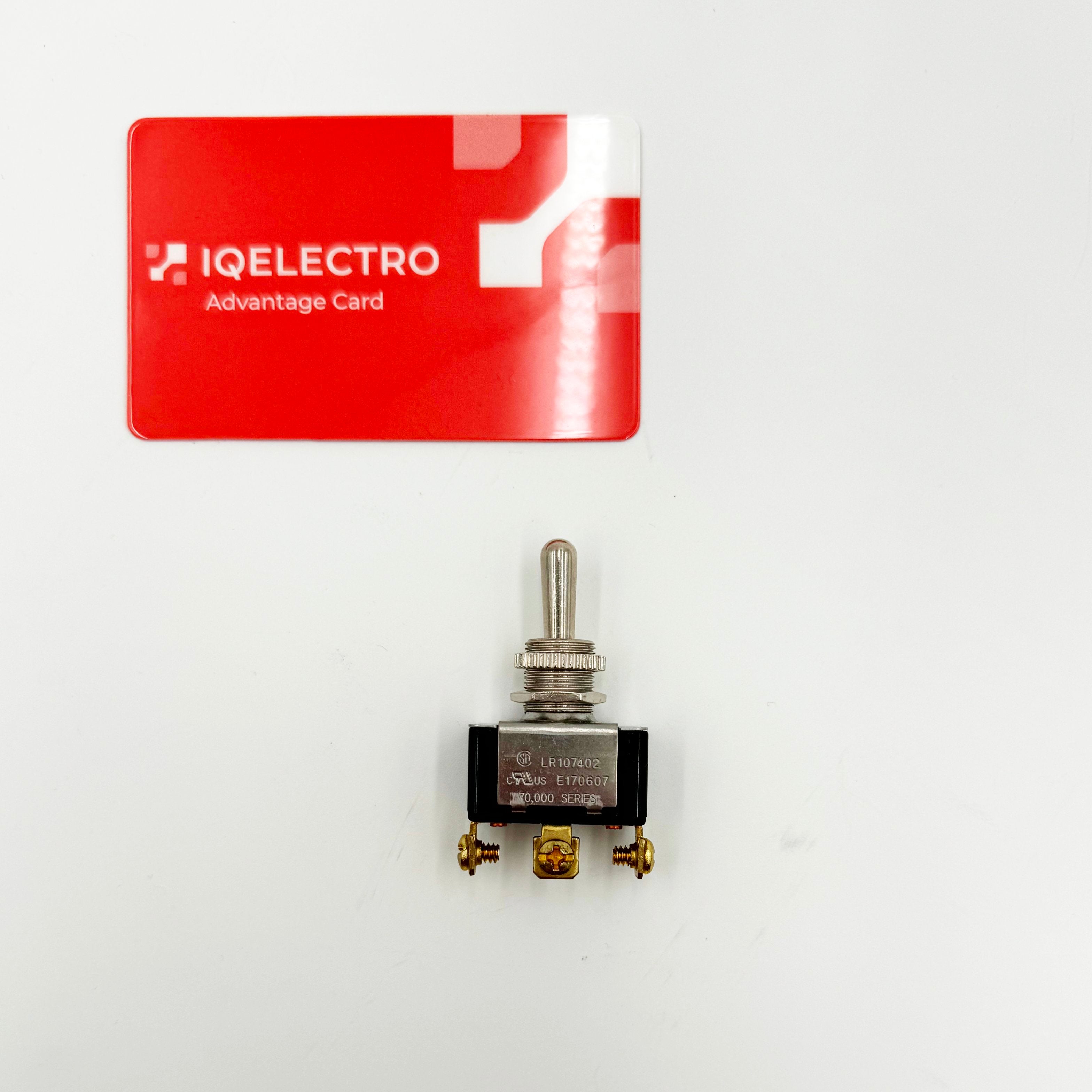

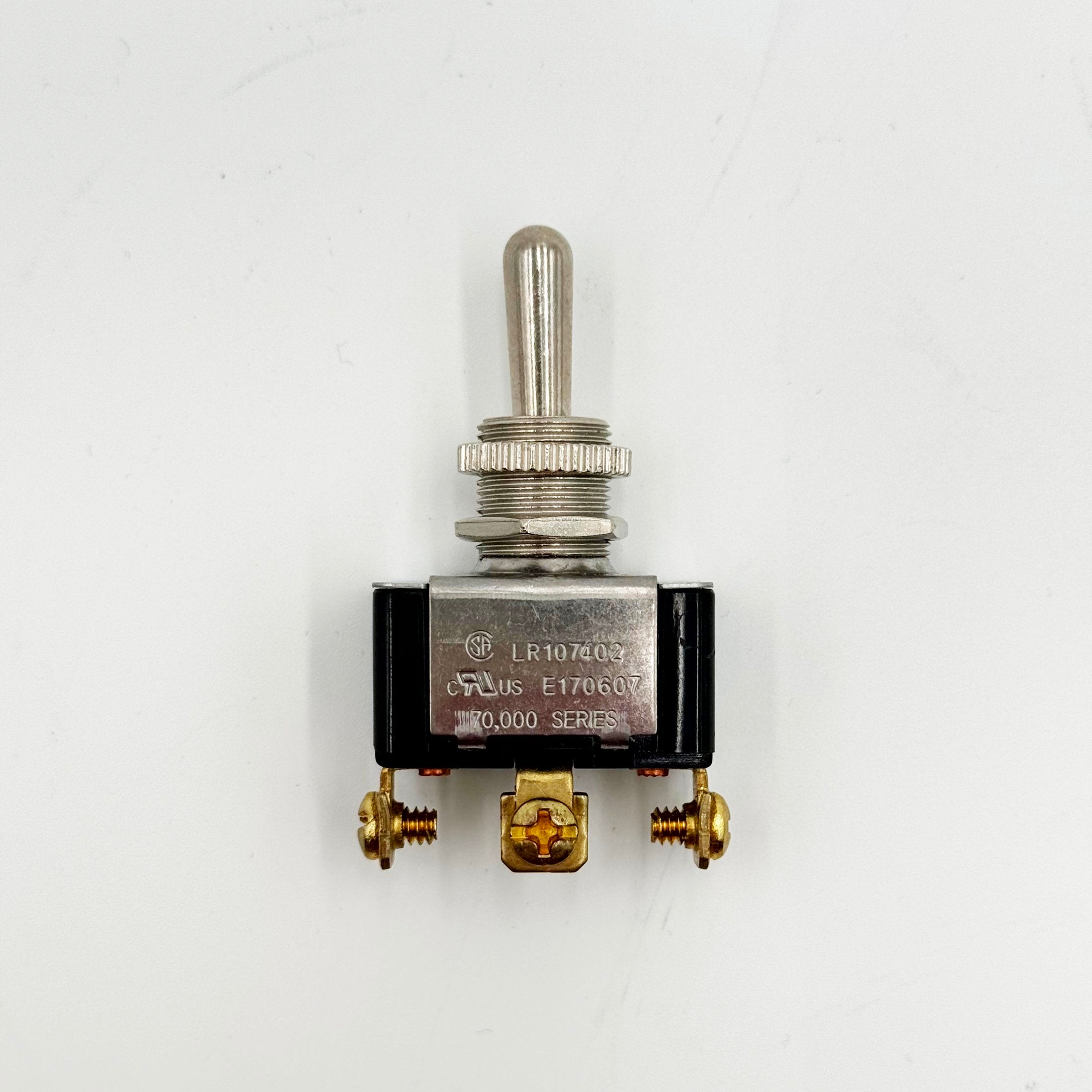

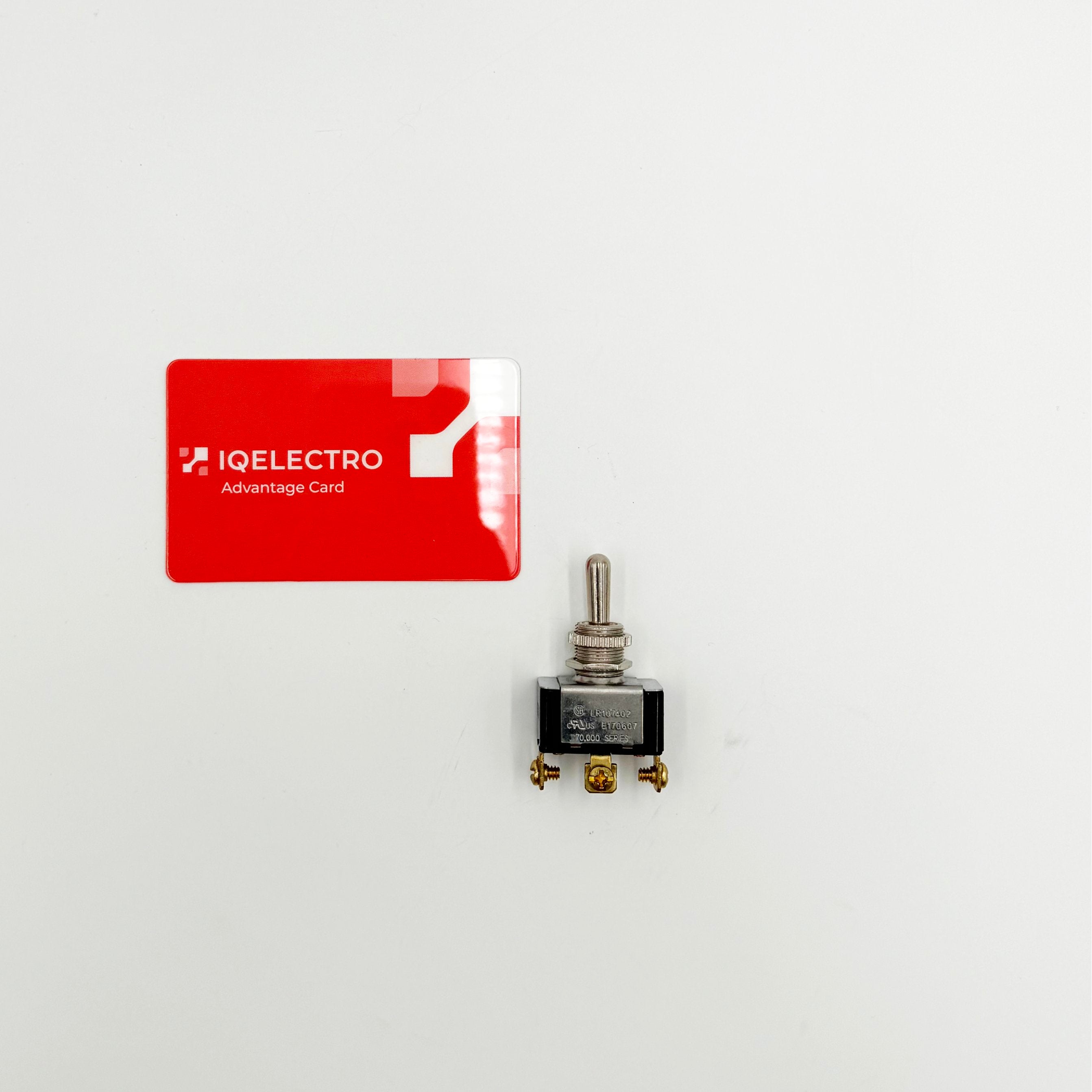

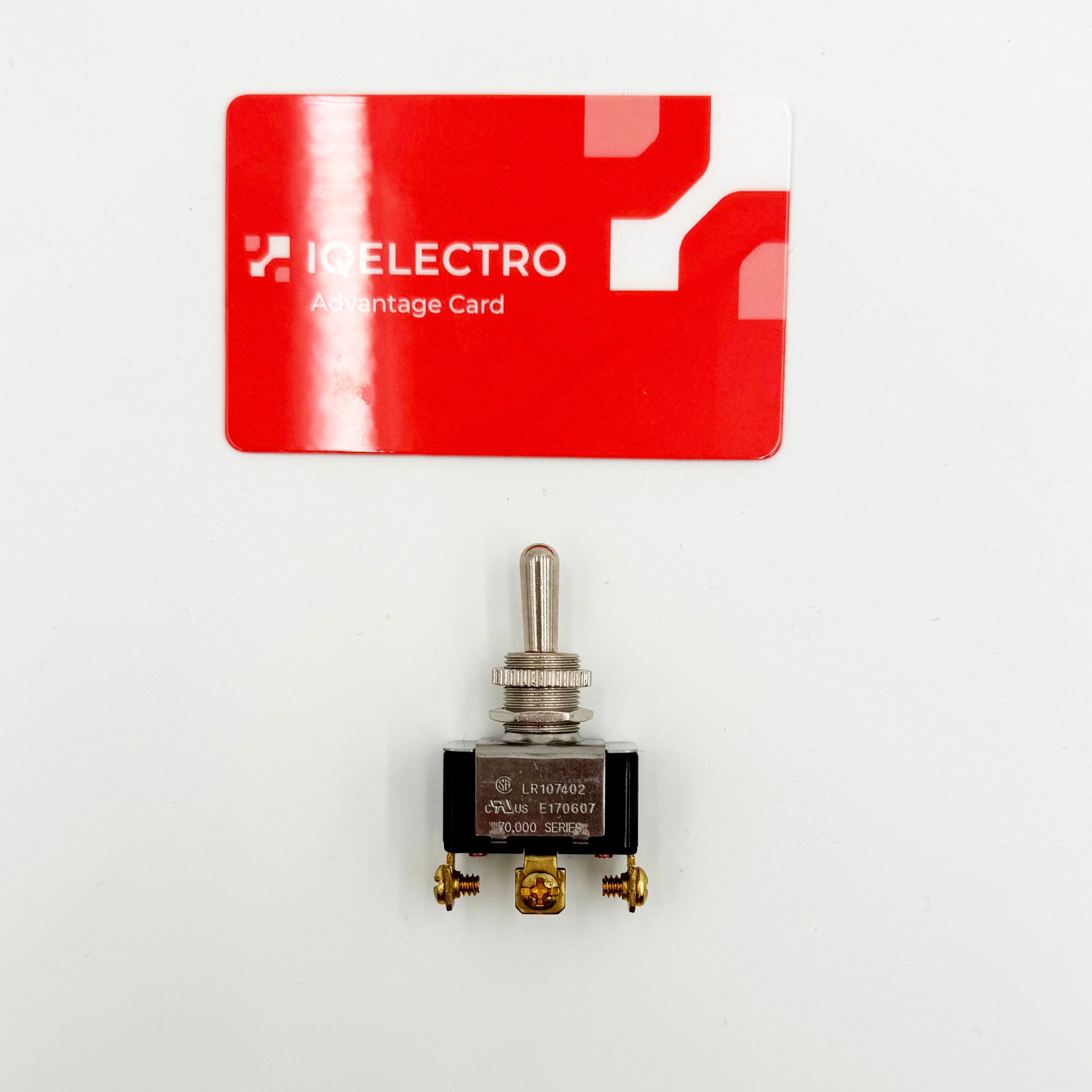

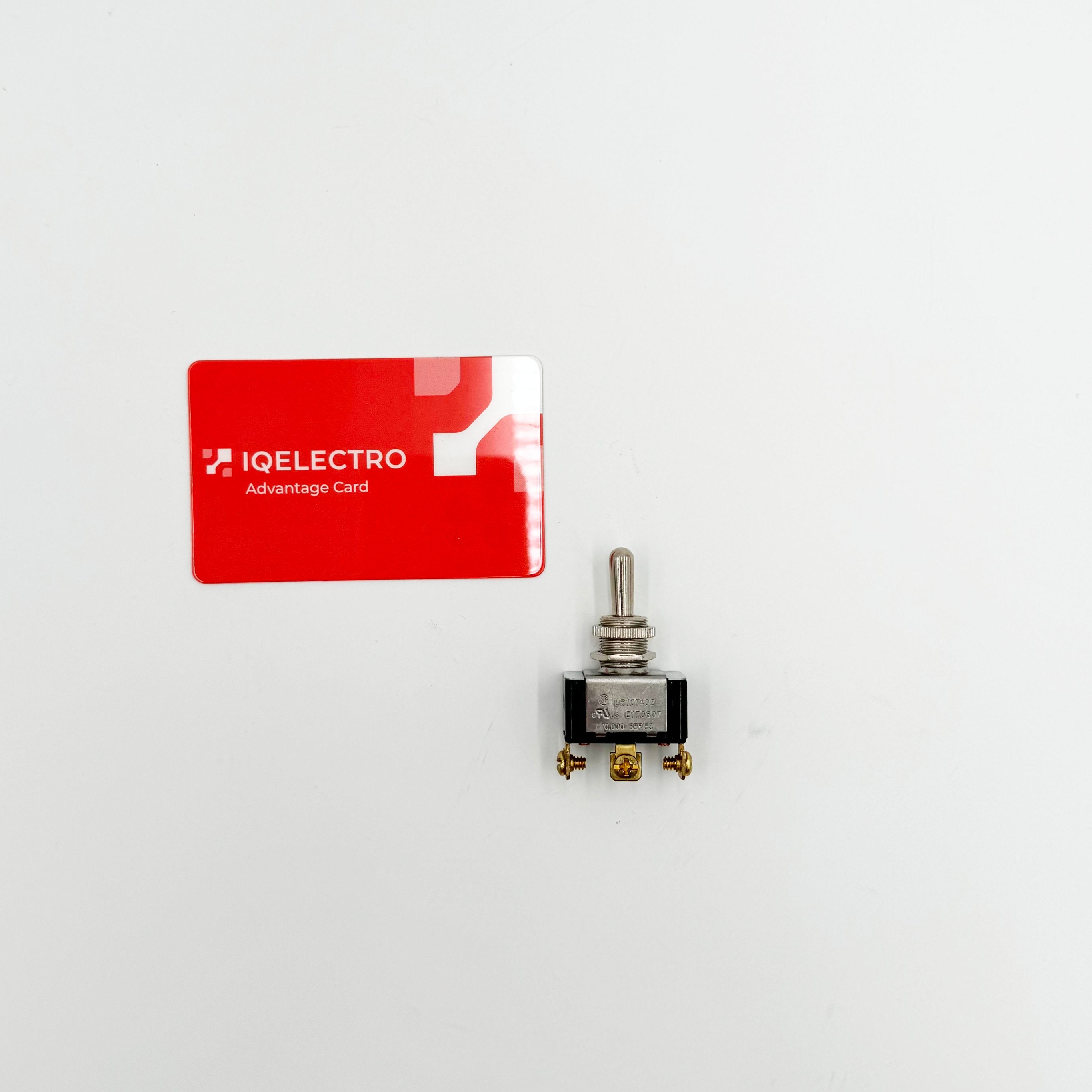

The Ideal LR107402 is a miniature toggle switch built for dependable electrical control in commercial and industrial systems. It provides durable switching performance, clear ON/OFF actuation, and compatibility with a wide range of circuit configurations.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Ideal |
| Category | Commercial Product Parts |
| Part Number | LR107402 |
| Subcategory | Miniature Toggle Switch |

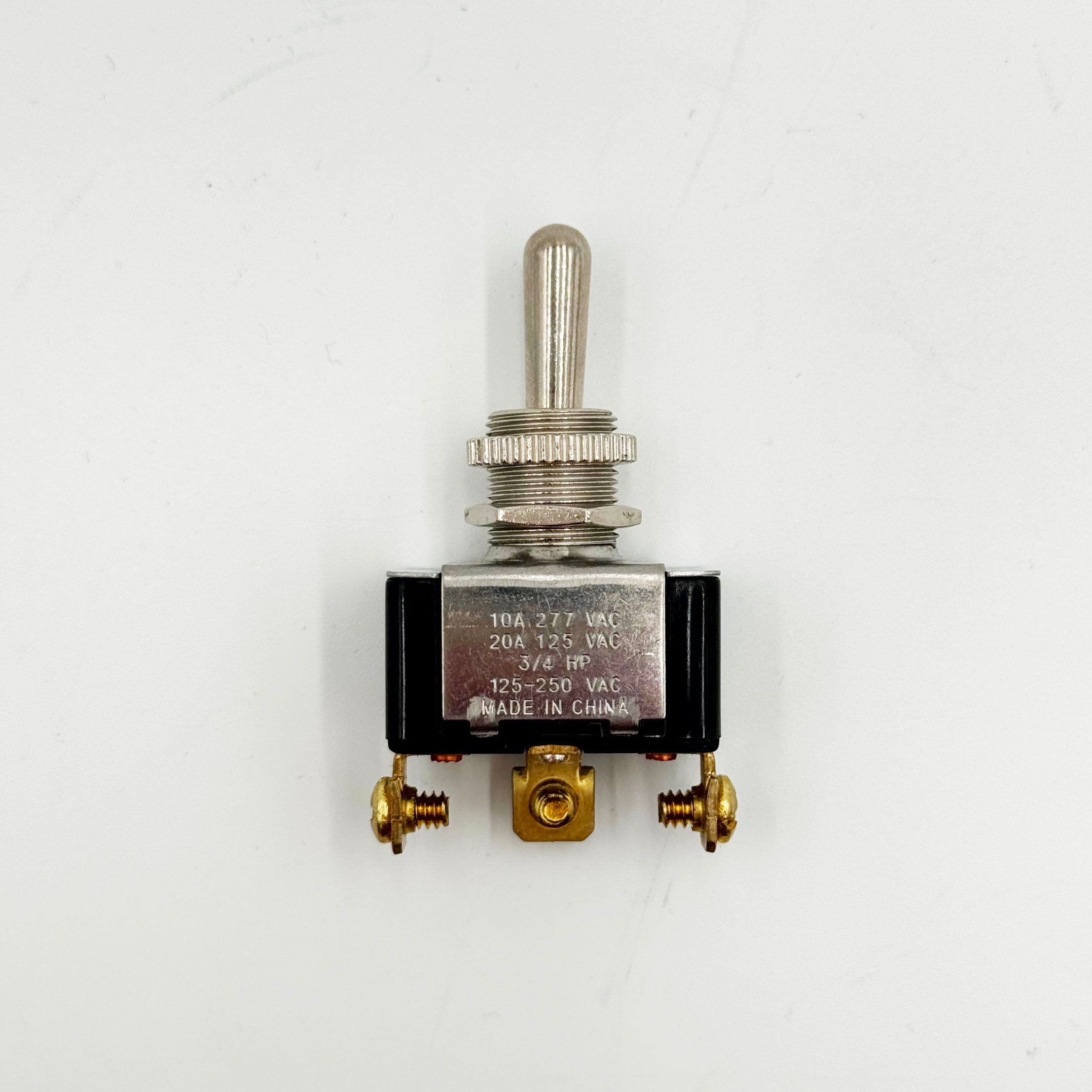

| Amp | 10 A- 277VAC; 20A- 125VAC |
| HP | 1-1/2 |
| Position | 2 (On/Off) |
| Screw Terminal | 4 |
| Series | 80.000 |
| Voltage Support | 125–250 VAC |
Information About LR107402
The LR107402 belongs to Ideal’s 80.000 series of miniature toggle switches engineered for precise electrical control in demanding automation environments. It supports up to 10 A at 277 VAC and 20 A at 125 VAC, making it suitable for various load conditions across commercial installations. Designed with a two-position ON/OFF configuration, four screw terminals and robust internal components, the switch ensures consistent functionality and long operating life. Its compact form factor and straightforward wiring layout enable seamless integration into automation panels, machinery interfaces and electrical distribution assemblies.
Key Features:
- Two-Position Toggle Design: Provides a straightforward ON/OFF switching mechanism for reliable control of electrical circuits.
- High Current Capacity: Rated for 10 A at 277 VAC and 20 A at 125 VAC, allowing use across multiple voltage and load conditions.
- Four Screw Terminals: Ensures secure wiring connections and supports stable mounting in control panels and automation systems.
- Durable Mechanical Construction: Built with robust materials to maintain long-term performance in active commercial or industrial environments.
- Series 80.000 Architecture: Part of Ideal’s established line of miniature switches engineered for precision and reliability.
- Versatile Voltage Support: Operates within 125–250 VAC ranges to accommodate varied electrical applications.
- Compact Integration: Small form factor enables easy installation into densely packed or space-restricted control assemblies.
- Consistent Electrical Performance: Designed to maintain reliable switching response under repetitive operation and varying system loads.
The LR107402 delivers the reliability and precision required for dependable electrical switching in automated and commercial control environments.
