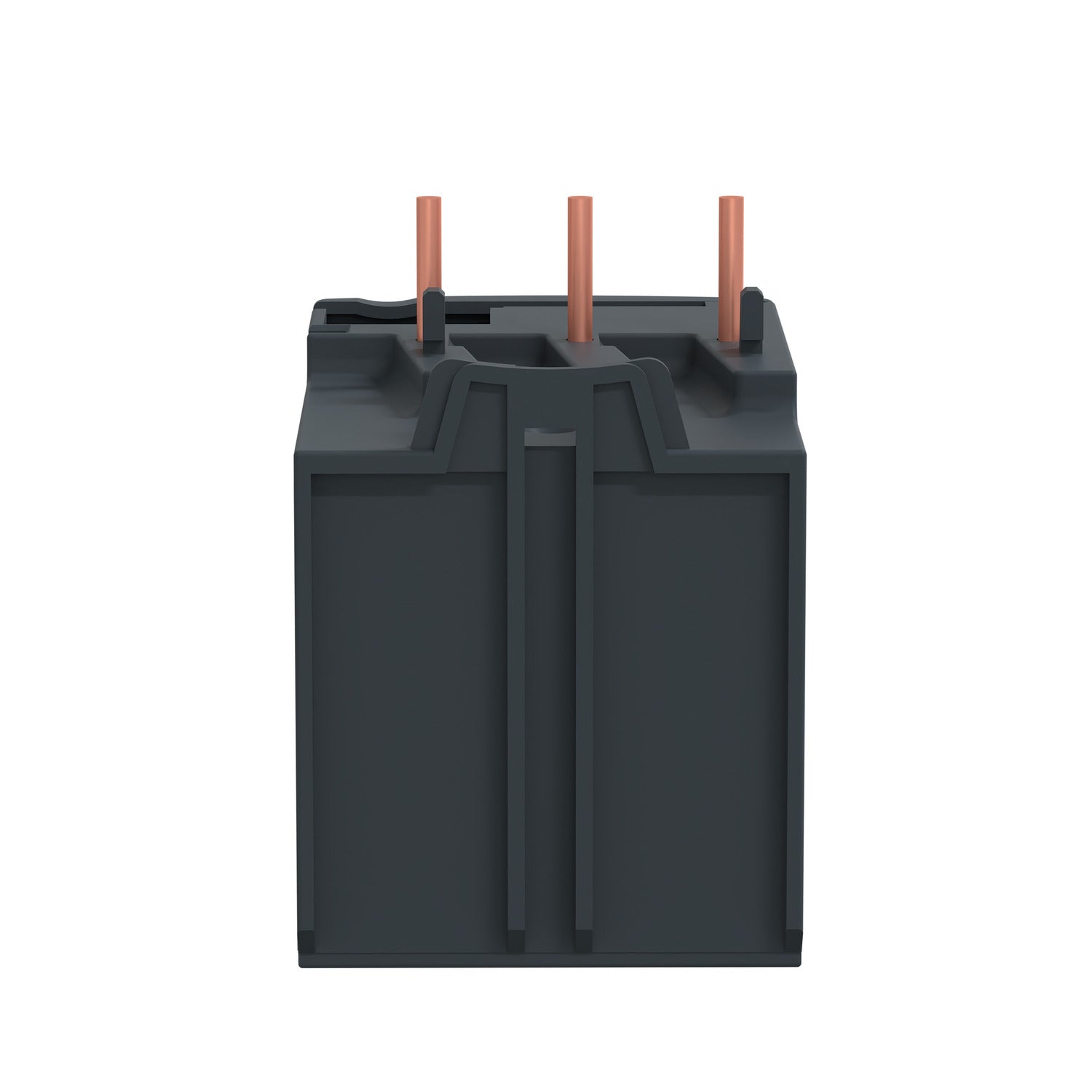

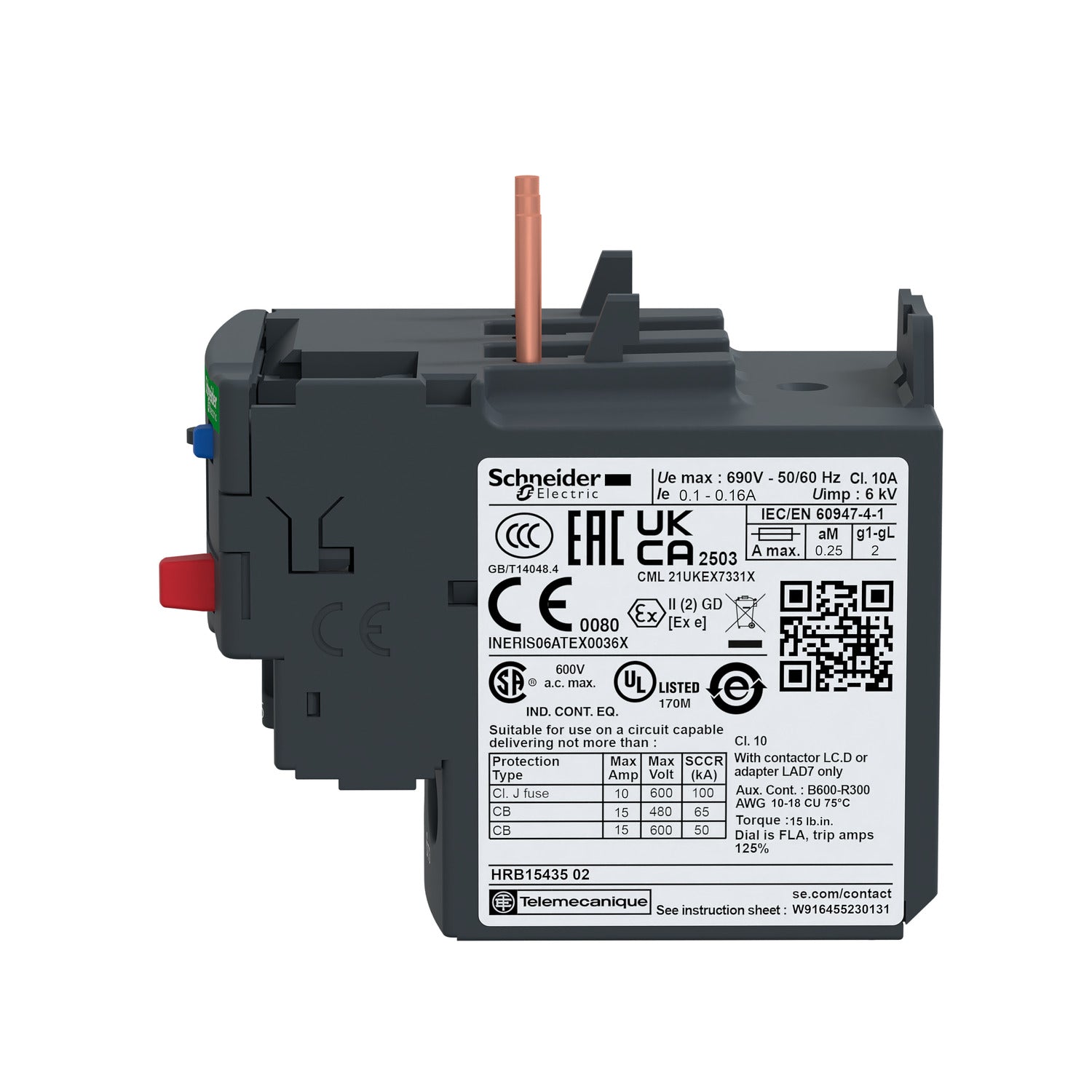

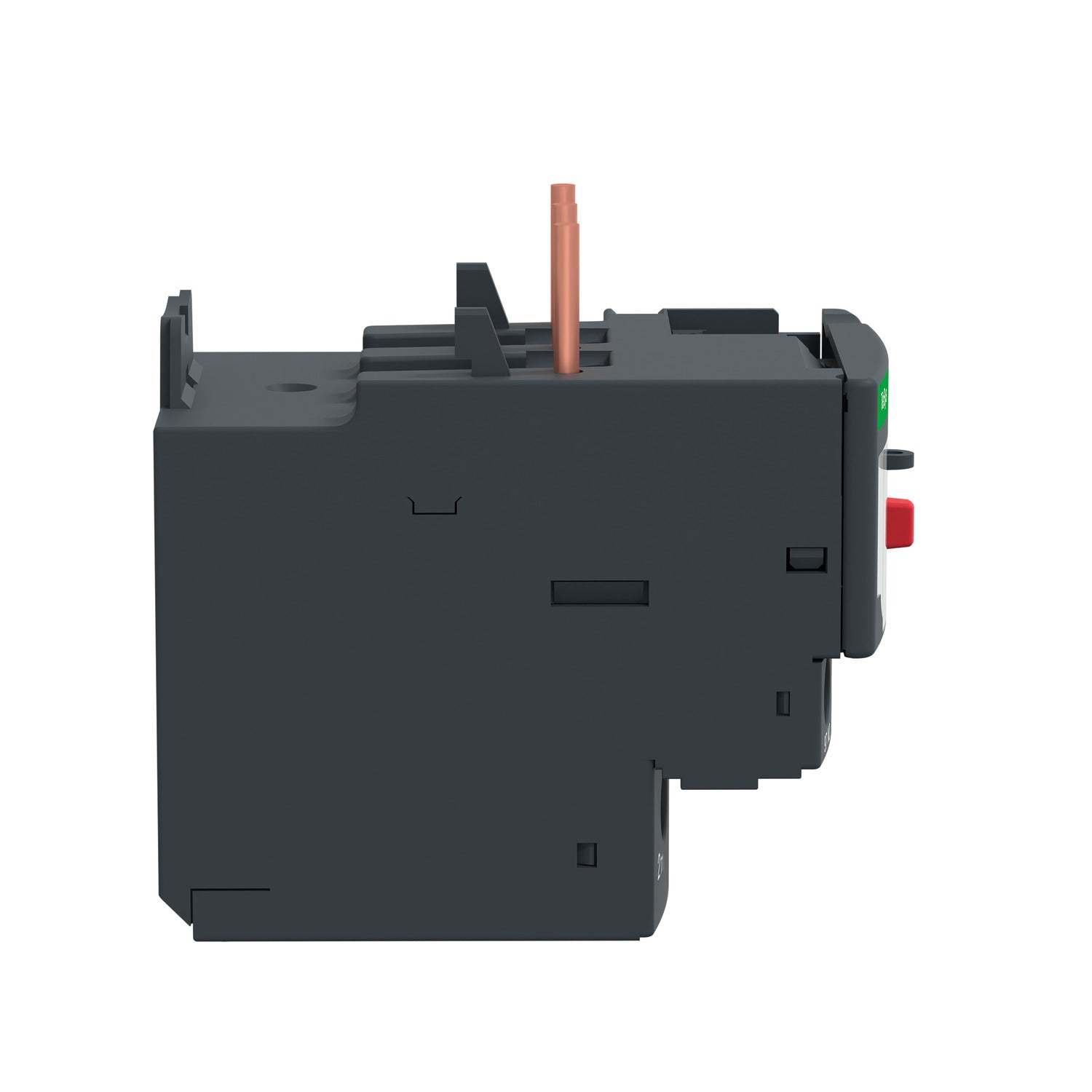

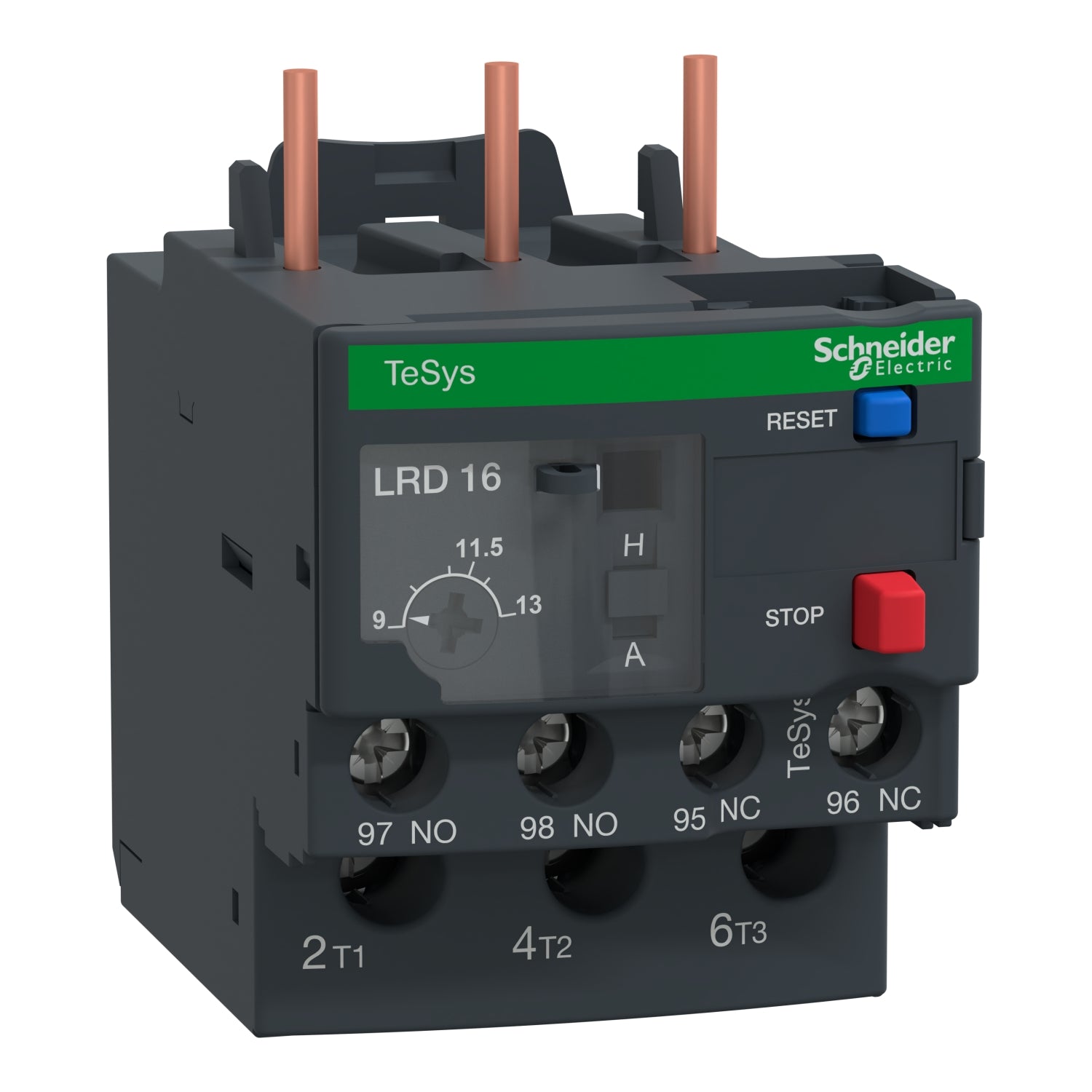

LRD16 | Schneider Electric TeSys Deca, Thermal Overload Relay
- Regular price
- $64.00
- Sale price
- $64.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: LRD16
Description
The LRD16 is a TeSys Deca thermal overload relay designed for integration with TeSys D contactors to form motor starters. These relays are compatible with TeSys D contactors ranging from 9 amps to 38 amps. They function by detecting overcurrents in motor supply lines. Upon detecting an overcurrent, the overload relay, in conjunction with the contactor, interrupts power to the motor, thereby preventing damage to its windings.
Technical Specifications
|
Part # |
LRD16 |
|
Category |
Contactors & Starters |
|
Subcategory |
Solid State Overload Relay |
|
Product or Component Type |
Differential thermal overload relay |
|
Device Short Name |
LRD |
|
Relay Application |
Motor protection |
|
Network Type |
DC, AC |
|
Thermal Overload Class |
Class 10A IEC 60947-4-1 |
|
Thermal Protection Adjustment Range |
9…13 A |
|
Network Frequency |
0…400 Hz |
|
Mounting Support |
Plate, with specific accessories; Rail, with specific accessories; Under contactor |
|
Tripping Threshold |
1.14 +/- 0.06 Ir IEC 60947-4-1 |
|
Auxiliary Contact Composition |
1 NO + 1 NC |
|
[Ith] Conventional Free Air Thermal Current |
5 A |
|
Signalling Circuit Permissible Current |
1.5 A 240 V AC-15; 0.1 A 250 V DC-13 |
|
[Ue] Rated Operational Voltage |
690 V AC 0…400 Hz power circuit IEC 60947-4-1 |
|
Associated Fuse Rating |
4 A gG for signalling circuit; 4 A BS for signalling circuit |
|
[Uimp] Rated Impulse Withstand Voltage |
6 kV |
|
Phase Failure Sensitivity |
Tripping current 130 % of Ir on two phases, last one at 0 |
|
Control Type |
Red push-button stop; Blue push-button reset |
|
Temperature Compensation |
-4…140 °F (-20…60 °C) |
|
Height |
2.60 in (66 mm) |
|
Width |
1.77 in (45 mm) |
|
Depth |
2.76 in (70 mm) |
|
Net Weight |
0.27 lb(US) (0.124 kg) |
|
Climatic Withstand |
IACS E10 |
|
IP Degree of Protection |
IP20 conforming to IEC 60529 |
|
Ambient Air Temperature for Operation |
-4…140 °F (-20…60 °C) without derating IEC 60947-4-1 |
|
Ambient Air Temperature for Storage |
-76…158 °F (-60…70 °C) |
|
Flame Retardance |
V1 conforming to UL 94 |
|
Mechanical Robustness |
Vibrations 6 Gn IEC 60068-2-6; Shocks 15 Gn for 11 ms IEC 60068-2-7 |
|
Dielectric Strength |
1.89 kV 50 Hz IEC 60947-1 |
Information About LRD16
The LRD16 TeSys Deca thermal overload relay is an integral component designed for use in conjunction with TeSys D contactors to facilitate motor starting operations. Engineered to support TeSys D contactors ranging from 9 amps to 38 amps, these differential thermal overload relays serve the critical function of detecting overcurrents within motor supply lines. Upon detection of an overcurrent, the relay coordinates with the contactor to interrupt power supply to the motor, thereby safeguarding motor windings from potential damage.
The adjustable trip current rating of the LRD16 ranges from 9 to 13 amperes, aligned with Class 10A specifications. This calibrated trip current rating ensures precise and reliable operation under varying load conditions, enhancing overall motor protection. The LRD16 relay complies with multiple international standards, including IEC, UL, CSA, CCC, EAC, ATEX, and Marine certifications, underscoring its suitability for diverse industrial applications and global markets. Additionally, it meets Green Premium compliance standards, adhering to environmental regulations such as RoHs/Reach.
Manufacturer information
Schneider Electric, a global leader in energy management and automation, offers innovative solutions for efficiency and sustainability. With a diverse portfolio spanning power distribution, automation, and renewable energy, Schneider Electric is committed to shaping a more connected and sustainable future.
