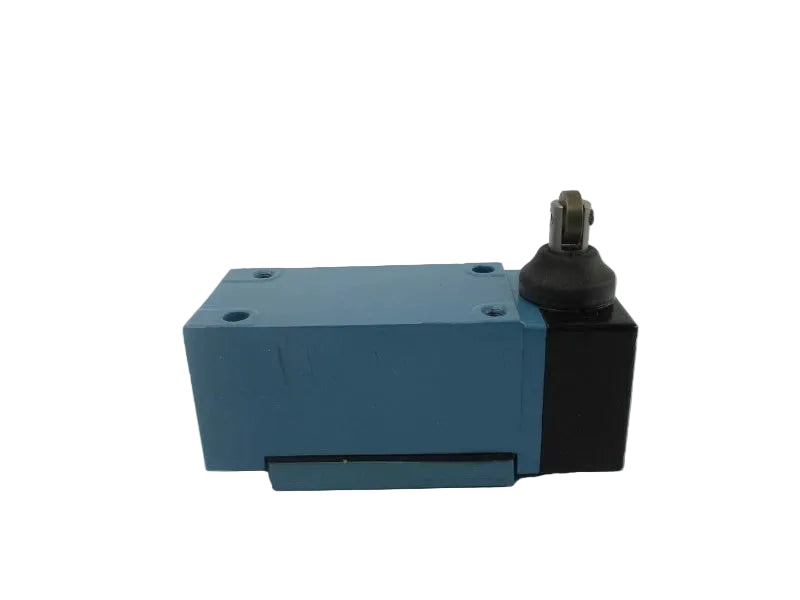

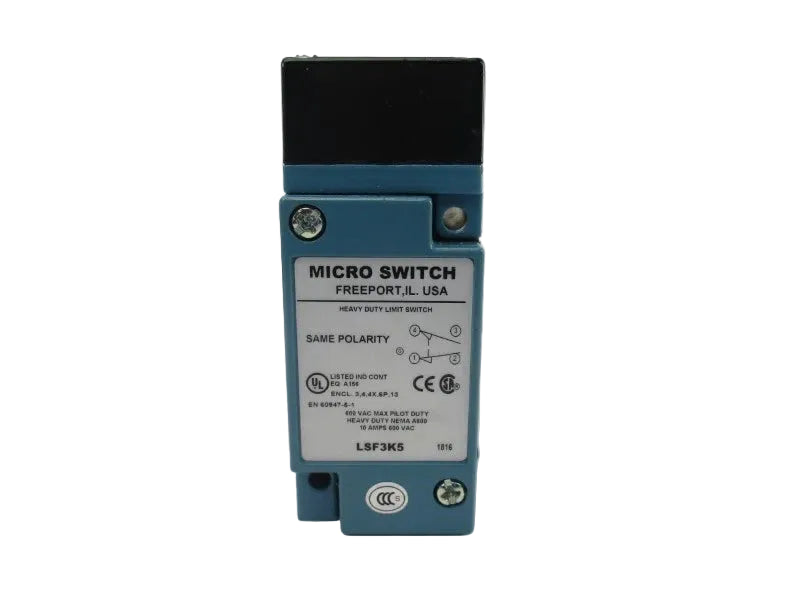

LSF3K5 | Honeywell HDLS SPDT Heavy-Duty Limit Switch Side Roller 10A 600VAC
- Regular price
- $783.75
- Sale price
- $783.75
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LSF3K5
Description
The Honeywell LSF3K5 is a heavy-duty HDLS Series limit switch designed for precise position detection in industrial machinery. Featuring an SPDT snap-action contact configuration and a side roller plunger actuator, it is rated at 10A up to 600 VAC or 250 VDC. Its rugged enclosure and right-angle body design provide reliable performance in demanding automation and material handling environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Electromechanical Components |
| Part Number | LSF3K5 |
| Subcategory | Limit Switches |
| Series | HDLS (MICRO SWITCH™) |
| Contact Form | SPDT |
| Switch Configuration | N.O./N.C. |
| Current Rating | 10 A |
| Voltage Rating AC | 600 VAC |
| Voltage Rating DC | 250 VDC |
| Actuator Type | Side Roller Plunger |
| Operating Force | 26.69 N |
| Body Orientation | Right Angle |
| Termination Style | Screw |
| Wiring Entry | Conduit |
| NEMA Rating | 1, 3, 4, 4X, 6, 6P, 12, 13 |
| Dimensions | 41.15 x 65.66 x 101.7 mm |
| Illumination | Non-Illuminated |
| RoHS Compliant | Yes |
| Weight | 2.1 lb |
Information About LSF3K5
The LSF3K5 is part of Honeywell’s MICRO SWITCH™ HDLS Series, engineered for harsh industrial applications requiring durable mechanical construction and environmental sealing. It incorporates a single pole double throw (SPDT) contact arrangement with normally open and normally closed outputs for flexible control system integration. The side roller plunger actuator enables smooth actuation from cam or machine components while accommodating alignment variations. Designed with conduit entry and screw terminals inside a sealed housing, it meets multiple NEMA enclosure ratings for protection against dust, moisture, and washdown conditions.
Key Features:
- HDLS Heavy-Duty Construction: Built for long-term reliability in industrial environments.
- SPDT Snap-Action Contacts: Provides N.O./N.C. outputs for versatile control logic.
- Side Roller Plunger Actuator: Ensures smooth and accurate mechanical engagement.
- 10A Electrical Rating: Supports control circuits up to 600 VAC and 250 VDC.
- High Operating Force (26.69 N): Suitable for robust machine actuation requirements.
- Multiple NEMA Ratings (1, 3, 4, 4X, 6, 6P, 12, 13): Designed for indoor, outdoor, and washdown environments.
- Right Angle Body Orientation: Facilitates compact installation on machinery frames.
- Conduit Wiring Entry with Screw Terminals: Enables secure and protected field wiring.
The LSF3K5 delivers the reliability and precision required for industrial position sensing and machine control systems.
