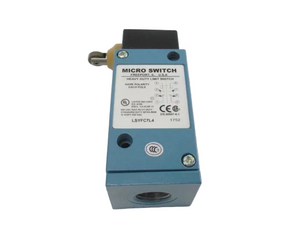

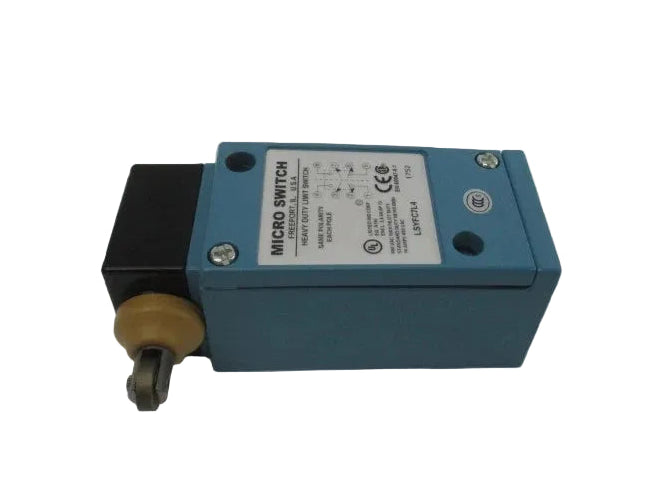

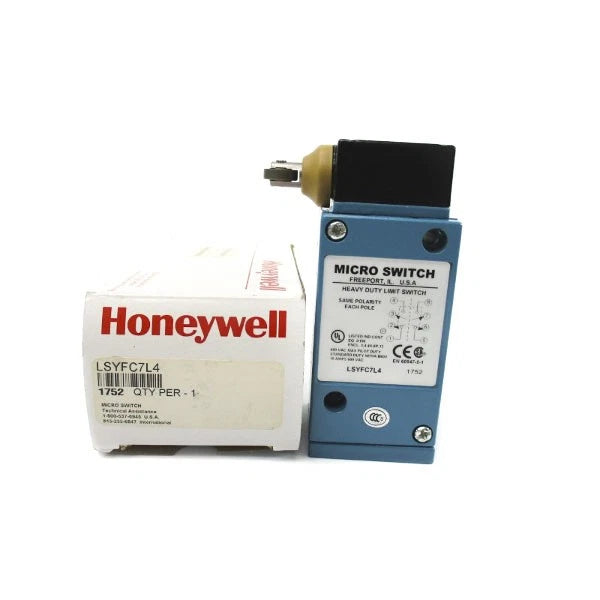

LSYFC7L4 | Honeywell HDLS DPDT Side Roller Plunger Limit Switch
- Regular price
- $1,899.05
- Sale price
- $1,899.05
- Regular price
-
Couldn't load pickup availability
Product Description P/N: LSYFC7L4
Description
The Honeywell LSYFC7L4 is an HDLS Series limit switch featuring a side roller plunger actuator and DPDT contact configuration. Designed for industrial position sensing and machine control, it provides snap-action momentary switching with high voltage and current ratings. The unit supports panel or chassis mounting and is built for operation in demanding environments.
Technical Specifications
| Condition | New/Never Used Surplus |
| Brand | Honeywell |
| Category | Sensors & Switches |
| Part Number | LSYFC7L4 |
| Subcategory | Limit Switch |
| Series | HDLS |
| Contact Configuration | DPDT |
| Switch Function | Momentary (On-Mom) |
| Actuator Type | Side Roller Plunger |
| Current Rating | 10 A AC |
| Voltage Rating (AC) | 600 VAC |
| Voltage Rating (DC) | 250 VDC |
| Operating Force | 26.69 N |
| Termination Type | Screw Terminal |
| Ingress Protection | IP65, IP66, IP67 |
| Operating Temperature Range | -12°C to +121°C |
| Mounting Type | Panel/Chassis Mount |
| Weight | 2.91 lbs |
Information About LSYFC7L4
The LSYFC7L4 is part of Honeywell’s HDLS (Heavy-Duty Limit Switch) series under the MICRO SWITCH™ product line. It incorporates a snap-acting DPDT contact mechanism with screw terminal connections for secure wiring. The switch is epoxy terminal sealed and rated for IP65, IP66, and IP67 sealing, supporting use in harsh industrial applications. Engineered for durability, it offers high AC and DC voltage ratings and is suitable for automation systems, material handling equipment, and machinery position detection.
Key Features:
-
DPDT Contact Configuration: Provides double-pole, double-throw switching.
-
Side Roller Plunger Actuator: Enables mechanical position detection via lateral motion.
-
Snap-Action Mechanism: Delivers momentary switching response.
-
High Electrical Rating: Rated up to 10A at 600 VAC.
-
Industrial Sealing: Epoxy terminal sealed with IP65/IP66/IP67 protection.
-
Screw Terminal Connections: Supports secure and reliable wiring.
-
Wide Temperature Range: Operates from -12°C to +121°C.
-
Heavy-Duty Construction: Designed for industrial automation environments.
The LSYFC7L4 delivers the reliability and precision required for industrial limit sensing and machine control applications.
