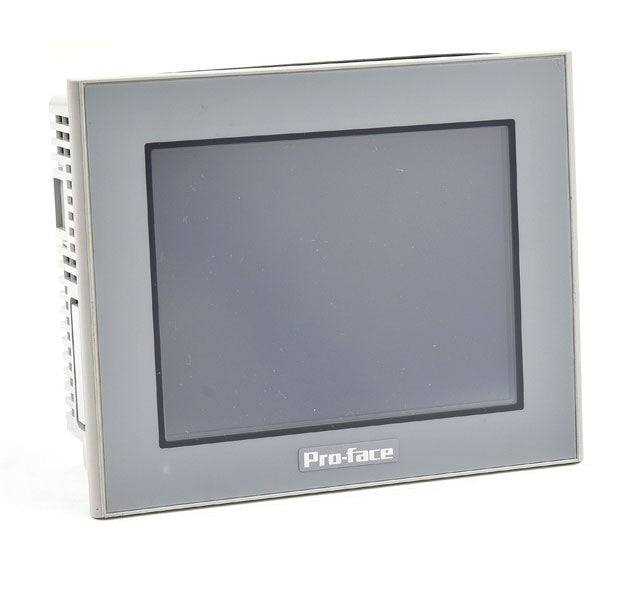

LT3300-S1-D24-K | Pro-face Proface 5.7 Inch STN Color LCD LT-3000
- Regular price
- $1,199.00
- Sale price
- $1,199.00
- Regular price
-
Couldn't load pickup availability
Do you need more quantity?
Product Description P/N: LT3300-S1-D24-K
Description
The LT3300-S1-D24-K is a 5.7-inch STN color LCD touch panel from Proface, part of the LT-3000 series. It is designed for use in industrial control applications, providing an interface for monitoring and controlling processes. The display operates on a 24V DC power supply and features a color STN LCD, suitable for use in various automation systems.
Technical Specifications
Information About LT3300-S1-D24-K
The LT3300-S1-D24-K is an industrial-grade operator interface terminal manufactured by Pro-Face, part of the LT3000 series. Designed for advanced monitoring and control applications, this model provides a user-friendly and efficient interface for industrial automation systems. Known for its reliability and robust performance, the LT3300-S1-D24-K is equipped with several key features that enhance its utility in demanding industrial environments.
At the heart of the LT3300-S1-D24-K is a 5.7-inch STN color LCD display. The STN (Super Twisted Nematic) technology allows for a clear and readable screen, even in environments with varying lighting conditions. The display size provides sufficient screen real estate for complex graphical interfaces, making it ideal for controlling and monitoring multiple variables and processes. The color display further enhances user experience by allowing color-coded data, alerts, and controls, improving ease of use and system interaction.
This operator interface terminal is powered by a 24V DC supply and has a power consumption rating of 27 watts, making it energy efficient while delivering powerful performance. The 24V DC power input is standard in industrial environments, making it suitable for easy integration into existing systems. The LT3300-S1-D24-K also supports a maximum in-rush current of 30A, ensuring that the system starts up reliably even under high load conditions. In terms of electrical stability, the unit is designed to tolerate an allowable voltage drop of 3 ms or less, offering protection against brief power fluctuations or inconsistencies, which are common in industrial settings.
The LT3300-S1-D24-K features a sink output type, which is commonly used in industrial applications to control devices such as actuators, motors, and other external equipment. The sink output configuration ensures efficient switching of devices that require current flow from the output to the ground. The module supports output pulses of up to 65 kHz, offering high-speed control for applications that require precise timing and rapid switching. This high pulse rate makes the device ideal for applications that demand fast and accurate response times, such as motion control systems, high-speed sorting, and packaging equipment.
In terms of model specifics, the LT3300-S1-D24-K is identified by its global code, PFXLT3300SADK, and has the model number 3583401-01. These identifiers ensure that the correct model is selected for installation, preventing confusion with similar models in the LT3000 series. The LT3000 series itself is known for its flexibility, durability, and advanced features, making it a trusted choice for various automation environments.
Designed to operate reliably in harsh industrial environments, the LT3300-S1-D24-K is built to withstand the demands of continuous operation. Its robust construction ensures durability, while the advanced LCD display and output capabilities provide operators with the tools necessary to manage complex automation systems with efficiency. The unit’s compatibility with existing Pro-Face systems and components further simplifies installation and reduces the need for extensive system reconfigurations.
Overall, the LT3300-S1-D24-K is a powerful and versatile operator interface terminal designed for modern industrial automation needs. Its 5.7-inch STN color LCD provides clear and responsive graphical displays, while its 65 kHz output pulse capability ensures that it can handle high-speed control tasks with precision. With its energy-efficient 27W power consumption, support for sink output, and ability to operate reliably under challenging conditions, the LT3300-S1-D24-K is a high-performance solution for enhancing control and monitoring systems in a variety of industrial settings. Its compatibility with Pro-Face's LT3000 series makes it a valuable addition to any automated system, providing a robust, flexible, and dependable interface for operators to interact with their machinery and processes.
Manufacturer information
Over 30 years ago, Xycom Automation "ruggedized" the common computer terminal for human-machine interface in harsh industrial environments. Since then, more than 500,000 Xycom and Pro-face brand products have been installed on factory floors and in field operations worldwide.
In 2007 Xycom Automation changed its name to Pro-face to align the company with its parent, Digital Electronics (now Schneider Electric Japan Holdings Ltd.) and the Pro-face brand of HMI operator interface systems. Xycom IPCs continue to be a large part of the Pro-face America product line.
IQElectro 2 Year Warranty
IQElectro offers a 2-Year Warranty on all our products. This complimentary two-year warranty ensures that every purchase from IQElectro is a secure investment in the future of your company.Warranty Terms
